Converter Housing Removal

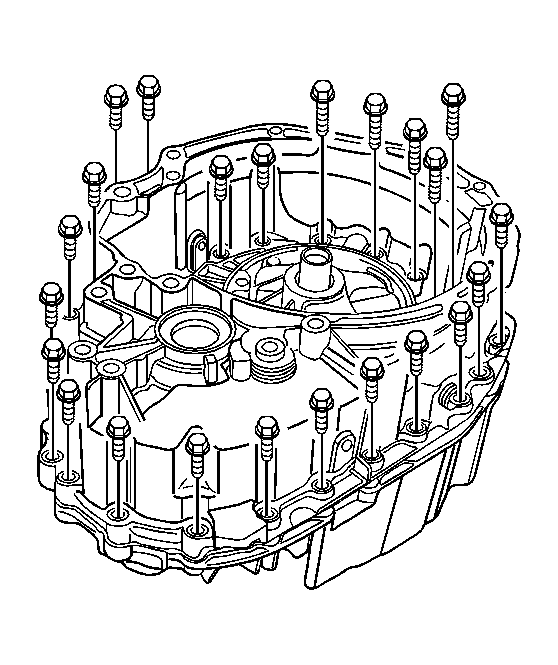

    Fig 1: View Of Torque Converter And Housing Bolts
    GM1256032Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Safety Glasses Caution .
  1. Remove the torque converter bolts.
  2. Tap the converter housing lightly to remove the housing.
  3. Remove the metal gasket.
  4. Remove the paper gasket.
    5. Fig 2: Locating Oil Filter And Bolt
    GM1256035Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil filter bolt and the oil filter.
    6. Fig 3: View Of Baffle Plate And Bolts
    GM1256036Courtesy of GENERAL MOTORS CORP.
  6. Remove the baffle plate bolts and the baffle plate.
    7. Fig 4: Removing Line Pressure Measurement Plug
    GM1256037Courtesy of GENERAL MOTORS CORP.
  7. Remove the line pressure measurement plug.
