Installation Procedure

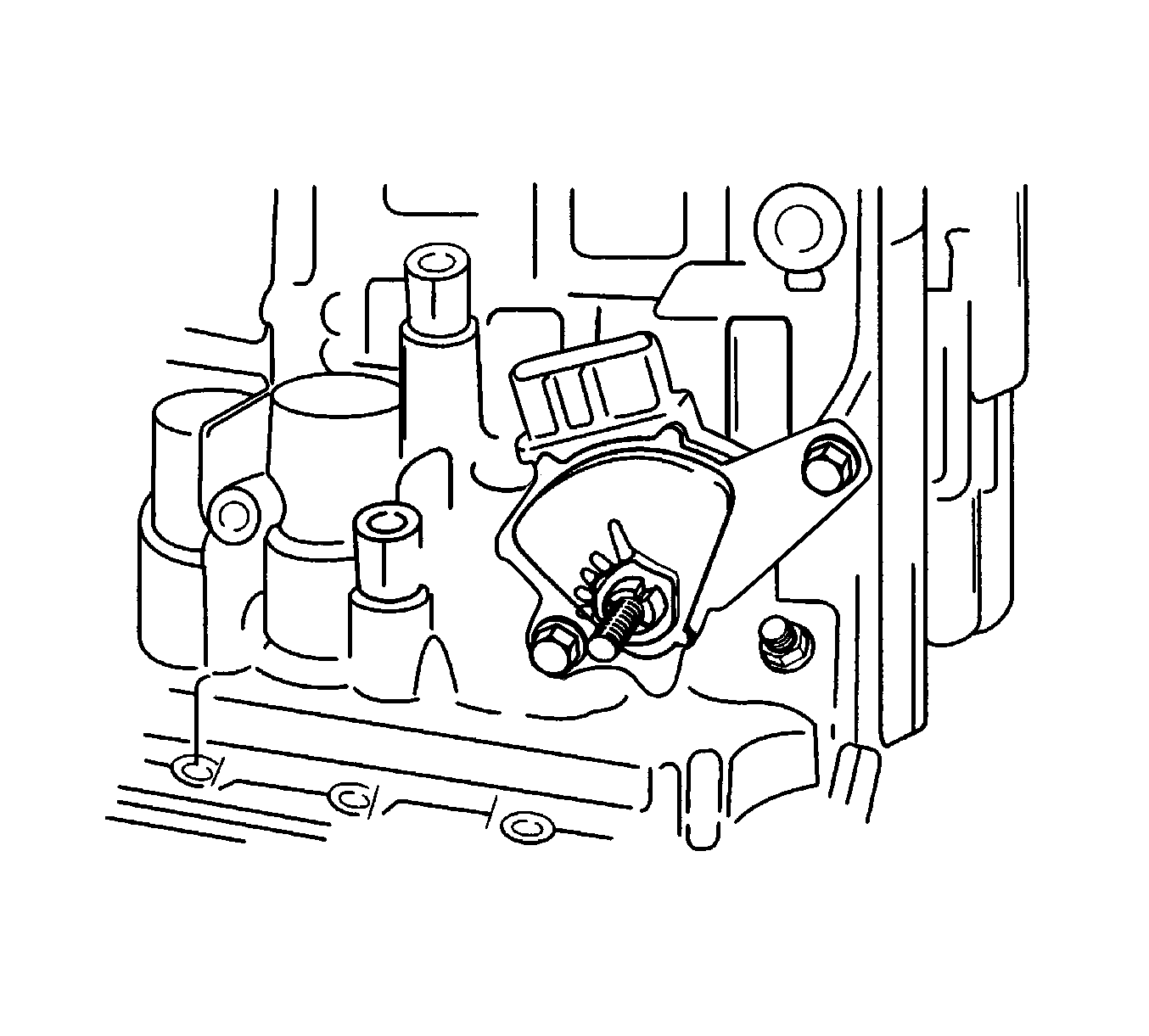

Fig 1: Identifying PNP Switch And Manual Valve Lever Shaft

Courtesy of GENERAL MOTORS CORP.

Install the PNP switch onto the manual valve lever shaft and temporarily install the 2 adjusting bolts.

NOTE: Refer to Fastener Notice .

Install the new lock washer and nuts.
Tighten: Tighten the nuts to 12 N.m (106 lb in) .

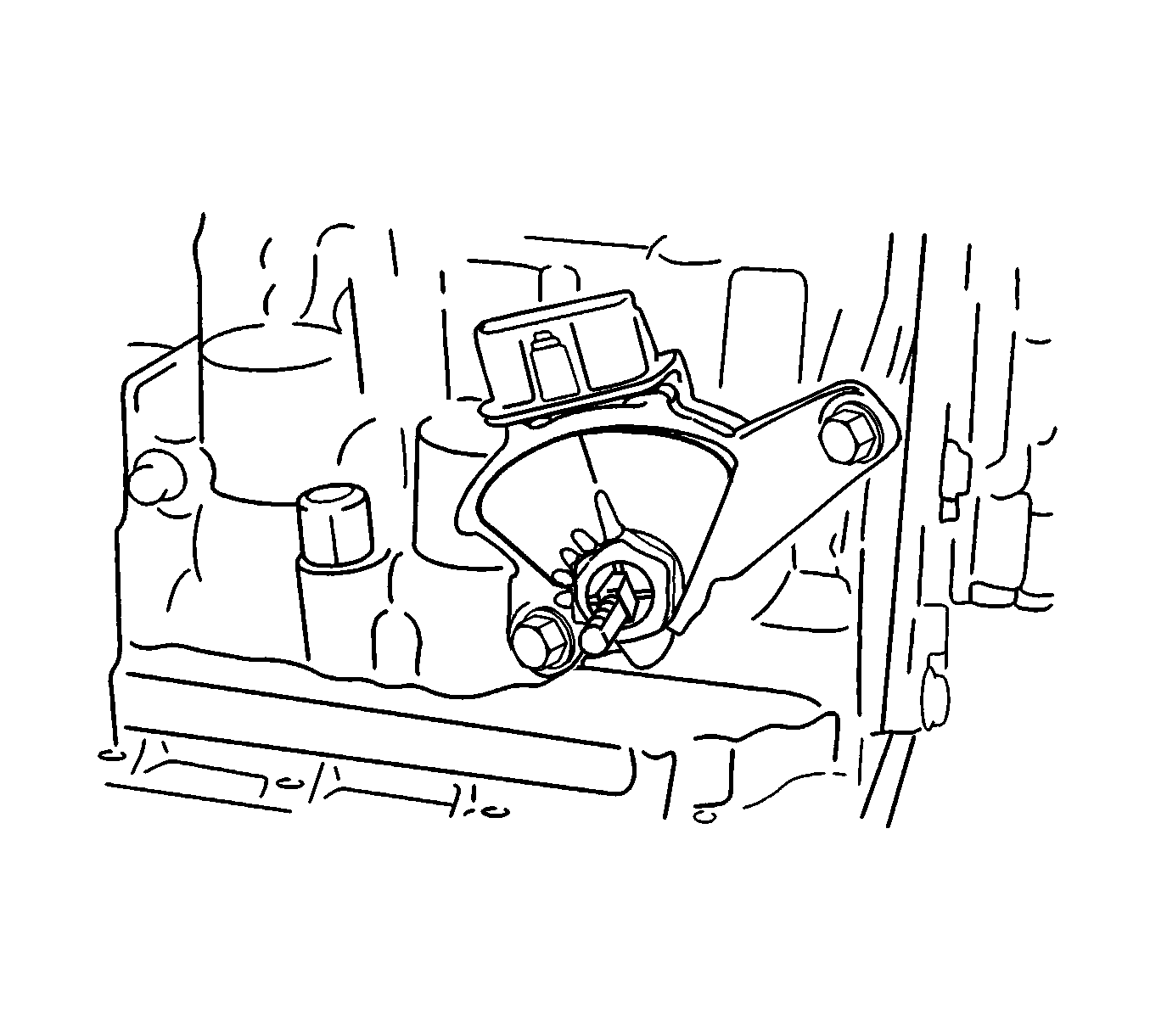

Fig 2: View Of PNP Switch Lever

Courtesy of GENERAL MOTORS CORP.

Temporarily install the control lever
Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
Remove the control lever.

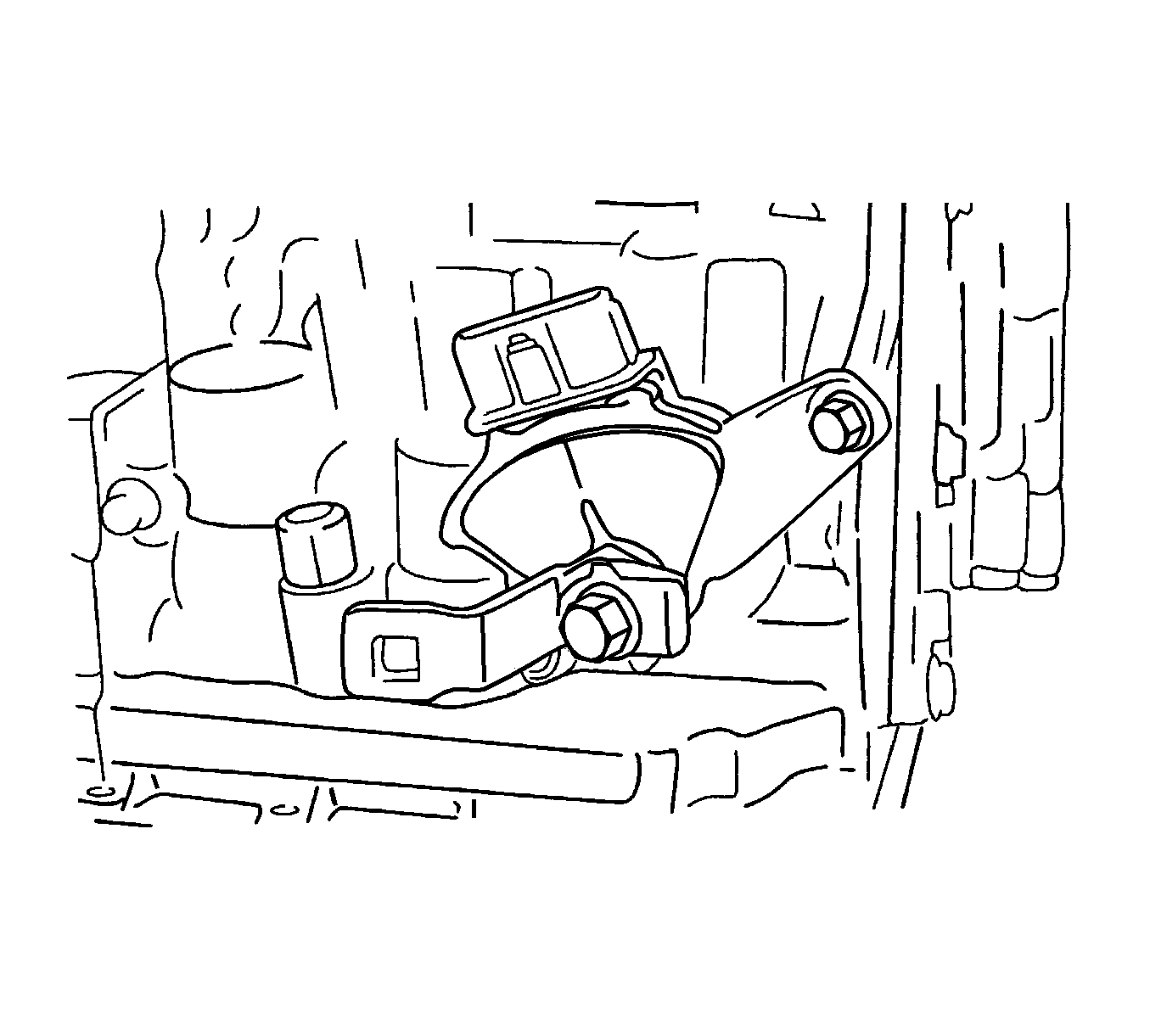

Fig 3: Aligning Groove With Neutral Basic Line

Courtesy of GENERAL MOTORS CORP.

Align the groove with the neutral basic line, then install the 2 bolts.
Tighten: Tighten the 2 bolts to 5.4 N.m (48 lb in) .

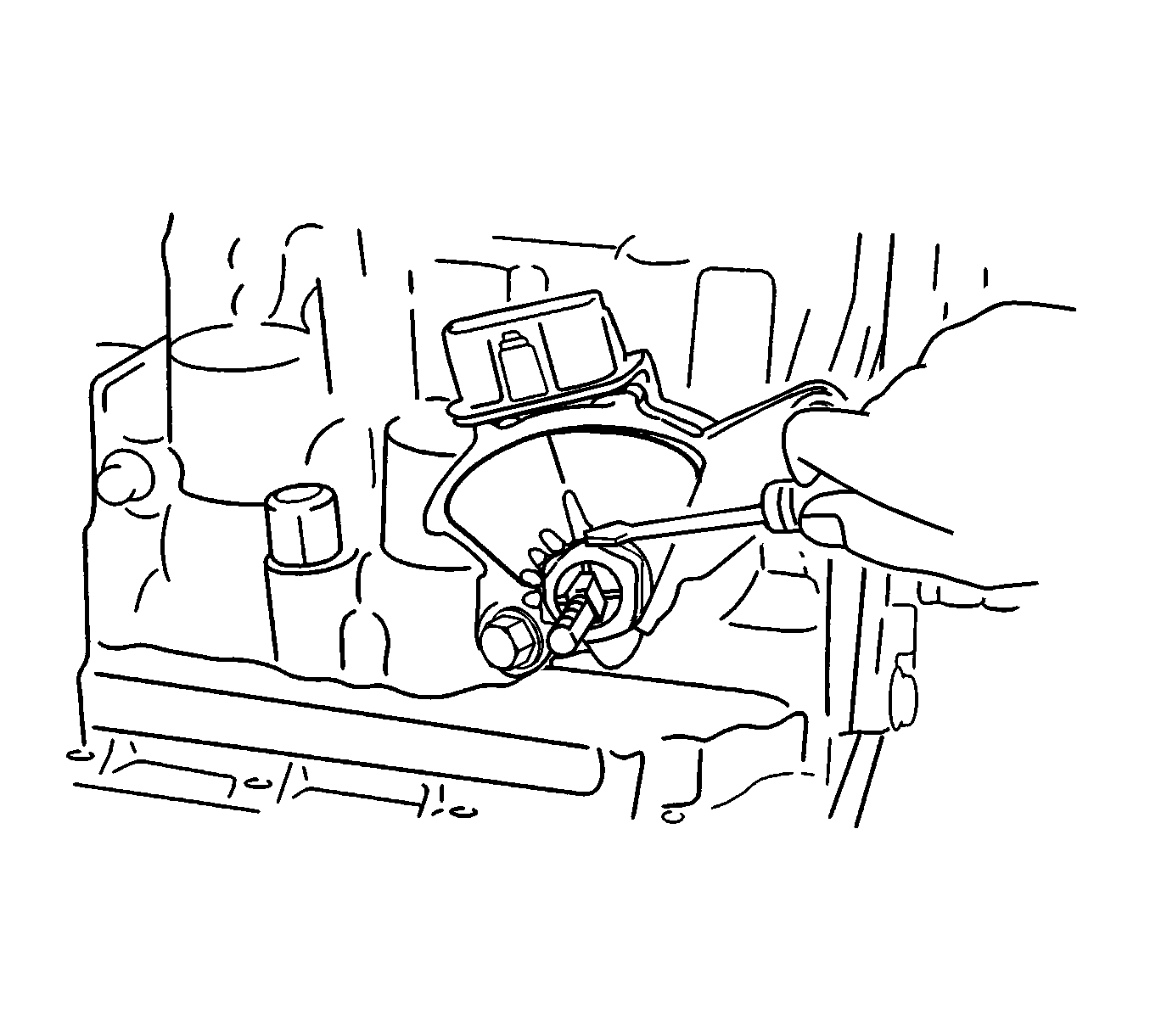

Fig 4: Staking The Nut With Lock Washer Using A Screwdriver

Courtesy of GENERAL MOTORS CORP.

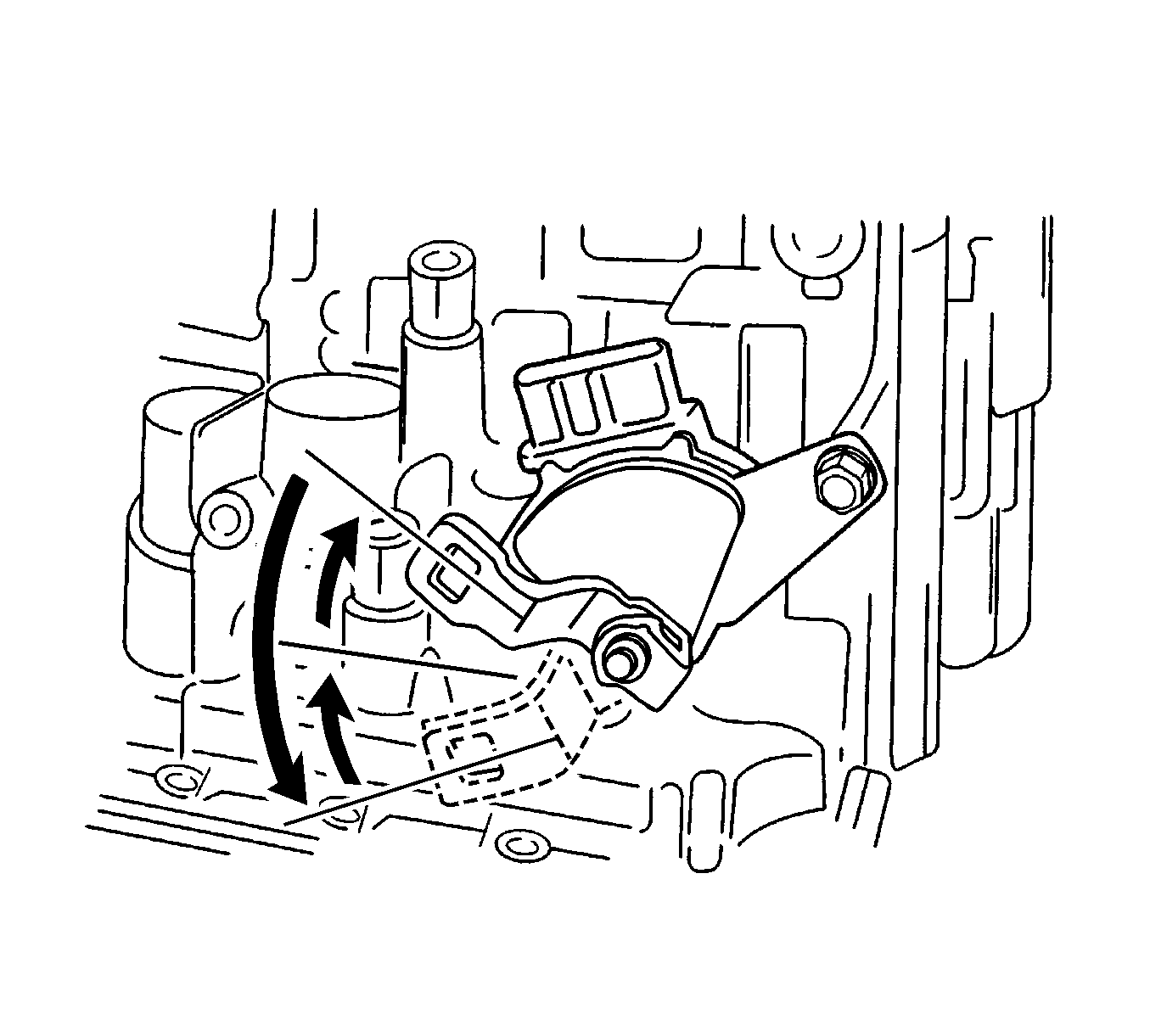

Fig 5: View Of PNP Switch Control Lever, Washer And Nut

Courtesy of GENERAL MOTORS CORP.

Install the control lever, washer and nut.
Tighten: Tighten the nut to 12 N.m (106 lb in) .

Fig 6: View Of Control Cable Pinch Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

Connect the control cable to PNP switch.
Connect the PNP switch electrical connector.
Adjust the control cable. Refer to Range Selector Lever Cable Adjustment .
Install the control cable adjusting nut.
Tighten: Tighten the control cable adjusting nut to 8 N.m (71 lb in) .
Connect the negative battery cable.
