Removal Procedure

Fig 1: View Of OSS Sensor Electrical Connector

GM1245833

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution .

Disconnect the negative battery cable.
Disconnect the output shaft speed (OSS) sensor electrical connector.

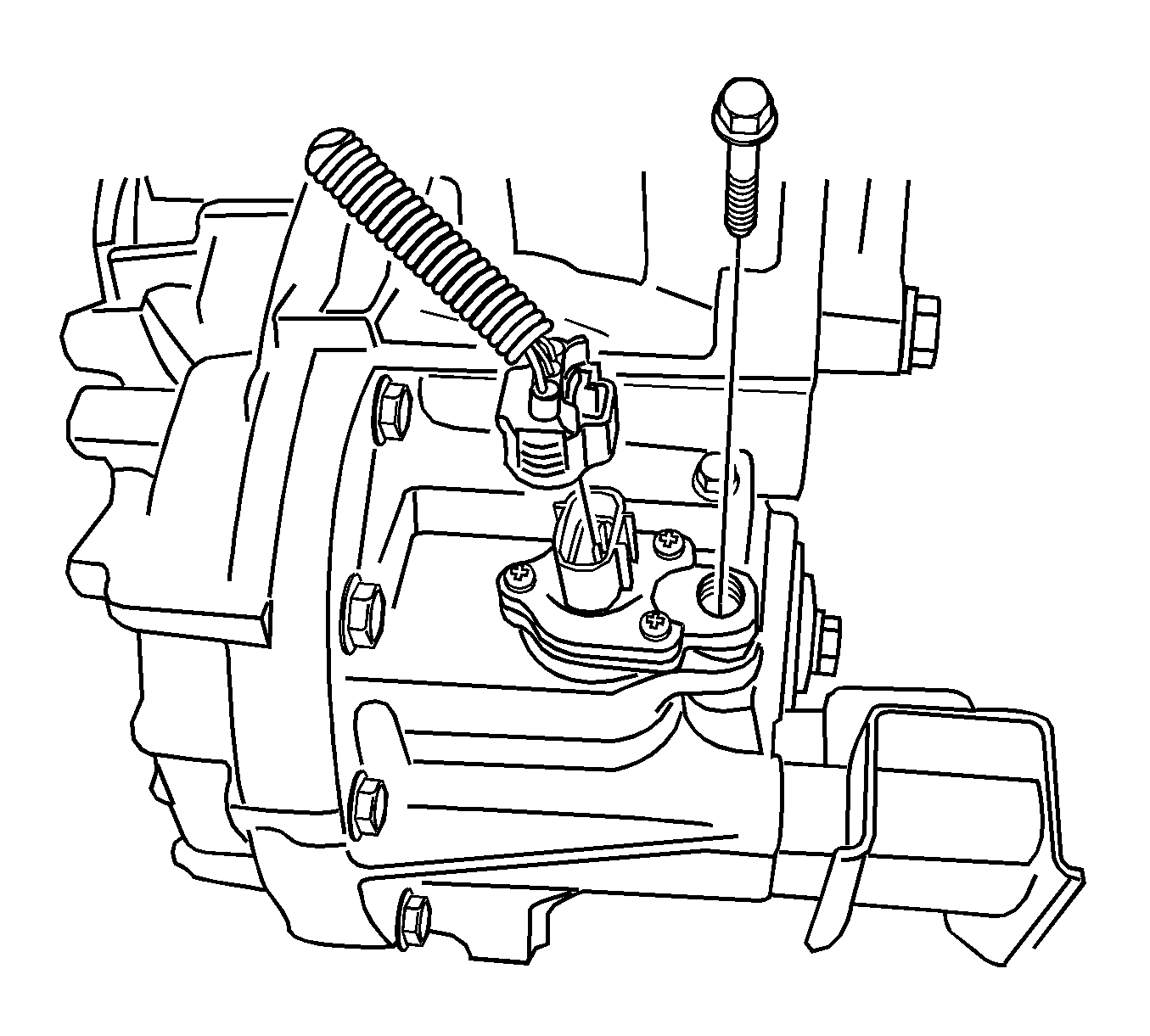

Fig 2: View Of OSS Sensor And Retaining Bolt

GM1245832

Courtesy of GENERAL MOTORS CORP.

Remove the OSS sensor retaining bolt.
Remove the OSS sensor from the transaxle.
