Manual Third Gear: Notes

Position Solenoid Clutch Brake 1-Way Clutch
Shift 1 Shift 2 Timing C1 C2 C3 B1 B2 B3 F1 F2
D 3rd OFF OFF OFF ON ON OFF OFF ON OFF OFF OFF

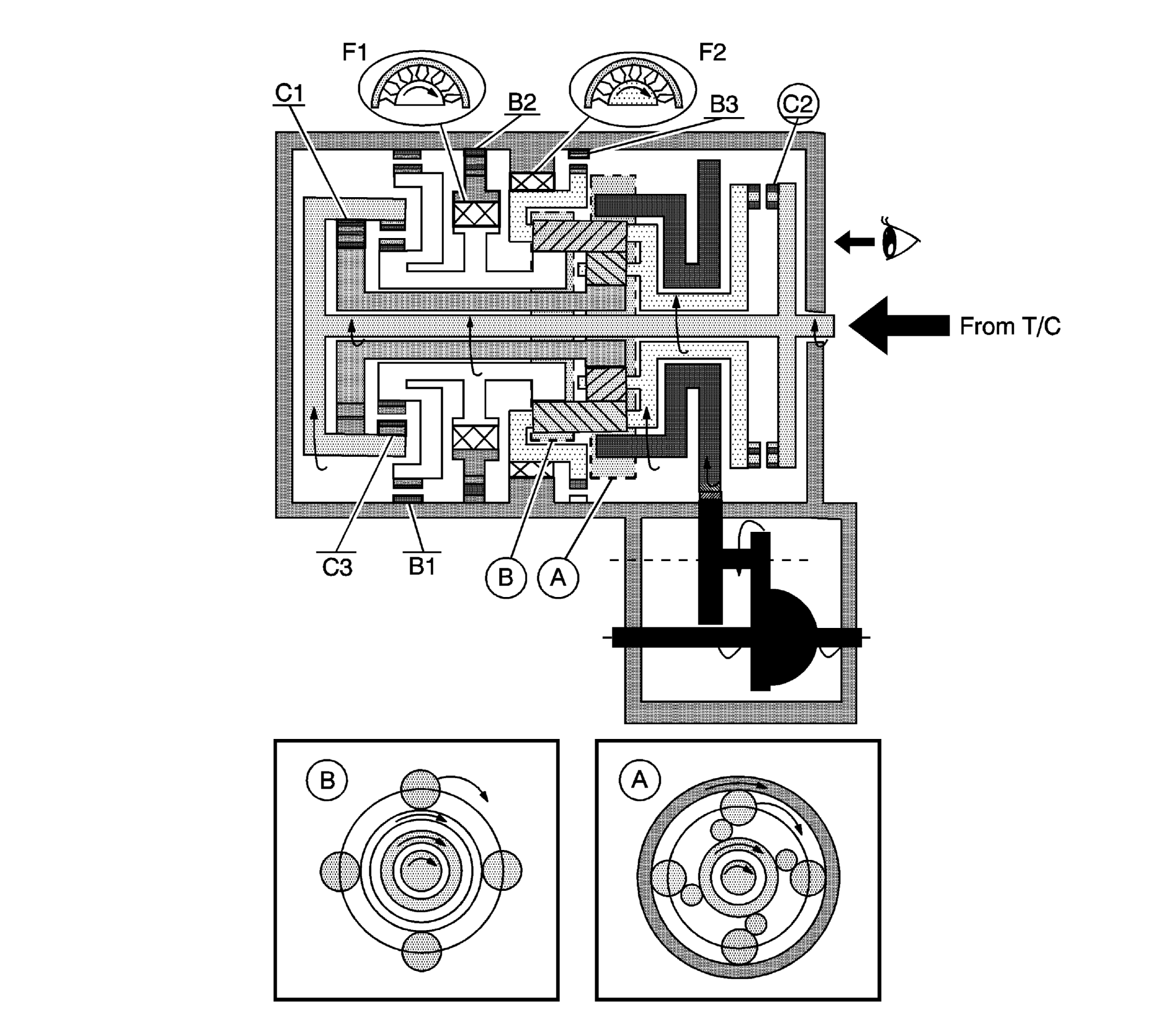

Fig 1: Manual Third Gear Schematics
GM1248564Courtesy of GENERAL MOTORS CORP.

A. Front Planetary Gear

B. Rear Planetary Gear

D - 3rd Gear

  1. The input shaft rotates clockwise.
    • The forward clutch (C1) operates. Connect the input shaft to the front sun gear.
    • The direct clutch (C2) operates. Connect the input shaft to the planetary carrier.
  2. The planetary short pinion and the planetary long pinion can not rotate itself, and the planetary gear unit rotates clockwise as one.
  3. The counter drive gear rotates clockwise for the ring gear and one.
  4. The counter drive gear rotates counterclockwise.
  5. The differential drive pinion rotates counterclockwise for the counter driven gear and one.
  6. The differential rotates clockwise.
