Removal Procedure

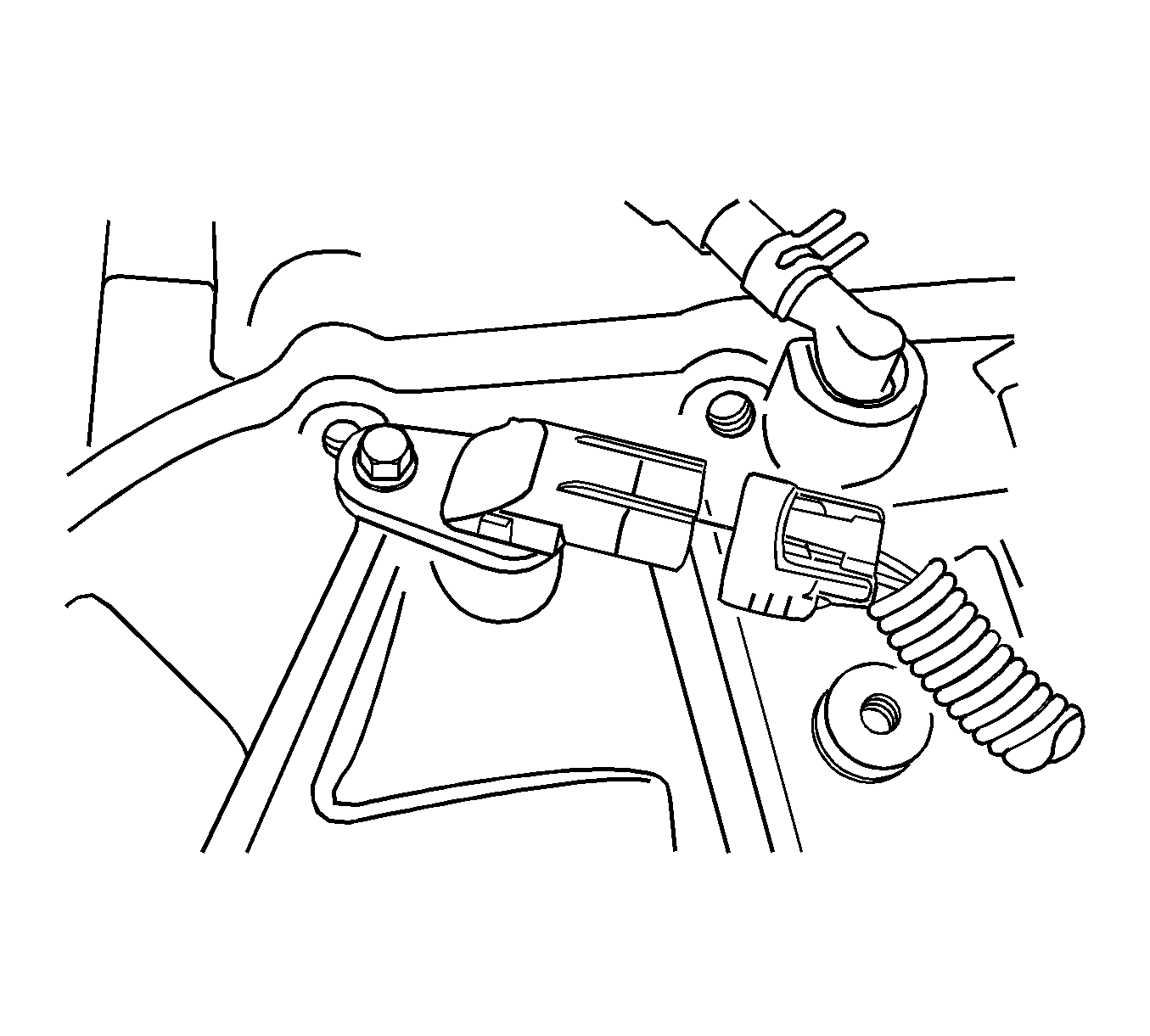

Fig 1: View Of ISS Sensor Electrical Connector

GM1245830

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution .

Disconnect the negative battery cable.
Disconnect the input shaft speed (ISS) sensor electrical connector.

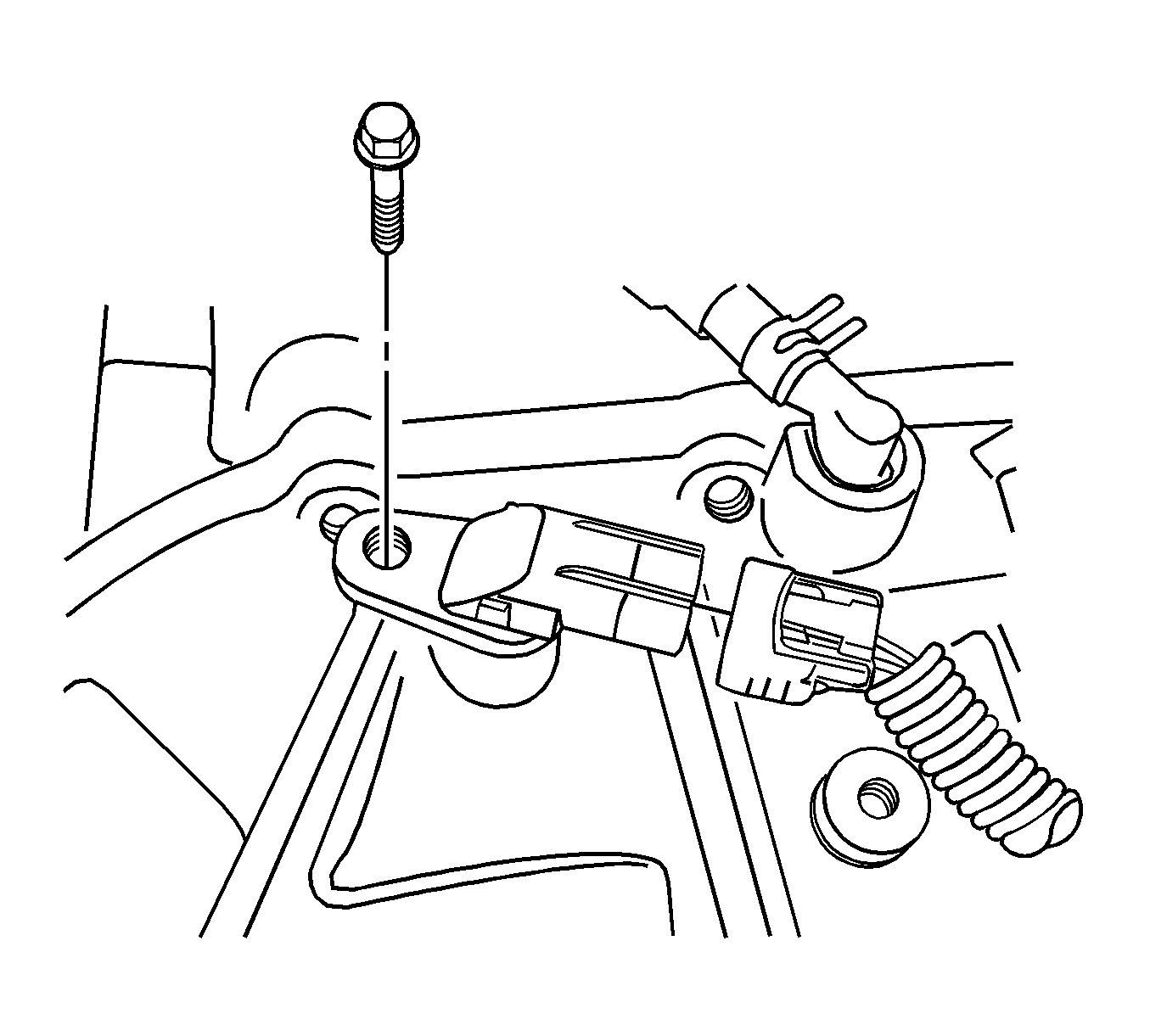

Fig 2: View Of ISS Sensor And Retaining Bolt

GM1245829

Courtesy of GENERAL MOTORS CORP.

Remove the ISS sensor retaining bolt.
Remove the ISS sensor from the transaxle.
