Luggage Compartment/Rear of Vehicle Component Views

Fig 1: Identifying Rear Compartment Lid Release Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch C1 (Actuator) (Notchback Shown, Hatchback Similar)
2	Rear Compartment Lid Latch C2 (Ajar Switch)
3	Rear Compartment Lid Release Switch

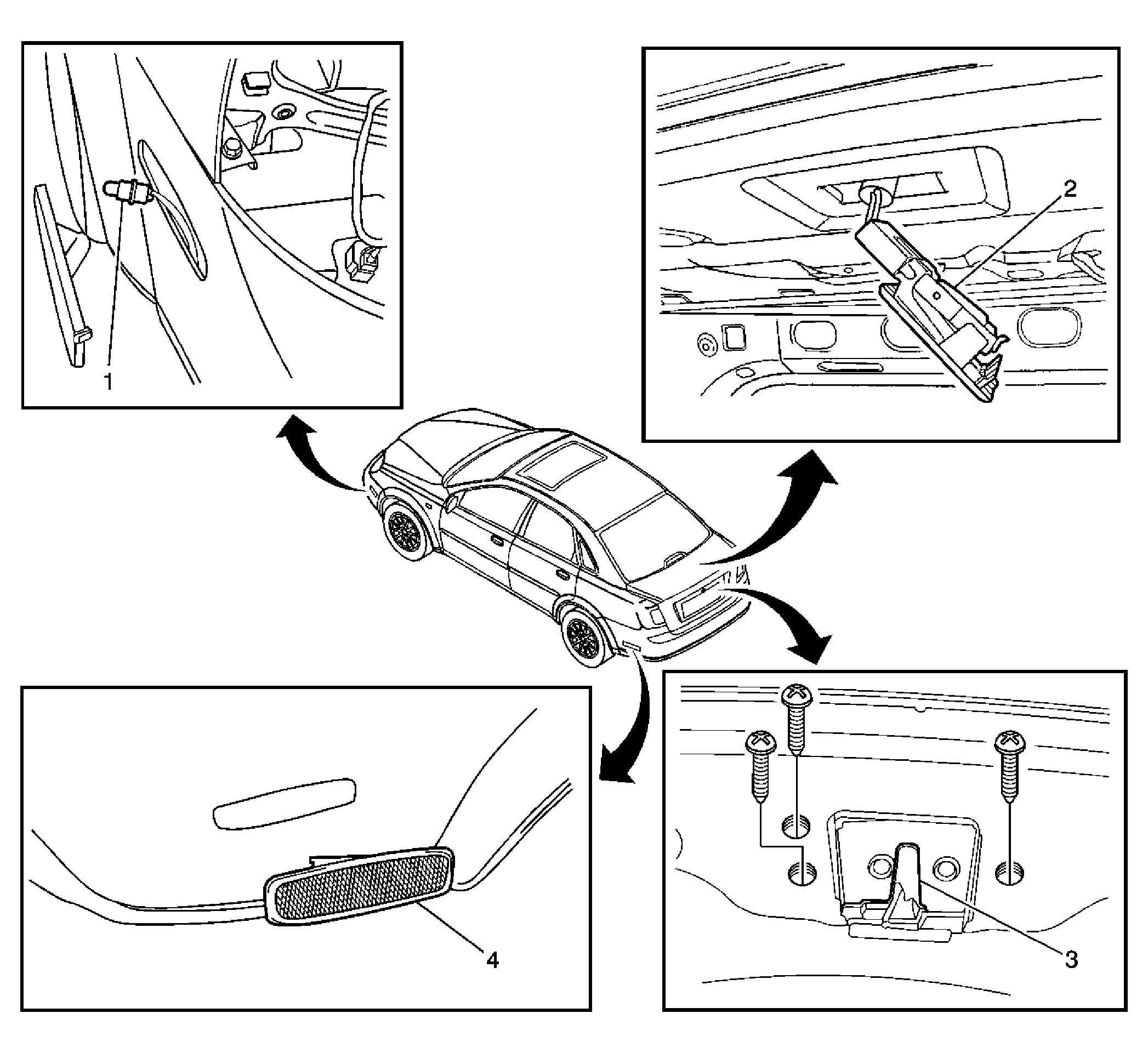

Fig 2: Identifying Side Markers And Rear Compartment Lid Latch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Marker - Front (Left and Right Similar)
2	Rear Compartment Lamp
3	Rear Compartment Lid Latch
4	Side Marker - Rear (Left and Right Similar)

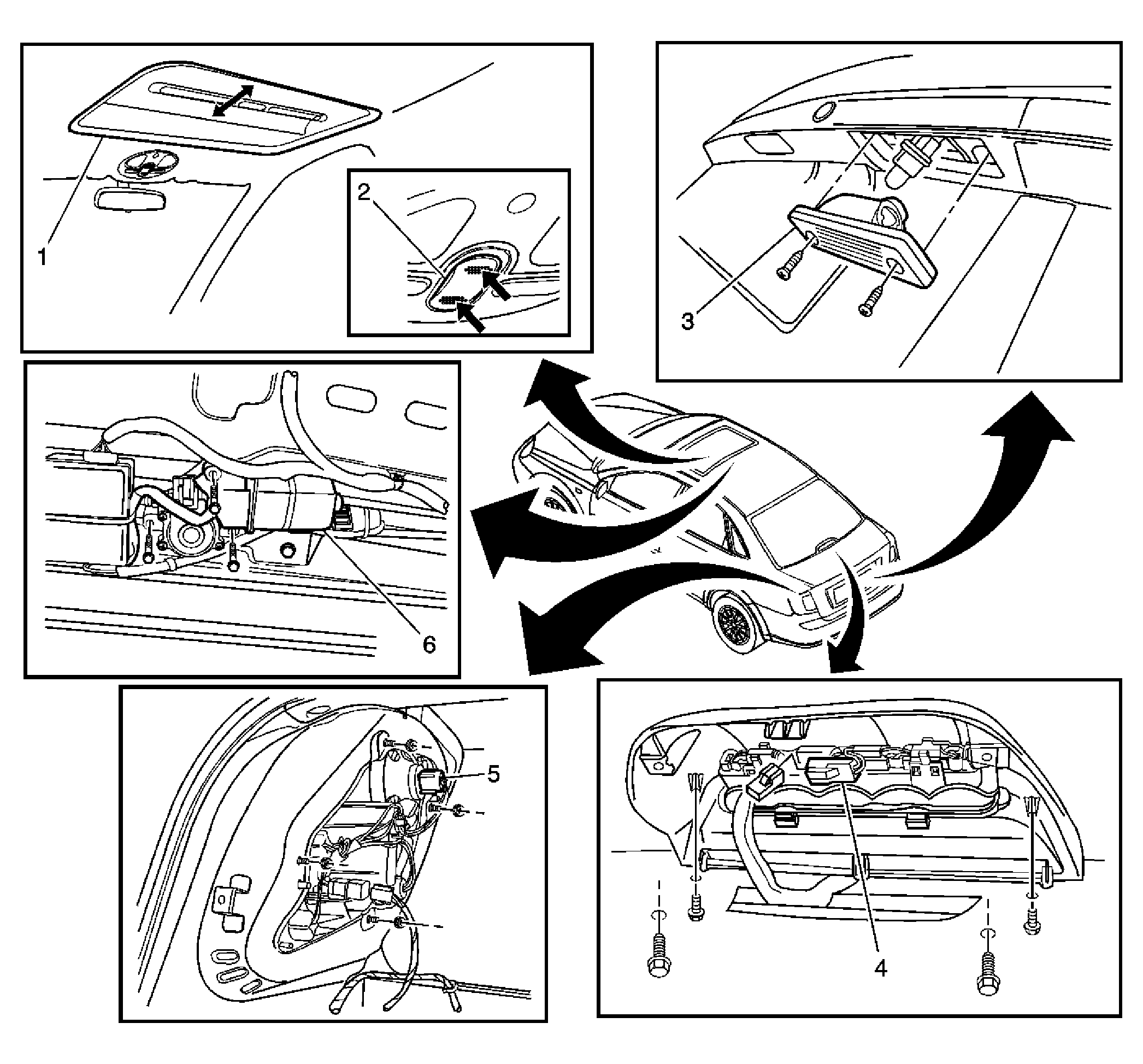

Fig 3: Identifying Headlamp, CHMSL, And Sunroof Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Module
2	Sunroof Switch/Readling Lamps
3	License Lamp
4	Center High Mounted Stop Lamp (CHMSL)
5	Tail Lamp (Left and Right Similar)
6	Sunroof Motor
