Windshield Wiper/Washer Switch A

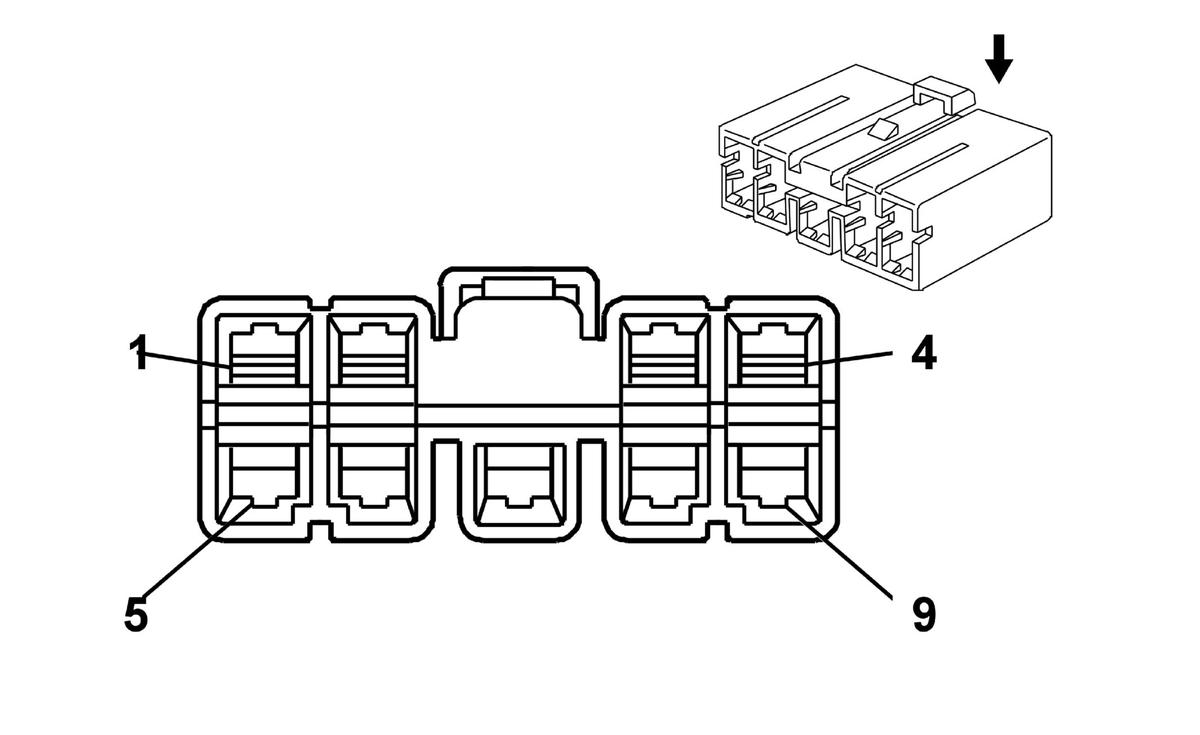

Courtesy of GENERAL MOTORS CORP. Windshield Wiper/Washer Switch A Connector Terminal Identification
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 WH |
393 |
Rear Window Wiper Motor Control (w/Rear Wipers) |
| 2 |
1.25 D-GN |
392 |
Rear Window Washer Pump Control (w/Rear Wipers) |
| 3 |
1.25 BN |
441 |
Ignition 1 Voltage |
| 4 |
1.25 RD |
228 |
Windshield Washer Pump Control |
| 5 |
1.25 D-GN |
95 |
Windshield Wiper Motor Low Speed |
| 6 |
1.25 L-BU |
97 |
Windshield Wiper Switch Off/Delay Signal |
| 7 |
1.25 GY |
91 |
Windshield Wiper Switch Pulse Delay Signal |
| 8 |
1.25 BN |
441 |
Ignition 1 Voltage |
| 9 |
1.25 PU |
92 |
Windshield Wiper Motor High Speed |
Connector Part Information
- OEM: KET MG 610154
- Description: 9-Way F 118 (PA) Series (WH)
|
