Windshield Washer Fluid Pump (Notchback)

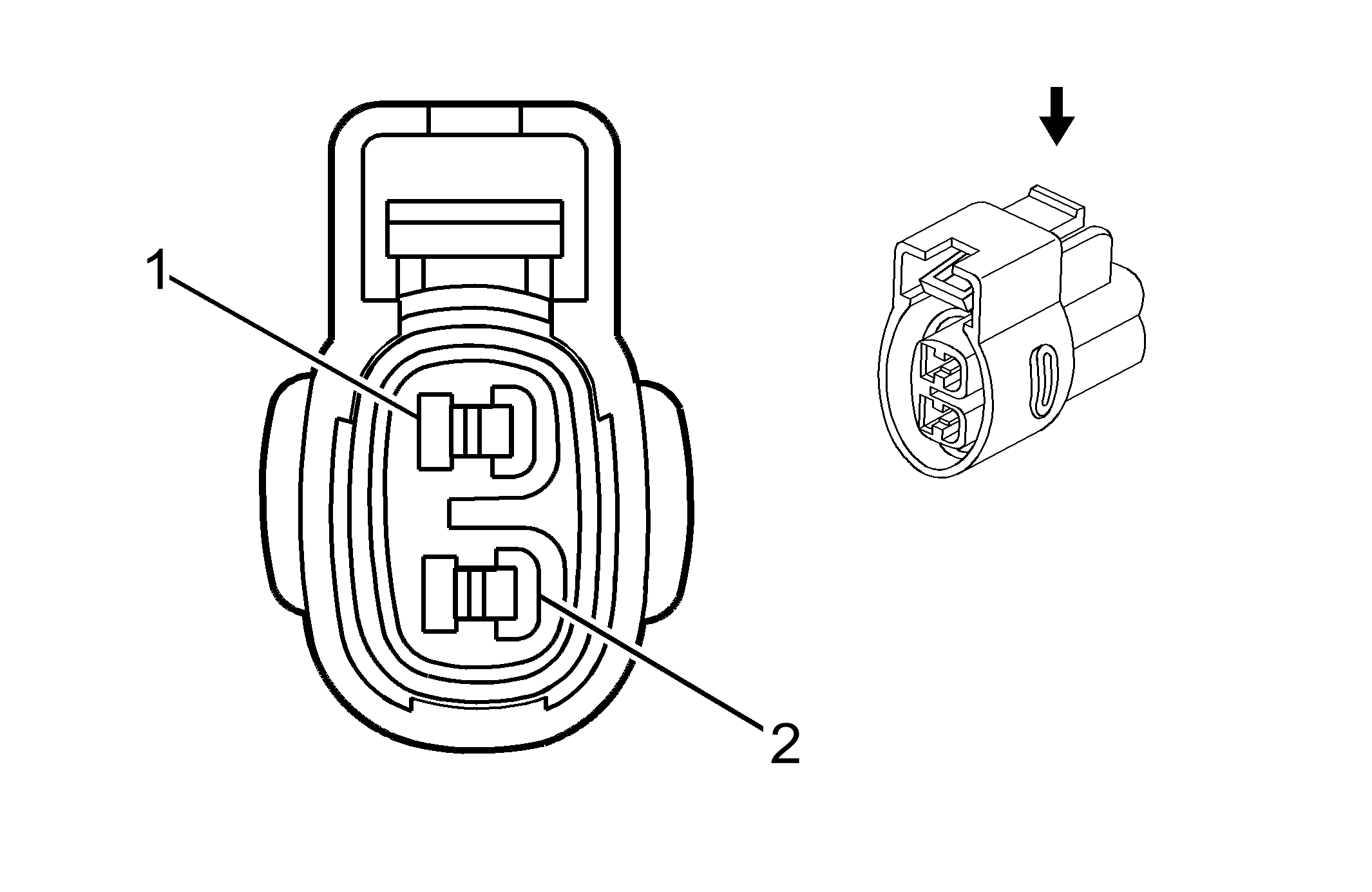

Fig 1: Windshield Washer Fluid Pump Connector End View (Notchback)
GM1467079Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Pump Connector Terminal Identification (Notchback)

Pin Wire Circuit Function
1 1.25 BK 50 Ground
2 1.25 RD 228 Washer Switch Signal
Connector Part Information
  • OEM: KET MG 640605
  • Description: 2-Way F 090 WP Series (WH)
