Vehicle Speed Sensor (VSS) (MLQ)

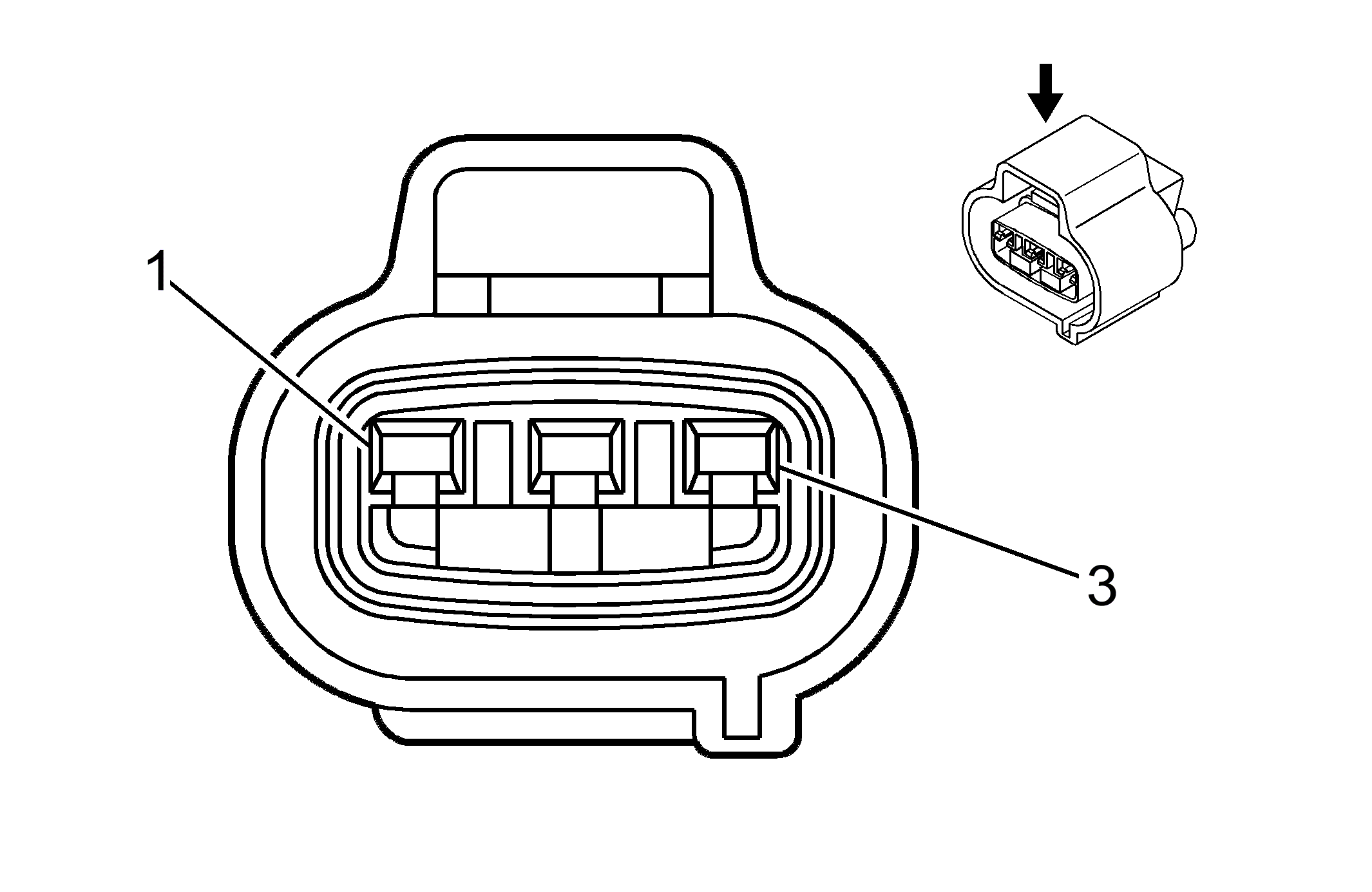

Fig 1: Vehicle Speed Sensor (VSS) Connector End View (MLQ)
GM1481279Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS) Connector Terminal Identification (MLQ)

Pin Wire Circuit Function
1 0.5 PK 839 Ignition 1 Voltage
2 0.5 BK/WH 51 Ground
3 0.5 D-GN/WH 817 Vehicle Speed Signal
Connector Part Information
  • OEM: YAZAKI 7283-1232-30
  • Description: 3-Way F Connector (BK)
