Sunroof Switch/Reading Lamp

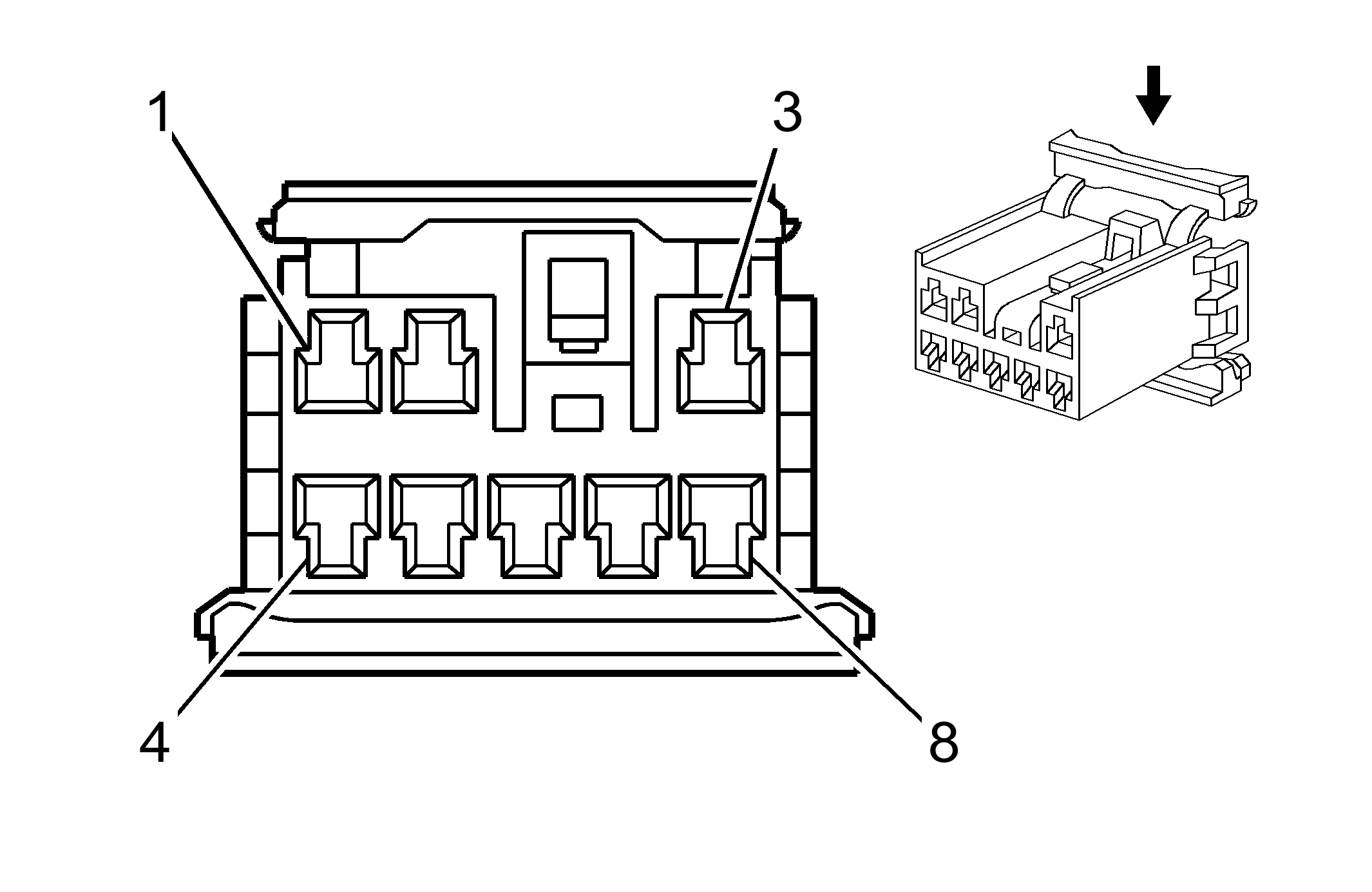

Sunroof Switch/Reading Lamp Connector Terminal Identification
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 BK | 850 | Ground |
| 2 | - | - | Not Used |
| 3 | 0.5 OG | 640 | Battery Positive Voltage |
| 4 | D-GN/WH | 133 | Sunroof Limit Switch Low Reference |
| 5 | 0.3 BN | 641 | Ignition 3 Voltage |
| 6 | 0.3 PU | 132 | Sunroof Limit Switch Soft Stop Signal |
| 7-8 | - | - | Not Used |
Connector Part Information
|
