Rear Window Defogger X2

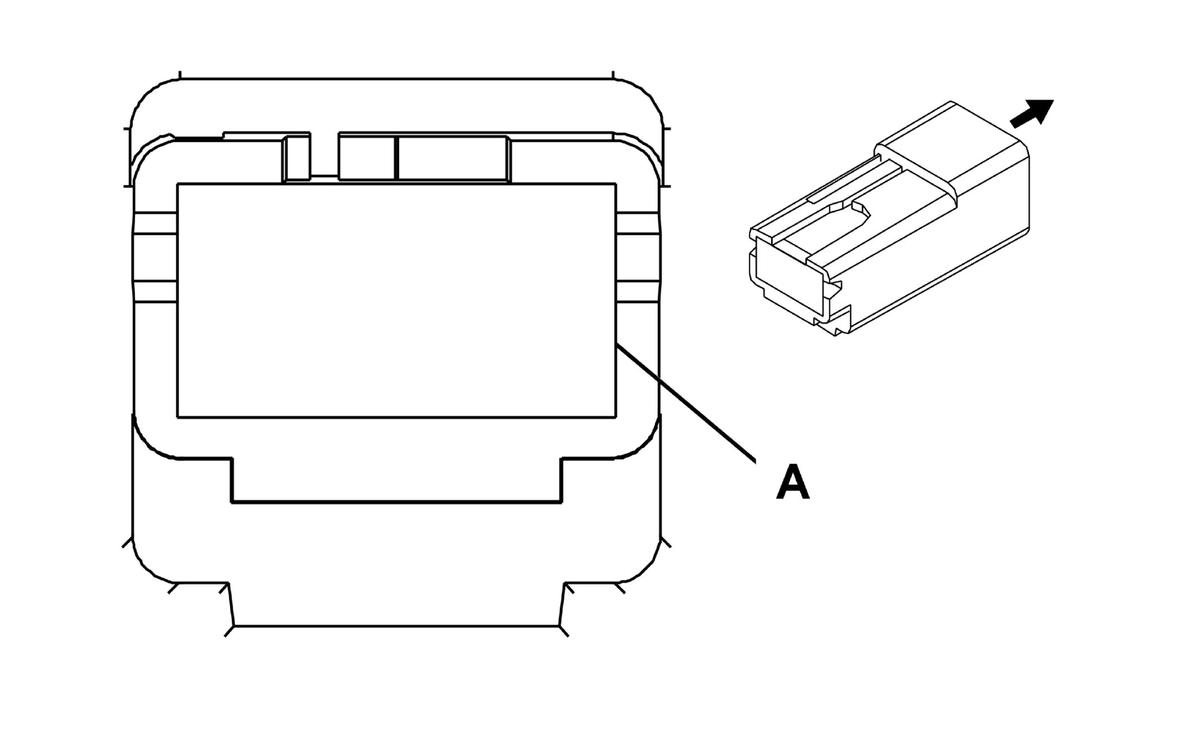

Fig 1: Rear Window Defogger Connector End View
GM365953Courtesy of GENERAL MOTORS CORP.
Rear Window Defogger X2 Connector Terminal Identification

Pin Wire Circuit Function
A 0.5 BK 750 Ground
Connector Part Information
  • OEM: 12092133
  • Description: 1-Way F Metri-Pack 630 Series Self Lock (WH)
