Input Speed Sensor (M98)

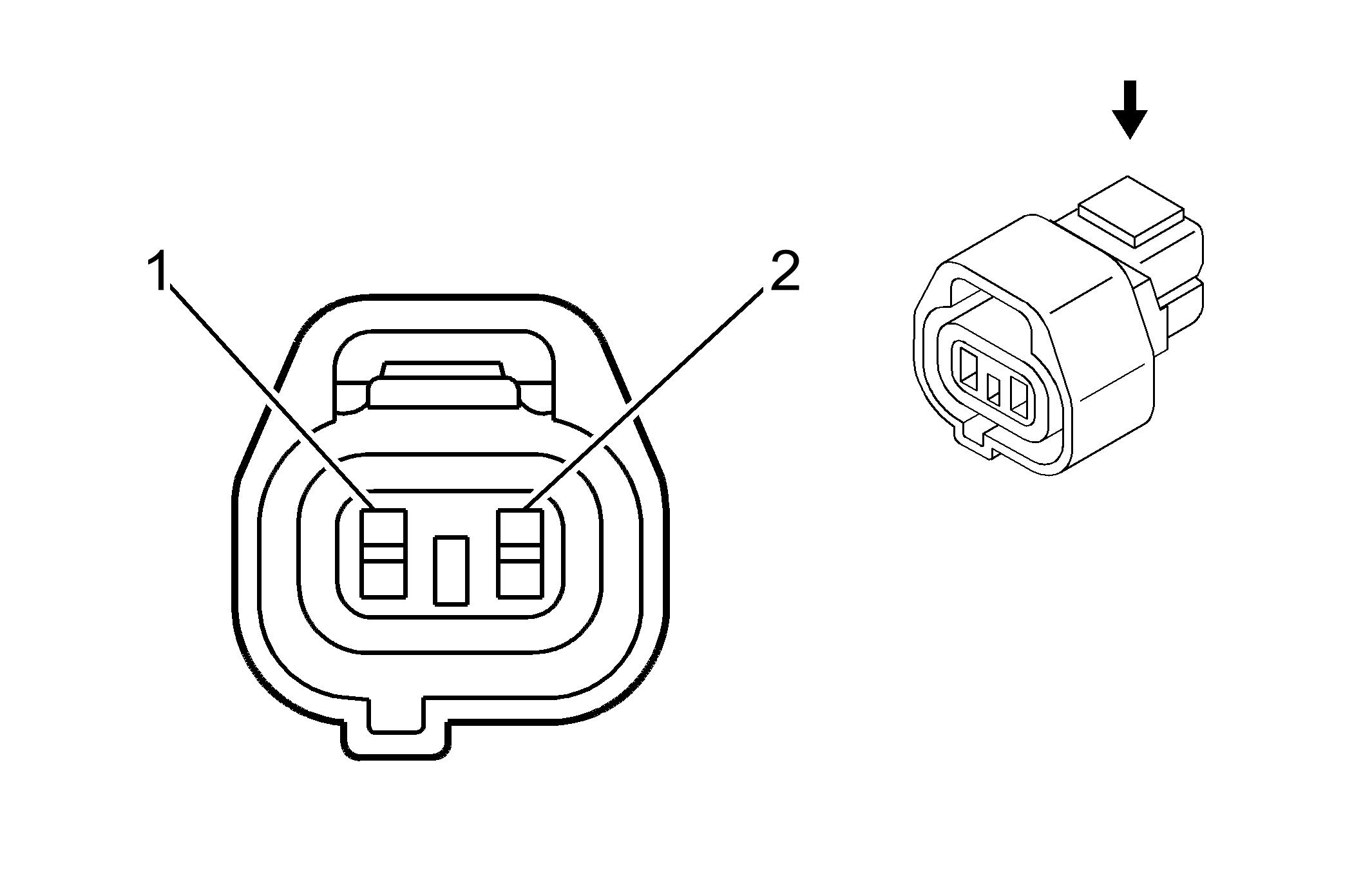

Fig 1: Input Speed Sensor Connector End View
GM1481270Courtesy of GENERAL MOTORS CORP.
Input Speed Sensor Connector Terminal Identification (M98)

Pin Wire Circuit Function
1 BU/WH - Input Shaft Speed Sensor Low
2 YE/BK - Input Shaft Speed Sensor High
Connector Part Information
  • OEM: YZK 7283-8125-30
  • Description: 2-Way F 090II Type Sealed
