Inflatable Restraint Side Impact Module (AJ7)

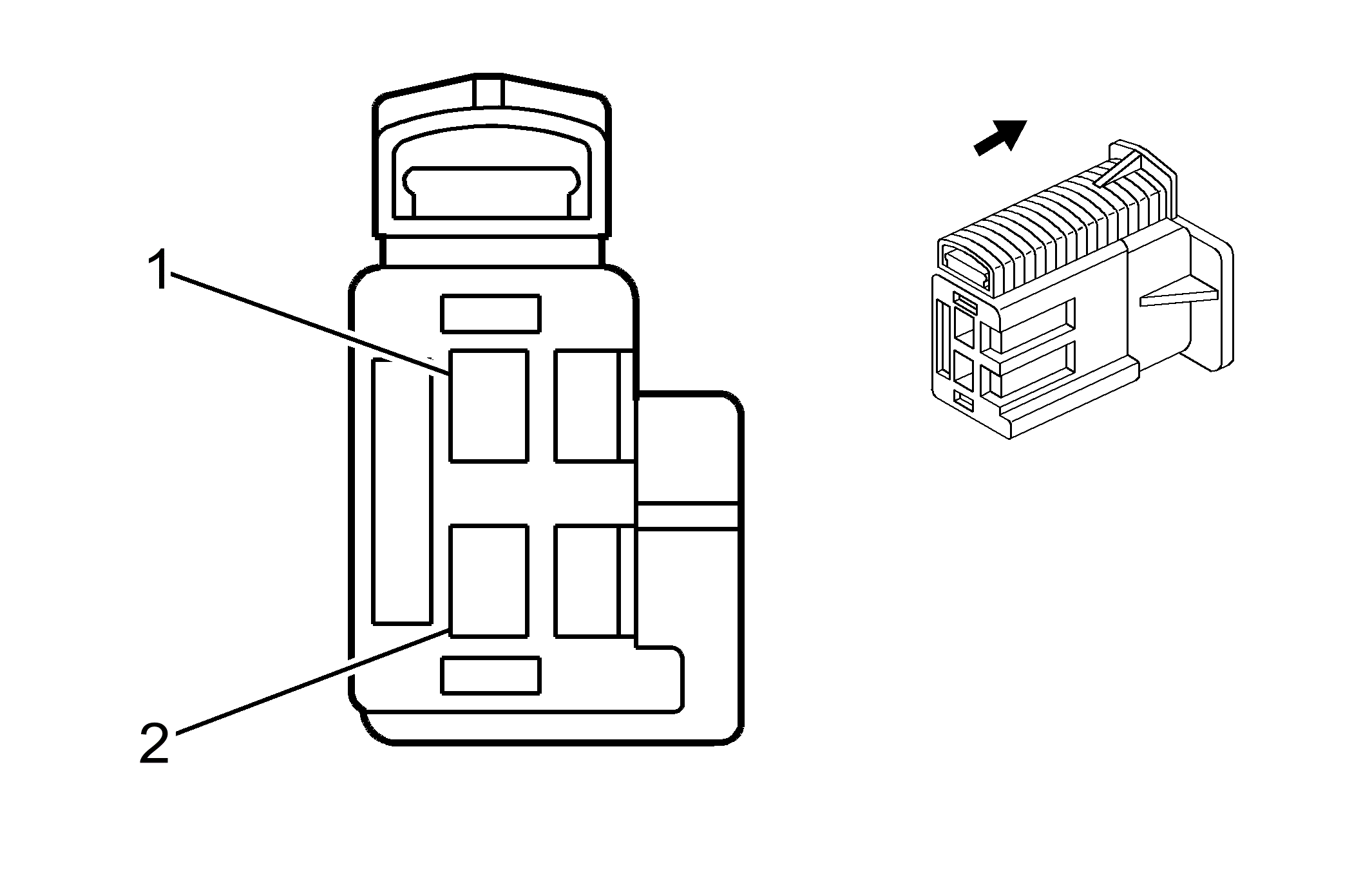

Fig 1: Inflatable Restraint Side Impact Module Connector End View
GM1481288Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Module Connector Terminal Identification (AJ7)

Pin Wire Circuit Function
1 0.5 WH/D-BU 1182 Side Impact Module - Driver Low Control
WH/YE 1180 Side Impact Module - Passenger Low Control
2 D-GN/D-BU 1183 Side Impact Module - Driver High Control
0.5 D-GN/YE 1181 Side Impact Module - Passenger High Control
Connector Part Information
  • OEM: Yazaki 7C83-5524-70
  • Description: 2-Way Connector (YE)
