Inflatable Restraint Front Passenger Presence Sensor

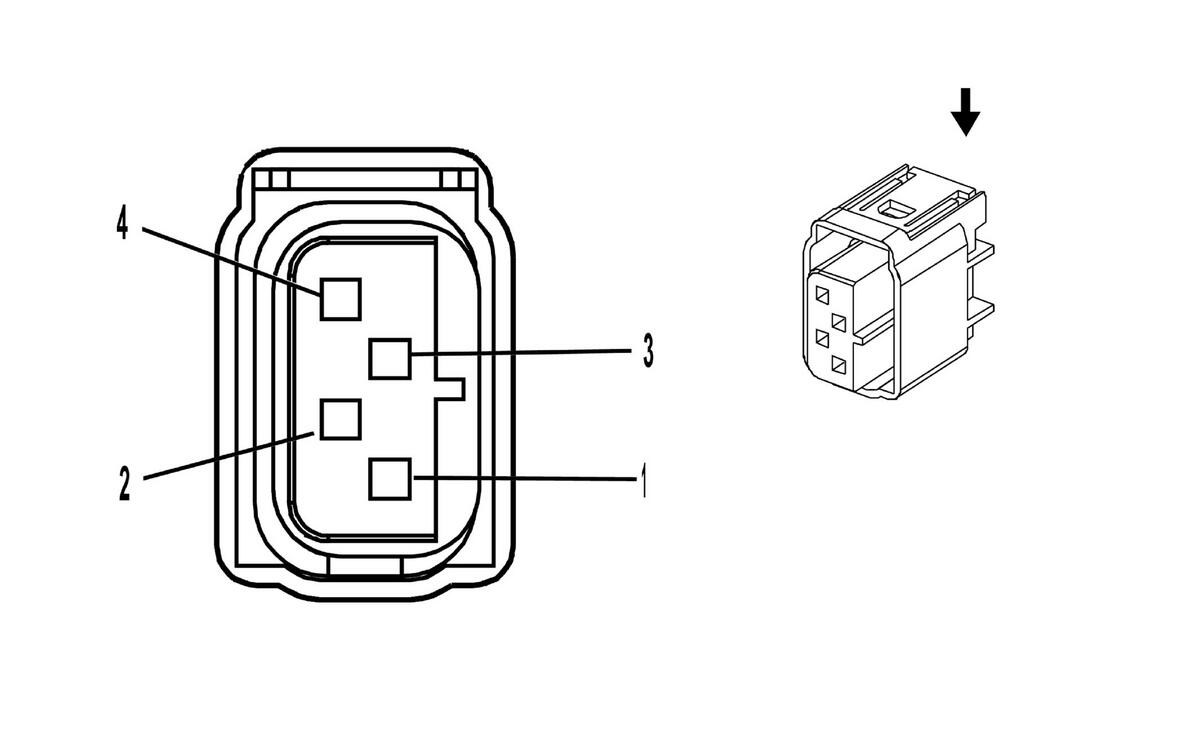

Fig 1: Inflatable Restraint Front Passenger Presence Sensor Connector End View
GM810084Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Front Passenger Presence Sensor Connector Terminal Identification

Pin Wire Circuit Function
1 0.5 PK 939 Ignition 1 Voltage
2 0.5 YE/WH 1415 Communication
3 0.5 BK 252 Ground
BK/WH (North America)
4 - - Not Used
Connector Part Information
  • OEM: AMP 1-0967640-1
  • Description: 4-Way F Connector (BK)
