Fog Lamp - Left Front

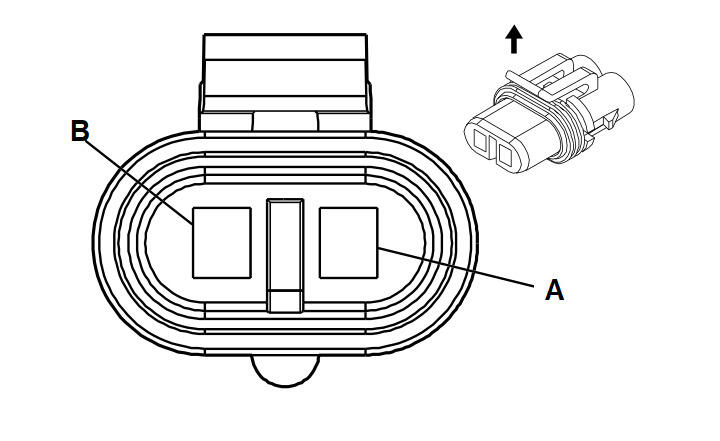

Fig 1: Fog Lamp Connector End View
GM646148Courtesy of GENERAL MOTORS CORP.
Fog Lamp Connector Terminal Identification - Left Front

Pin Wire Circuit Function
A PU 34 Front Fog Lamp Supply Voltage
B BK 50 Ground
Connector Part Information
  • OEM: PED 12020599
  • Description: 2-Way F Metri-Pack 280 Series (BK)
