Cooling Fan Control Relay

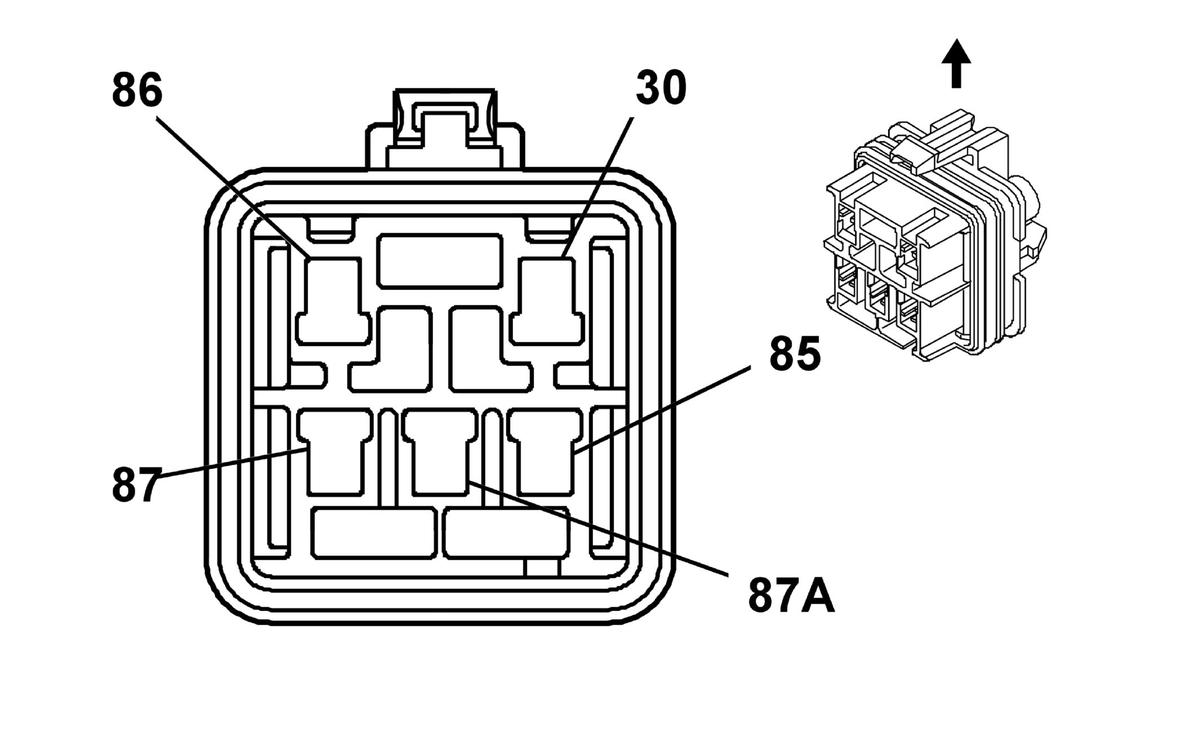

Cooling Fan Control Relay Connector Terminal Identification
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 30 | 2 L-BU | 504 | Cooling Fan Low Reference |
| 85 | 0.5 PK/BK | 1846 | Ignition 1 Voltage |
| 86 | 0.5 GY | 473 | High Speed Cooling Fan Relay Control |
| 87 | 2 BK | 50 | Ground |
| 87A | 2 PU | 532 | Cooling Fan Motor Supply Voltage |
Connector Part Information
|
