A/C Compressor Clutch

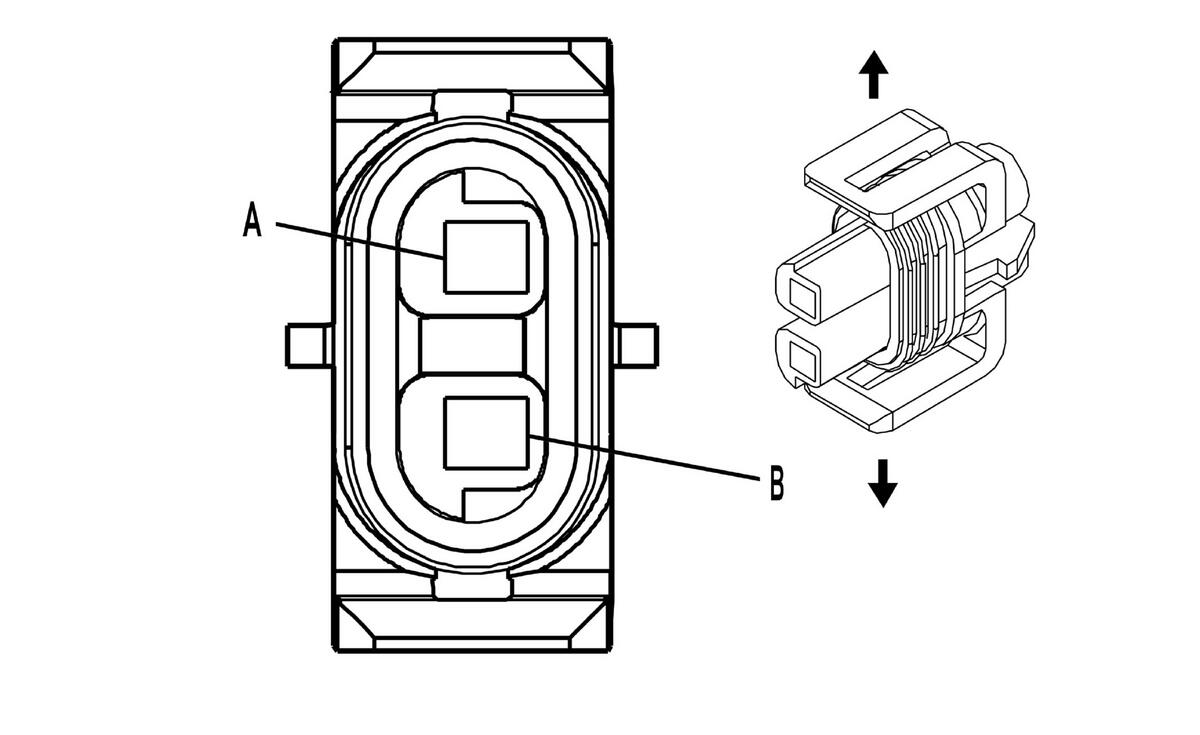

Fig 1: A/C Compressor Clutch Connector End View
GM684852Courtesy of GENERAL MOTORS CORP.
A/C Compressor Clutch

Pin Wire Circuit Function
A 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage
B 0.5 BK 150 Ground
Connector Part Information
  • OEM: PED 12162017
  • Description: Automatic 2-Way F Metri-Pack 150 Series, Sealed (GY)

    Description: Manual 2-Way F Metri-Pack 150 Series, Sealed (GY)
