Instrument Cluster Schematics

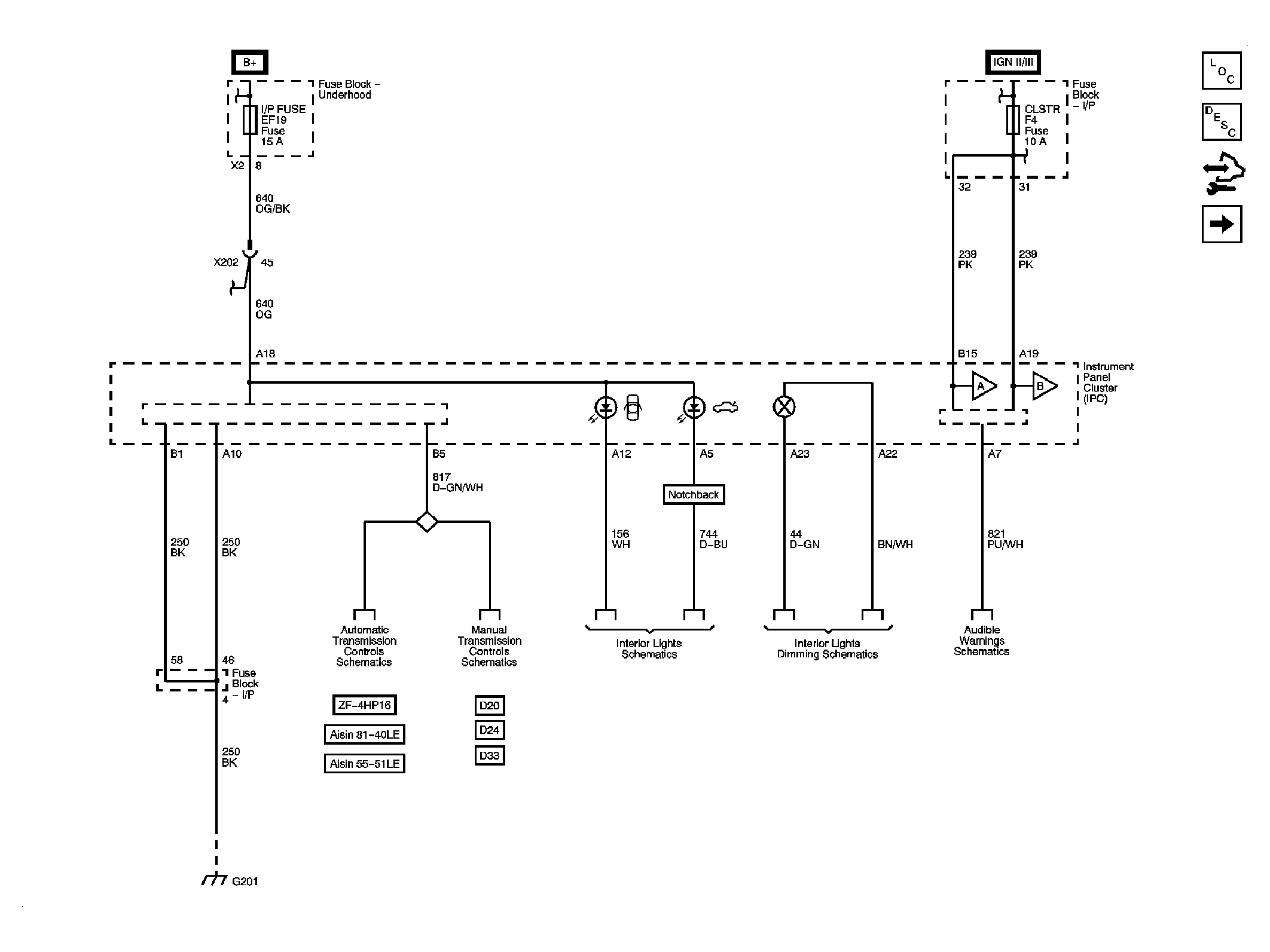

Fig 1: Power, Ground, I/P Illumination, and Door Open Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

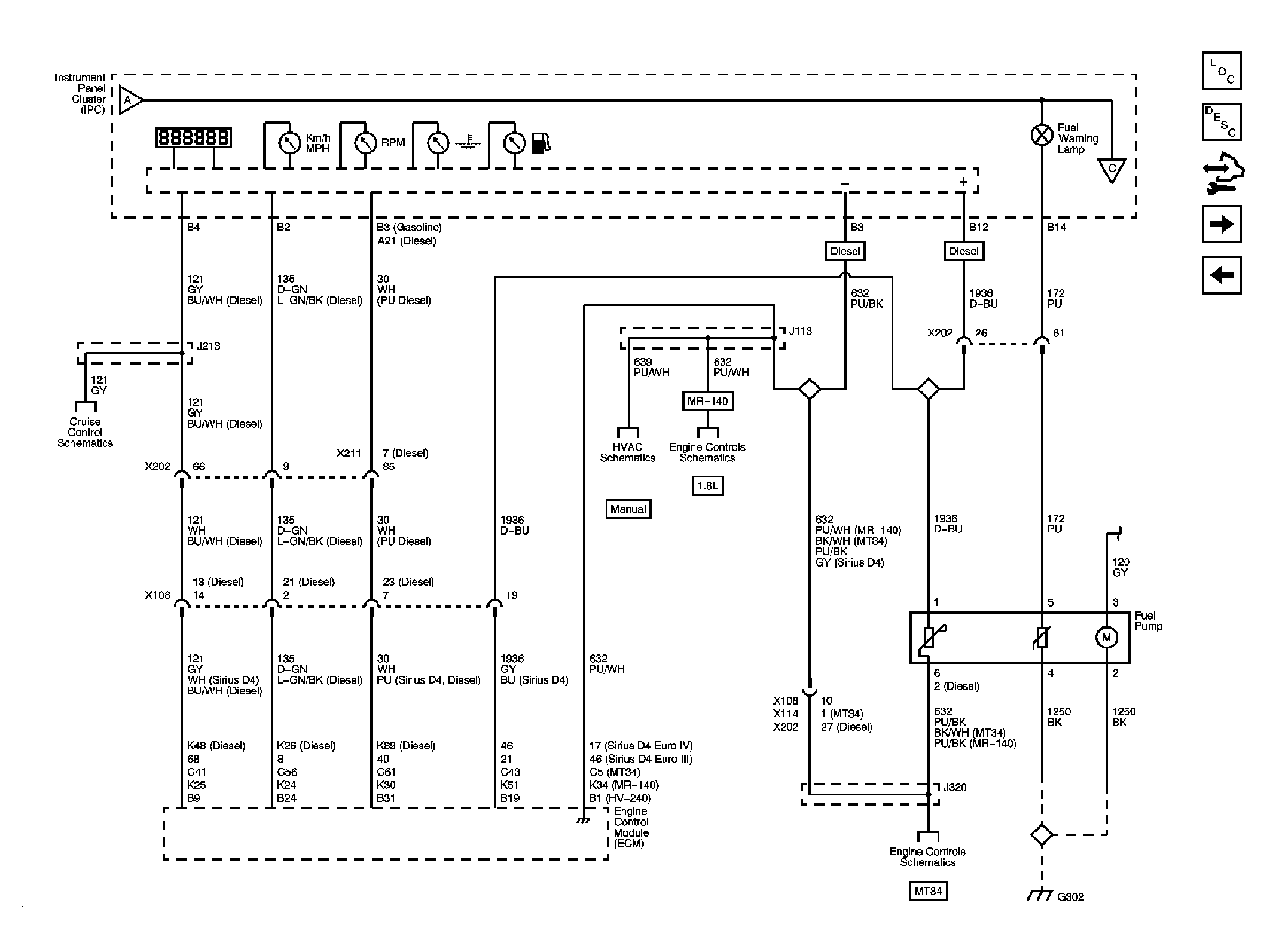

Fig 2: Gages Schematic

Courtesy of GENERAL MOTORS CORP.

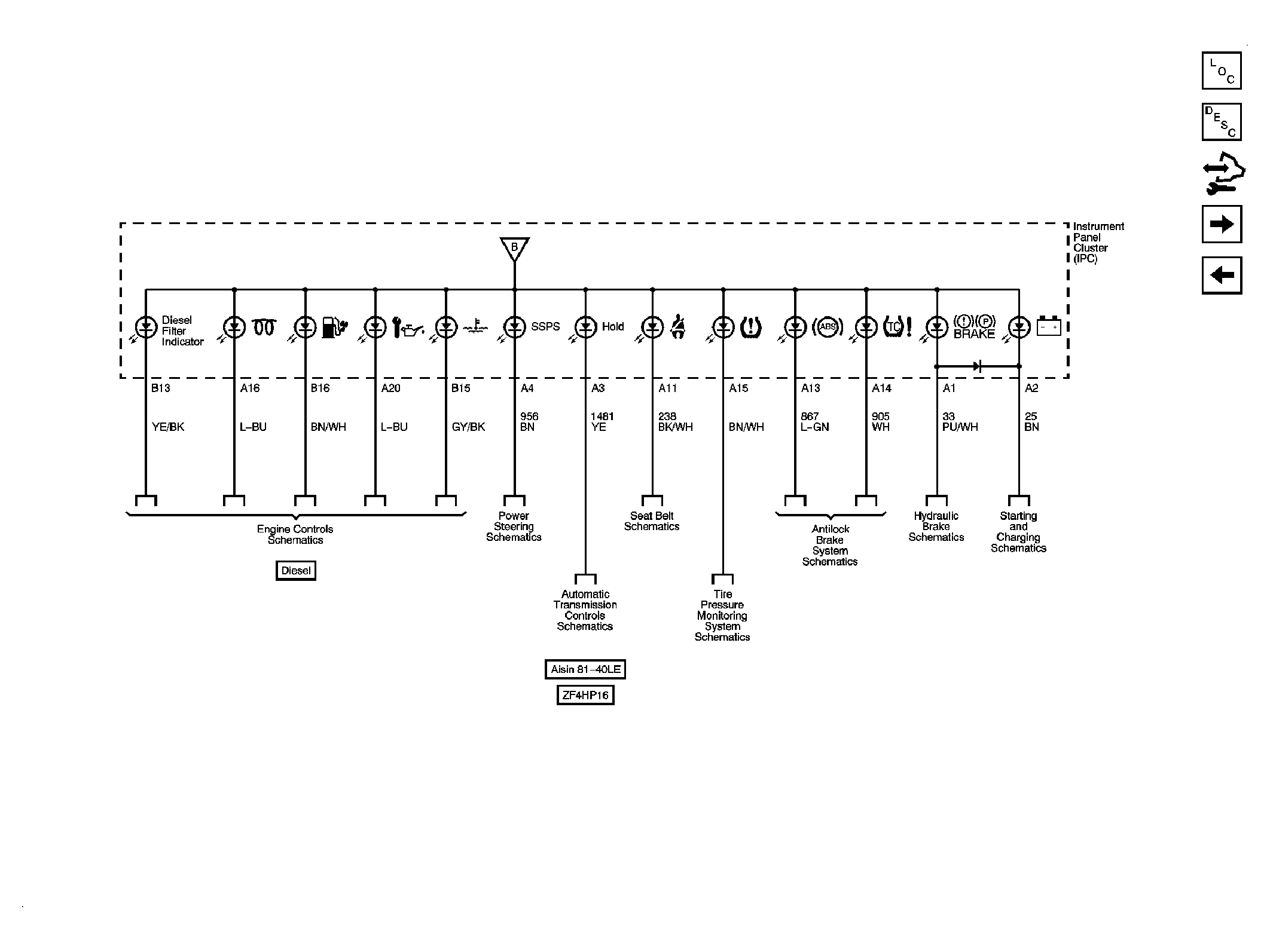

Fig 3: Power Steering, Shift Program, Air Bag, TPMS, ABS, TCS, Park Brake, and Charging Warning Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

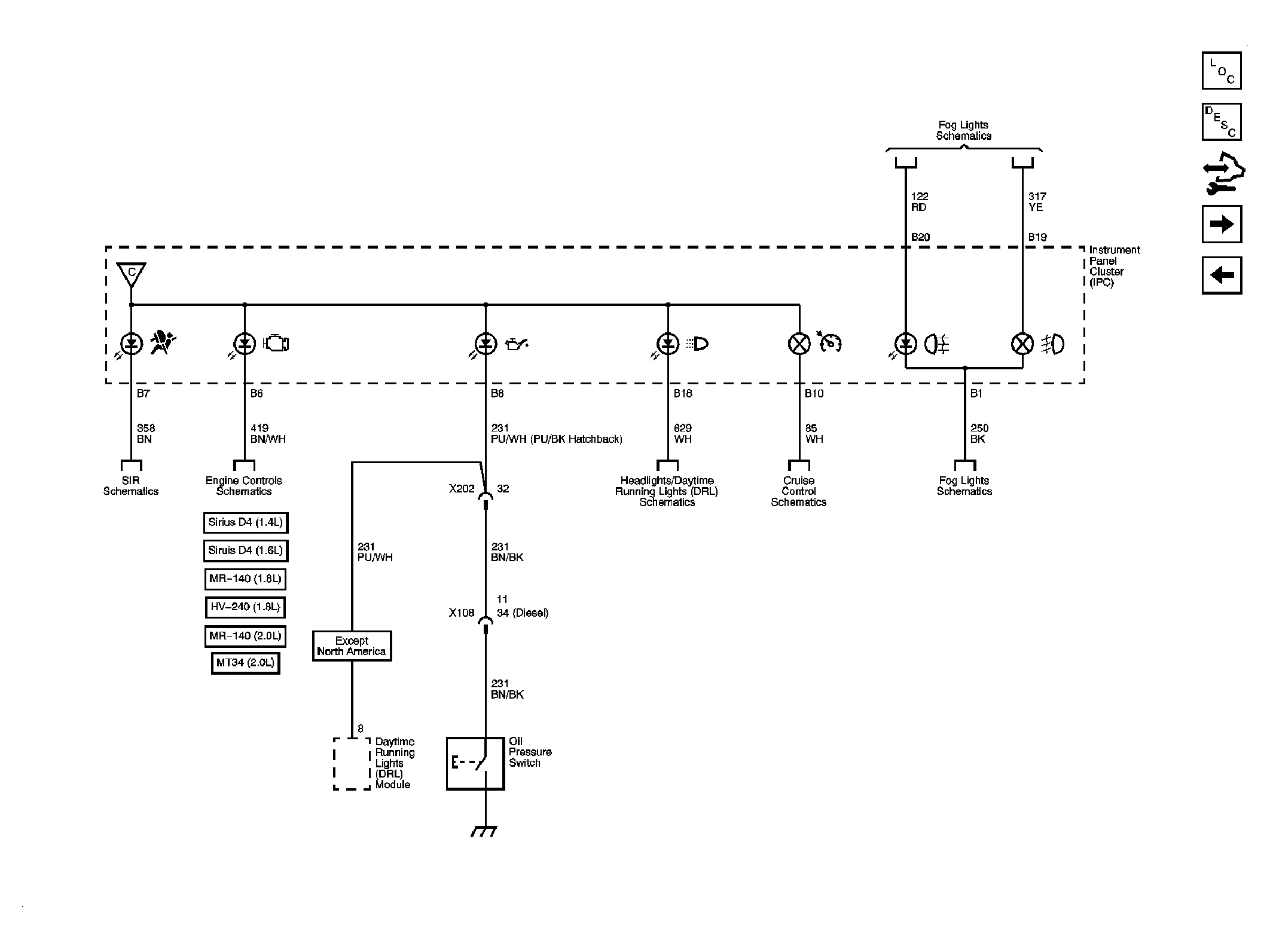

Fig 4: Air Bag, MIL Lamp, Oil Pressure, DRL, Cruise, and Fog Lamp Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Turn Signal, Hazard, and High Beam Indicators Schematic - PRNDL Illumination

Courtesy of GENERAL MOTORS CORP.
