Drive Shaft Oil Seal Assemble - Right Side (FWD Only)

Drive Shaft Oil Seal Assemble - Right Side (FWD Only)


Tools Required
* J 29130 Axle Seal Installer
* J 8092 Driver Handle






Notice: Install the seal onto the tool before installing into the case to prevent damage to the seal.


Important: Inspect the axle oil seal assembly (4). Be sure that the seal was not damaged during assembly. Check that the garter spring was not dislodged.

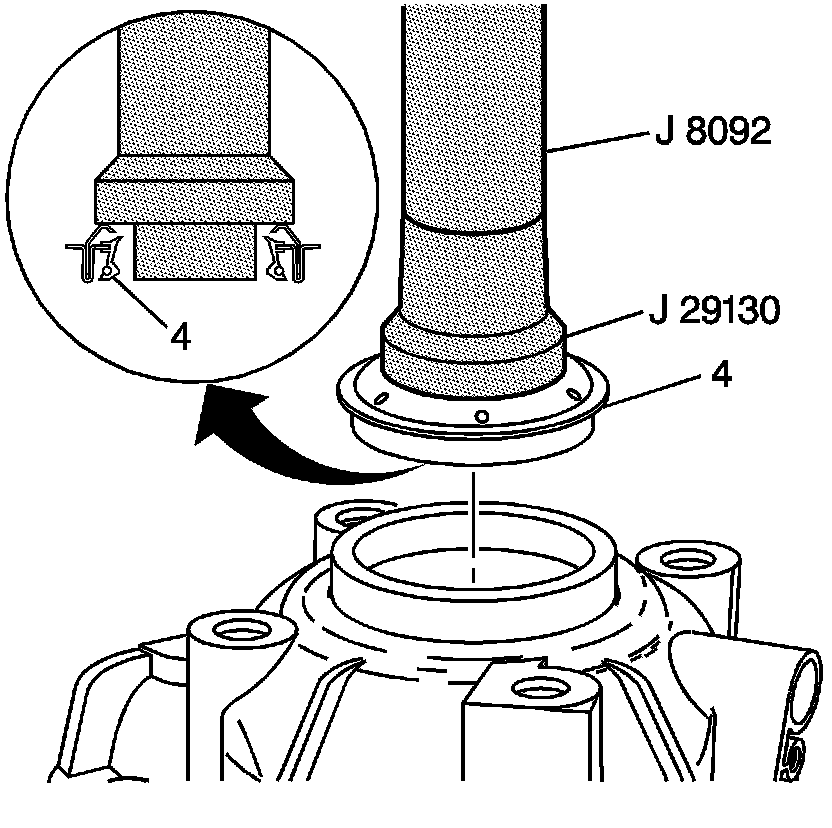

Use J 29130 and J 8092 in order to install the axle oil seal assembly (4) on the case extension assembly.
