Vacuum and Vapor Hose Diagrams

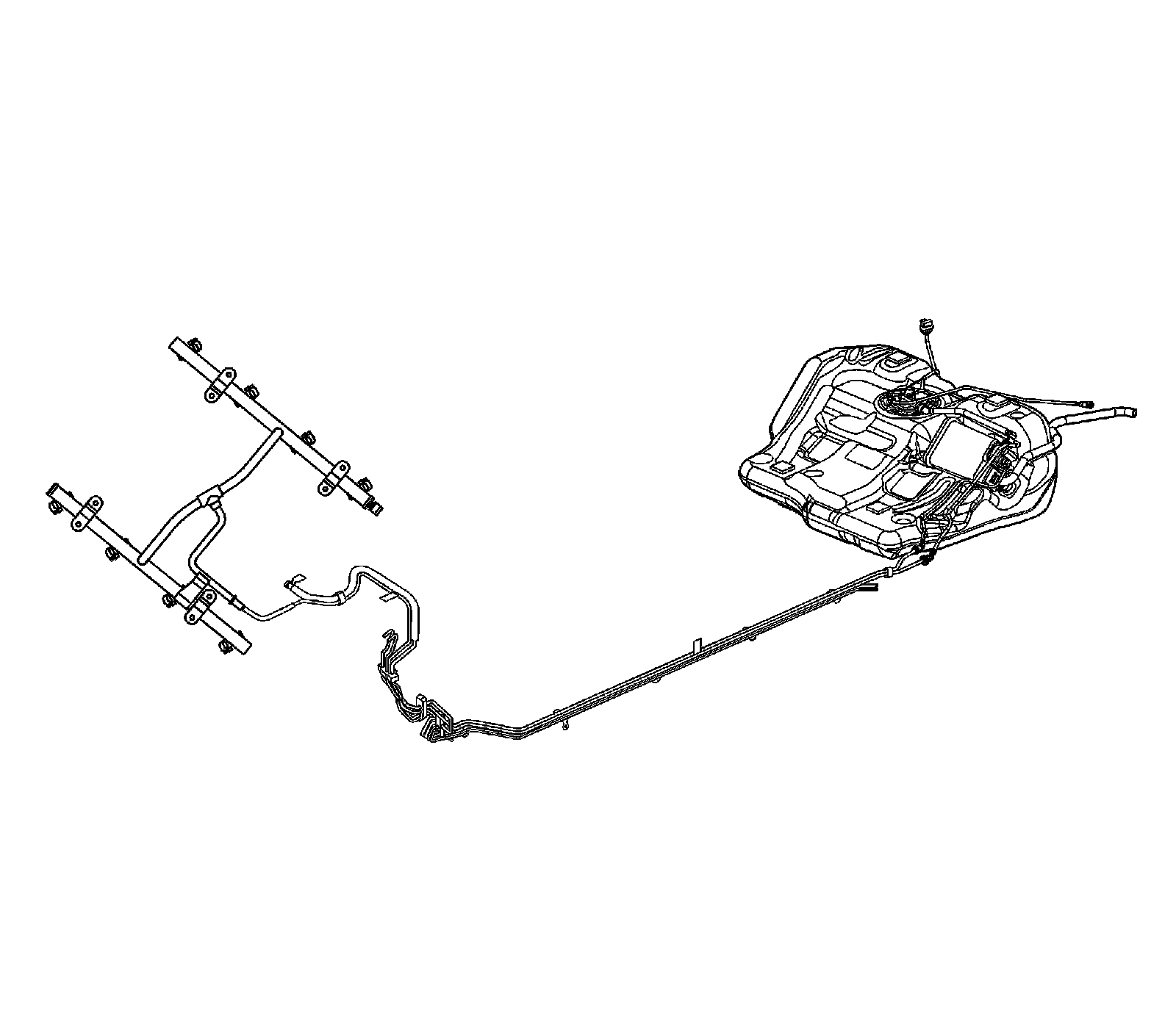

Fuel Hose/Pipes Routing Diagram




1 - Fuel Rail
2 - Fuel Pressure Service Port
3 - Fuel Tank
4 - Fuel Pump
5 - Fuel Inlet Pipe
