Upper Intake Manifold Sight Shield Replacement

Upper Intake Manifold Sight Shield Replacement

Removal Procedure

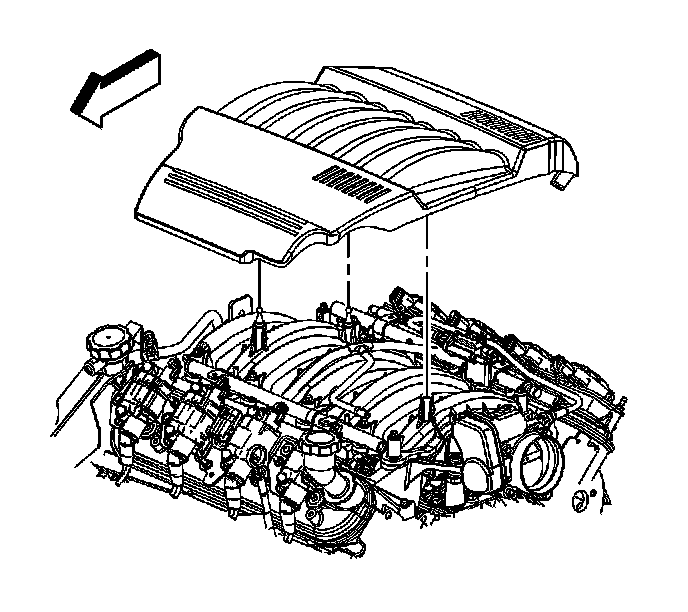

1. Pull up on the front and rear of the sight shield in order to disengage sight shield from the studs.
2. Remove the engine sight shield from the vehicle.



Installation Procedure






Important: When installing the engine sight shield, ensure the heater hoses sit on top of the shield to prevent wear over time.


1. Align the sight shield to the studs on the intake manifold.
2. Push down in the 3 locations in order to secure the sight shield to the studs.
