X102
Inline Harness Connector End Views

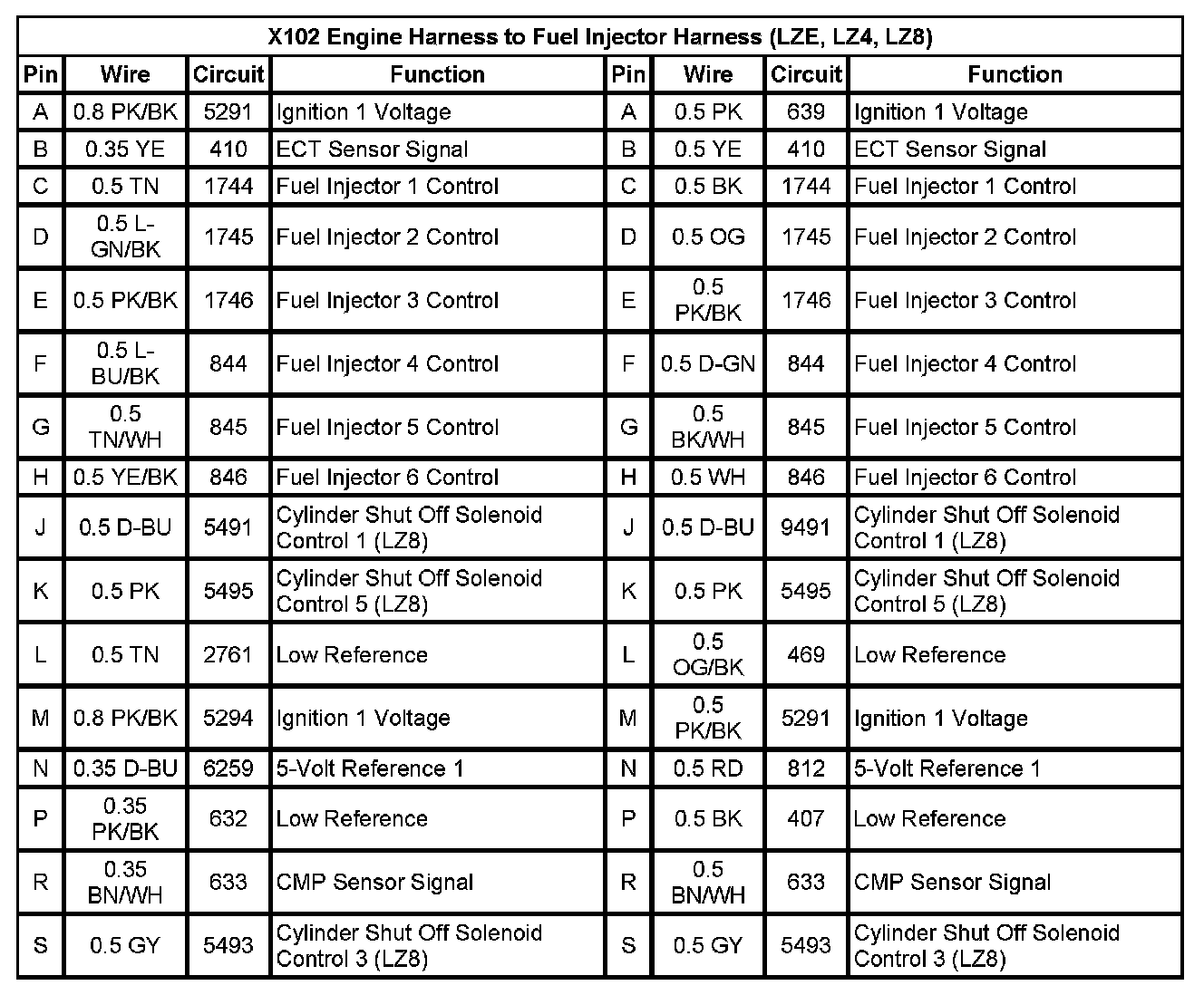

X102 Engine Harness to Fuel Injector Harness (LZE, LZ4, LZ8)
