Automatic Transmission Controls Schematics

Fig 1: Power, Ground, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

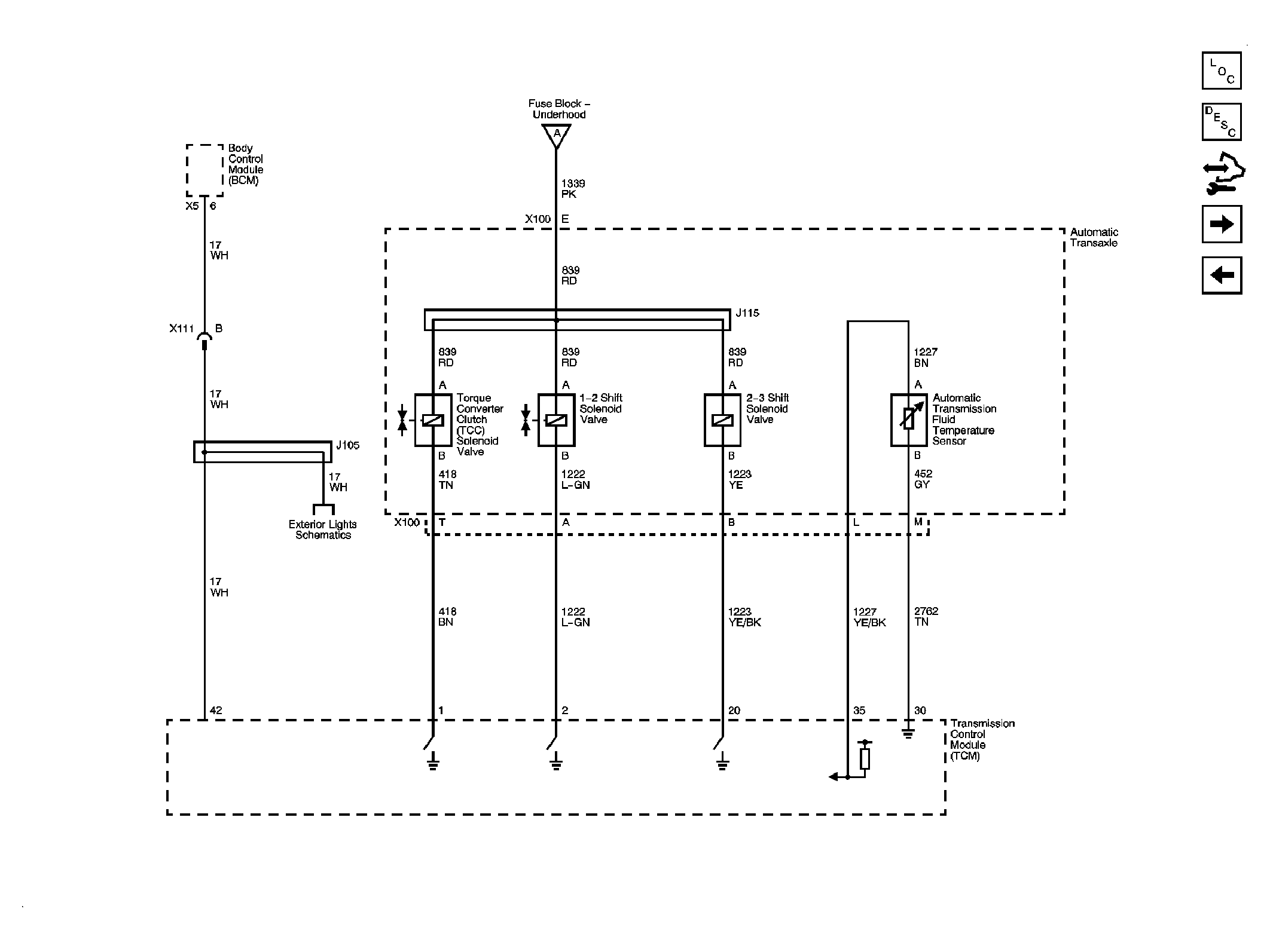

Fig 2: Stop Lamp Switch Signal, TFT Sensor, TCC, and Shift Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

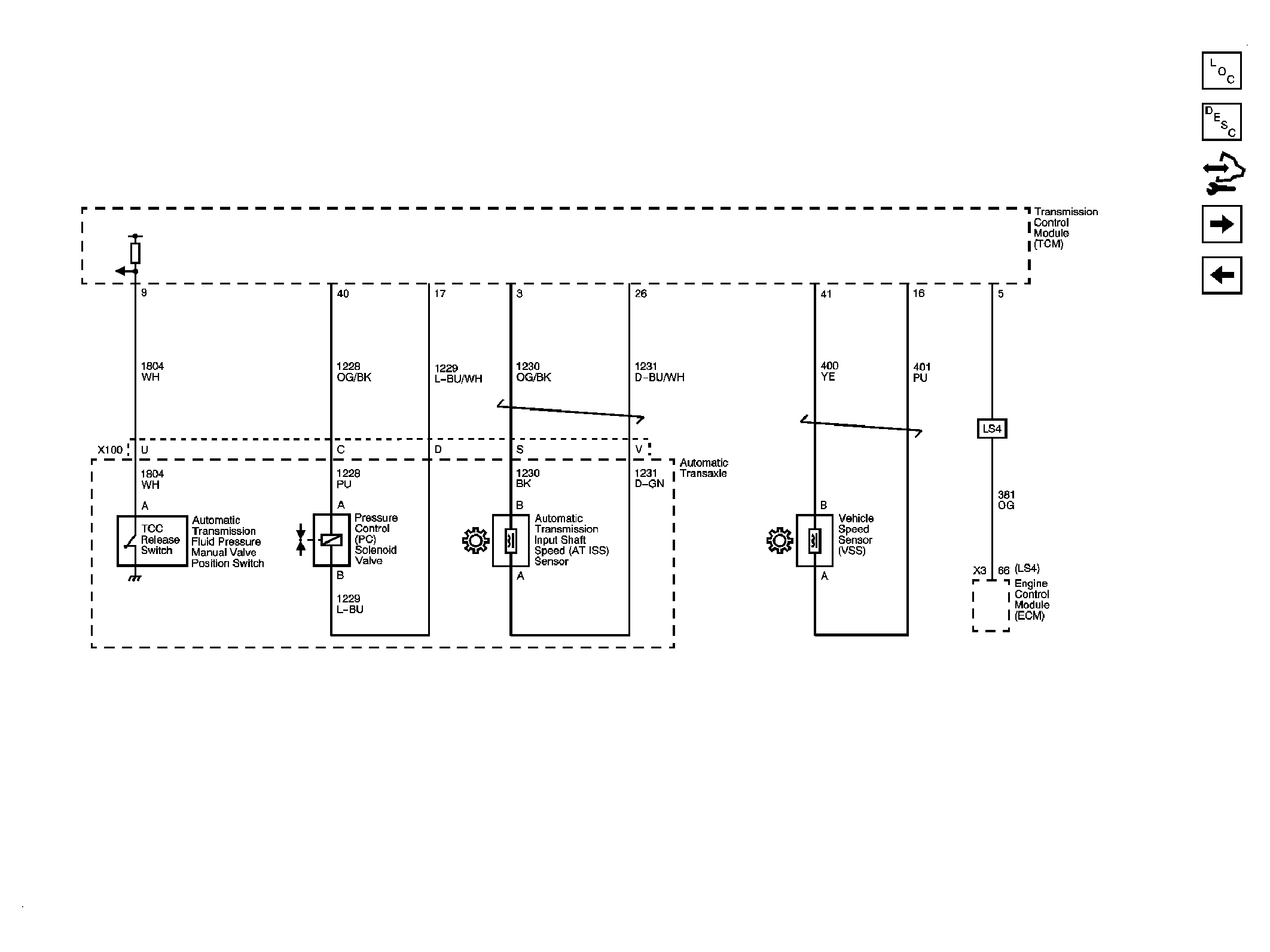

Fig 3: VSS, AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch Schematic

Courtesy of GENERAL MOTORS CORP.

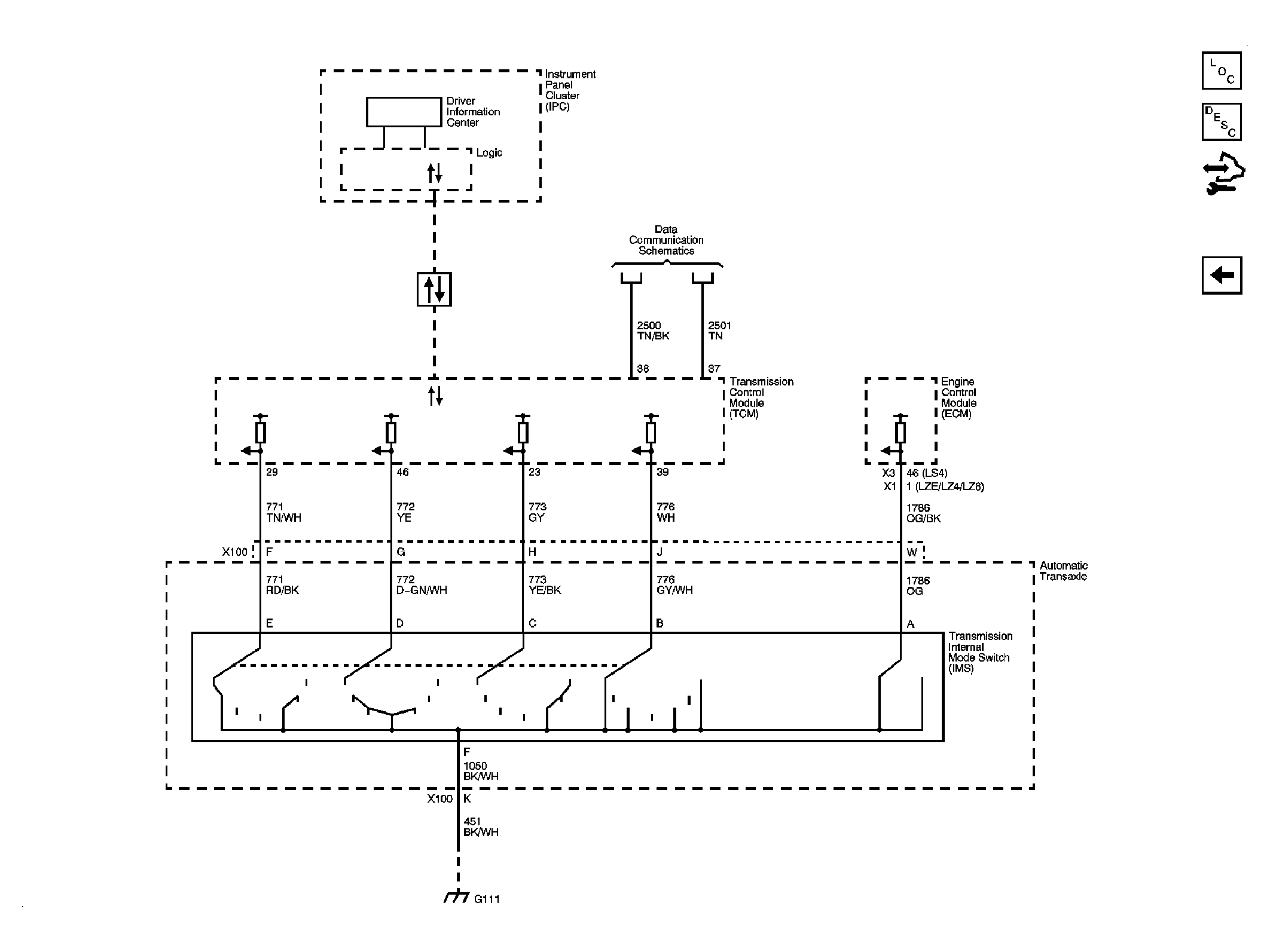

Fig 4: PRNDL, and IMS Switch Schematic

Courtesy of GENERAL MOTORS CORP.
