SIR Schematics

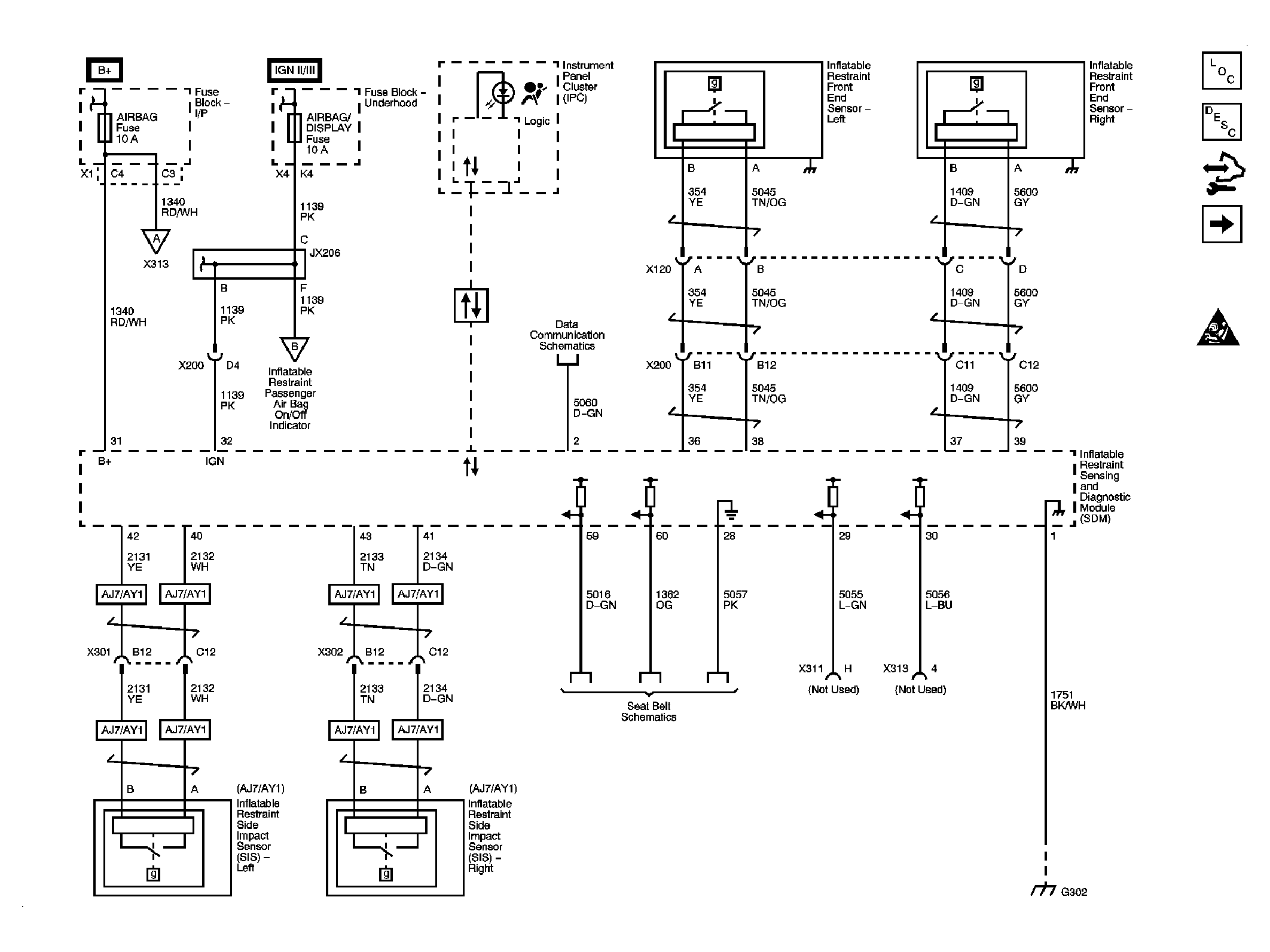

Fig 1: Power, Ground, DLC, Indicators, Sensors, and References Schematic
GM1888368Courtesy of GENERAL MOTORS CORP.

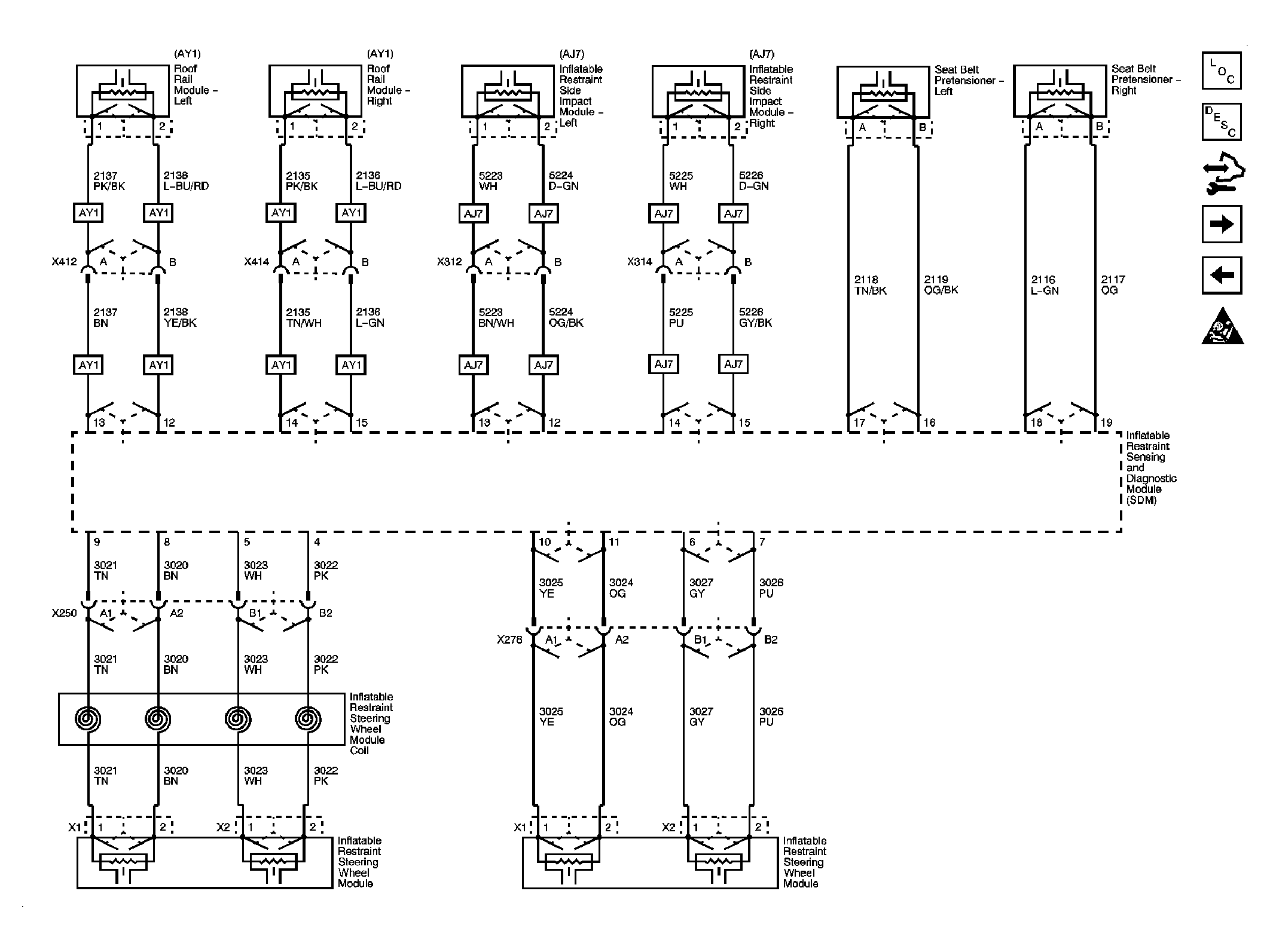

Fig 2: Deployment Loops Schematic
GM1888372Courtesy of GENERAL MOTORS CORP.

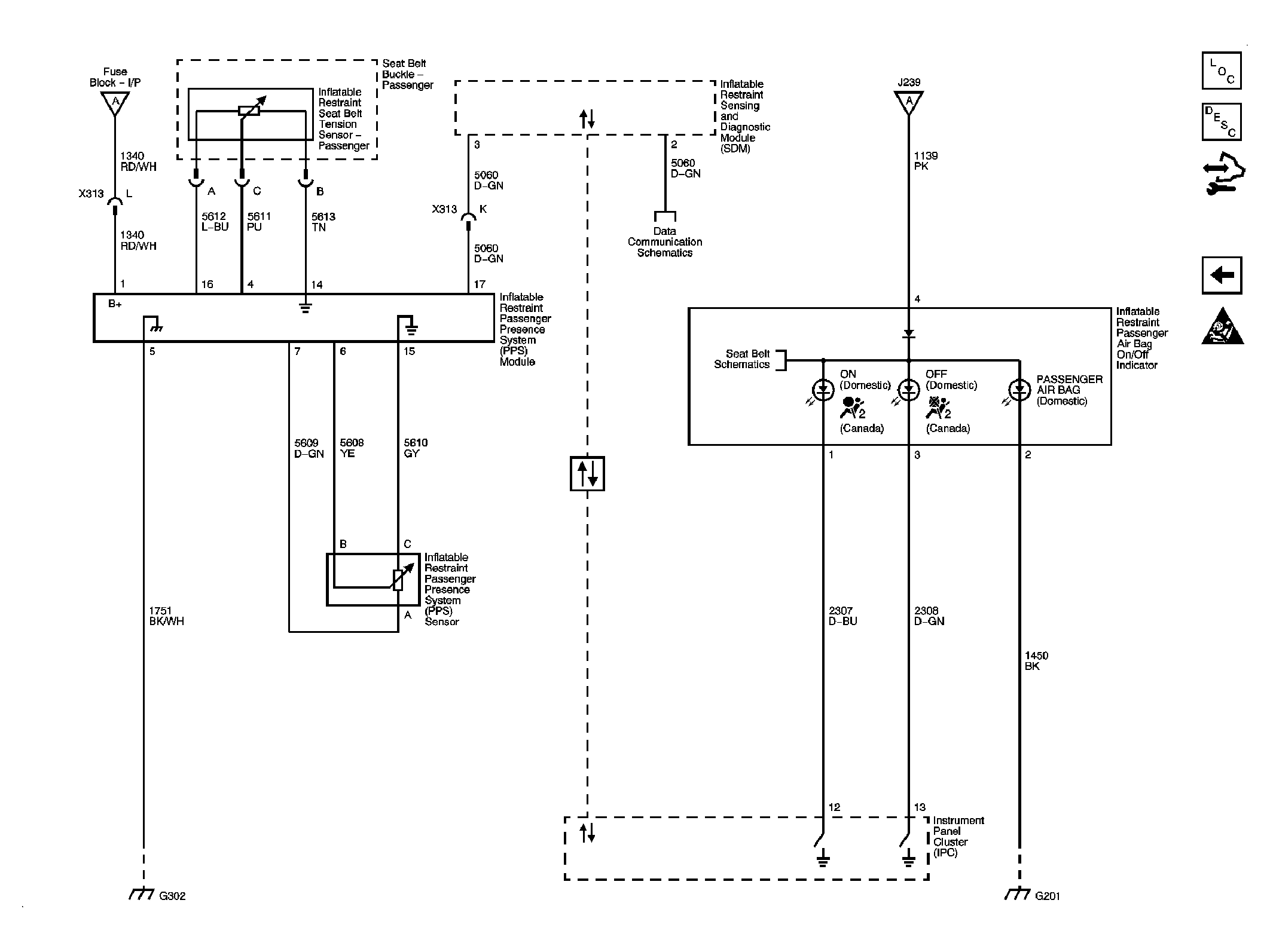

Fig 3: Passenger Presence System Schematic
GM1888376Courtesy of GENERAL MOTORS CORP.
