Starting and Charging Schematics

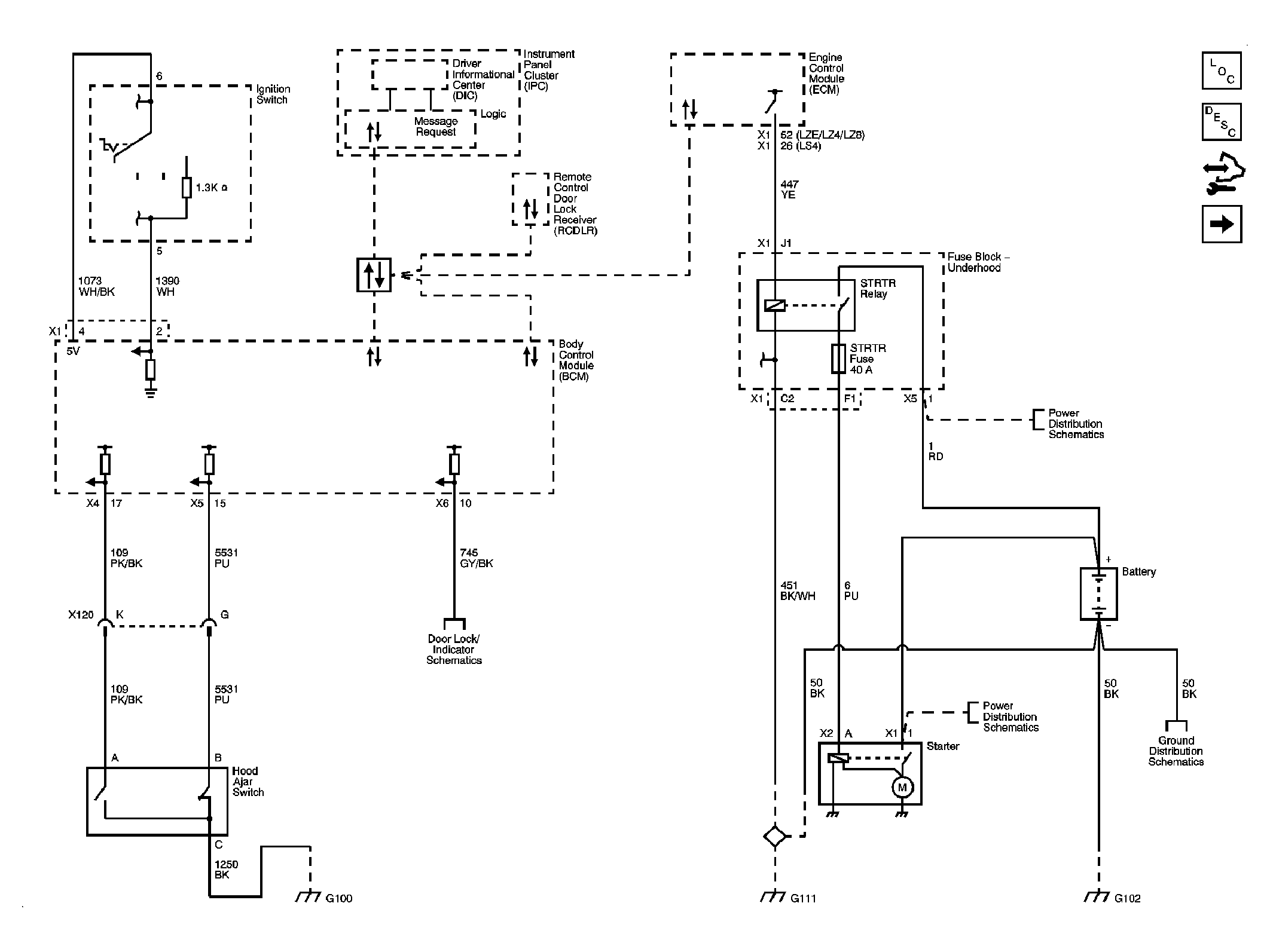

Fig 1: Starter Circuit Schematic

GM1888255

Courtesy of GENERAL MOTORS CORP.

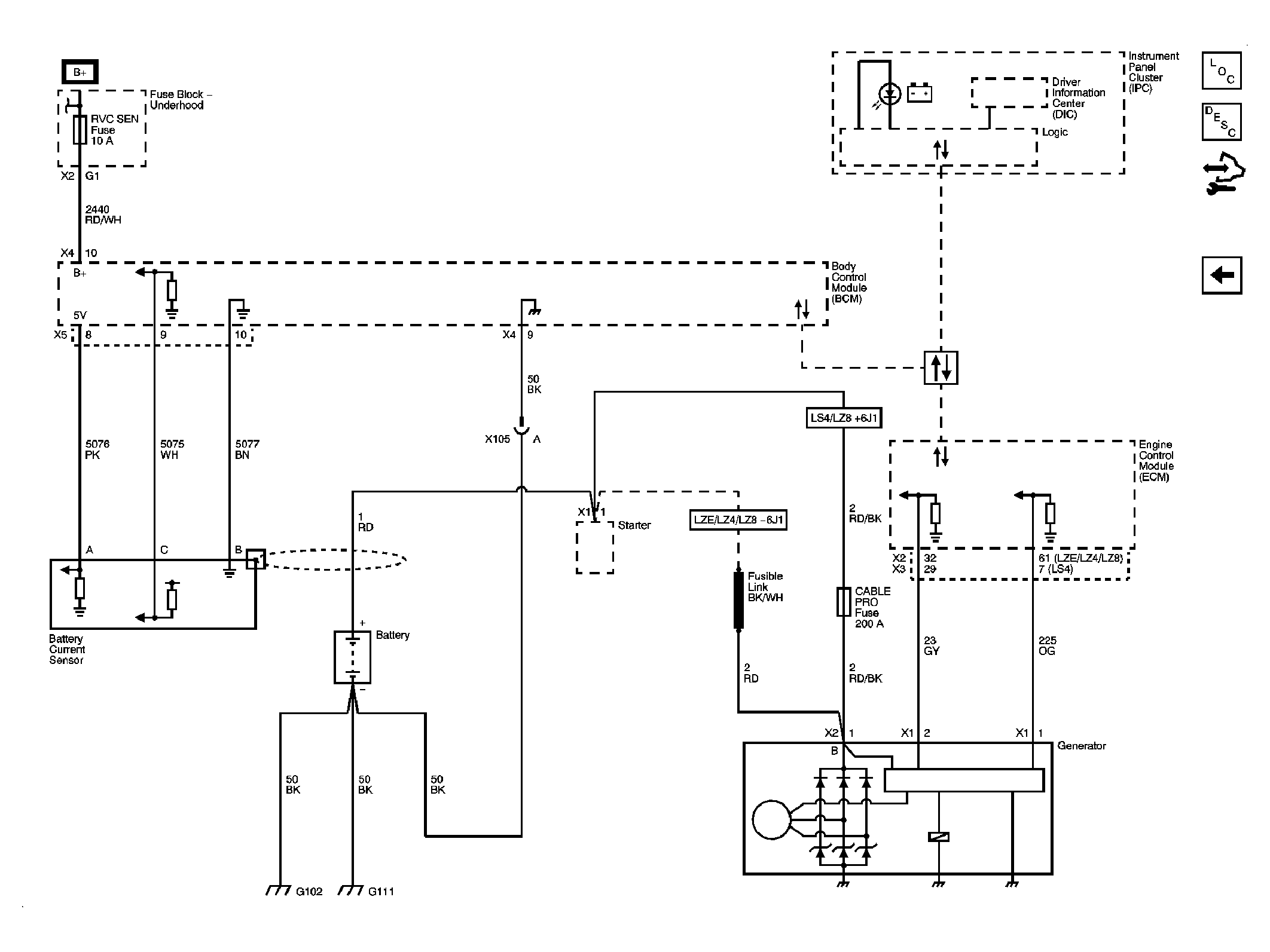

Fig 2: Generator Circuit Schematic

GM1888256

Courtesy of GENERAL MOTORS CORP.
