Harness Routing Views

Fig 1: Forward Lamp Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X120
2	X141
3	G101
4	X122 (9C1,9C3 w/o 6J7)
5	J124
6	G101
7	X142

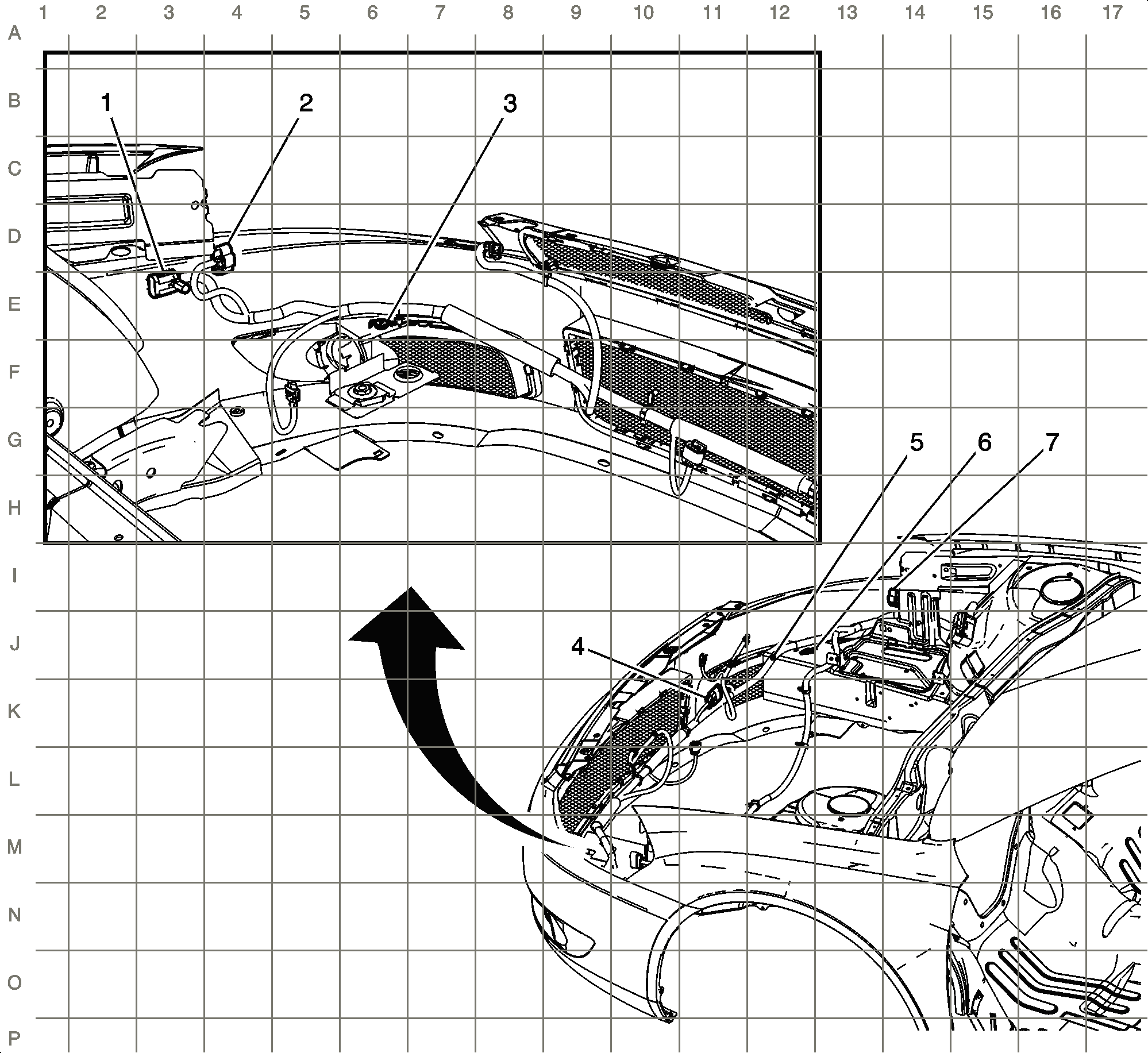

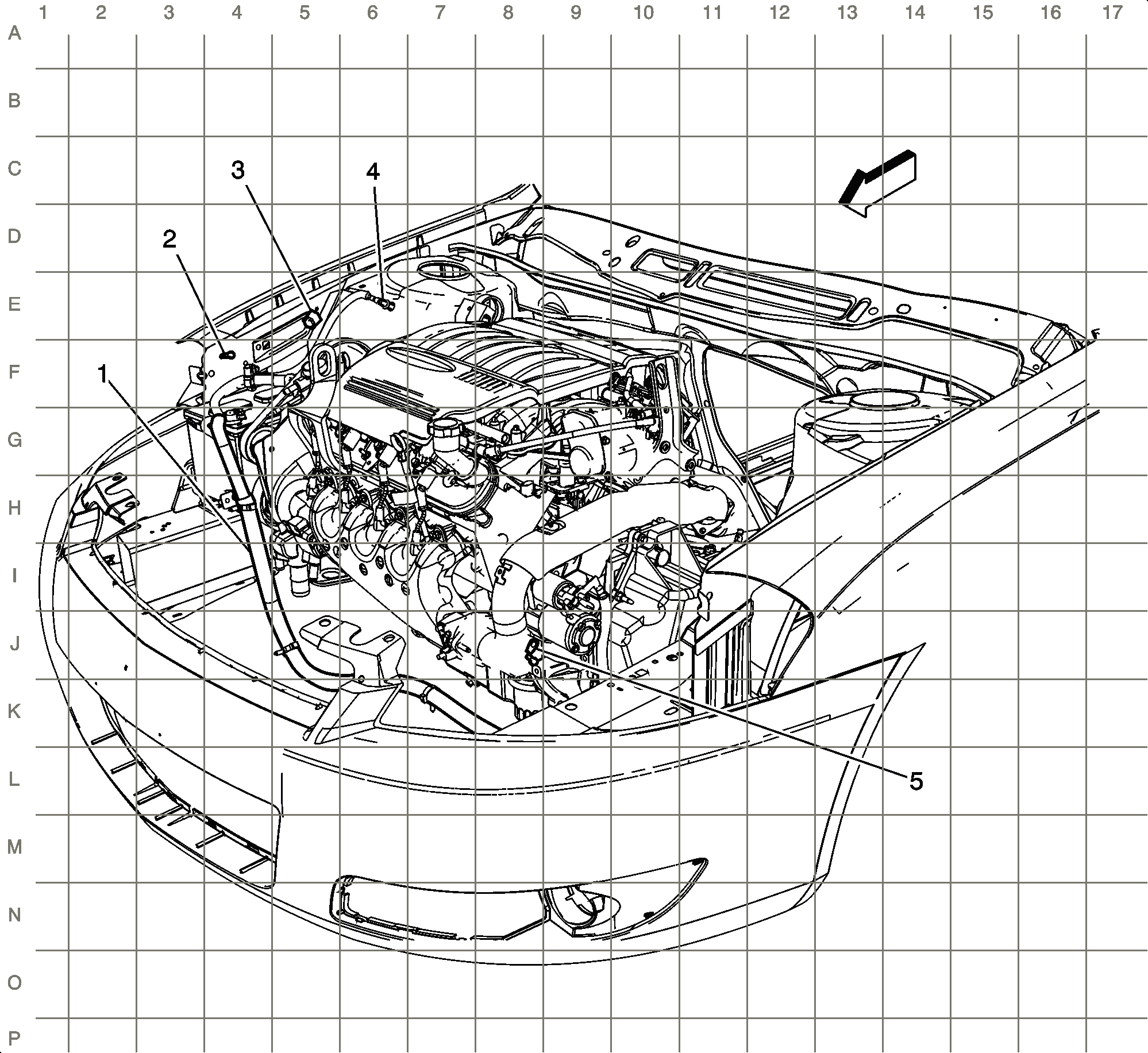

Fig 2: Battery Cables (Typical)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Cables
2	G102
3	X105
4	Positive Voltage Stud
5	G111

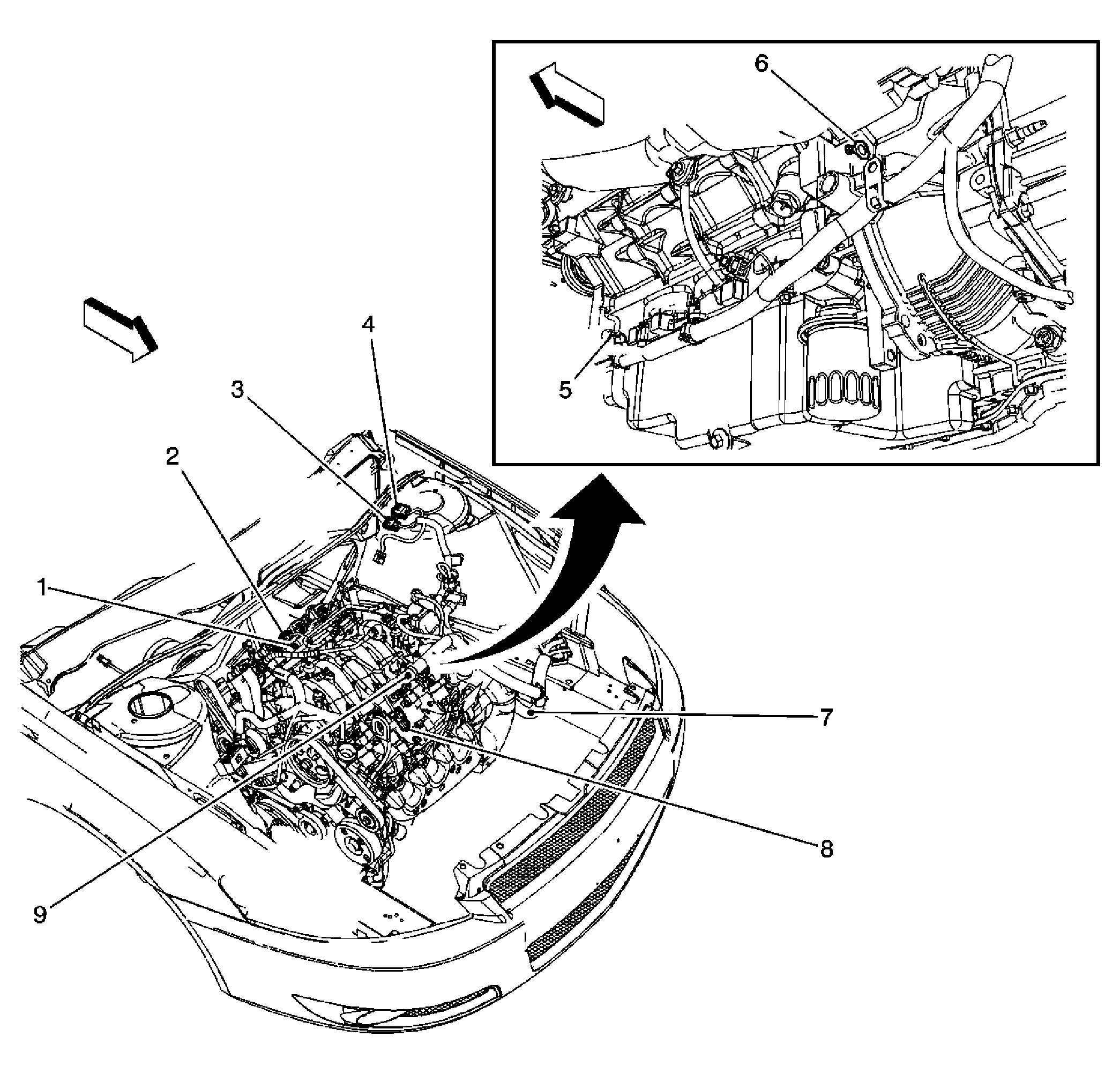

Fig 3: Front of the Engine Compartment (LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J109
2	X108
3	X101
4	X111
5	G115
6	G113
7	J101
8	X107
9	J108

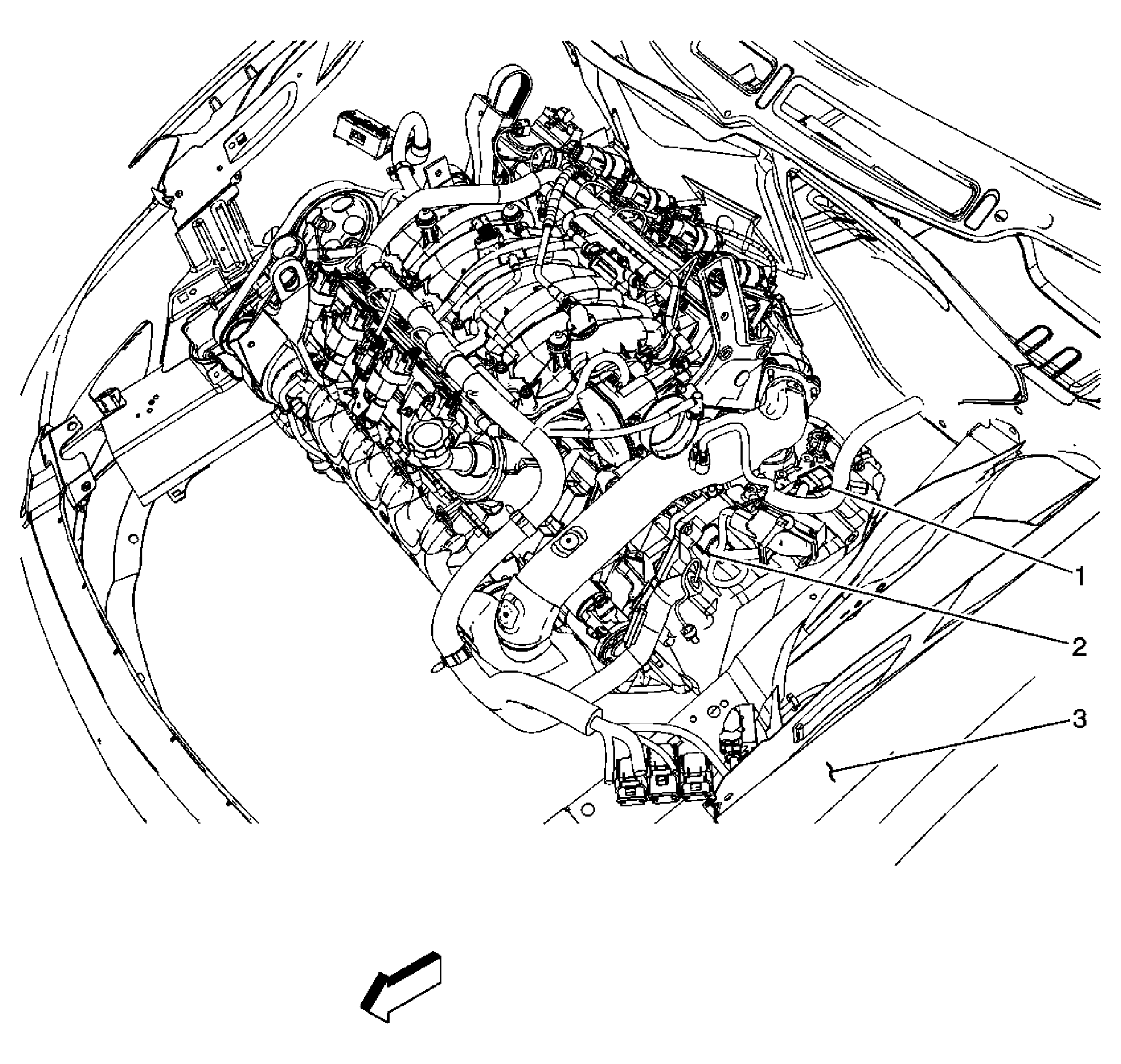

Fig 4: Left Side of Engine (LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X116
2	X100
3	Fender - Left Front

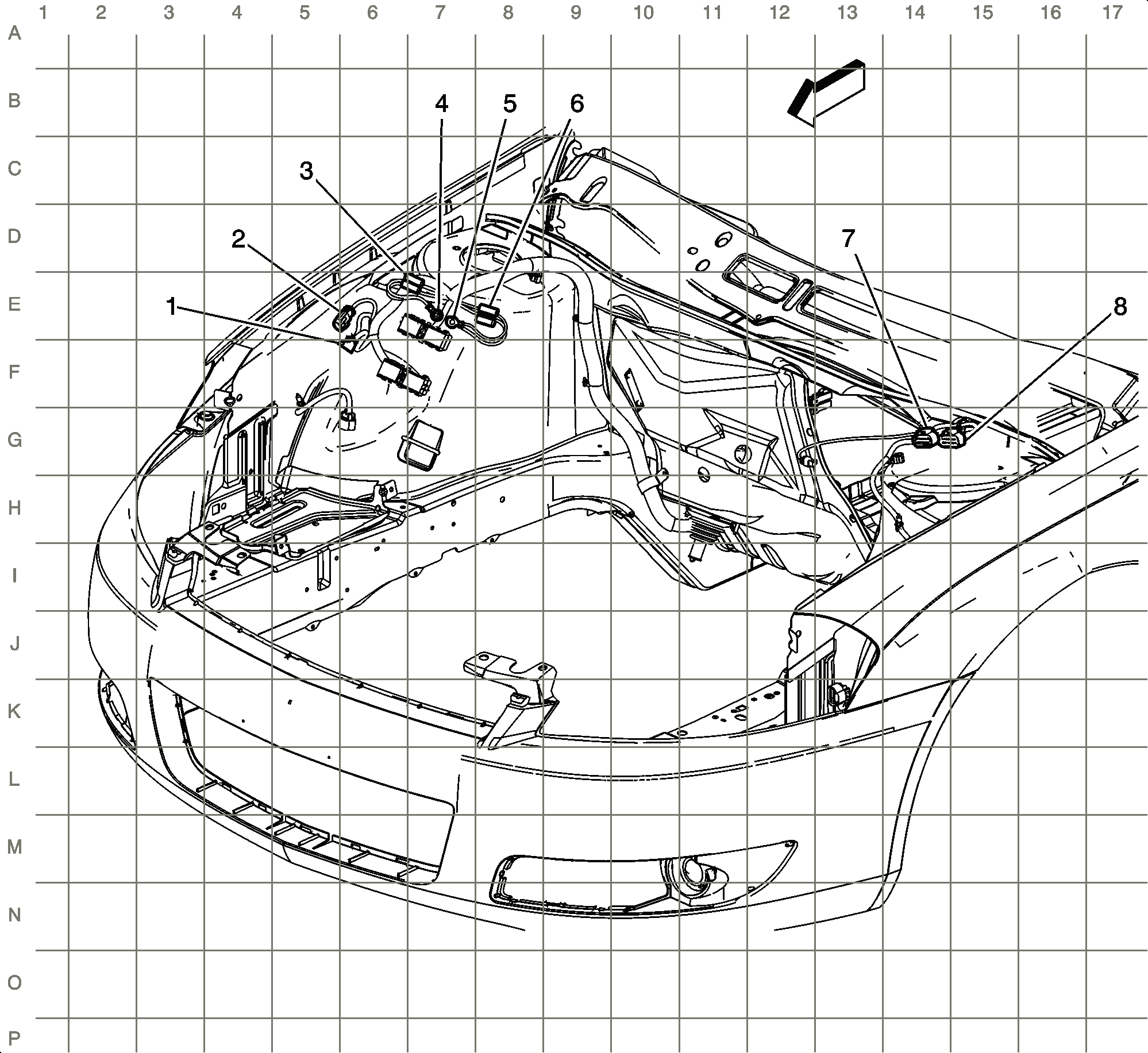

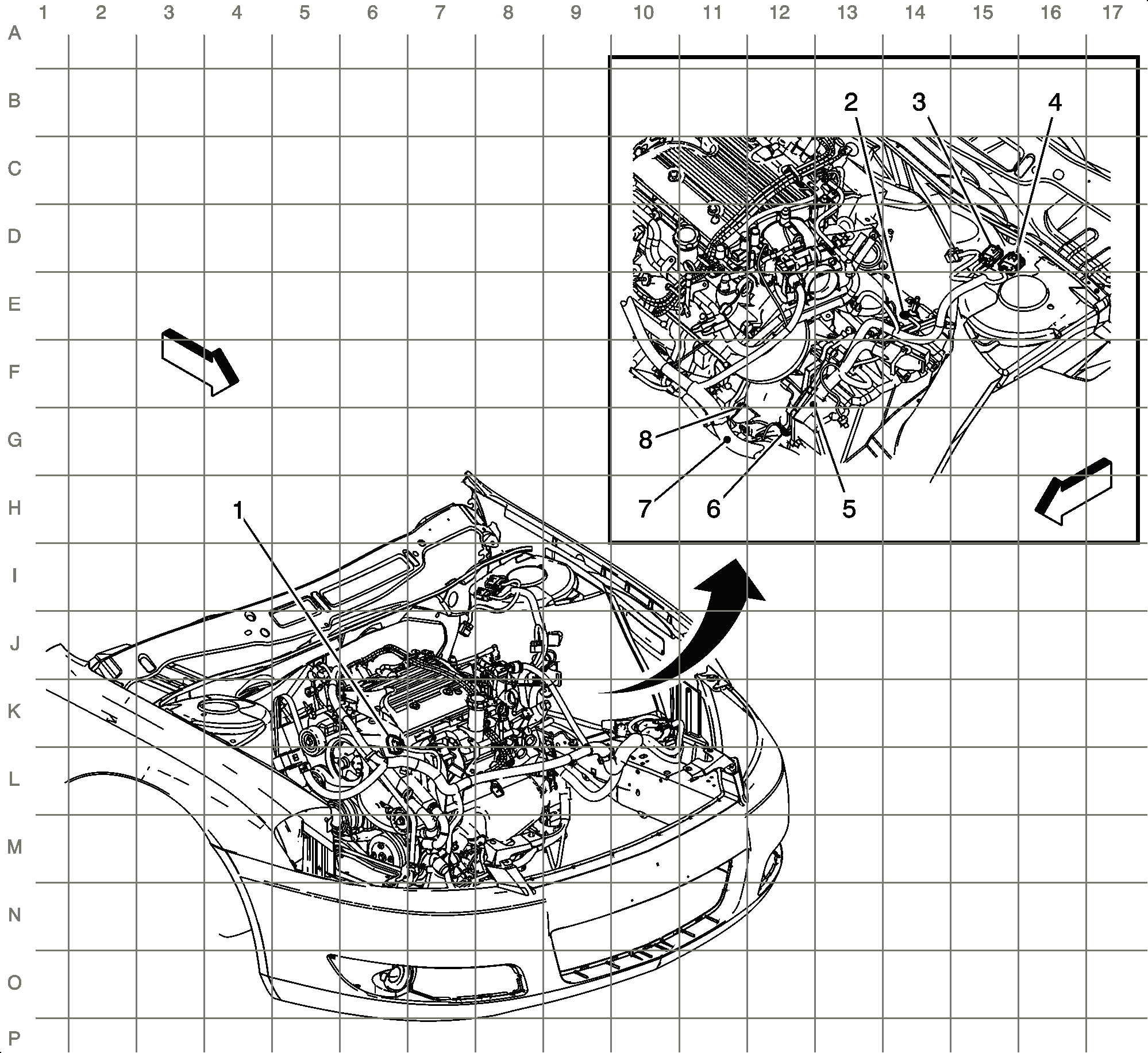

Fig 5: Front of the Engine Compartment - LZ8

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X102
2	G115
3	X101
4	X111
5	J105
6	G113
7	J101
8	G111

Fig 6: Instrument Panel Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X123 (9C1, 9C3)
2	X105
3	Fusable Link (9C1, 9C3)
4	Positive Battery Voltage Stud (Fuse Block)
5	Positive Battery Voltage Stud (Fuse Block)
6	Fusable Link (9C1, 9C3)
7	X101
8	X111

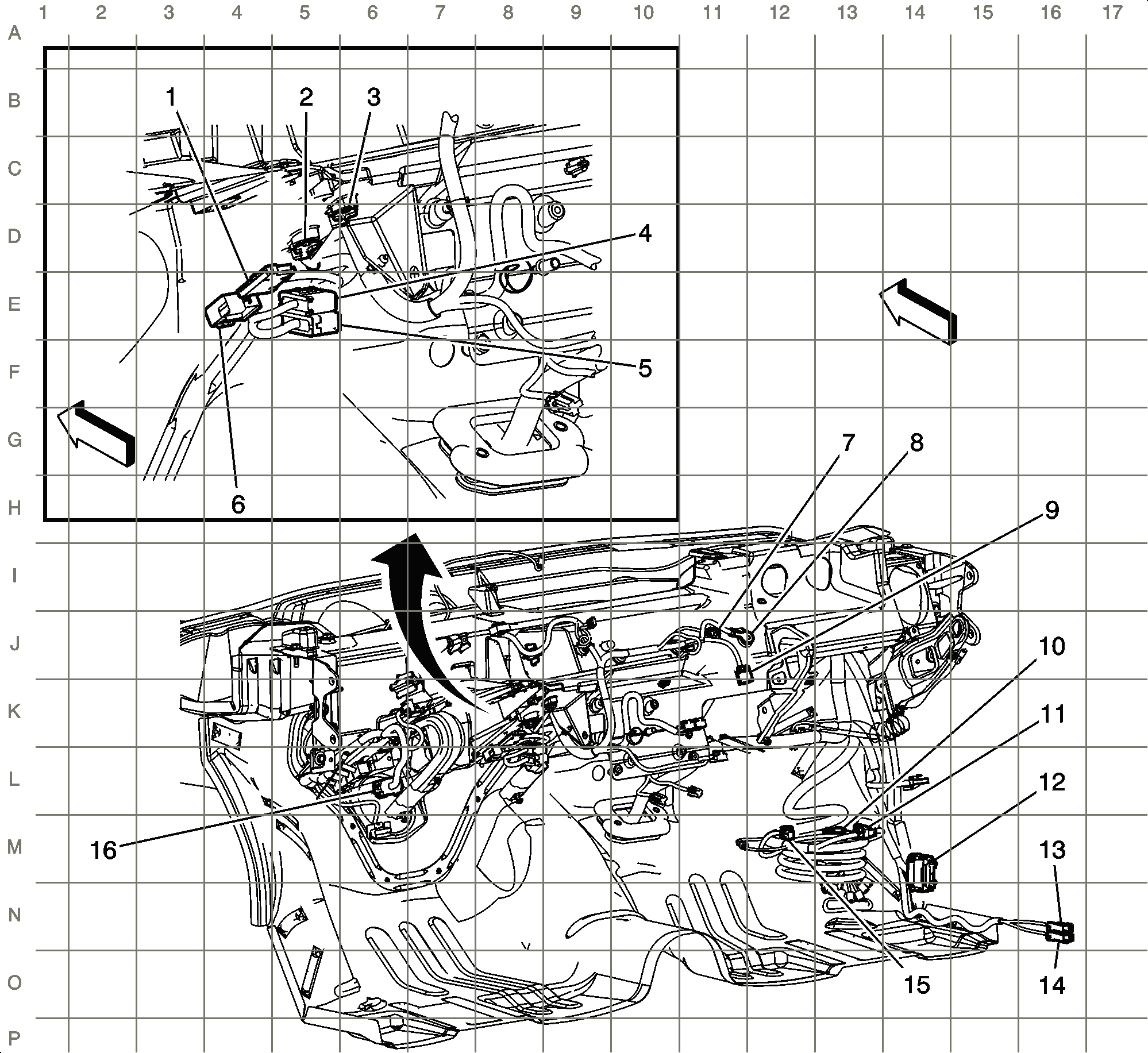

Fig 7: Instrument Panel Harness - Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	JX205
2	G202
3	G201
4	JX206
5	JX207
6	X201
7	G200
8	G204 (9C1, 9C3)
9	X210
10	X266 (9C1, 9C3)
11	X267 (9C1, 9C3)
12	X200
13	X360 (9C1, 9C3)
14	X362 (9C1, 9C3)
15	X297 (9C1, 9C3)
16	X203

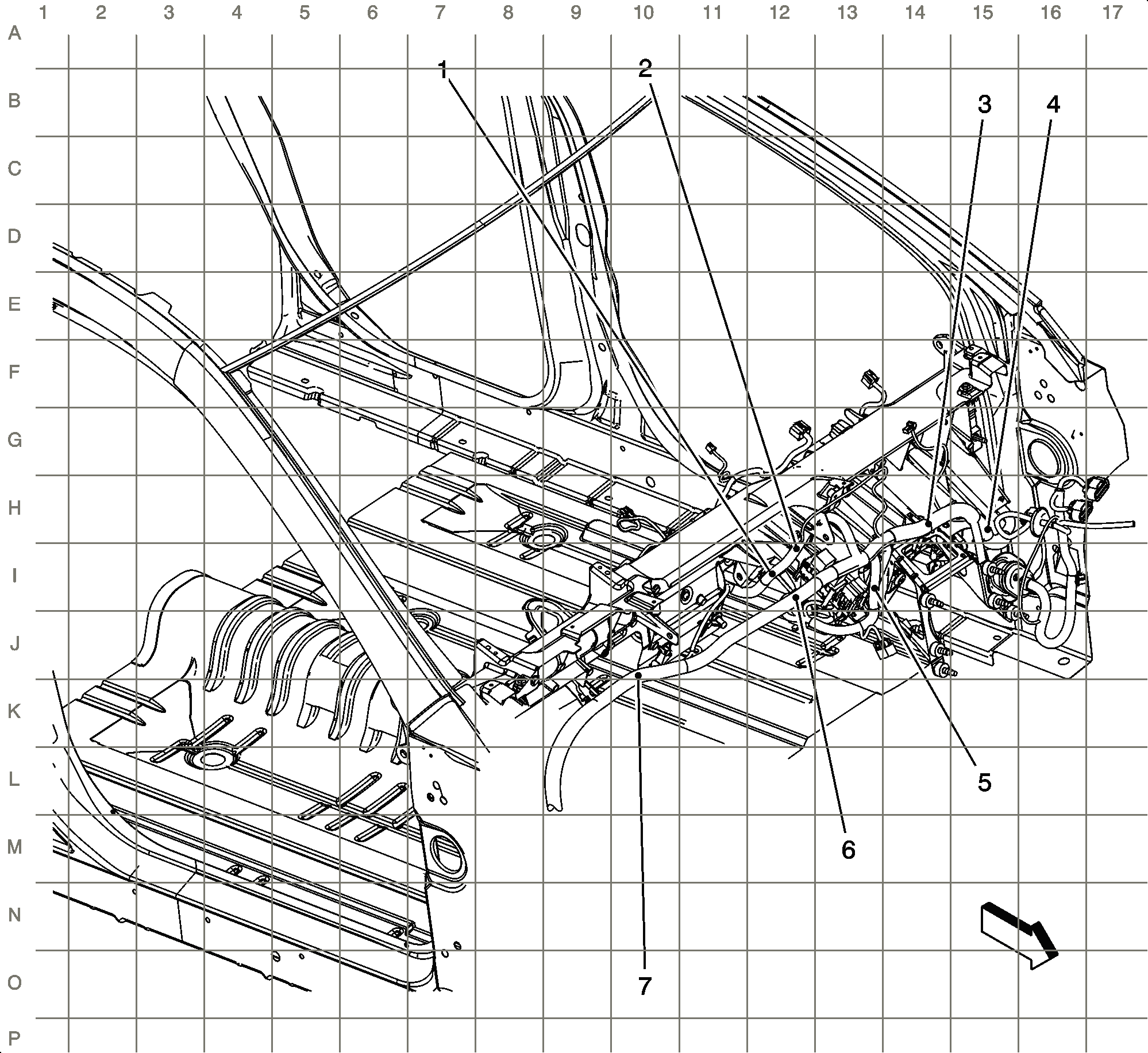

Fig 8: Instrument Panel Harness Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J203
2	J239
3	J218
4	J259
5	J269
6	J250
7	J282

Fig 9: HVAC Module Wiring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X210
2	HVAC Module
3	HVAC Control Module - X2

Fig 10: Identifying Lower Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Lock Cylinder Control Actuator
2	Inflatable Restraint Steering Wheel Module Coil
3	X201
4	Body Control Module (BCM)
5	BCM X1
6	X250
7	X277

Fig 11: View Of Front Seat Airbag Inlines

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Passenger
2	Passenger
3	X314
4	Seat Belt Switch - Driver
5	Inflatable Restraint Side Impact Module - Left
6	X312
7	Driver Seat
8	Inflatable Restraint Side Impact Module - Right

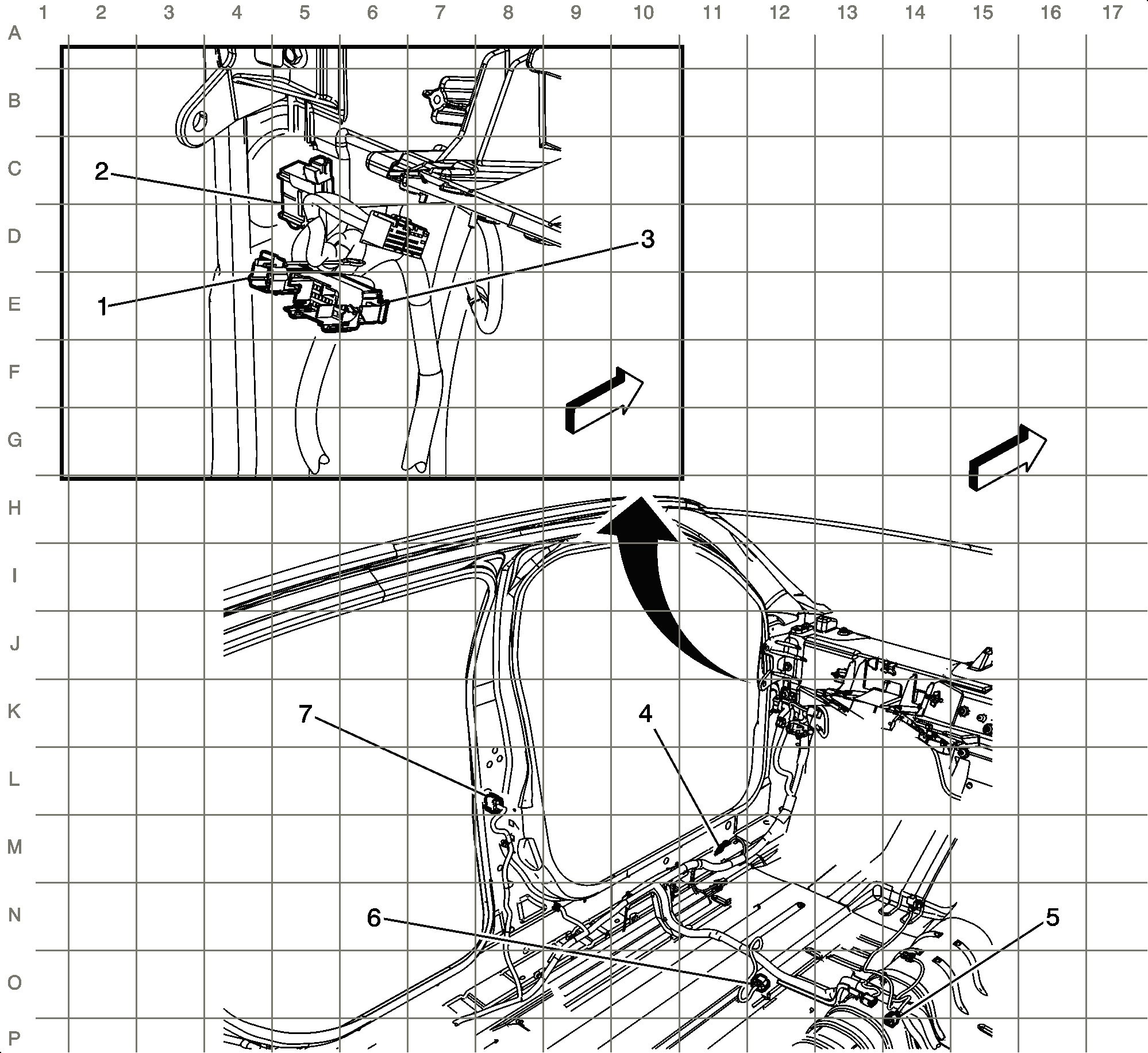

Fig 12: Body Harness - Left Front Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X250
2	X301
3	X203
4	G301
5	X340
6	X311
7	X355

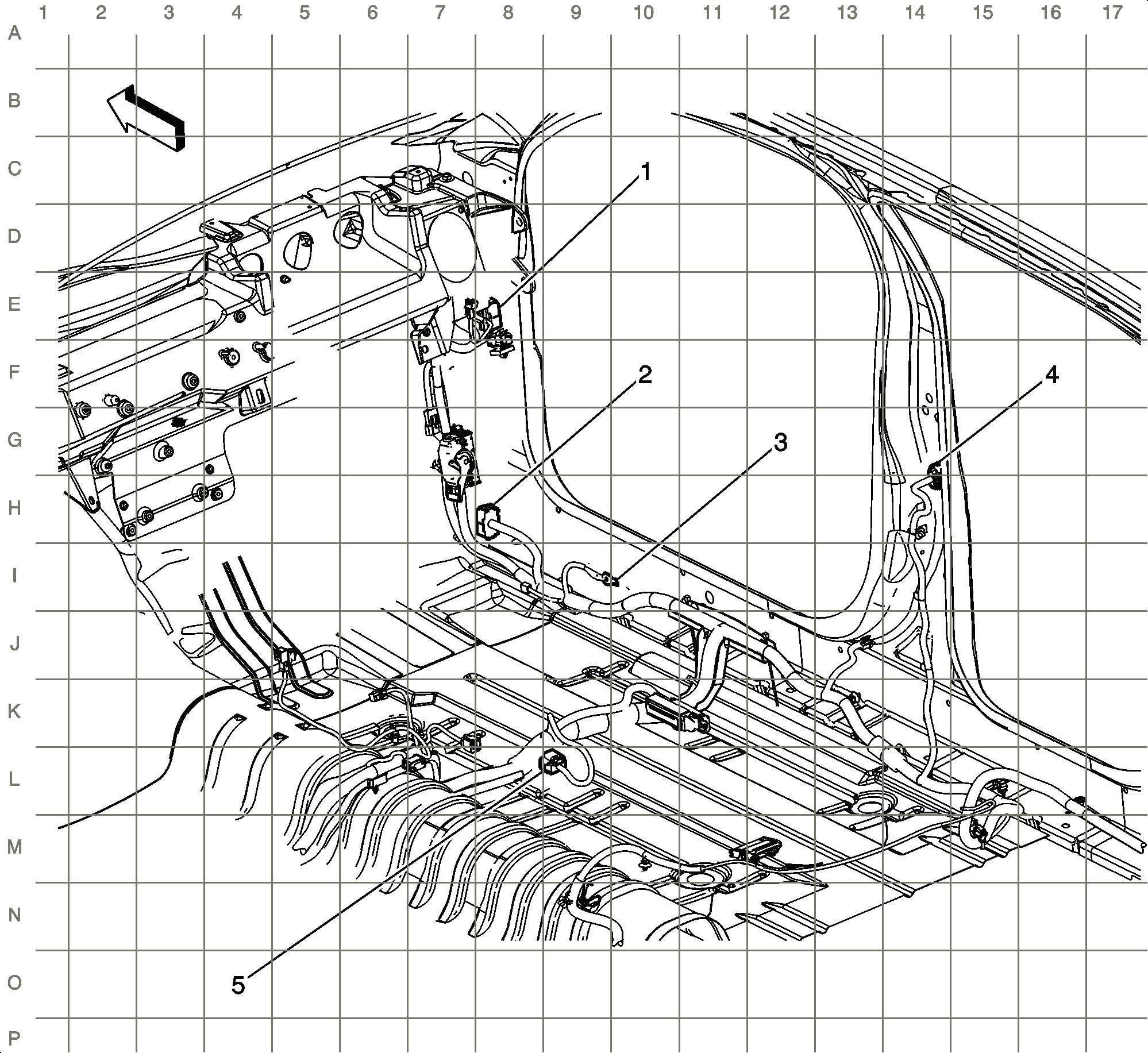

Fig 13: Body Harness - Right Front Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X302
2	X360 (9C1, 9C3)
3	G302
4	X356
5	X313

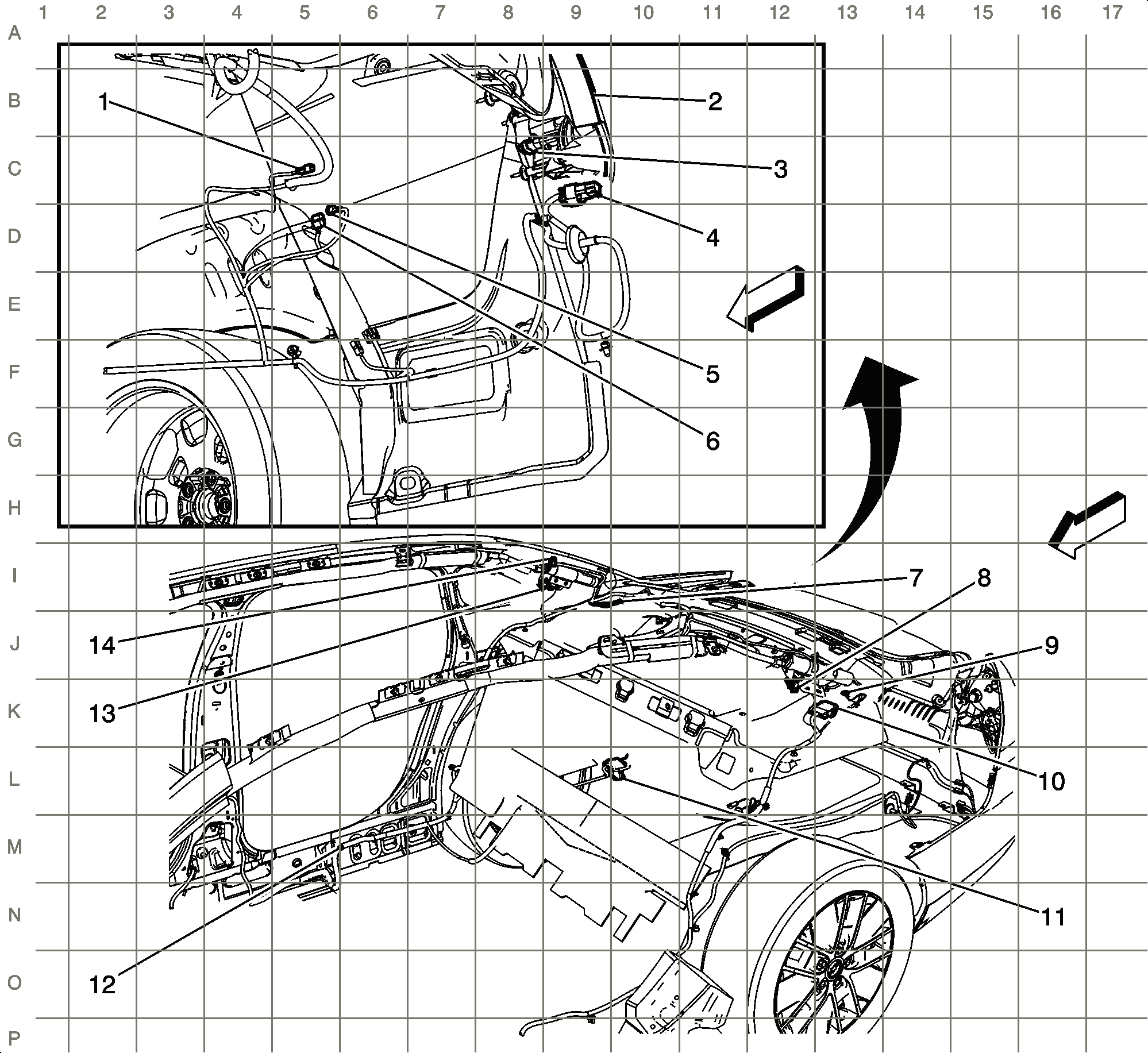

Fig 14: Body Harness - Rear Compartment Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X409 (9C1, 9C3)
2	Tail Lamp - RH
3	X402
4	X406
5	Junction Block - Rear (6J1) Positive Voltage Stud
6	Junction Block - Rear (6J1) Positive Voltage Stud
7	G404
8	X412
9	G403
10	X490
11	X405
12	J324
13	X414
14	X322 (9C1, 9C3) Taped to Harness

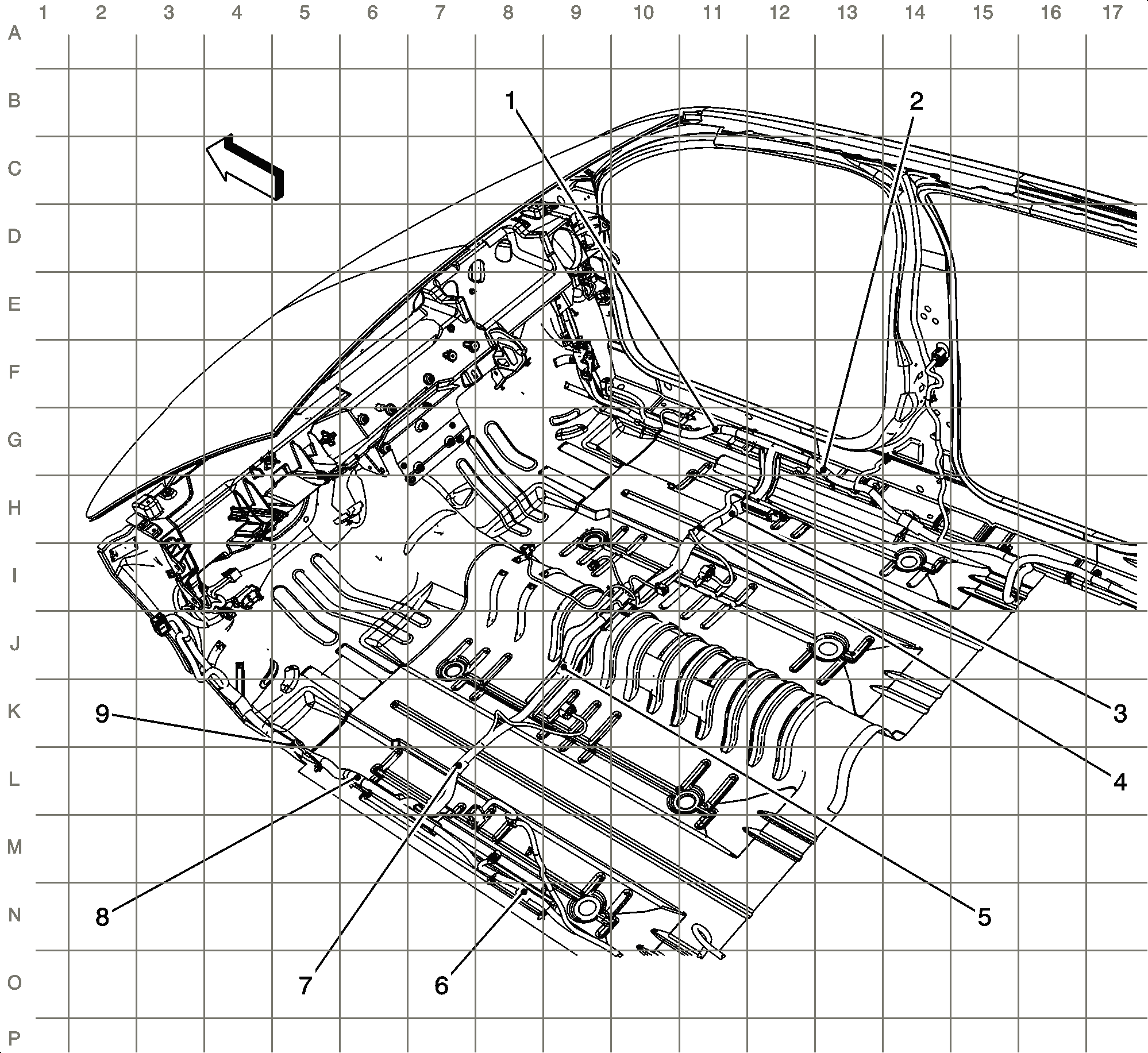

Fig 15: Body Harness - Passenger Compartment Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J350
2	J375
3	J314
4	J315
5	J359
6	J332
7	J303
8	J308
9	J307

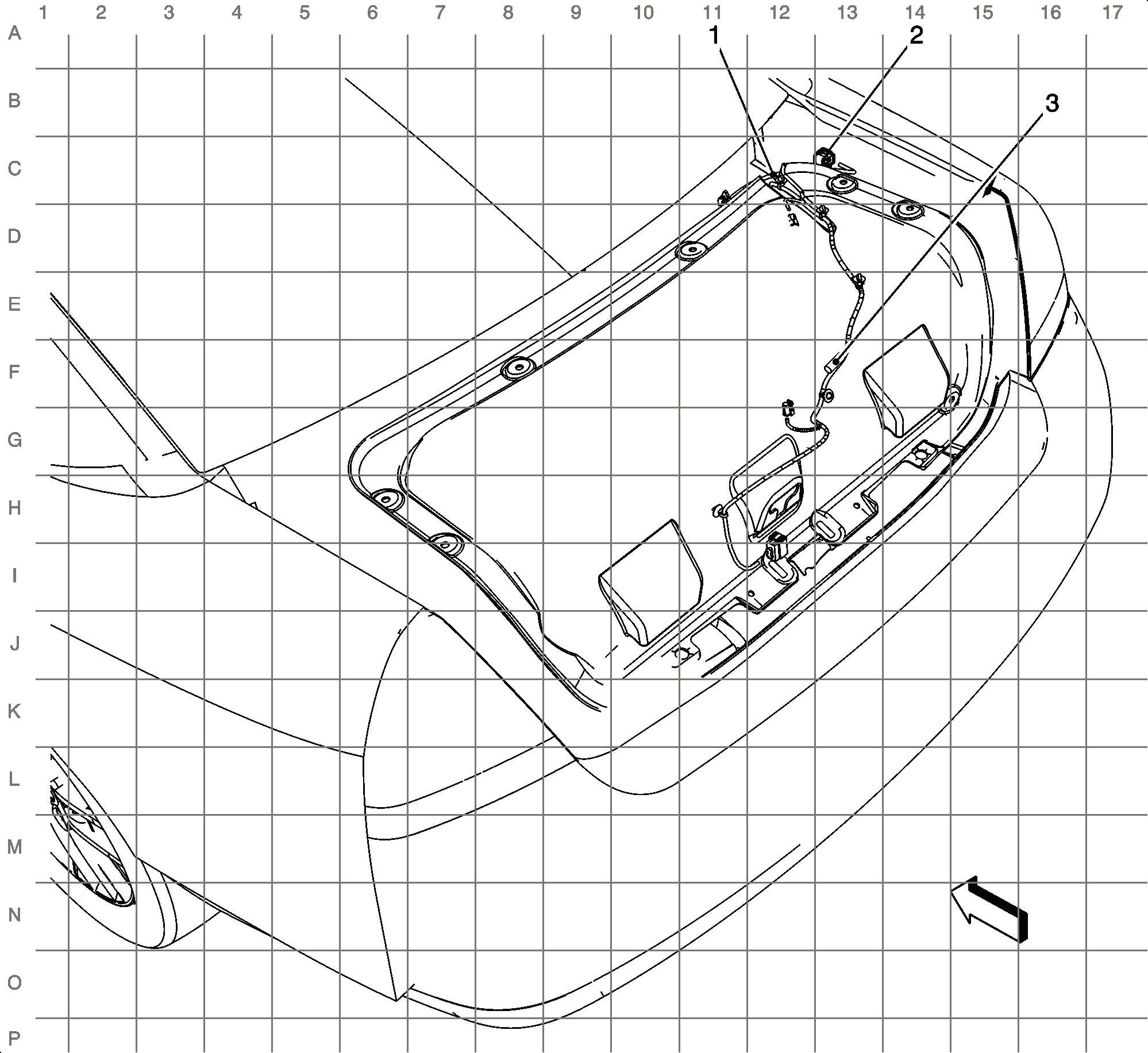

Fig 16: Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J902
2	X430
3	J901

Fig 17: Sunroof and Headliner Harness (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G403
2	Rear Shelf
3	J393
4	J390
5	J364
6	X398 (CF5)
7	X490

Fig 18: Driver Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	J506
3	J504
4	J505
5	X301
6	X503

Fig 19: Passenger Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	X604
3	X302
4	J604
5	J608

Fig 20: Left Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	X355
3	Window Motor - Left Rear Connector

Fig 21: Right Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	X356
3	Window Motor - Right Rear Connector

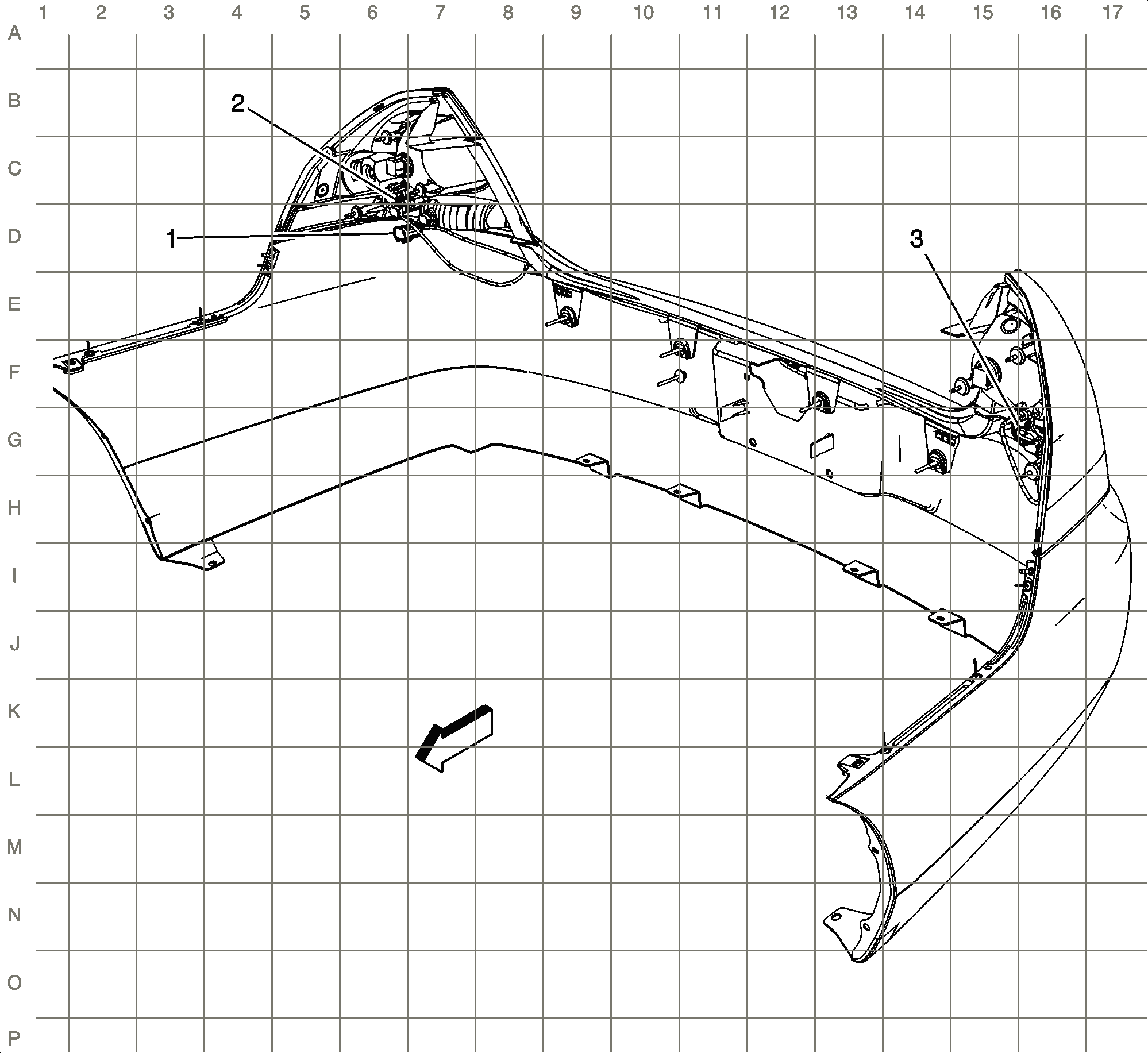

Fig 22: Rear Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X406
2	X402
3	X401
