Ground Distribution Schematics

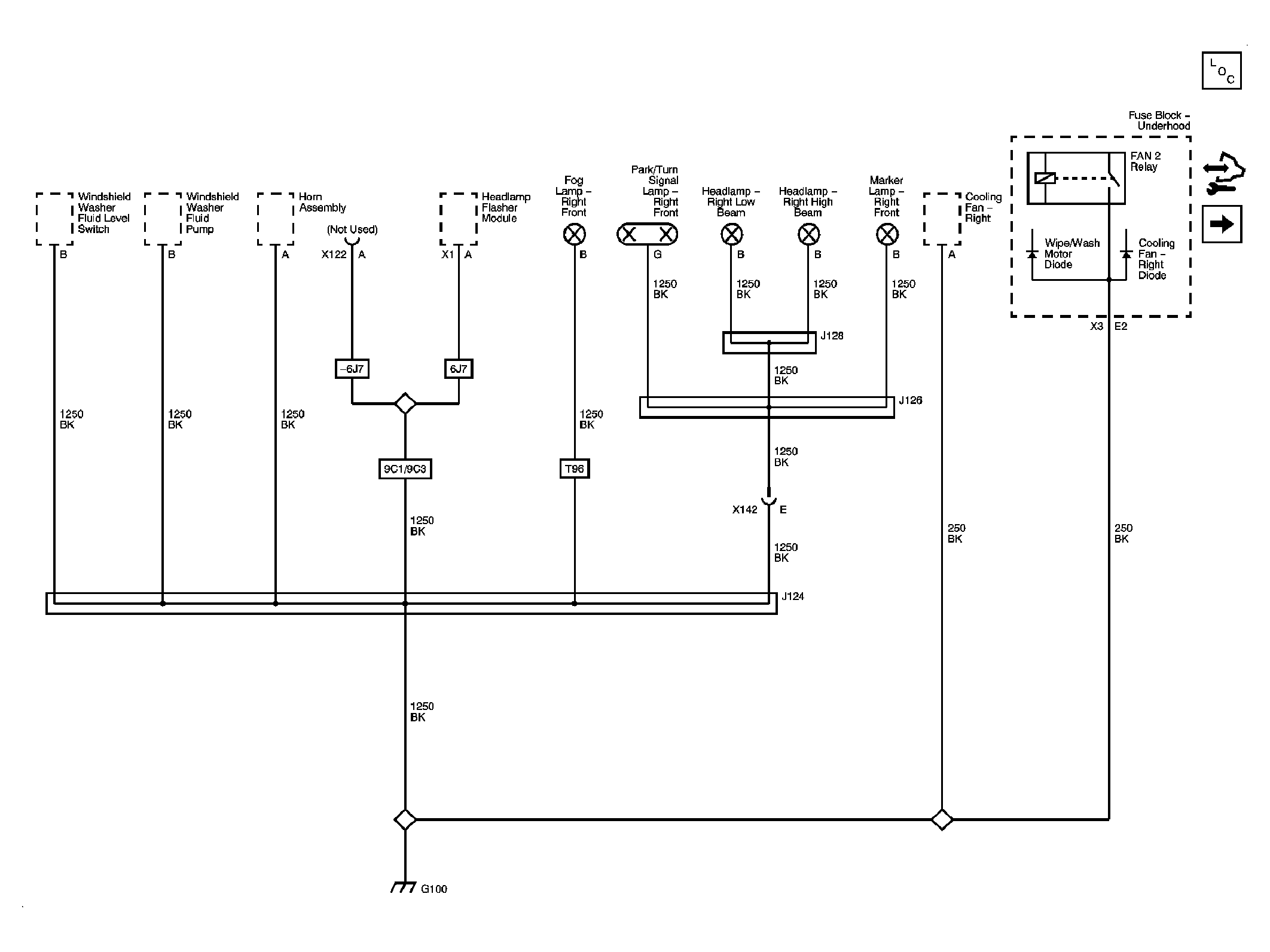

Fig 1: G100 Schematic

GM1888239

Courtesy of GENERAL MOTORS CORP.

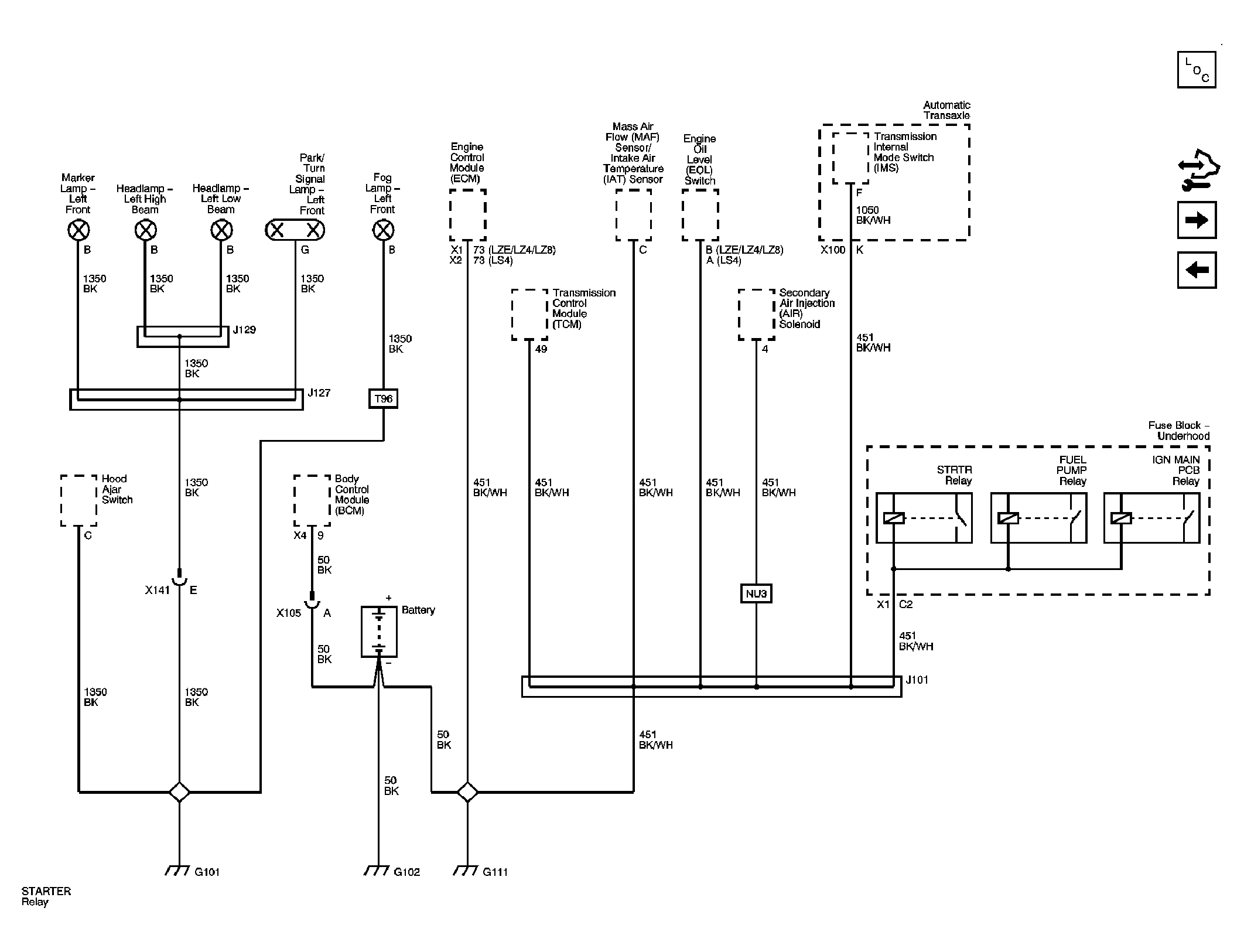

Fig 2: G101, G102, and G111 Schematic

GM1888241

Courtesy of GENERAL MOTORS CORP.

Fig 3: G113, and G115 Schematic

GM1888242

Courtesy of GENERAL MOTORS CORP.

Fig 4: G200 Schematic

GM1888243

Courtesy of GENERAL MOTORS CORP.

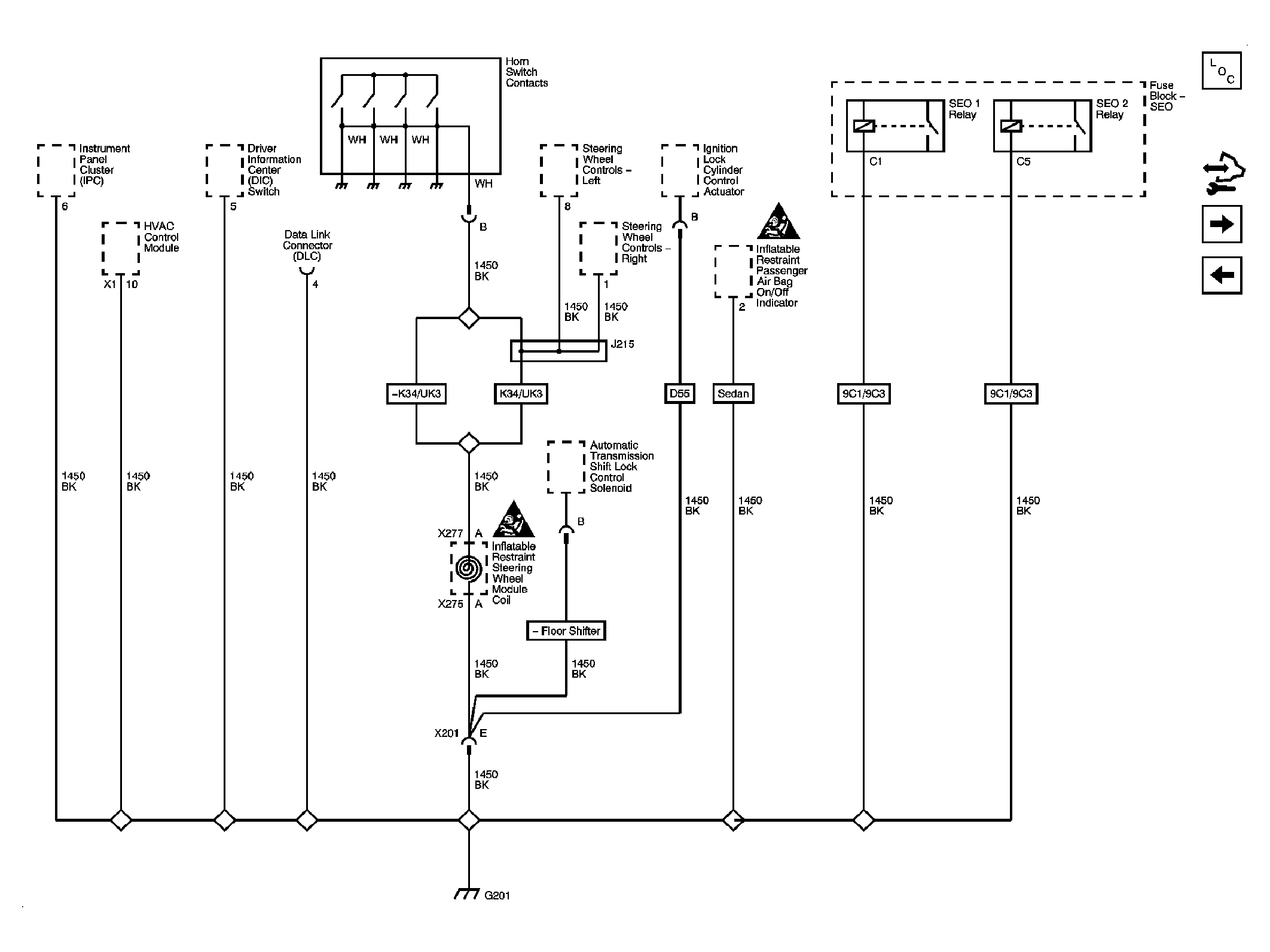

Fig 5: G201 Schematic

GM1888244

Courtesy of GENERAL MOTORS CORP.

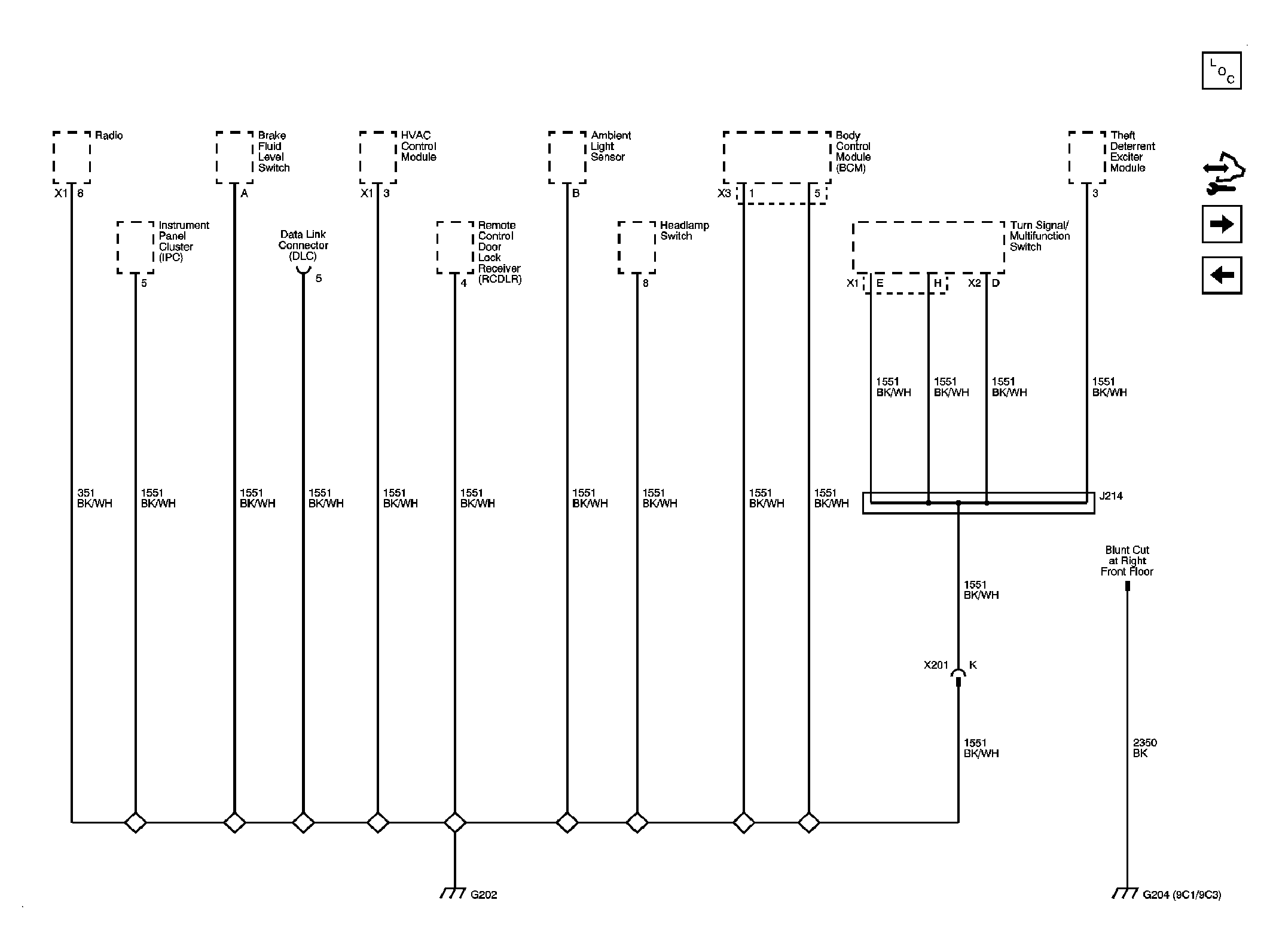

Fig 6: G202, and G204 Schematic

GM1888245

Courtesy of GENERAL MOTORS CORP.

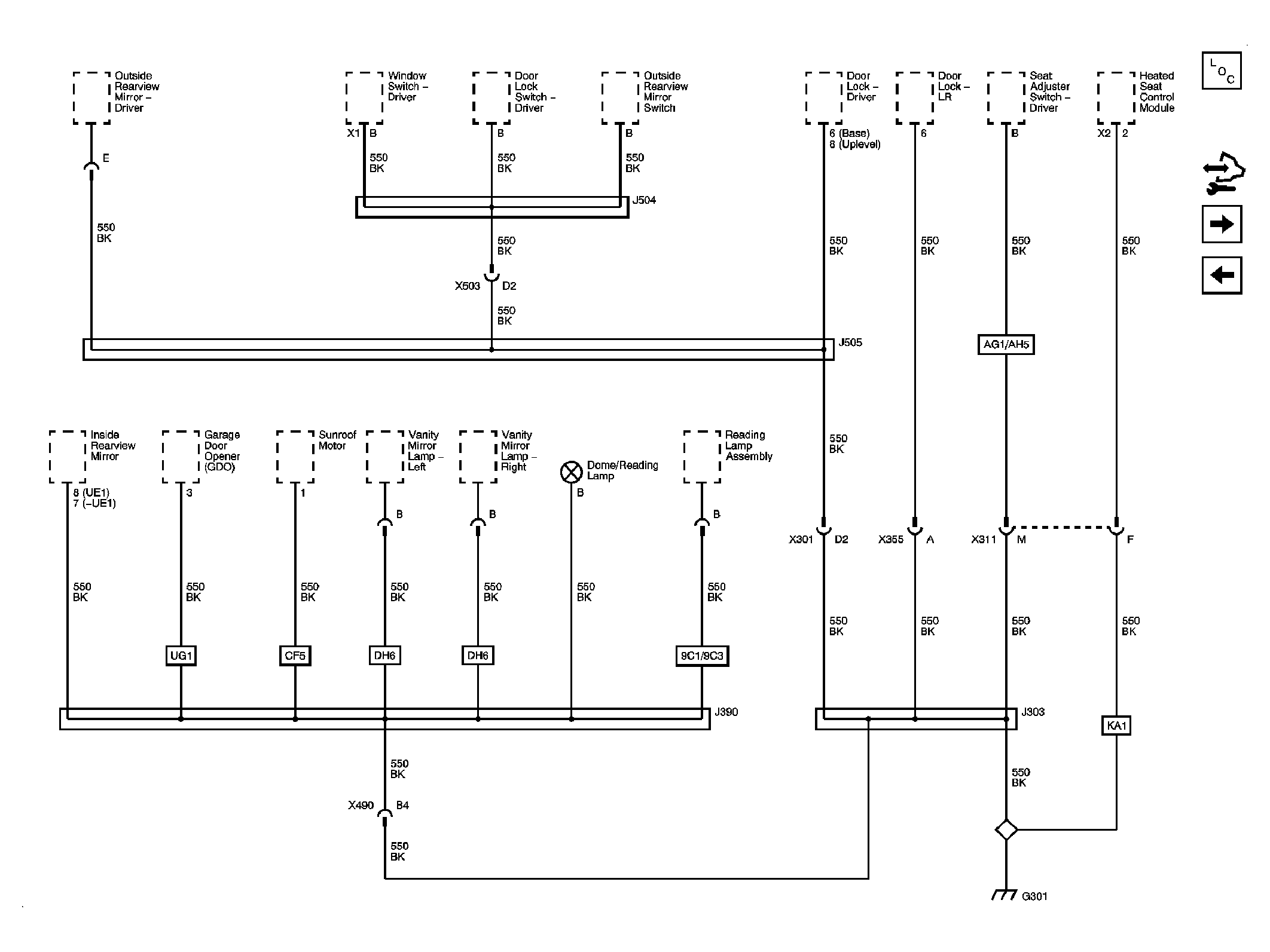

Fig 7: G301 Schematic

GM1888246

Courtesy of GENERAL MOTORS CORP.

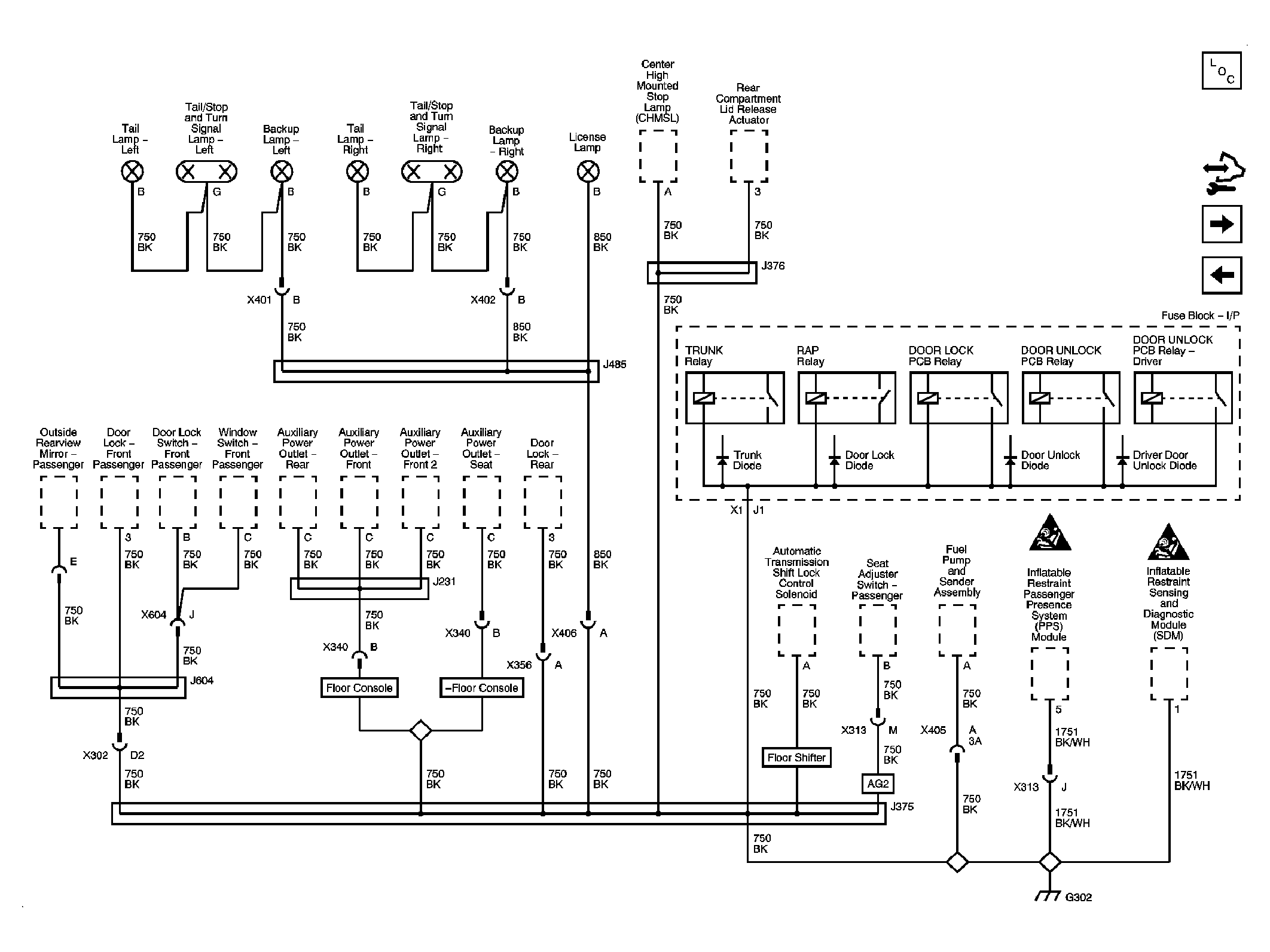

Fig 8: G302 Schematic

GM1888247

Courtesy of GENERAL MOTORS CORP.

Fig 9: G403, and G404 Schematic

GM1888248

Courtesy of GENERAL MOTORS CORP.
