Instrument Cluster Schematics

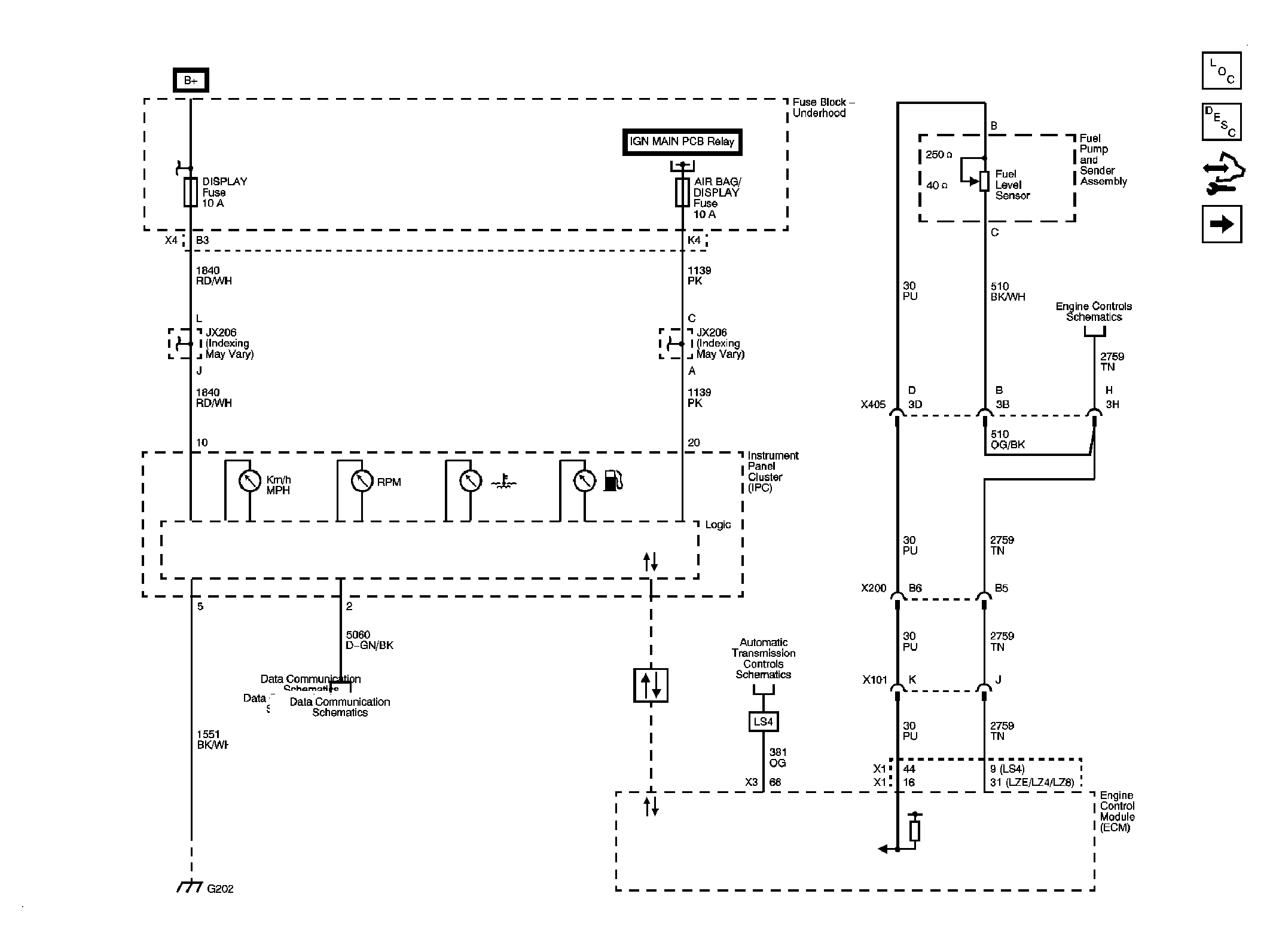

Fig 1: Power, Ground & Gages Schematic
GM1888352Courtesy of GENERAL MOTORS CORP.

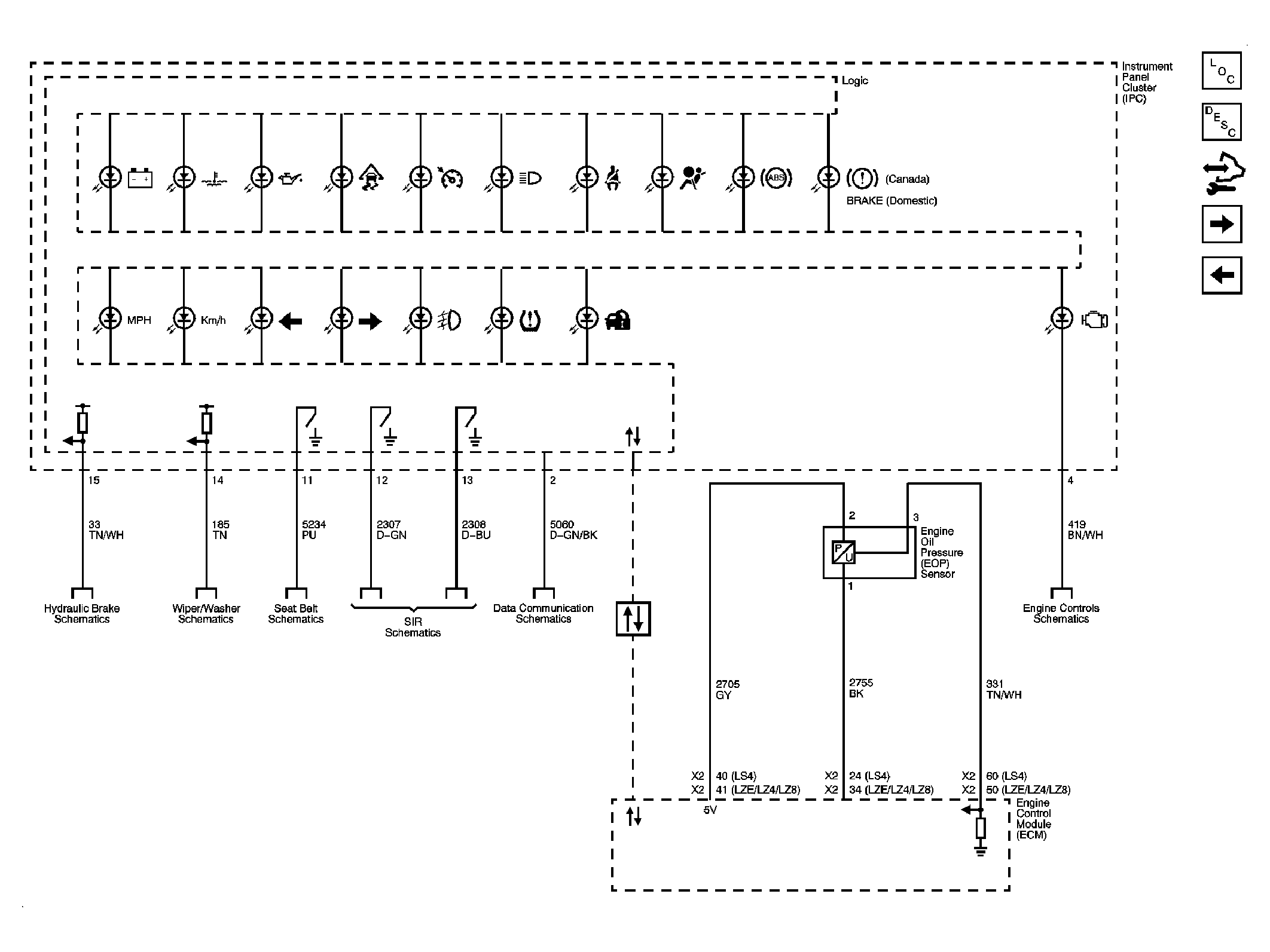

Fig 2: Indicators Schematic
GM1888354Courtesy of GENERAL MOTORS CORP.

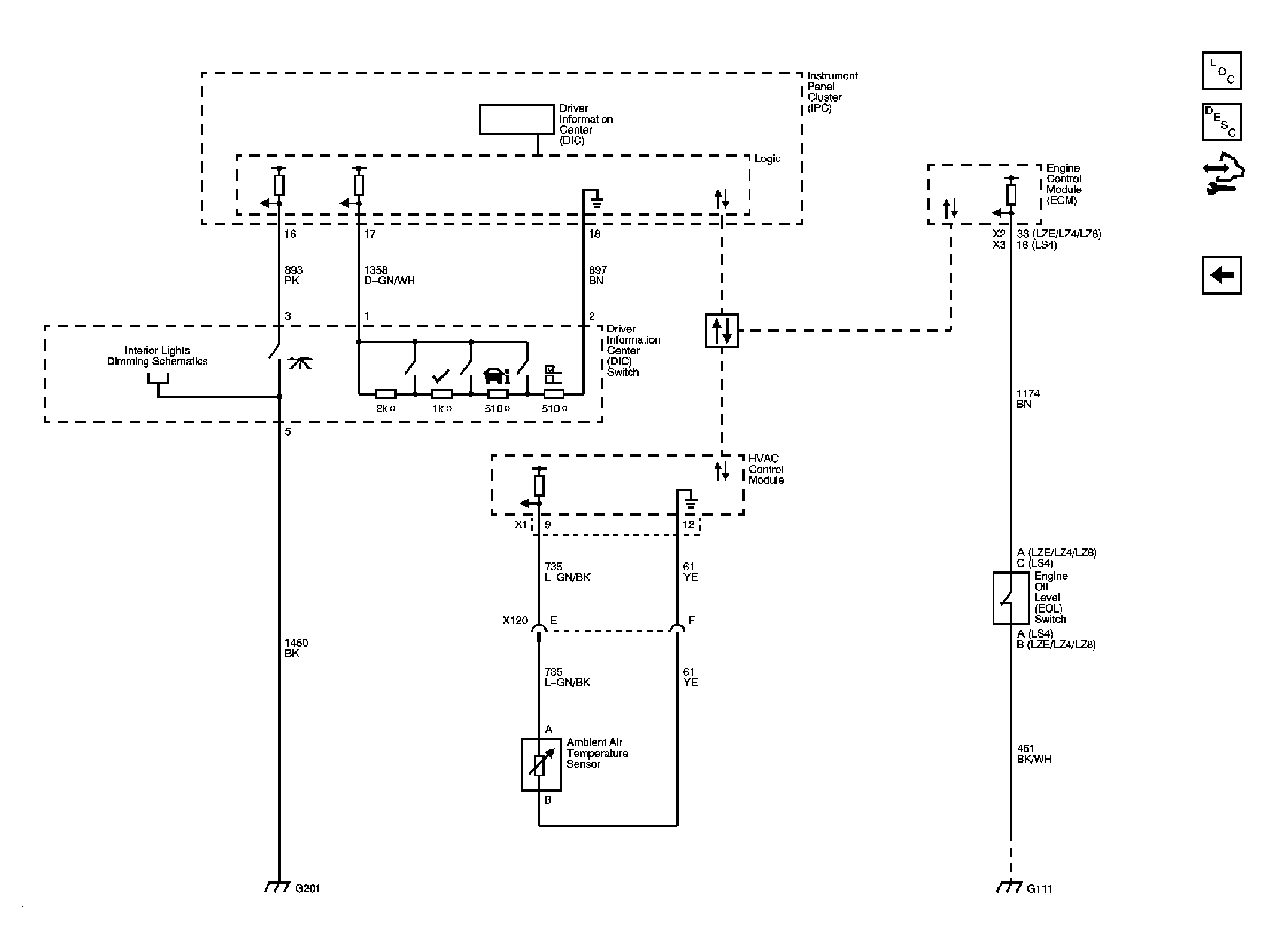

Fig 3: Driver Information Center Schematic
GM1888355Courtesy of GENERAL MOTORS CORP.
