Sunroof Motor/Actuator Replacement

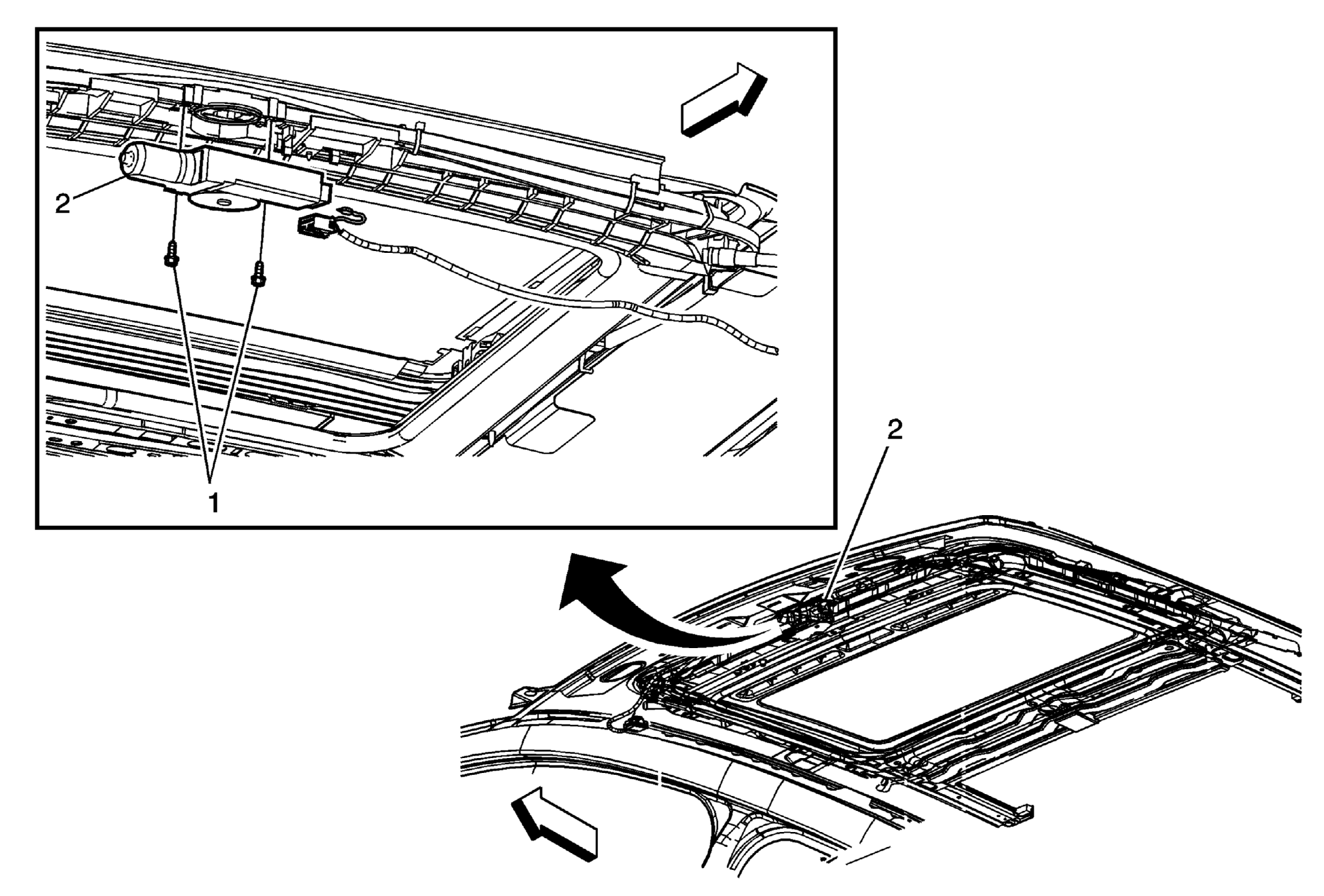

Fig 1: View Of Sunroof Motor/Actuator Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolts, Motor Sunroof (Qty: 3) NOTE: Refer to Fastener Notice . Procedure: It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the parts. Refer to Headlining Trim Panel Replacement Tighten: 10N.m (89 lb in)
2	Motor, Sunroof Procedure: After install the sunroof motor it will be necessary to initialization teach process. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
