Heated/Cooled Seat Schematics

Fig 1: Driver Heated/Cooled Seat Schematic

GM1888458

Courtesy of GENERAL MOTORS CORP.

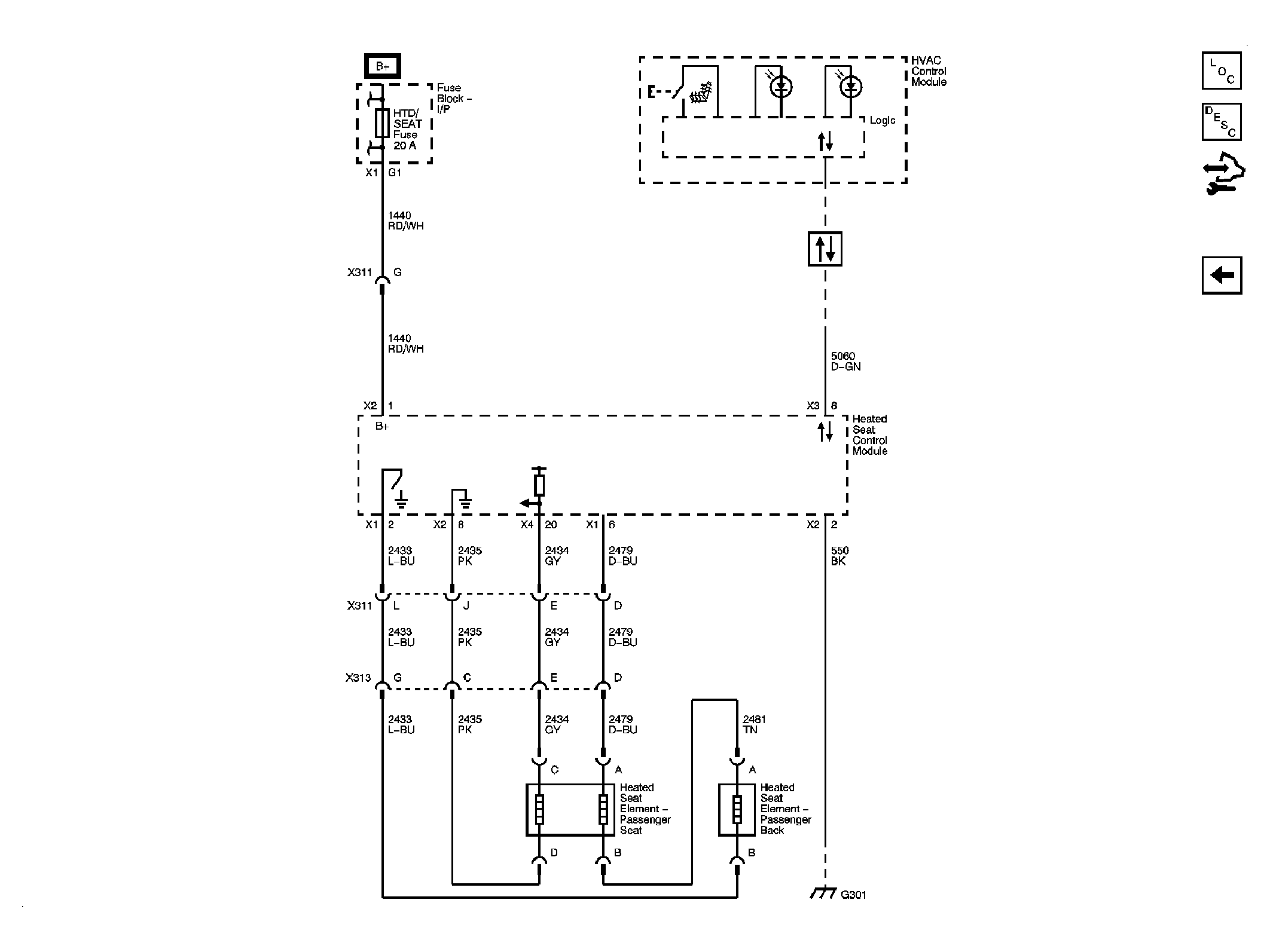

Fig 2: Passenger Heated/Cooled Seat Schematic

GM1888459

Courtesy of GENERAL MOTORS CORP.
