Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

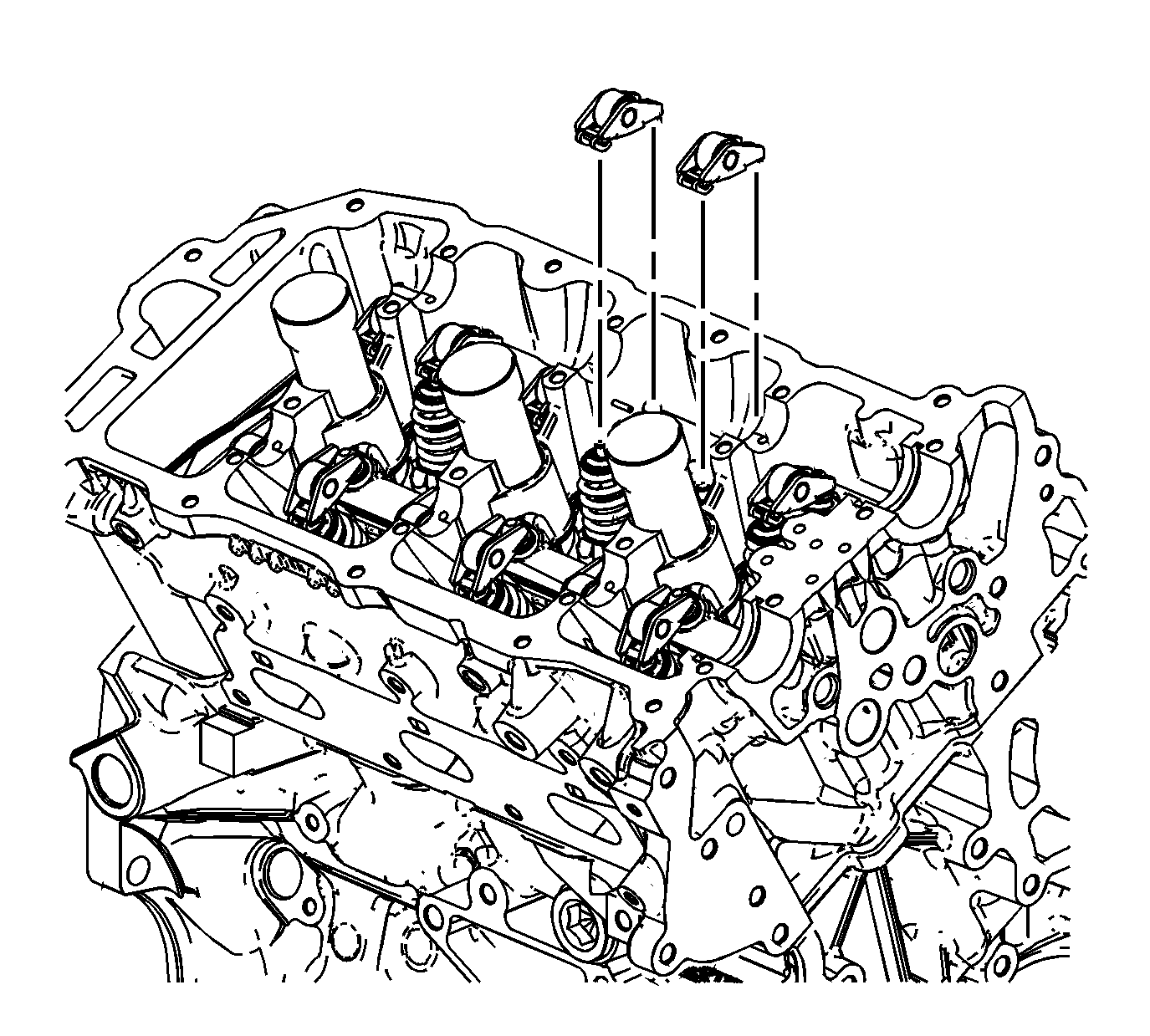

    Fig 1: Identifying Valve Rocker Arms
    GM946246Courtesy of GENERAL MOTORS CORP.
  1. Install the rocker arms. Refer to Valve Rocker Arm Installation - Left .
  2. Install the applicable camshaft(s). Refer to Camshaft Replacement - Left .
