Fuel Injector Sight Shield Replacement

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

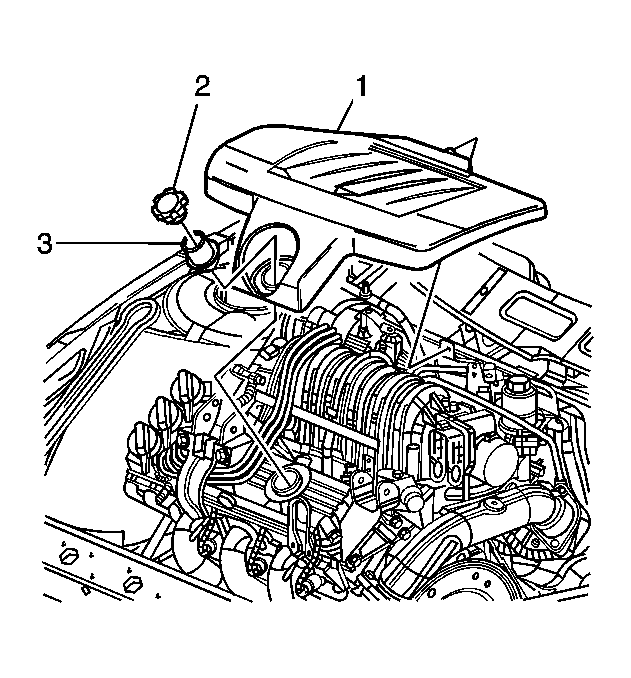

Fig 1: Fuel Injector Sight Shield
GM911150Courtesy of GENERAL MOTORS CORP.
Fuel Injector Sight Shield Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Sheild, Fuel Injection Sight
2 Cap, Oil Filler
Tip:  Clean the area around the oil fill cap before removing.
3 Tube, Oil Filler
