Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket and bolts to the vehicle.

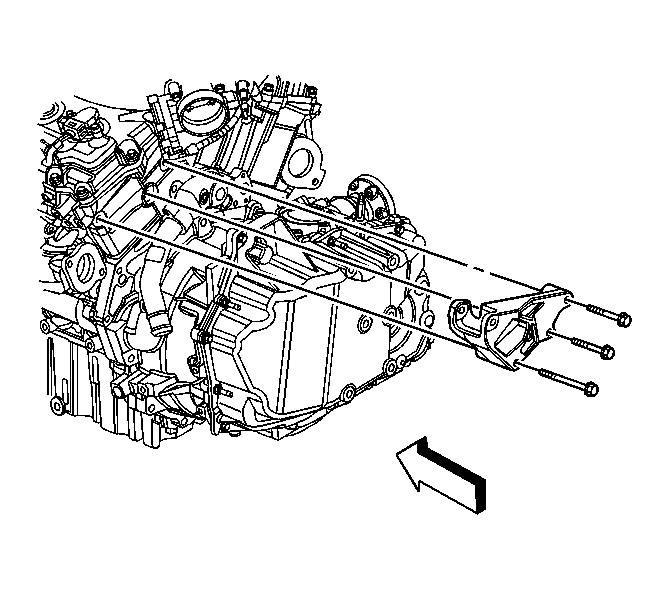

    2. Fig 1: View Of Engine Mount Strut Bracket Bolts
    GM1457530Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Connect the engine mount strut bracket bolts to the cylinder head.

    Tighten:  Tighten the engine mount strut bracket bolts to 50 N.m (37 lb ft).

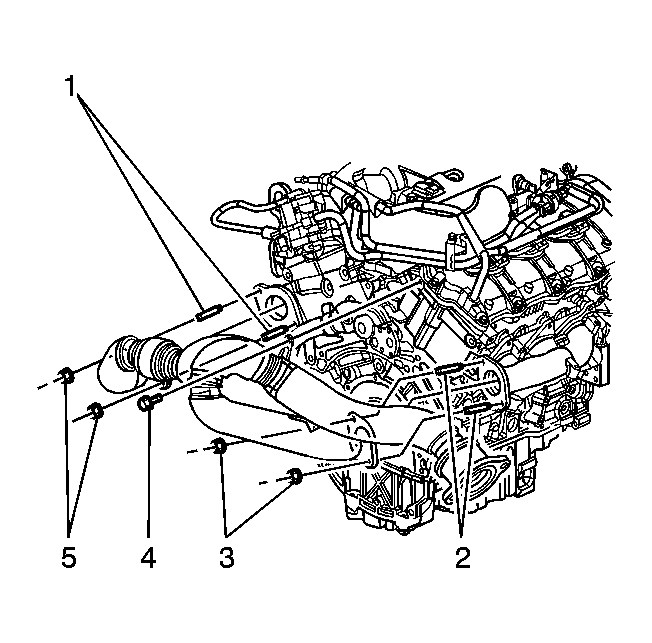

    3. Fig 2: Identifying Exhaust Crossover Pipe Nuts & Studs
    GM1395470Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust crossover pipe nuts (5) and studs (1).

    Tighten:  Tighten the exhaust crossover pipe nuts (5) to 34 N.m (25 lb ft).

  4. Connect the PCV tube to the air intake duct.
  5. Install the left engine mount strut to the left engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left .
