Installation Procedure

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

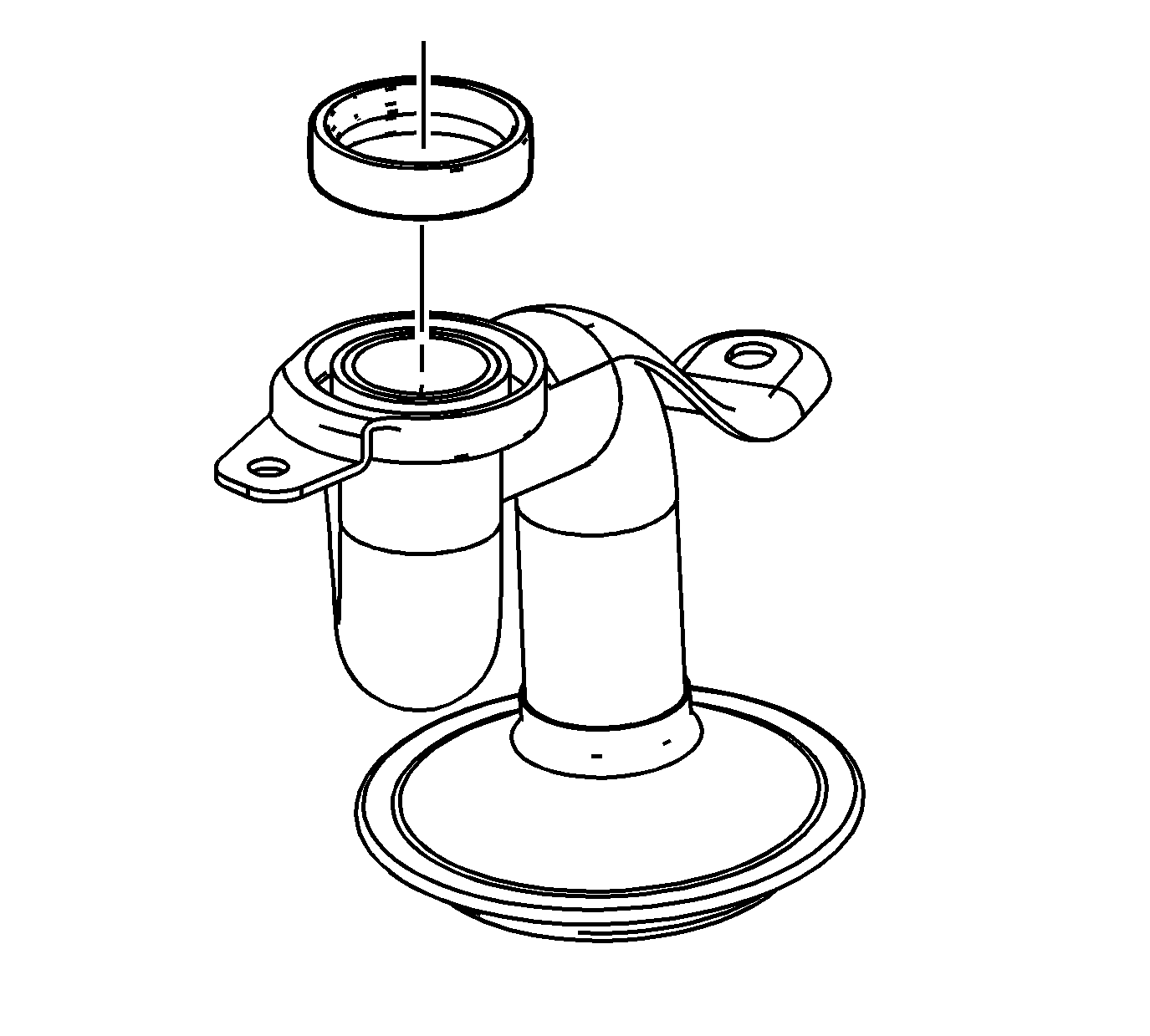

    Fig 1: View Of Oil Suction Tube Seal & Oil Suction Tube
    GM1318091Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW oil suction tube seal onto the oil suction tube. DO NOT reuse the old oil suction tube seal.

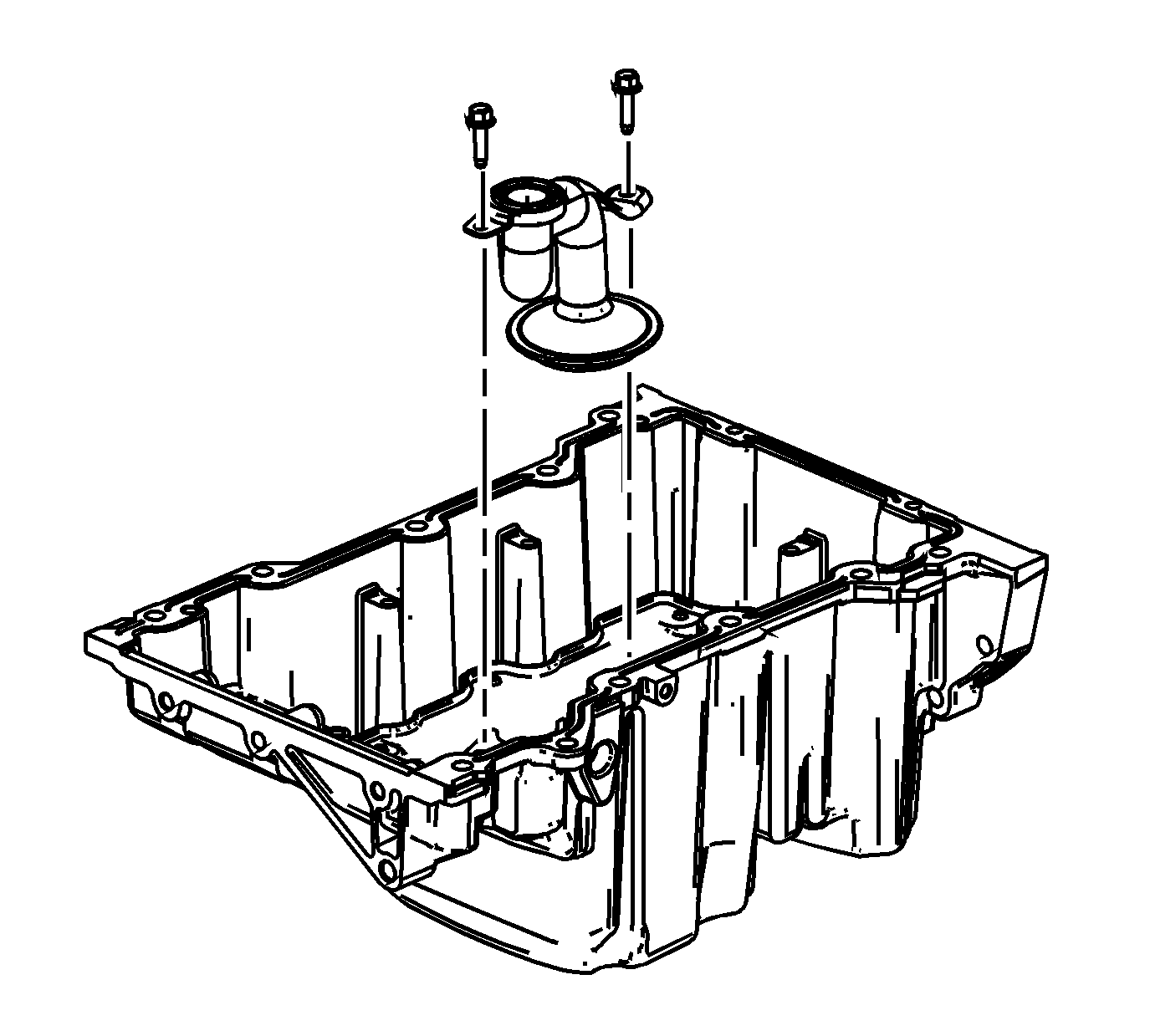

    2. Fig 2: View Of Oil Suction Pipe
    GM1210965Courtesy of GENERAL MOTORS CORP.
  2. Install the oil suction pipe.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil suction pipe bolts.

    Tighten:  Tighten the oil suction pipe bolts to 10 N.m (89 lb in).

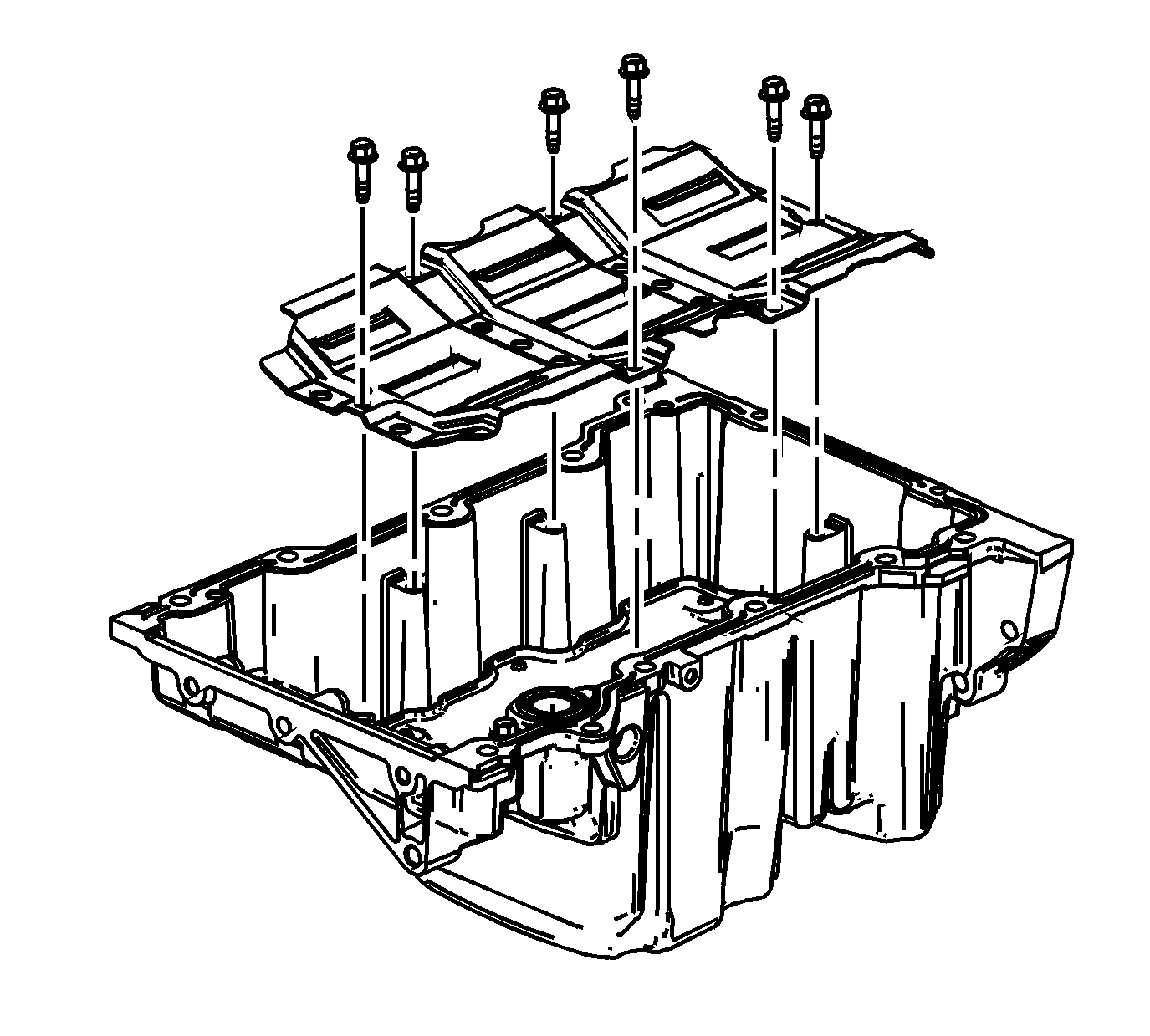

    4. Fig 3: View Of Oil Pan Scraper And Bolts
    GM1210963Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan scraper.
  5. Install the oil pan scraper bolts.

    Tighten:  Tighten the oil pan scraper bolts to 10 N.m (89 lb in).

  6. Install the oil pan. Refer to Oil Pan Replacement .
