Installation Procedure

Fig 1: Removing & Installing Control Valve Body Assembly

Courtesy of GENERAL MOTORS CORP.

Install the control valve body onto the spacer plate (90) assembly.

Fig 2: Identifying 4 Pressure Switch O-Rings

Courtesy of GENERAL MOTORS CORP.

Inspect the transmission fluid pressure (TFP) switch assembly (13) in order to verify the condition and correct location of the 4 pressure switch O-rings.
If necessary replace the pressure switch O-rings.

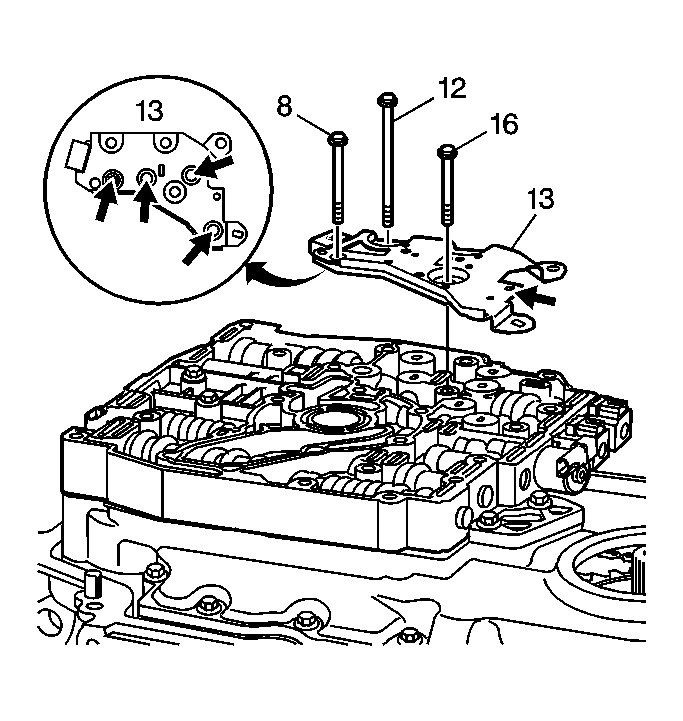

Fig 3: Locating TFP Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the TFP switch assembly (13) onto the control valve body assembly.

Fig 4: Installing Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

Install the eighteen control valve body assembly bolts.

Fig 5: View Of Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Hand start the bolts.
Tighten: Tighten the bolts to 14 N.m (124 lb in).
Install the transmission side cover. Refer to Control Valve Body Cover Replacement .

IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM), or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.

Reset the TAP values. Refer to Transmission Adaptive Functions .
