Control Valve Assembly and Transmission Fluid Pressure Switch Installation

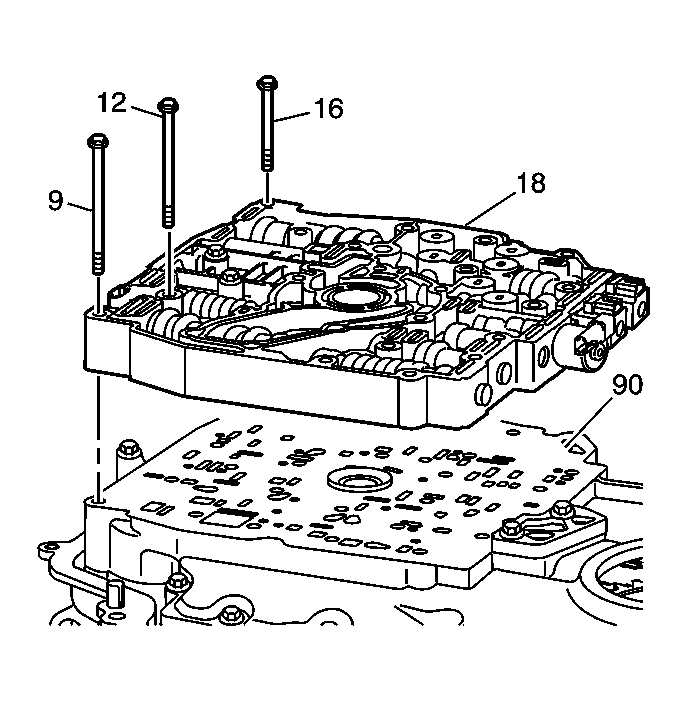

Fig 1: Identifying Control Valve Body To Spacer Plate Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The 4T40-E/4T45-E non-Electronic Range Select Mode models use a spacer plate with 2 identification notches. The 4T45-E models with Electronic Range Select Mode use a spacer plate with 1 identification notch.

Install a NEW control valve body to spacer plate assembly onto the case cover.
Install the control valve body assembly (18) onto the spacer plate assembly (90).

Fig 2: Identifying 4 Pressure Switch O-Rings

Courtesy of GENERAL MOTORS CORP.

Inspect the TFP switch assembly (13) in order to verify the condition and correct location of the 4 pressure switch O-rings.
If necessary replace the pressure switch O-rings.

Fig 3: Locating TFP Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the TFP switch assembly (13) onto the control valve body assembly.

Fig 4: Installing Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

Install the 18 control valve body assembly bolts.

Fig 5: View Of Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Hand start the bolts.
Tighten: Tighten the bolts to 14 N.m (124 lb in).
