Automatic Transmission Controls Schematics

Fig 1: TCM, Power And Ground Schematic

Courtesy of GENERAL MOTORS CORP.

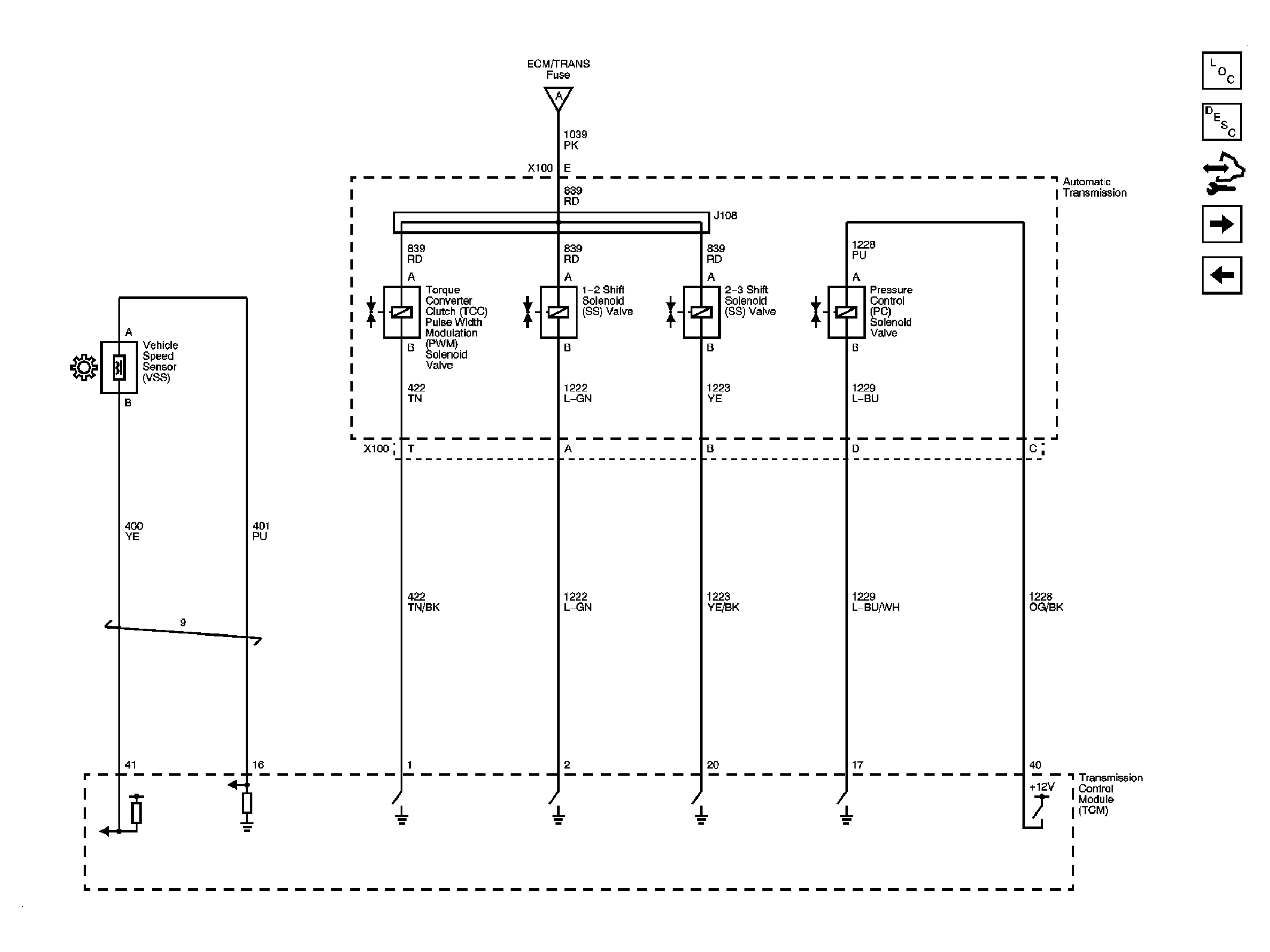

Fig 2: Transmission Solenoid And VSS Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Transmission Switches, TFT And A/T ISS Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: PNP Switch Schematic

Courtesy of GENERAL MOTORS CORP.
