Power Steering Schematics

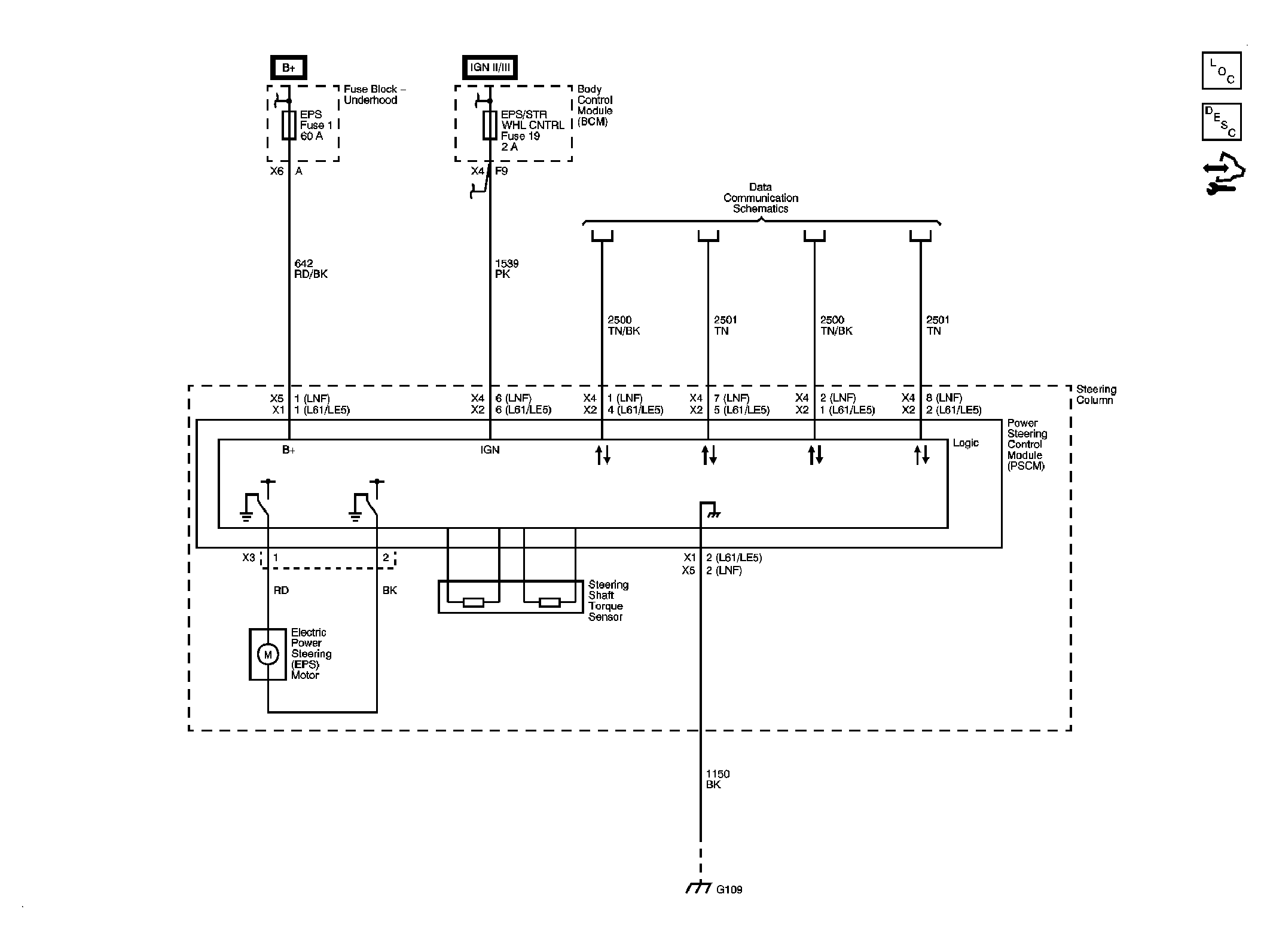

Fig 1: L61/LE5 - Schematic

GM1887481

Courtesy of GENERAL MOTORS CORP.

Fig 2: LNF - Schematic

GM2033723

Courtesy of GENERAL MOTORS CORP.
