SIR Schematics

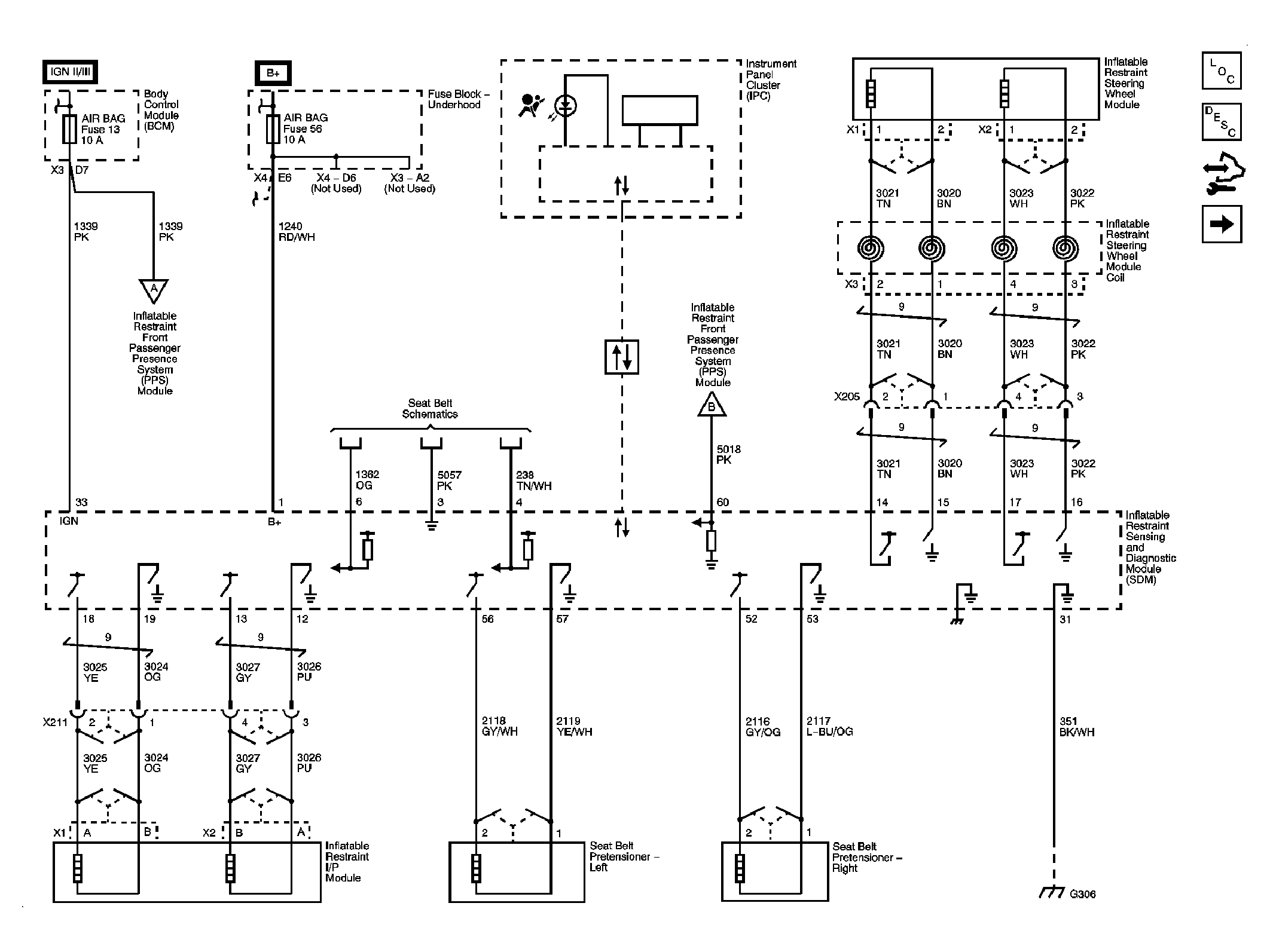

Fig 1: Indicators, Power, Ground, Pretensioners And Front Air Bag Modules - Schematic
GM1887703Courtesy of GENERAL MOTORS CORP.

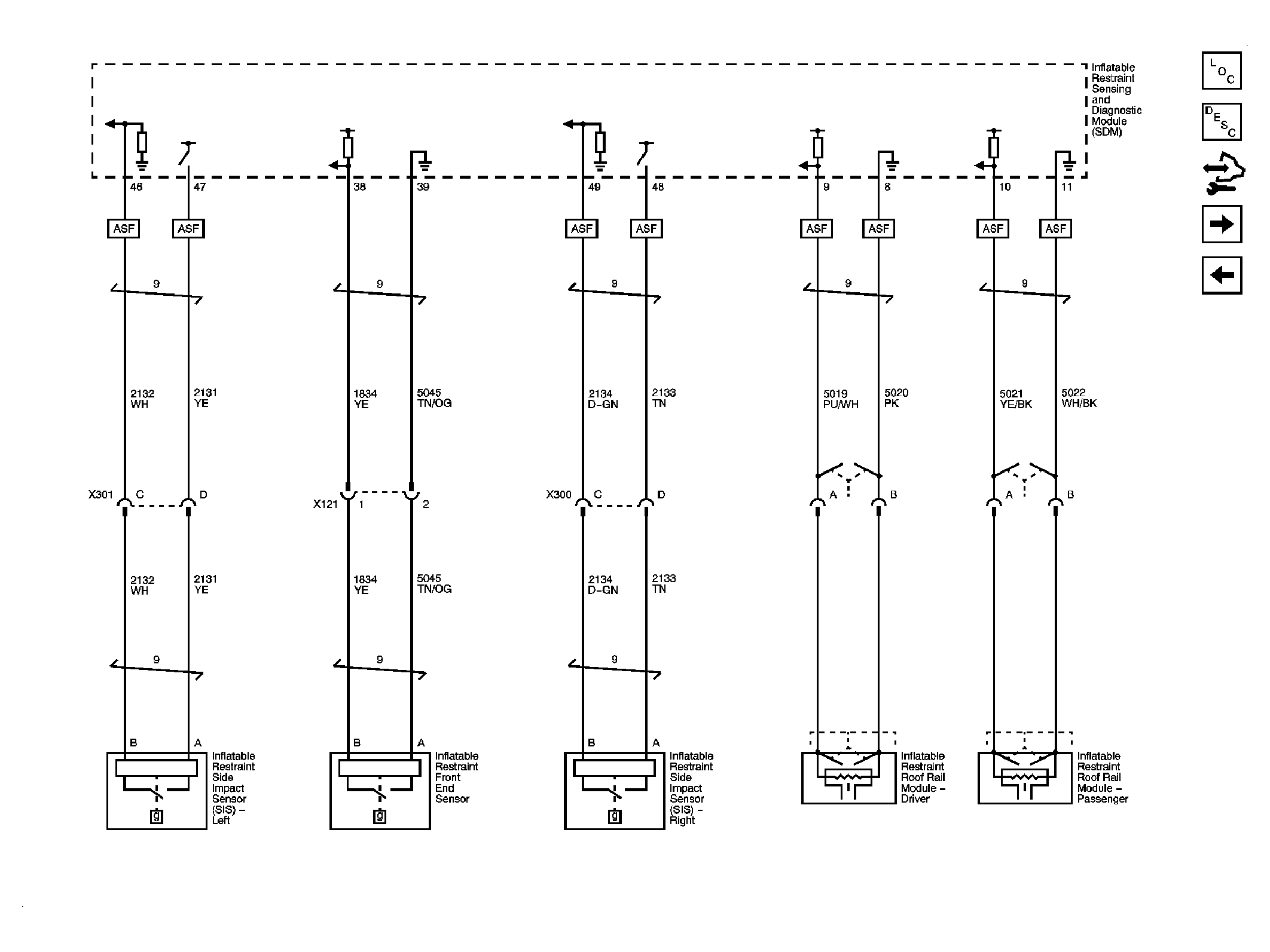

Fig 2: Side Impact (ASF), Roof Rail Module And Front End Sensor - Schematic
GM1887706Courtesy of GENERAL MOTORS CORP.

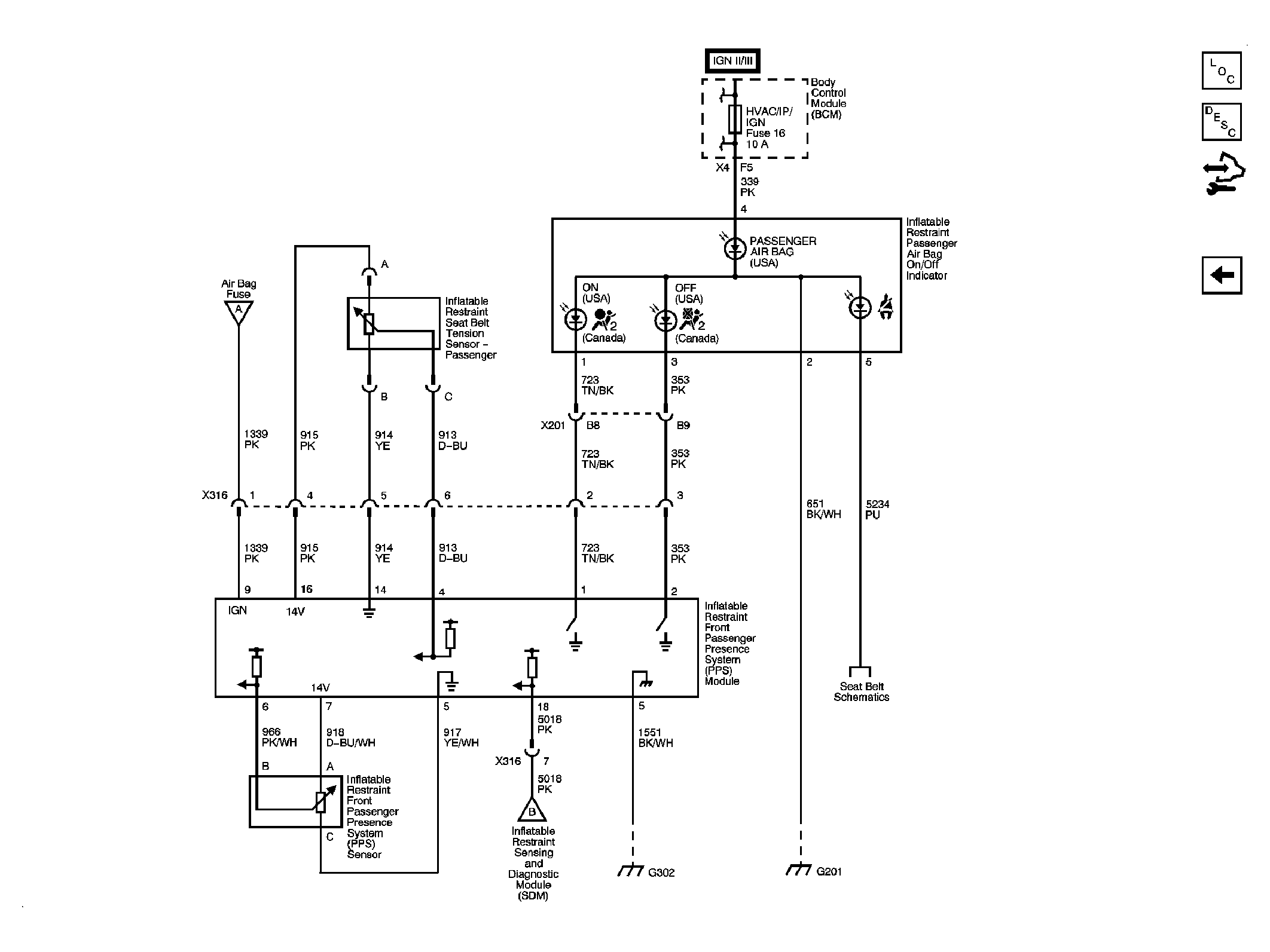

Fig 3: Passenger Presence System - Schematic
GM1887708Courtesy of GENERAL MOTORS CORP.
