Harness Routing Views

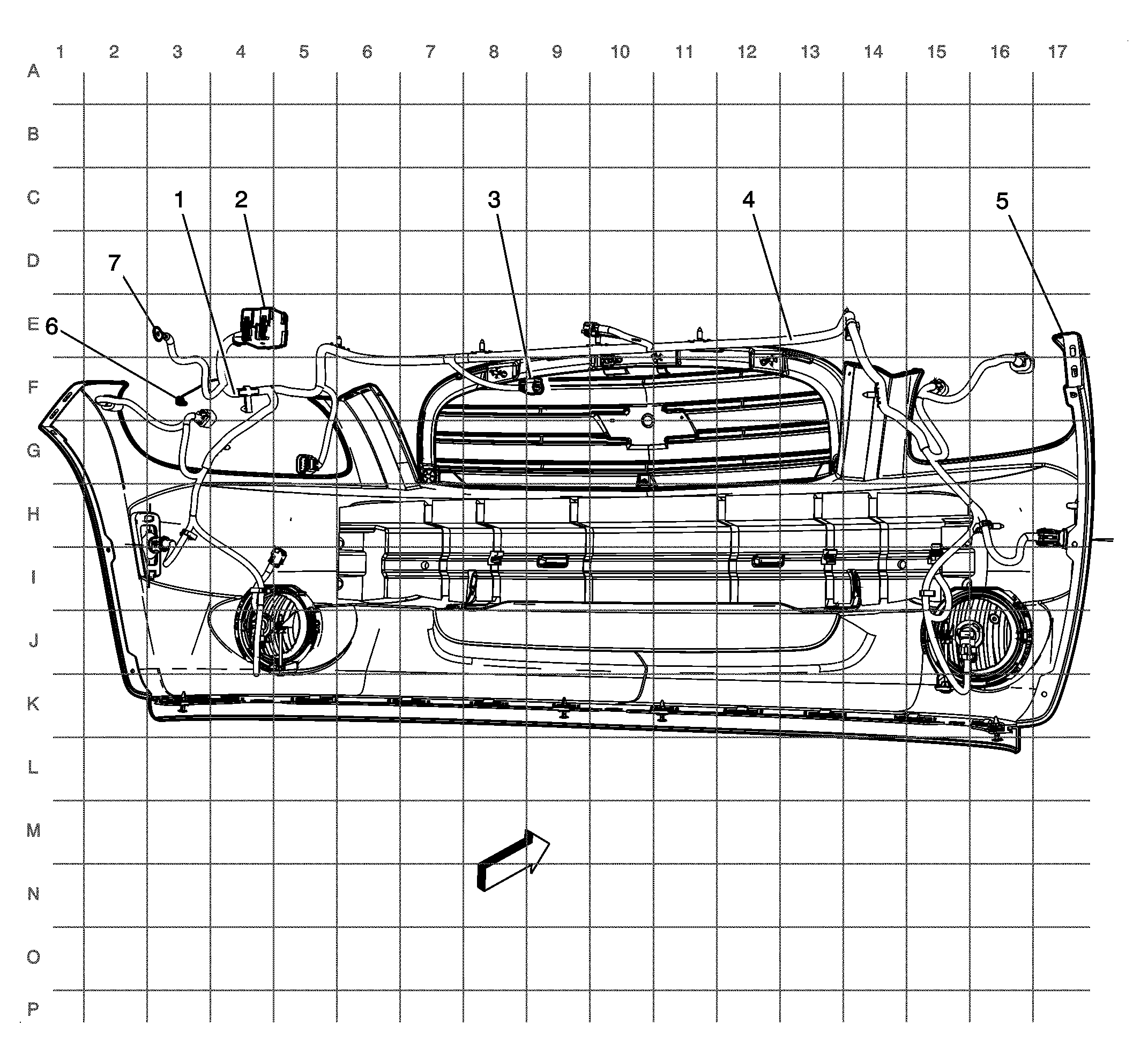

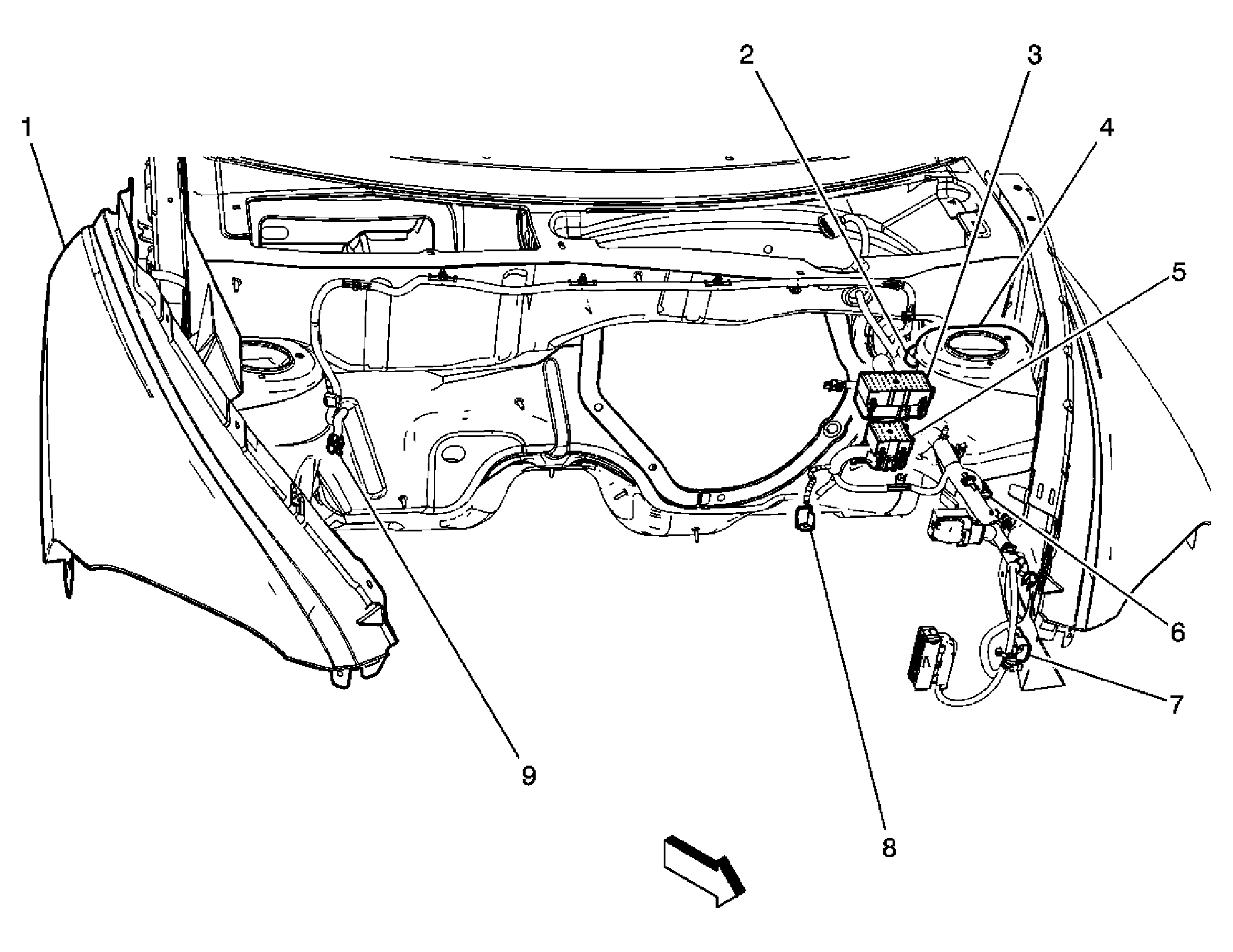

Fig 1: Forward Lamp Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J101
2	Fuse Block - Underhood X3
3	Hood Ajar Switch
4	J102
5	Fascia
6	G111
7	G109

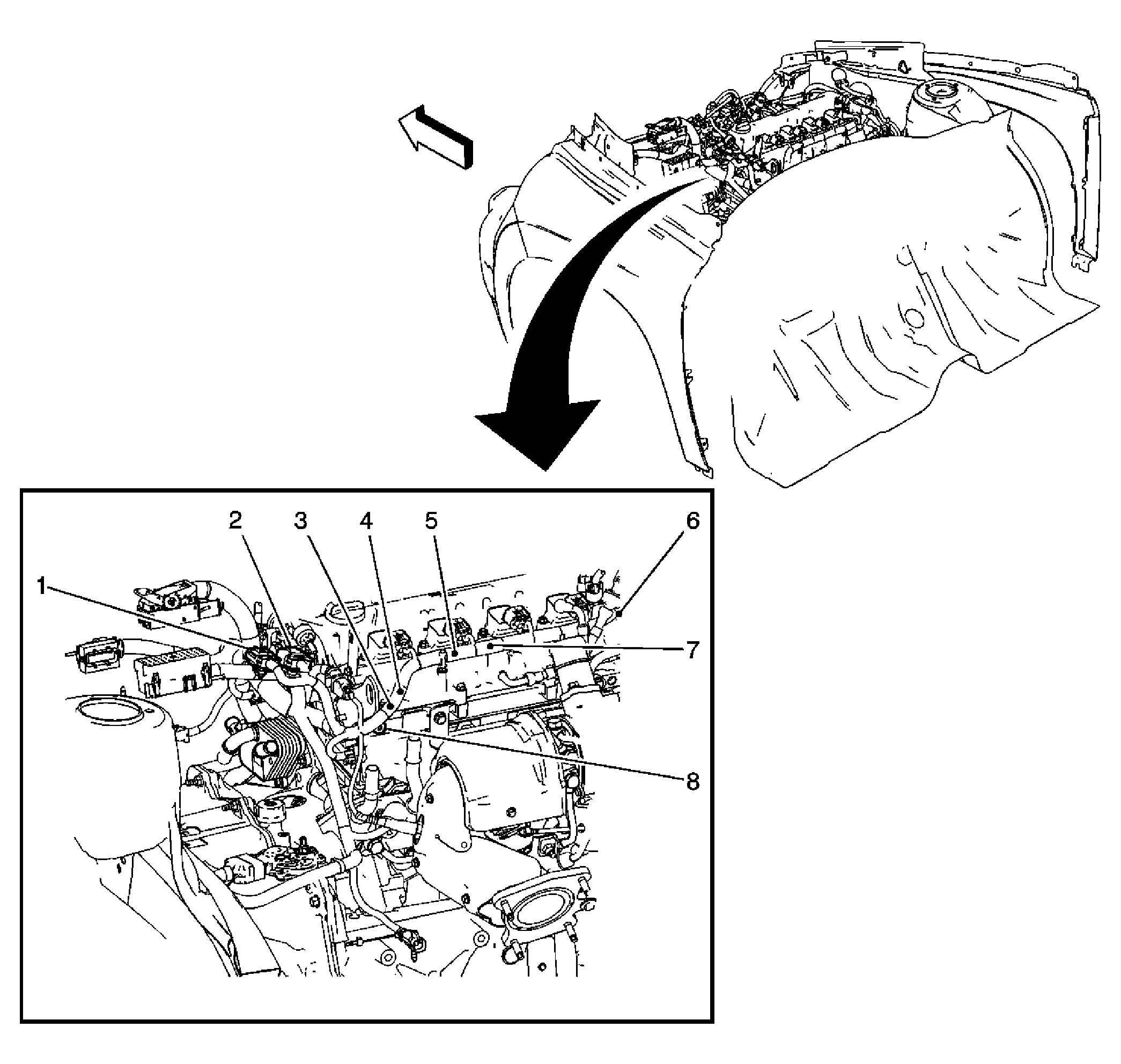

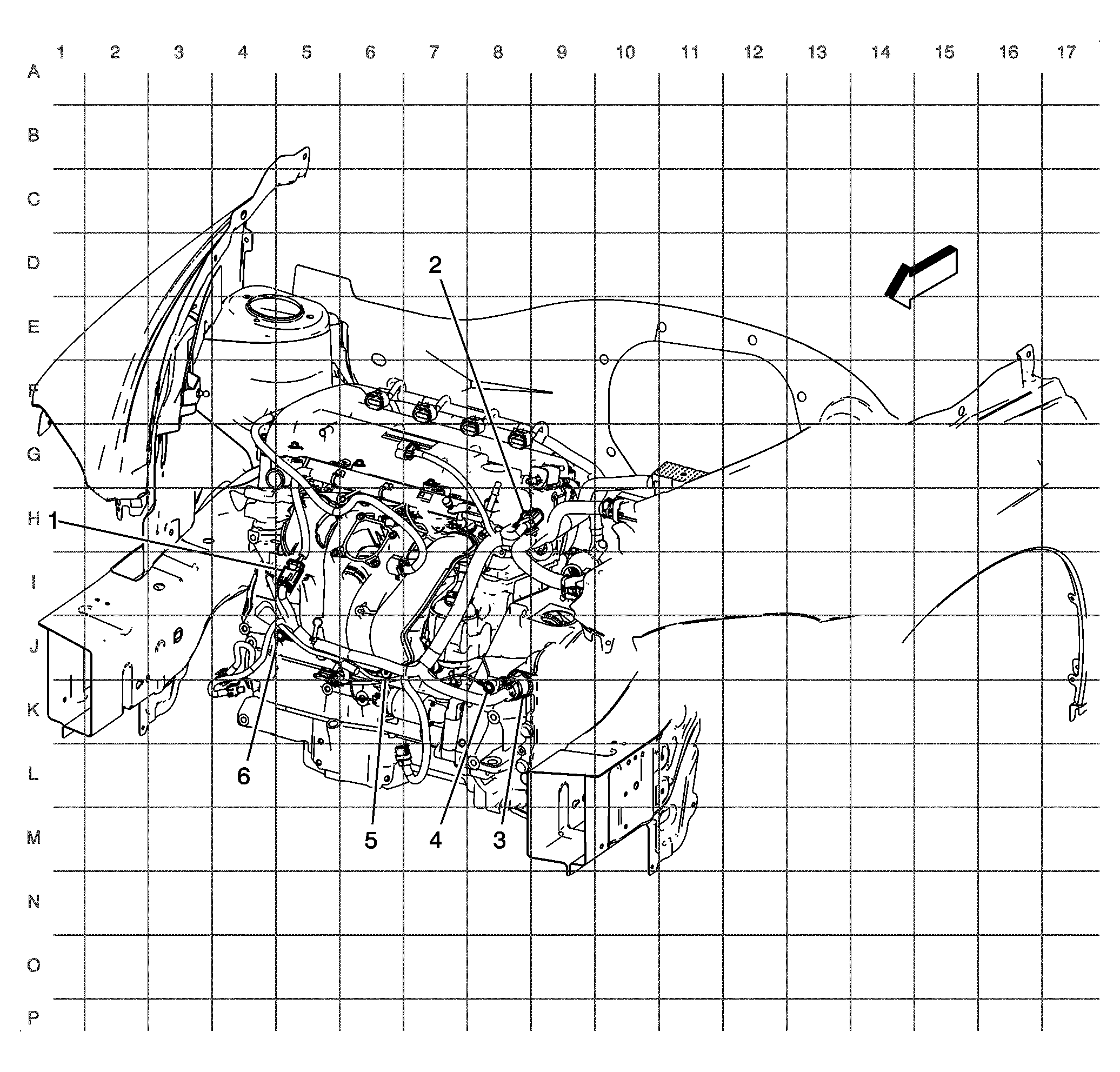

Fig 2: Engine Harness - Front (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X160
2	Engine Valve Cover
3	Fuse Block - Underhood X1
4	X101
5	J103
6	X100 (MN5)
7	G107
8	G105

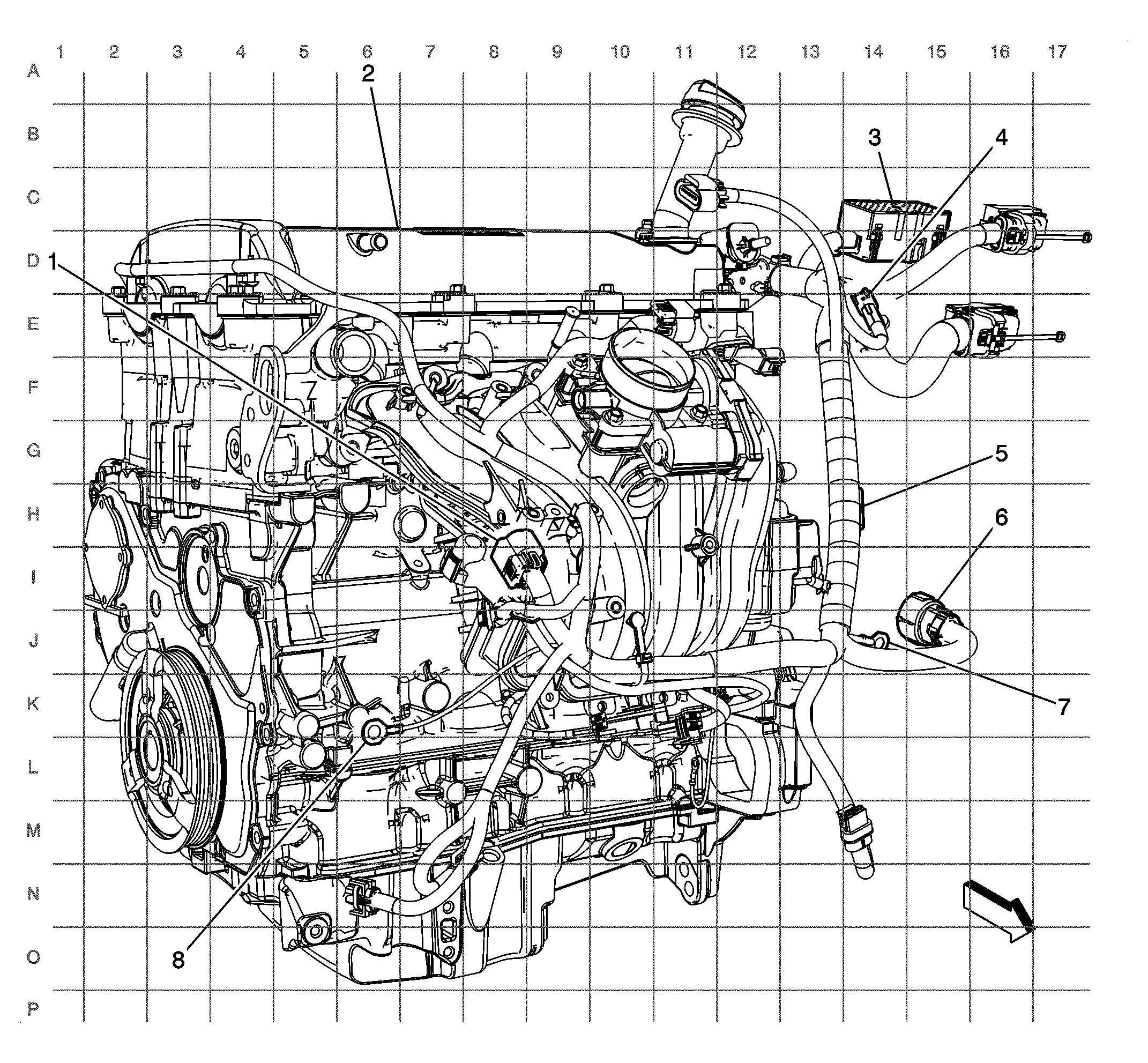

Fig 3: Engine - Front (L61 + MN5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X160 (L61/LE5)
2	X105
3	X100 (MN5)
4	G107
5	G105

Fig 4: Engine - Front (L61 + M86)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X160 (L61/LE5)
2	X160
3	G107
4	G105

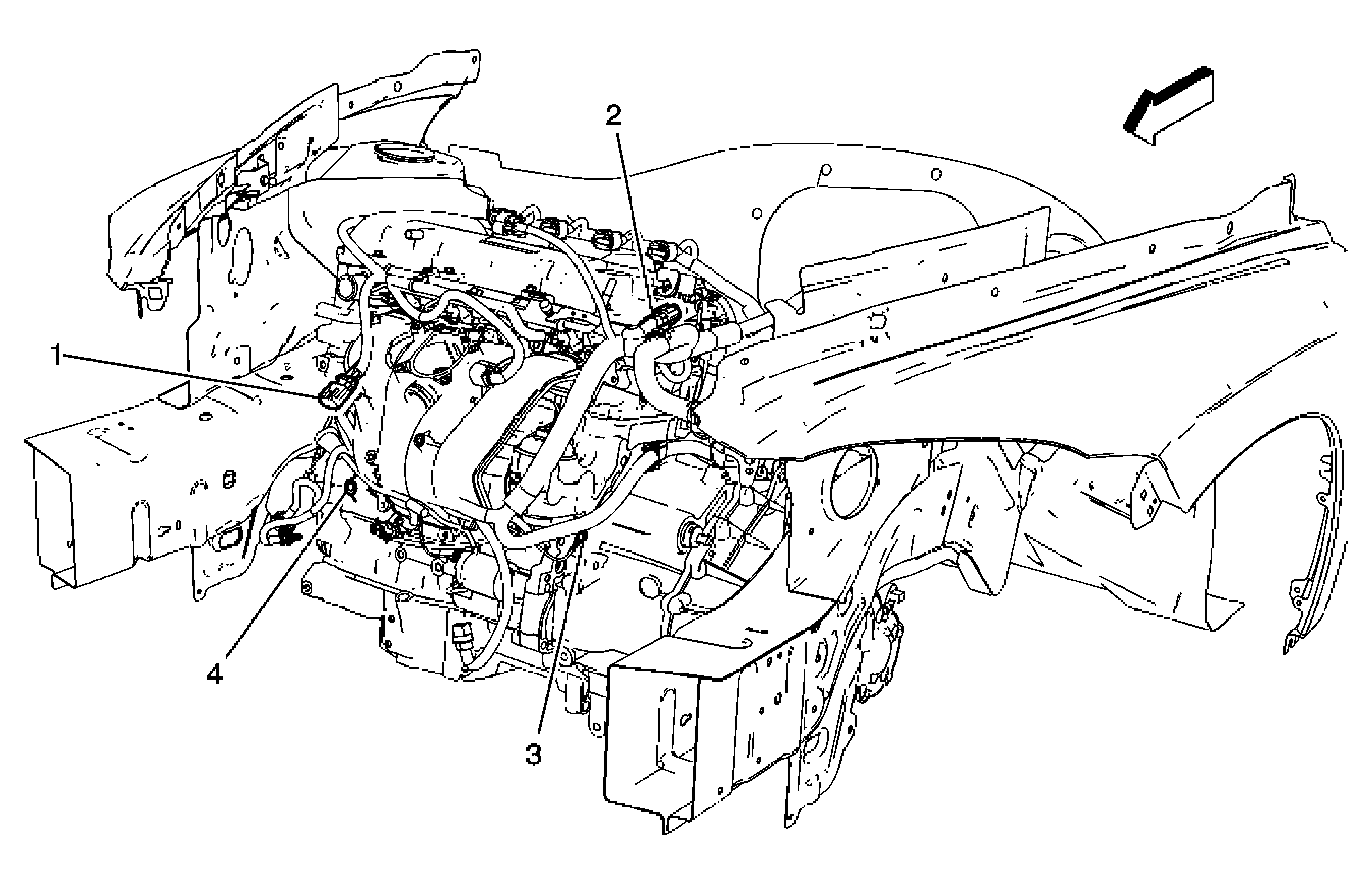

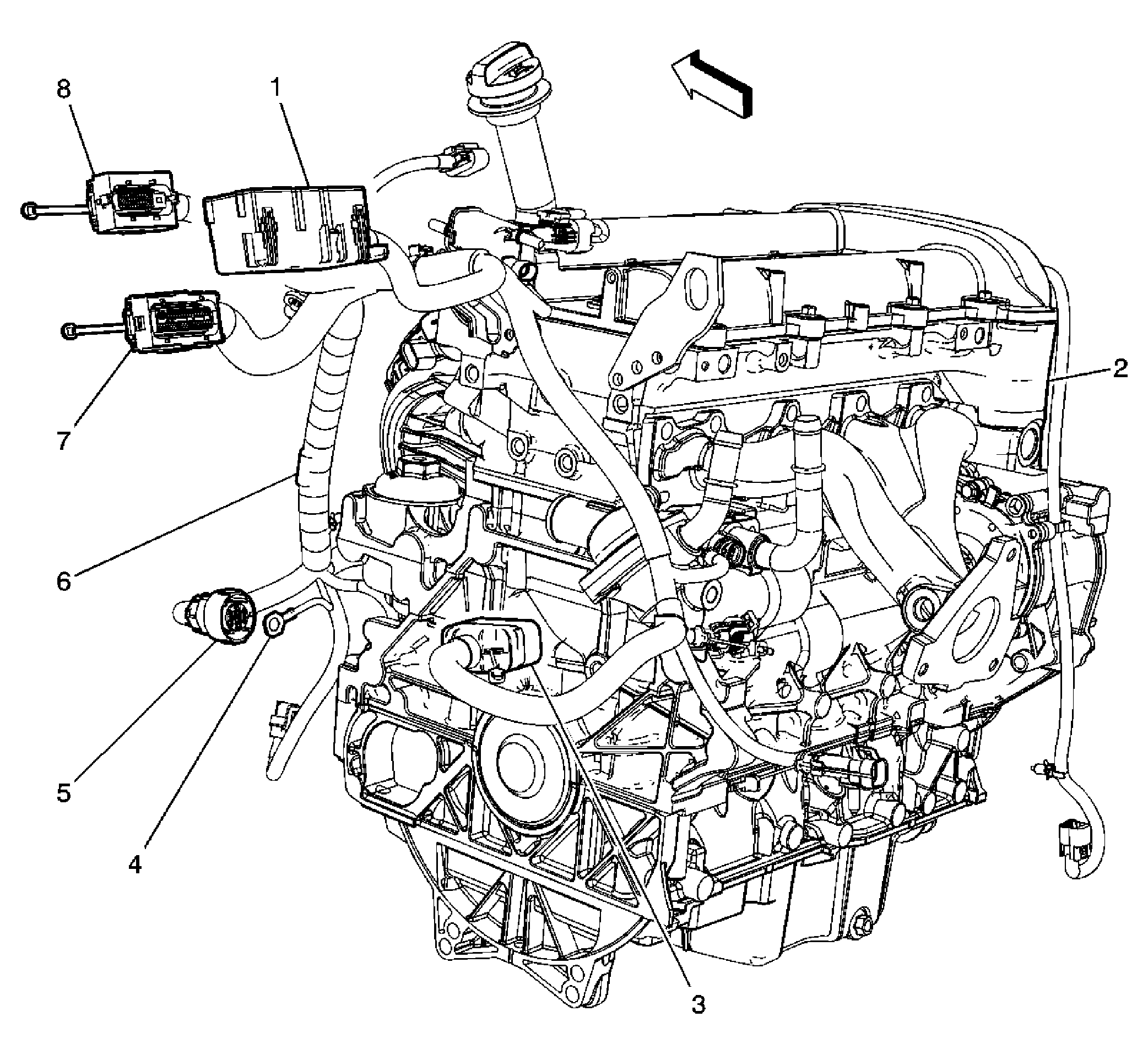

Fig 5: Engine Harness - Front (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cover
2	J103
3	X101
4	Fuse Block - Underhood X1
5	Engine Control Module X2
6	Engine Control Module X3
7	X160
8	Intake Manifold
9	G105

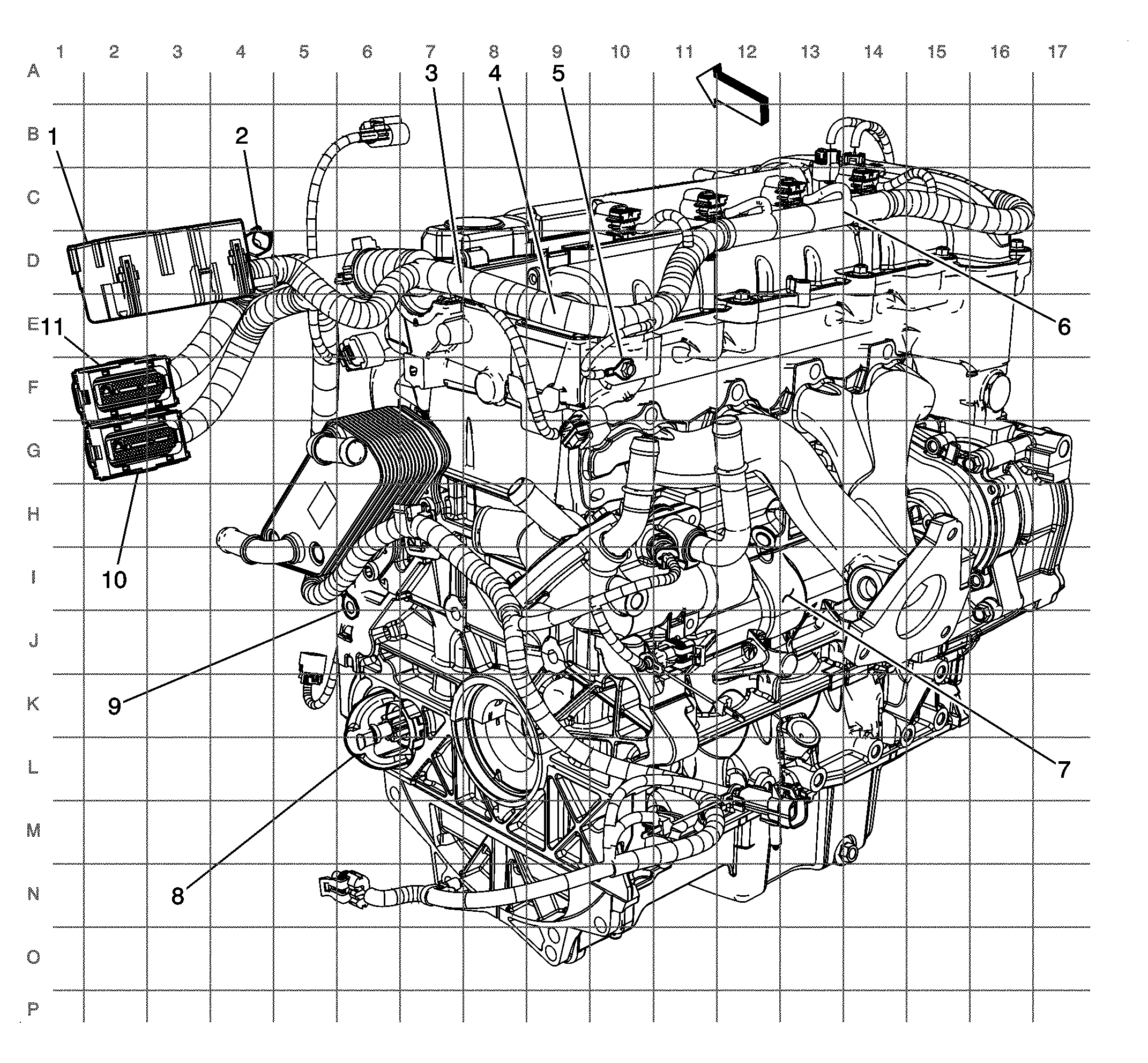

Fig 6: Engine - Left Rear (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X105
2	X109
3	J117
4	J124
5	J123
6	J121
7	J107
8	G108

Fig 7: Engine - Front View (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G107
2	Transmission (MU3)
3	G105
4	X162

Fig 8: Engine Harness - Rear (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X1
2	Engine Block
3	Neutral Safety Backup Switch Connector
4	G107
5	X100
6	J103
7	Engine Control Module Connector
8	Transmission Control Module Connector

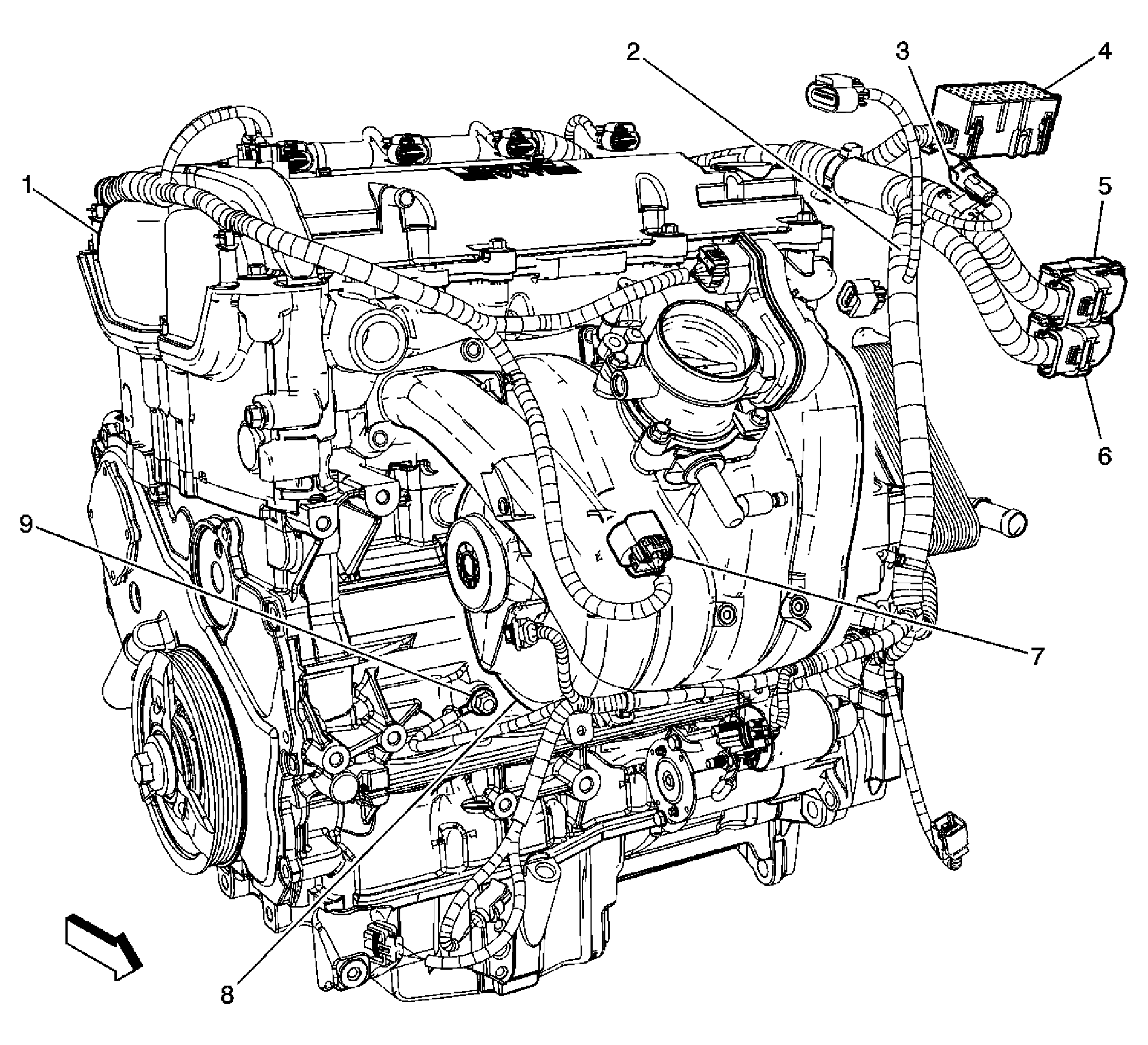

Fig 9: Engine Harness - Rear (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X1
2	X101
3	J106
4	J105
5	G108
6	J107
7	Engine Block
8	Starter
9	G107
10	Engine Control Module X3
11	Engine Control Module X2

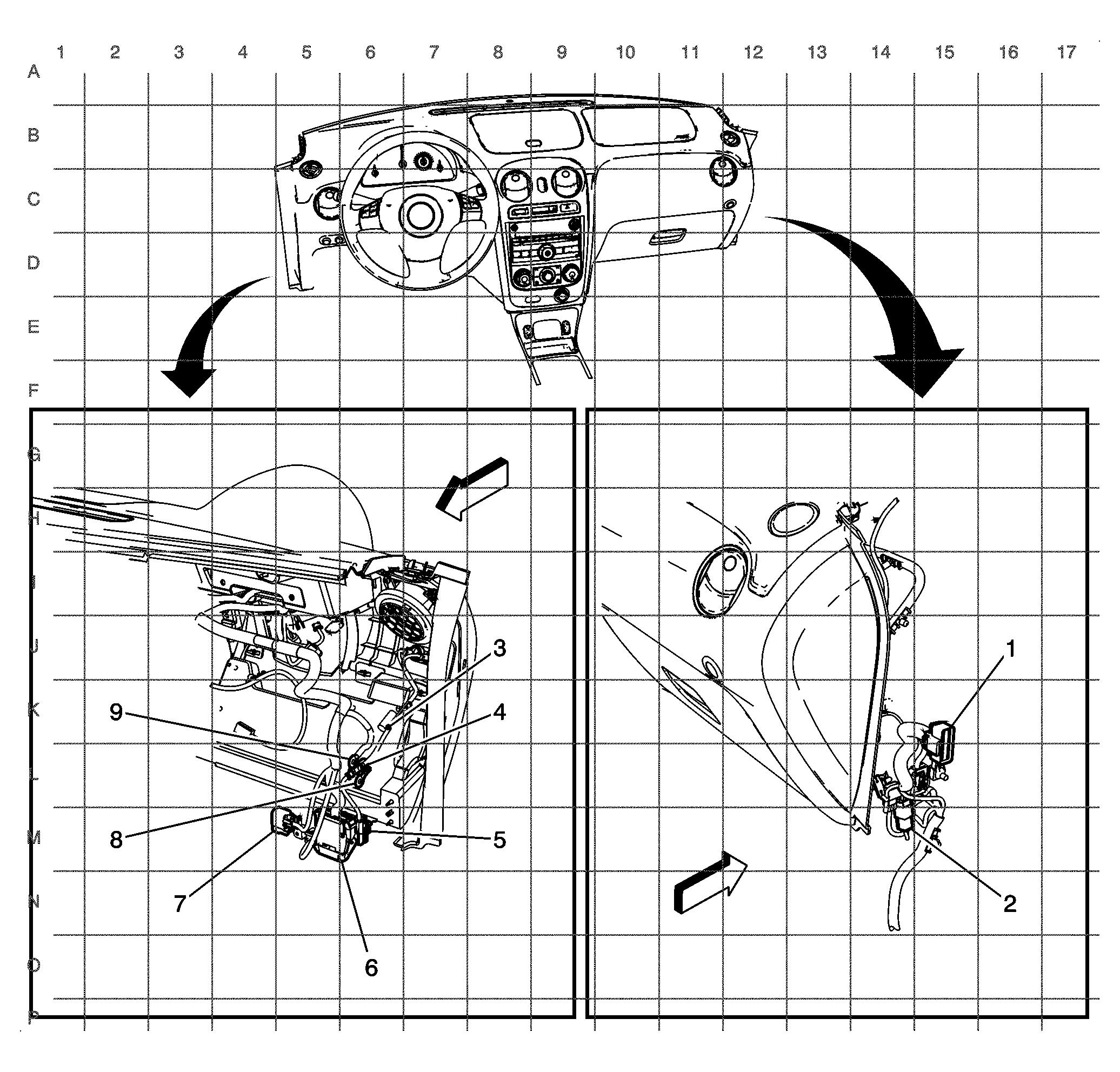

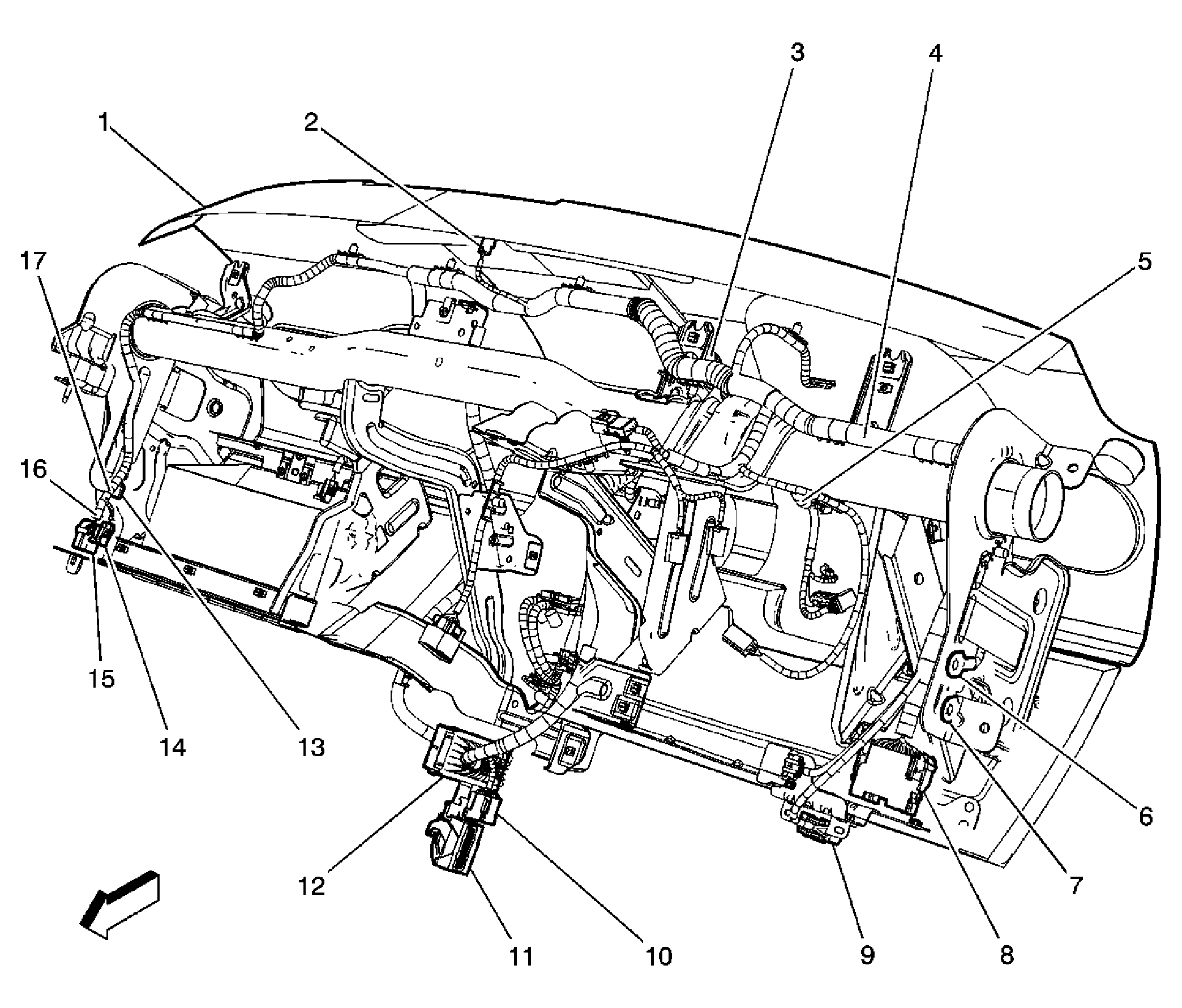

Fig 10: I/P Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Ambient Light Sensor
3	J201
4	J200
5	J206
6	G203
7	G201
8	X201
9	Data Link Connector (DLC)
10	JX205
11	Body Control Module (BCM) X2
12	Body Control Module (BCM) X4
13	X210
14	X206
15	X200 (KA1, UE1, U2K)
16	J204
17	J205 (UE1)

Fig 11: I/P Extension Harness Inlines

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X300
2	X222 (Panel Van)
3	J209 (Panel Van)
4	J210 (Panel Van)
5	X221 (Panel Van)
6	X201
7	X205
8	G201
9	G203

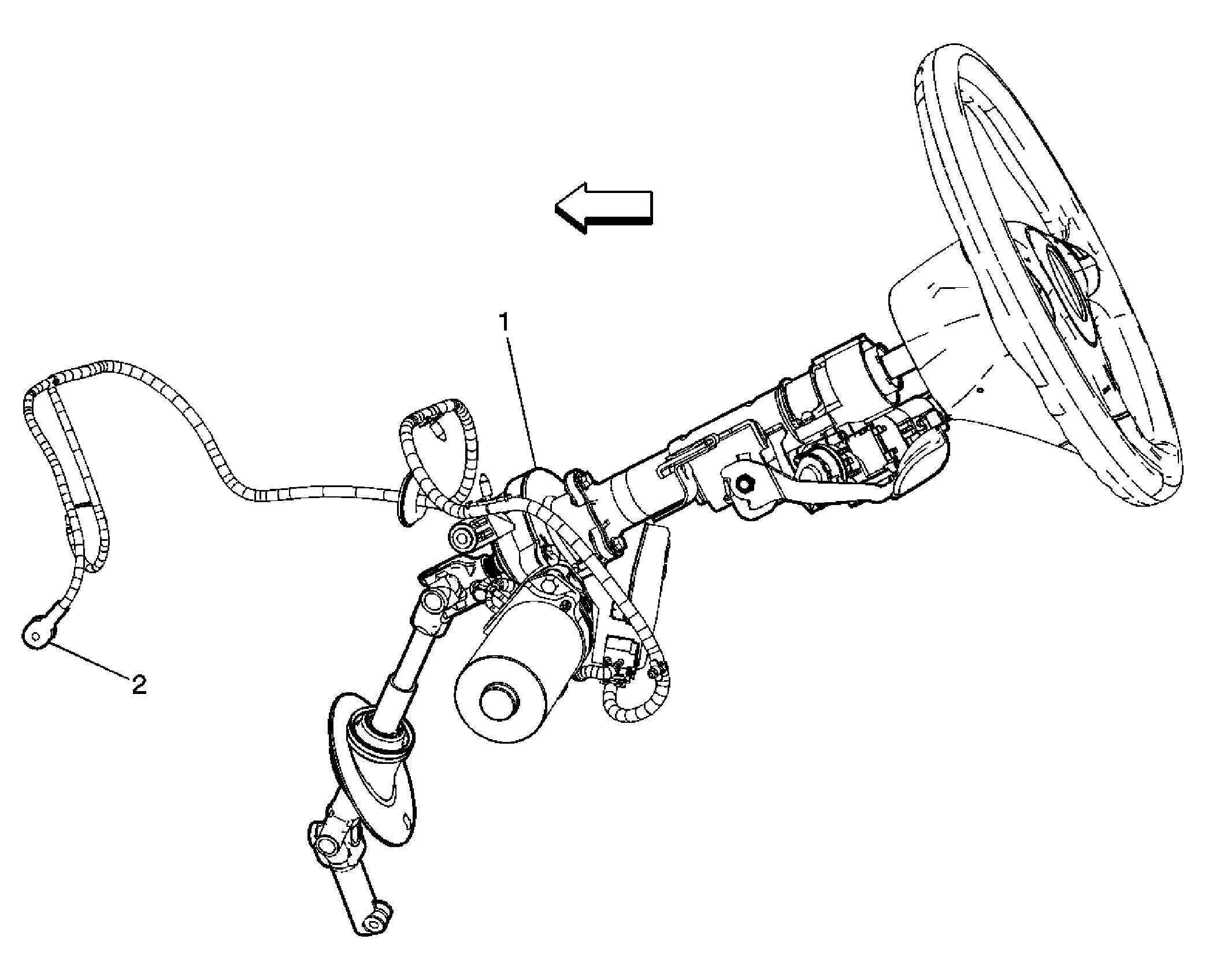

Fig 12: Power Steering Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	G109

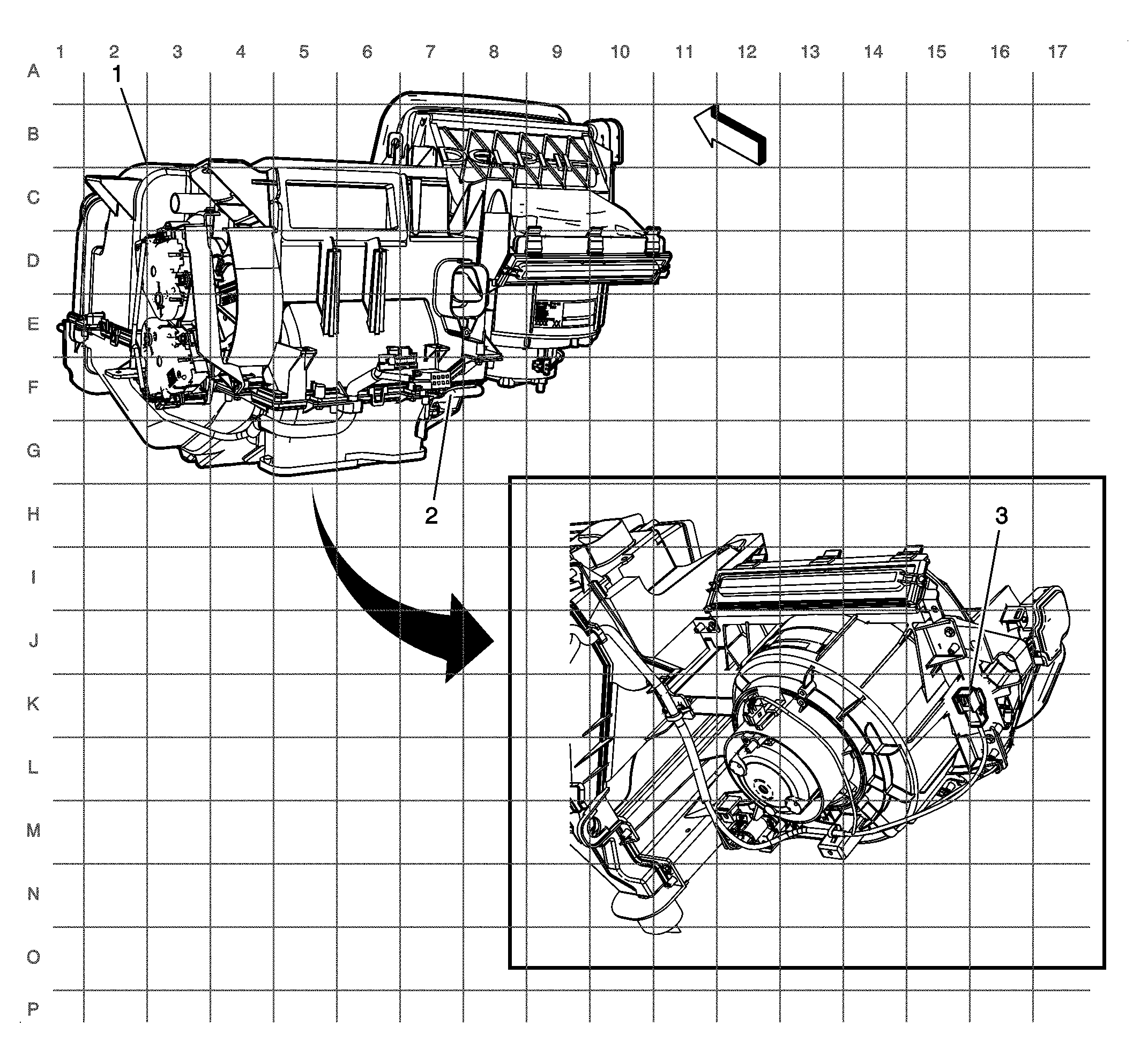

Fig 13: HVAC Jumper Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Module
2	J203
3	X210

Fig 14: Body Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Fender
2	X171 (JM4)
3	Fuse Block - Underhood X2
4	Left Front Strut Tower
5	Fuse Block - Underhood X4
6	G111
7	X121
8	X171 (JM4)
9	X170 (JM4)

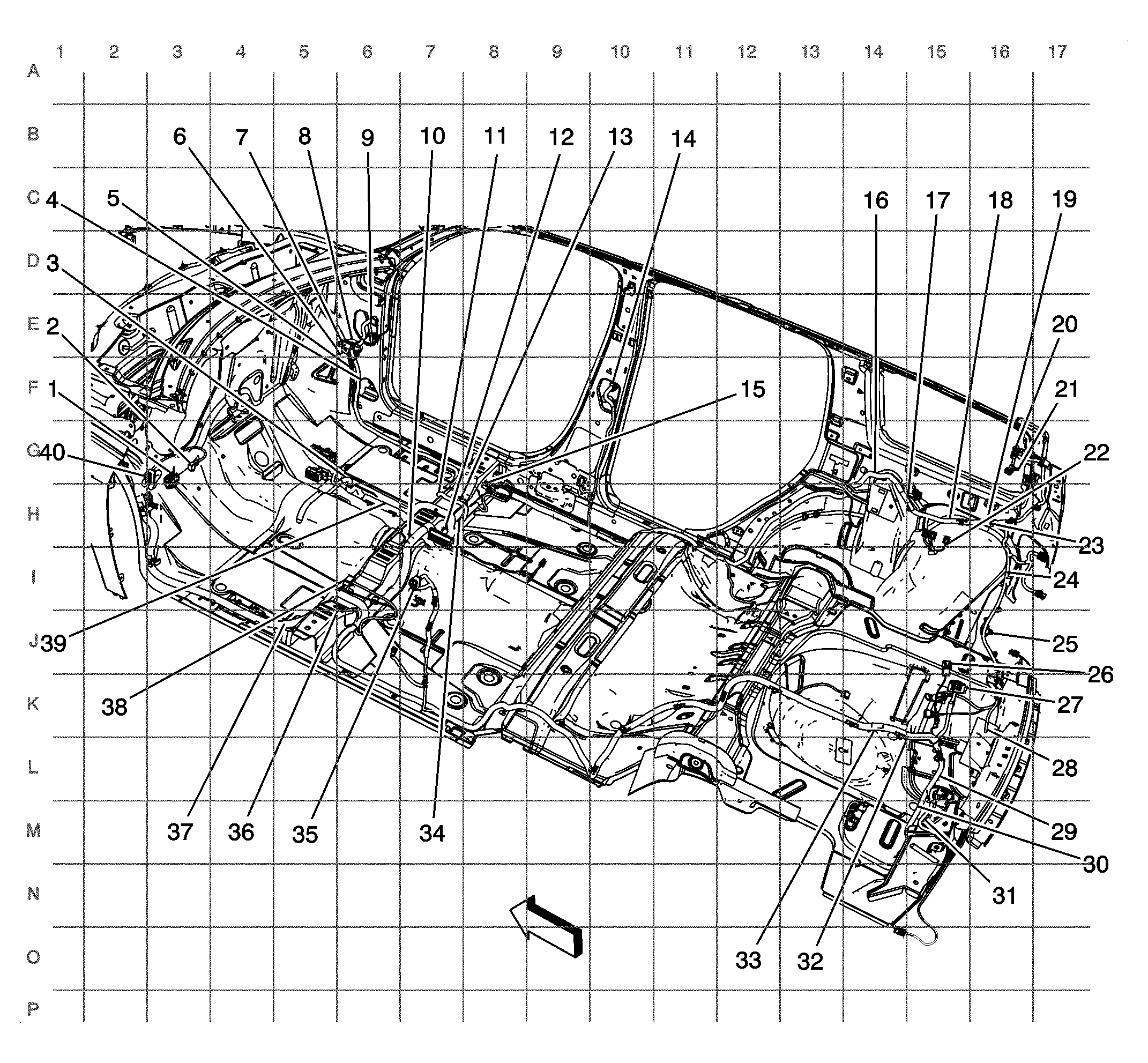

Fig 15: Body Harness - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X201
2	X205
3	J312
4	J318 (U2K)
5	J317 (U2K)
6	J204
7	X200
8	X211
9	X300
10	J311
11	J302
12	G306
13	G302
14	X310
15	X316
16	J405
17	J401
18	J407 (UE1)
19	J408 (UE1)
20	X400
21	X402
22	Inflatable Restraint Roof Rail Module - Left (ASF)
23	J403
24	J400
25	G402
26	Inflatable Restraint Roof Rail Module - Right (ASF)
27	X405 (-UE1)
28	X403
29	J303
30	J402
31	G401
32	J409 (UE1)
33	J404
34	J307
35	X311
36	G301
37	J301
38	X315
39	J300
40	X301

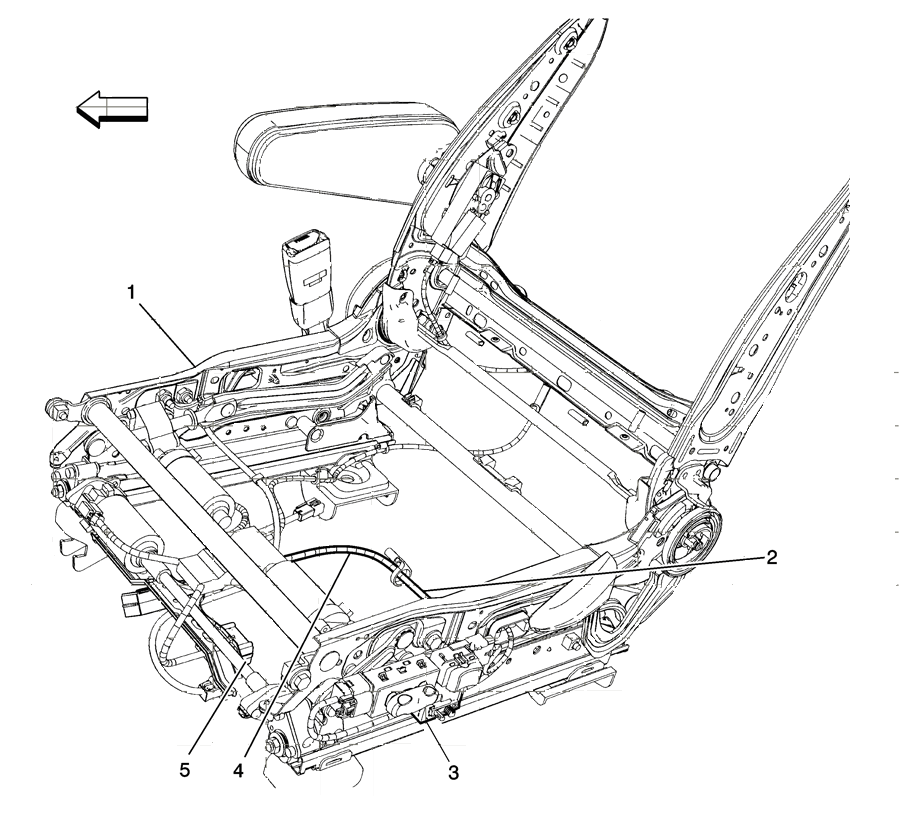

Fig 16: Driver Seat Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Frame
2	J313 (AJ6)
3	X319 (AJ6)
4	J314 (AJ6)
5	X315

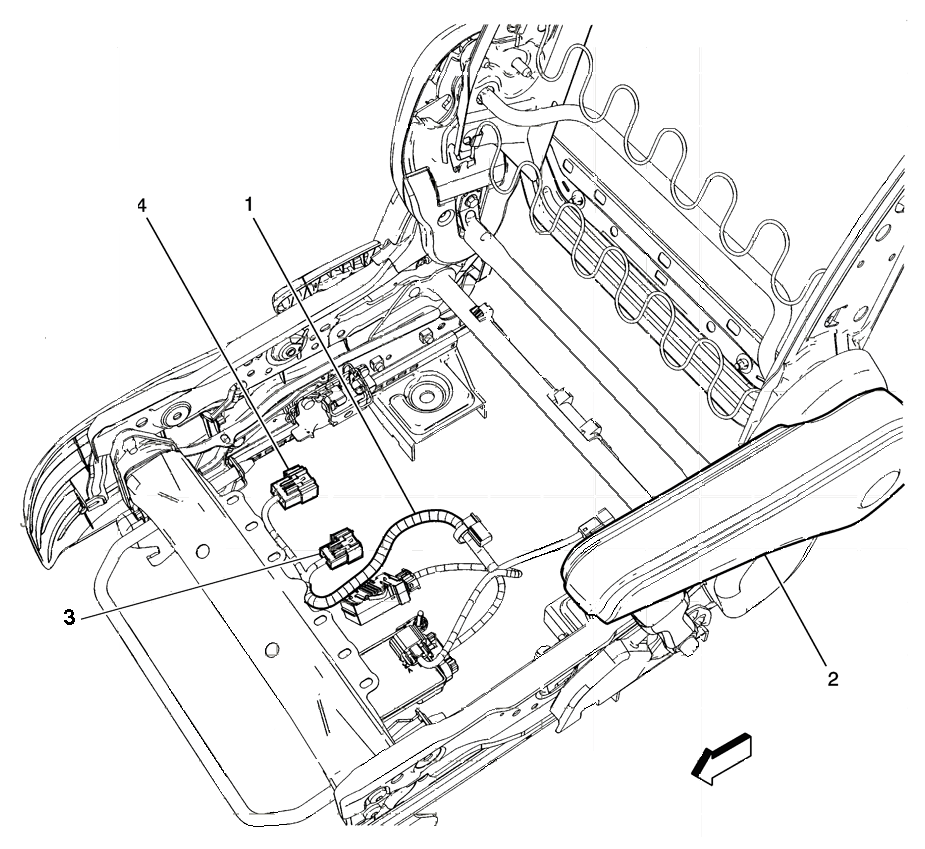

Fig 17: Passenger Seat Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J315
2	Arm Rest
3	X314 (KA1)
4	X316

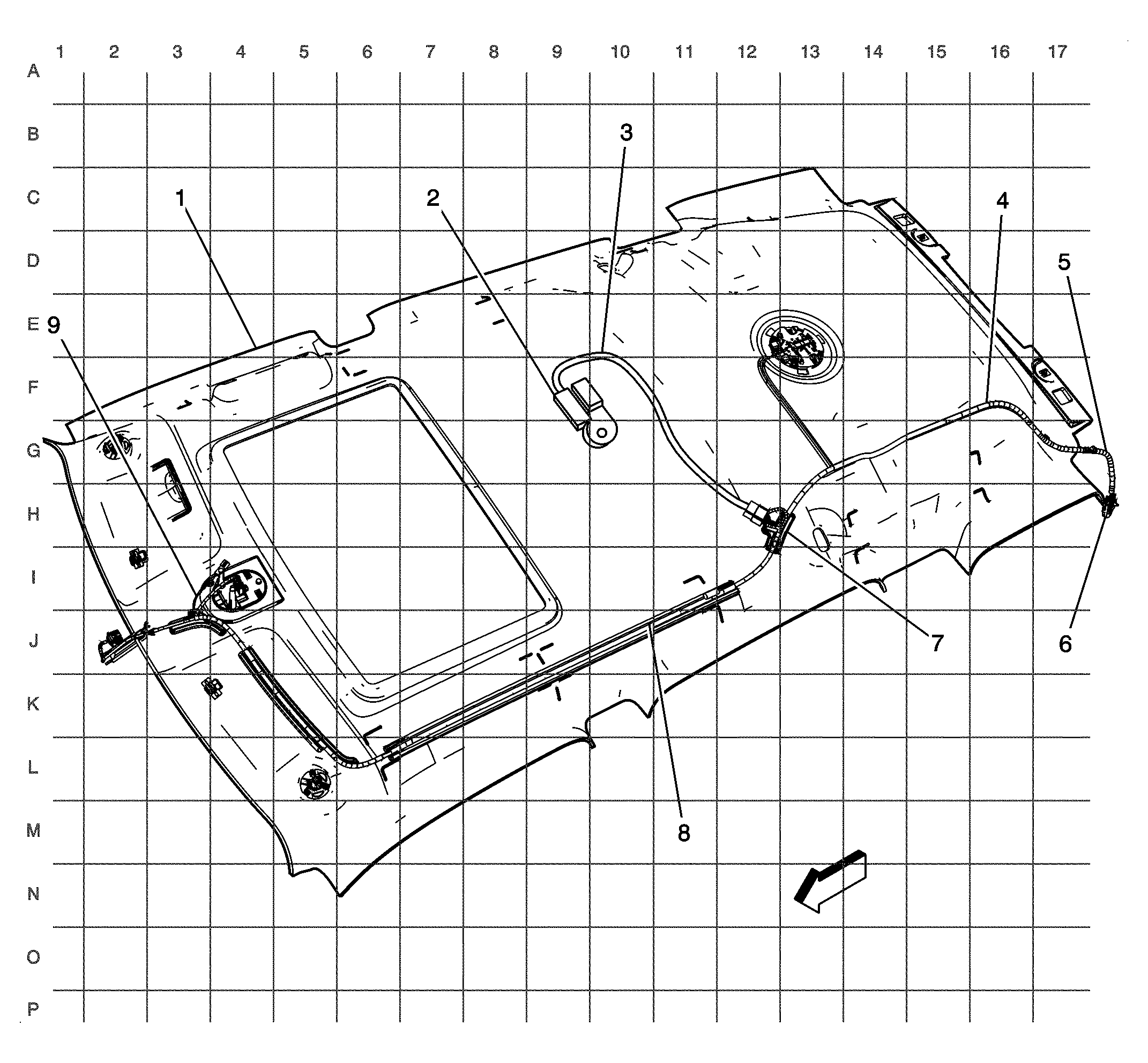

Fig 18: Headliner Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	J308 (CF5)
3	J309 (CF5)
4	J310 (UE1)
5	J410 (UE1)
6	X404 (UE1)
7	X397 (CF5)
8	J316
9	J305 (UE1)

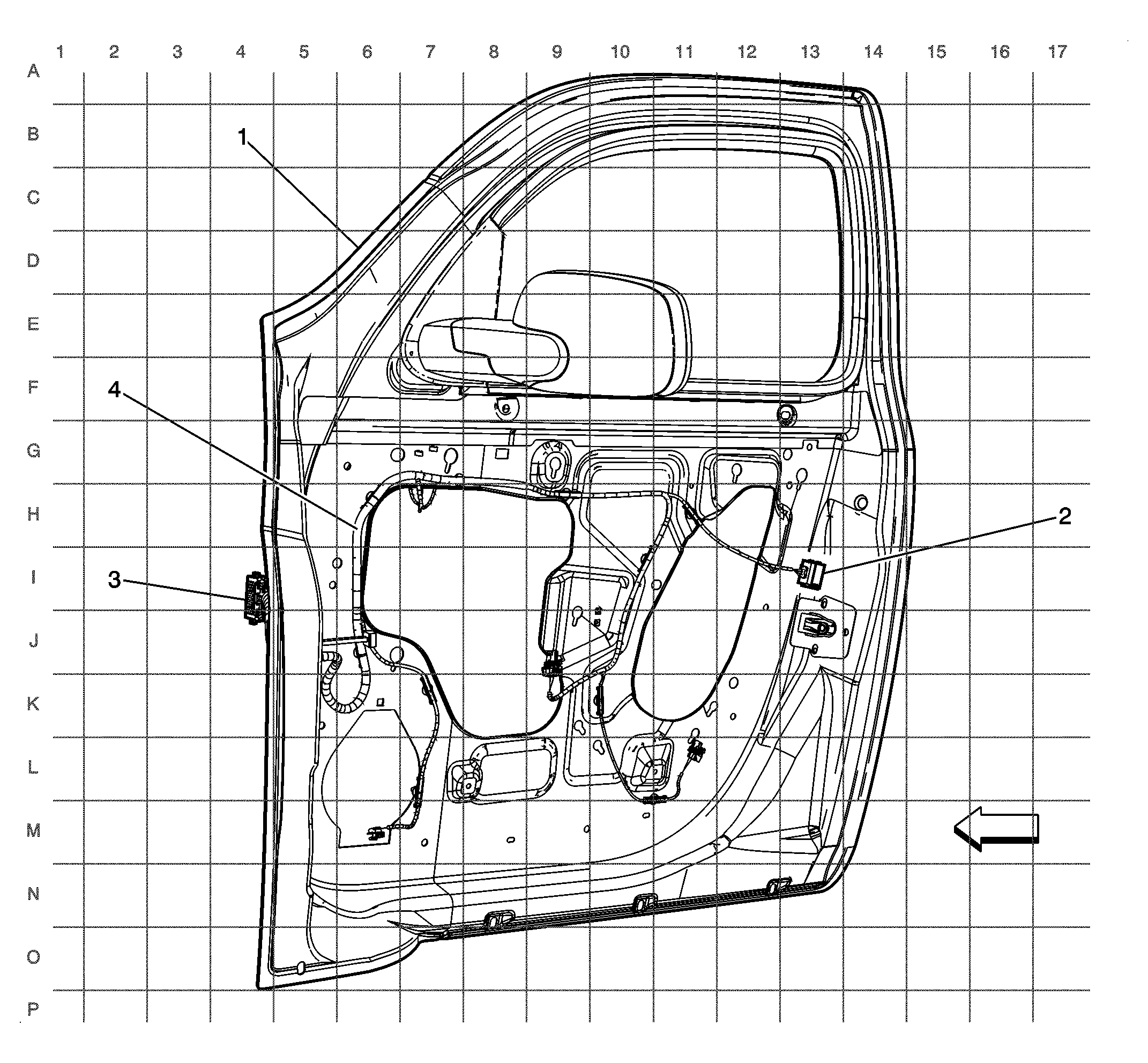

Fig 19: Left Front Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - Driver Connector
3	X301
4	J500

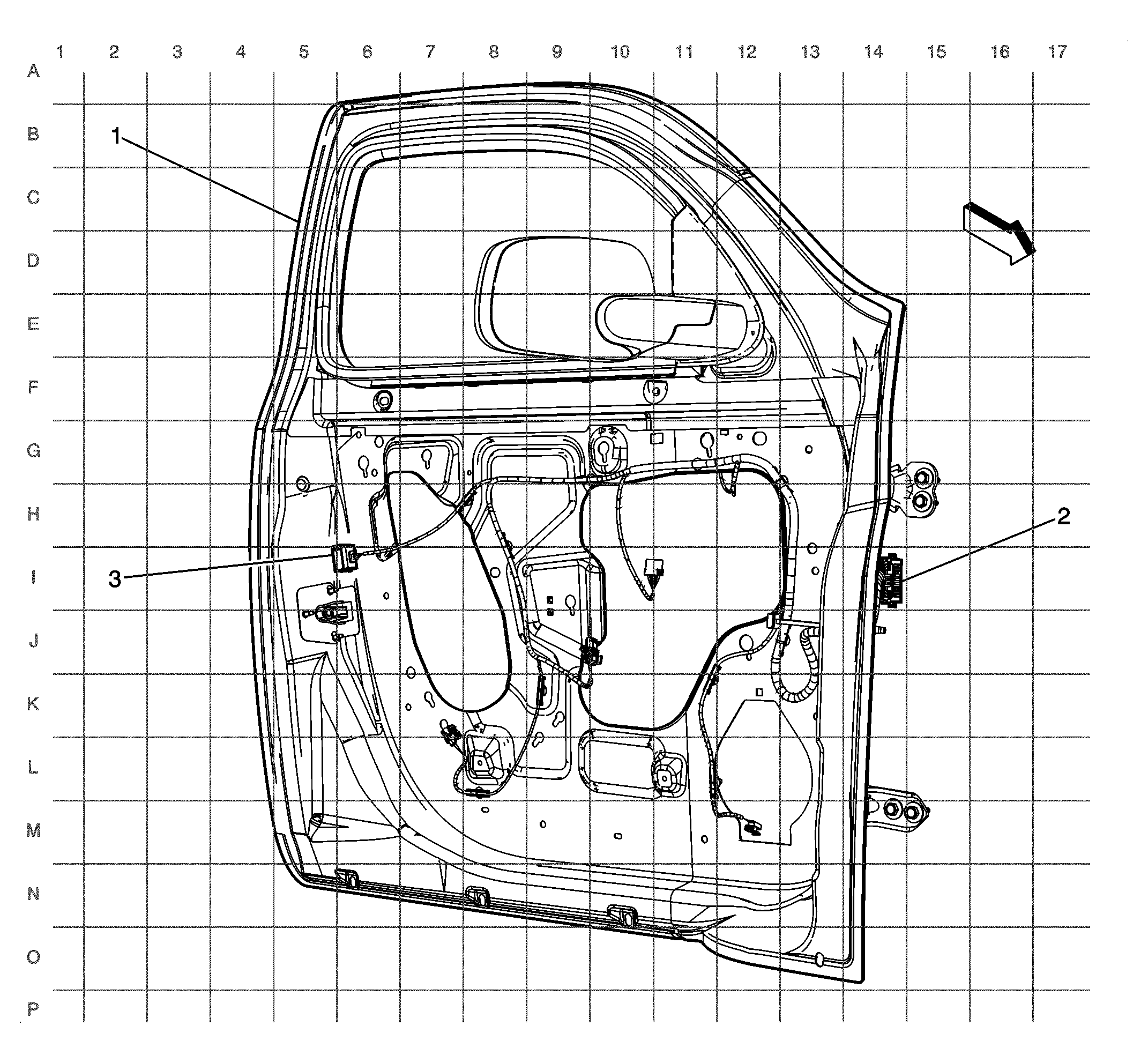

Fig 20: Right Front Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	X300
3	Door Latch - Passenger Connector

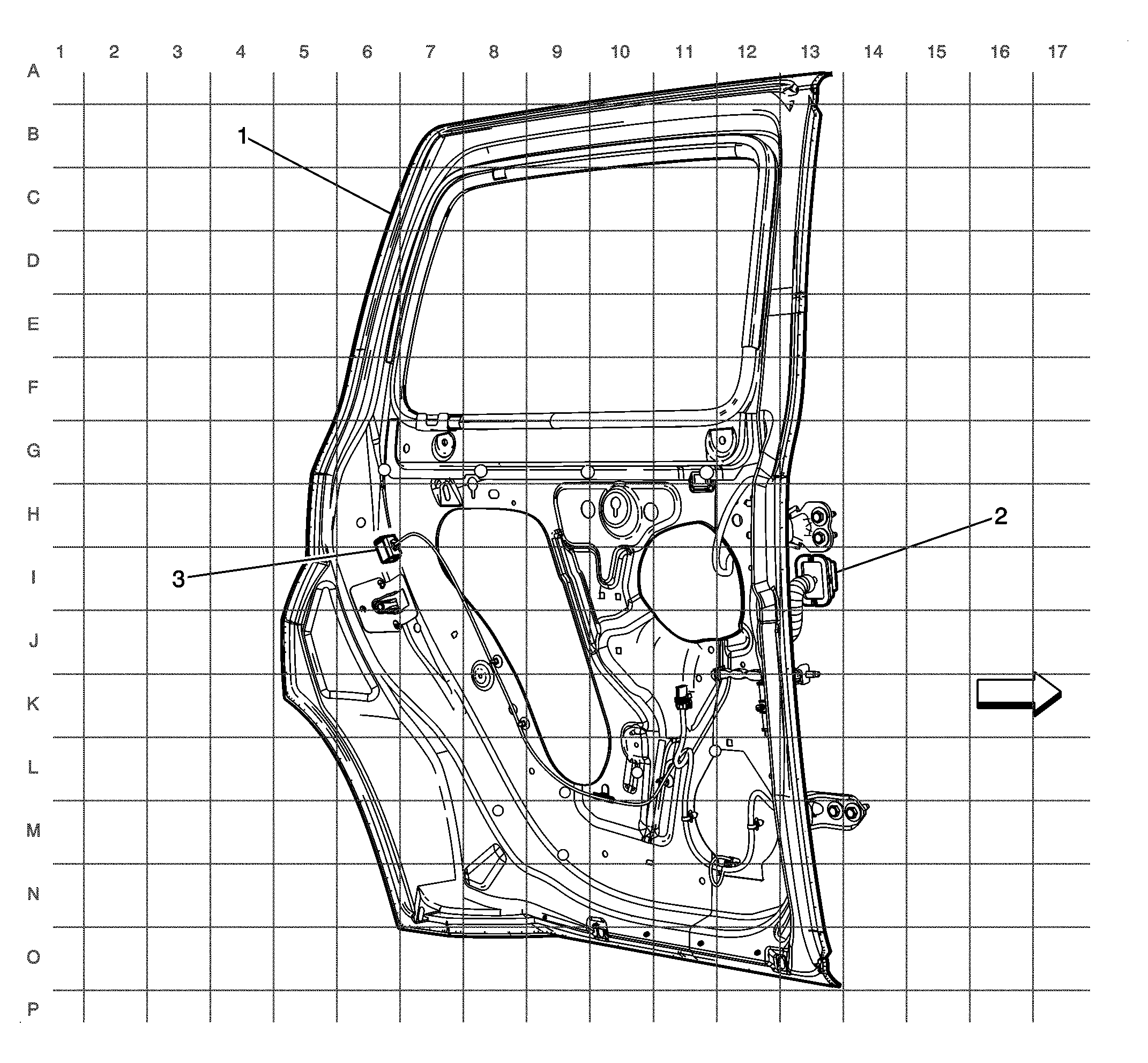

Fig 21: Left Rear Door / Rear Access Panel Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - Left Rear (Except Panel Van), Rear Access Panel Latch - Left Rear (Panel Van) Connector
3	X311

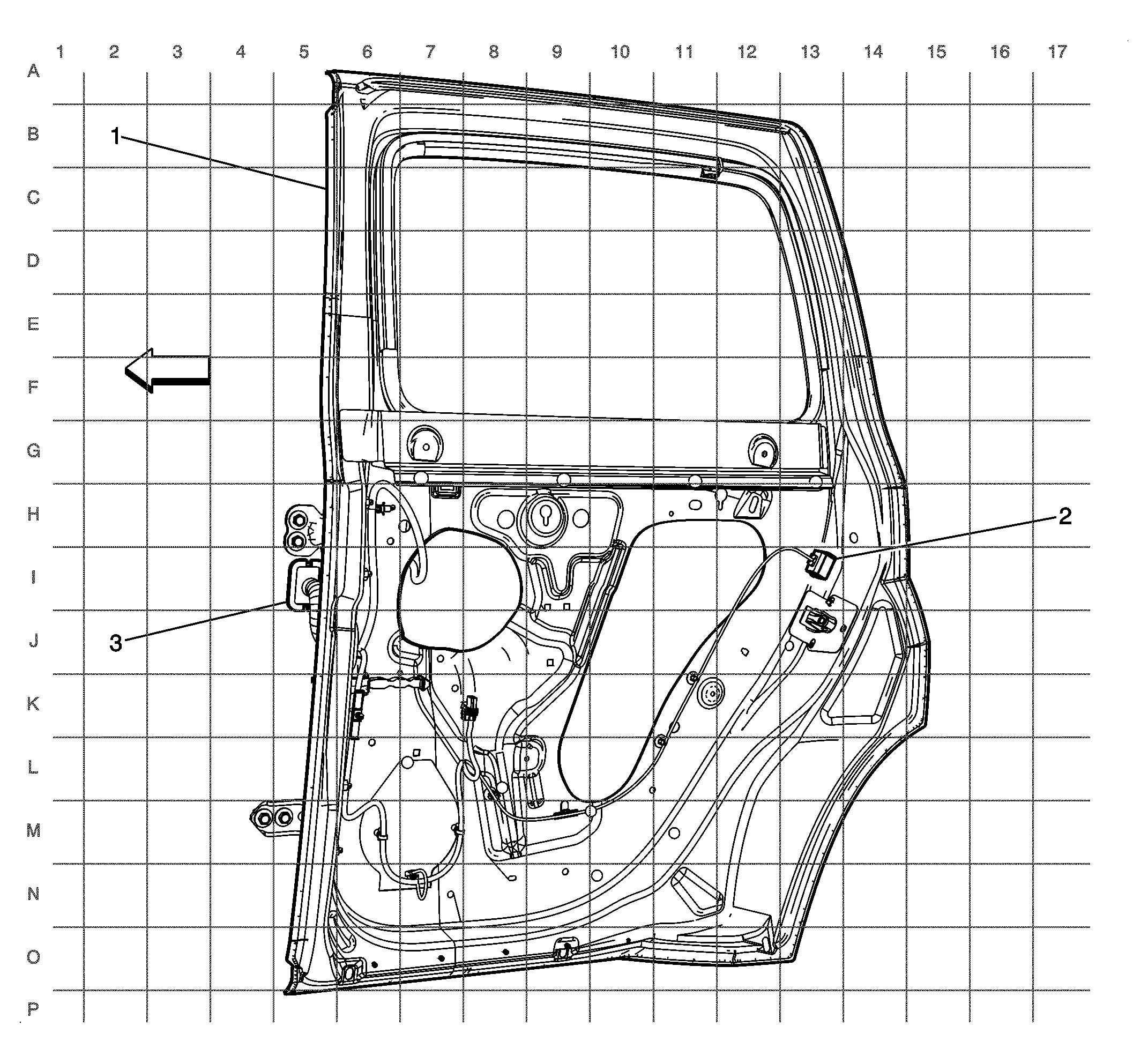

Fig 22: Right Rear Door / Rear Access Panel Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	X310
3	Door Latch - Right Rear (Except Panel Van), Rear Access Panel Latch - Right Rear (Panel Van) Connector

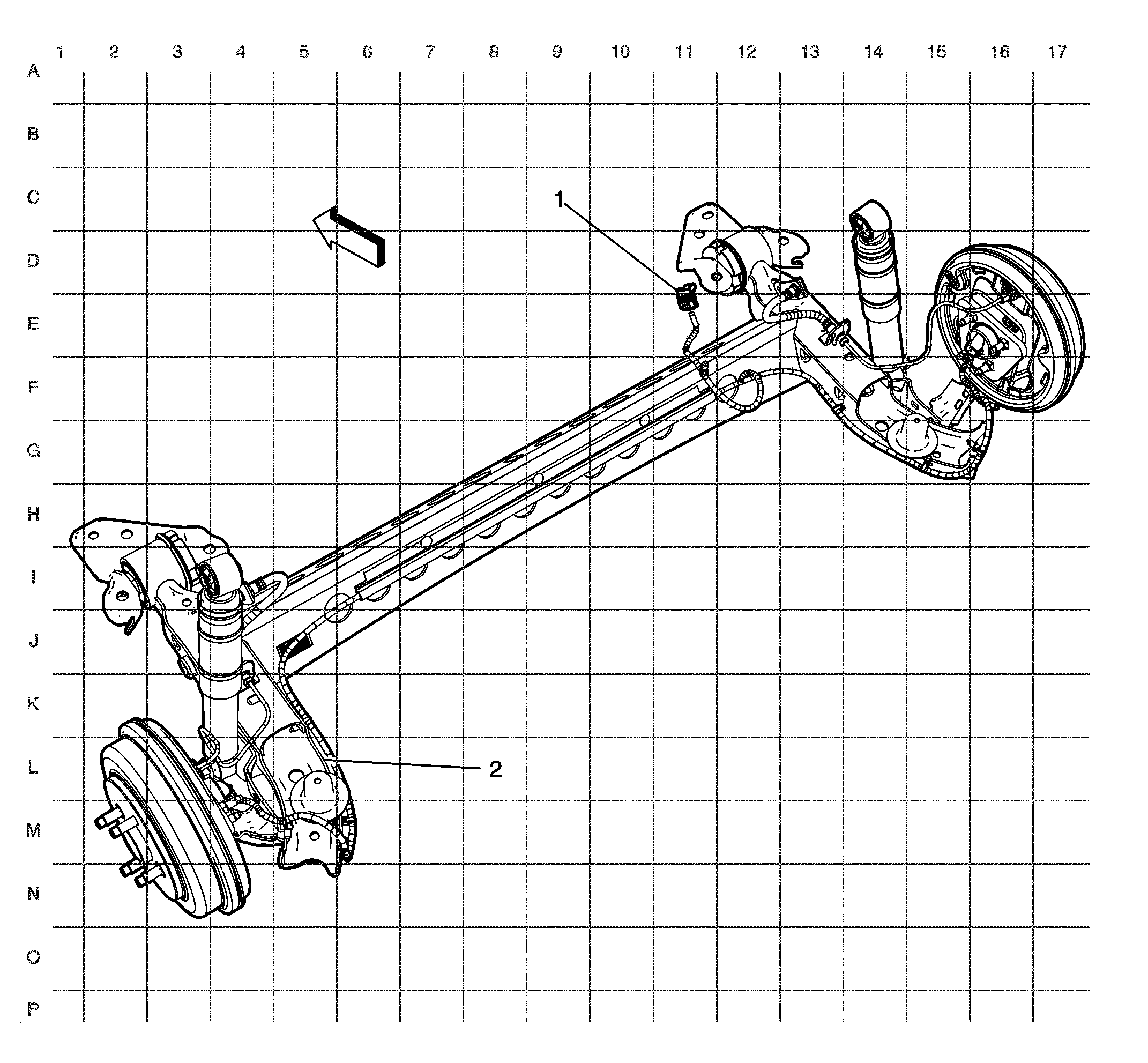

Fig 23: Chassis Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X401
2	Rear Suspension Assembly

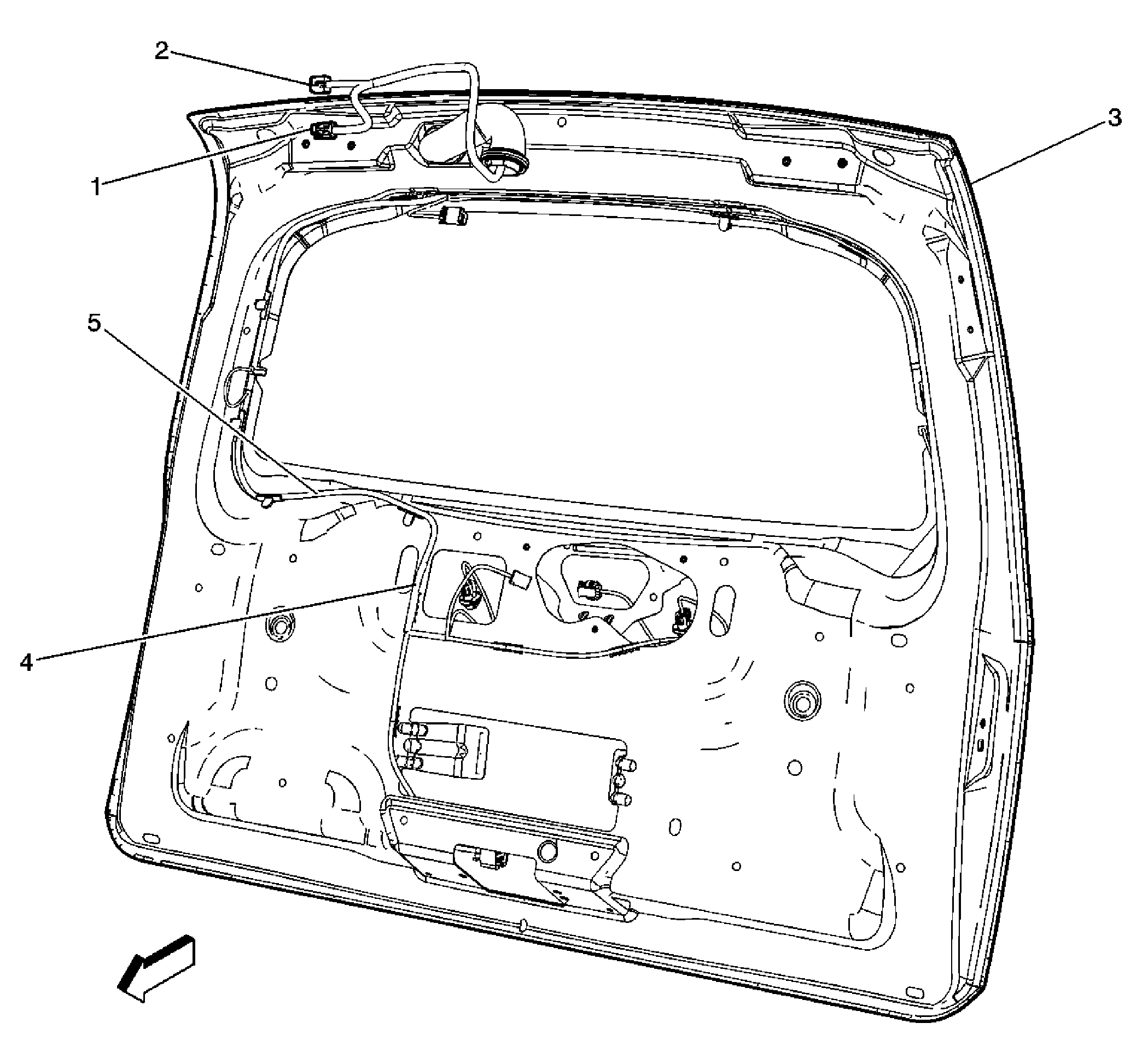

Fig 24: Liftgate Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X402
2	X400
3	Liftgate
4	J900
5	J901

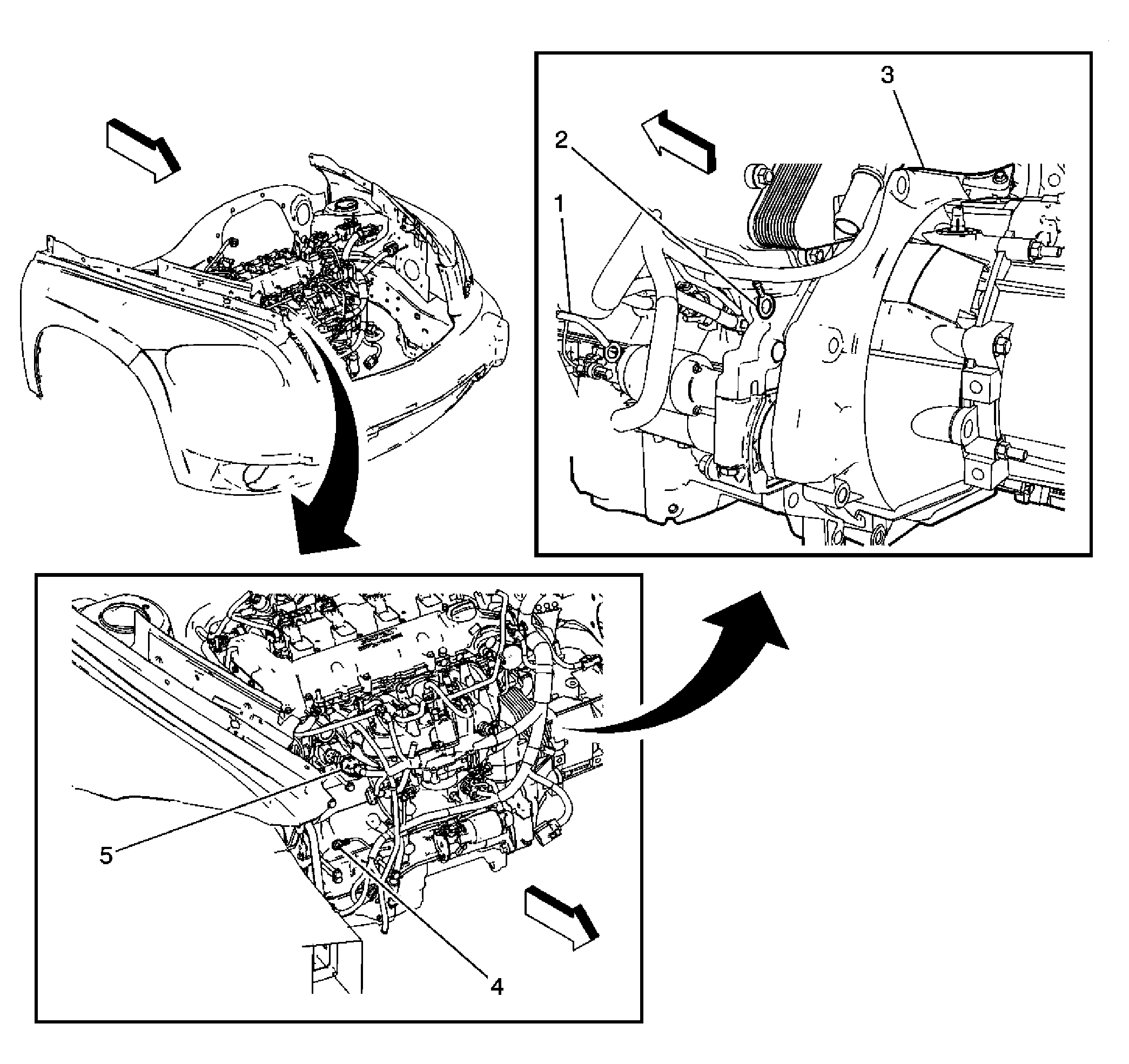

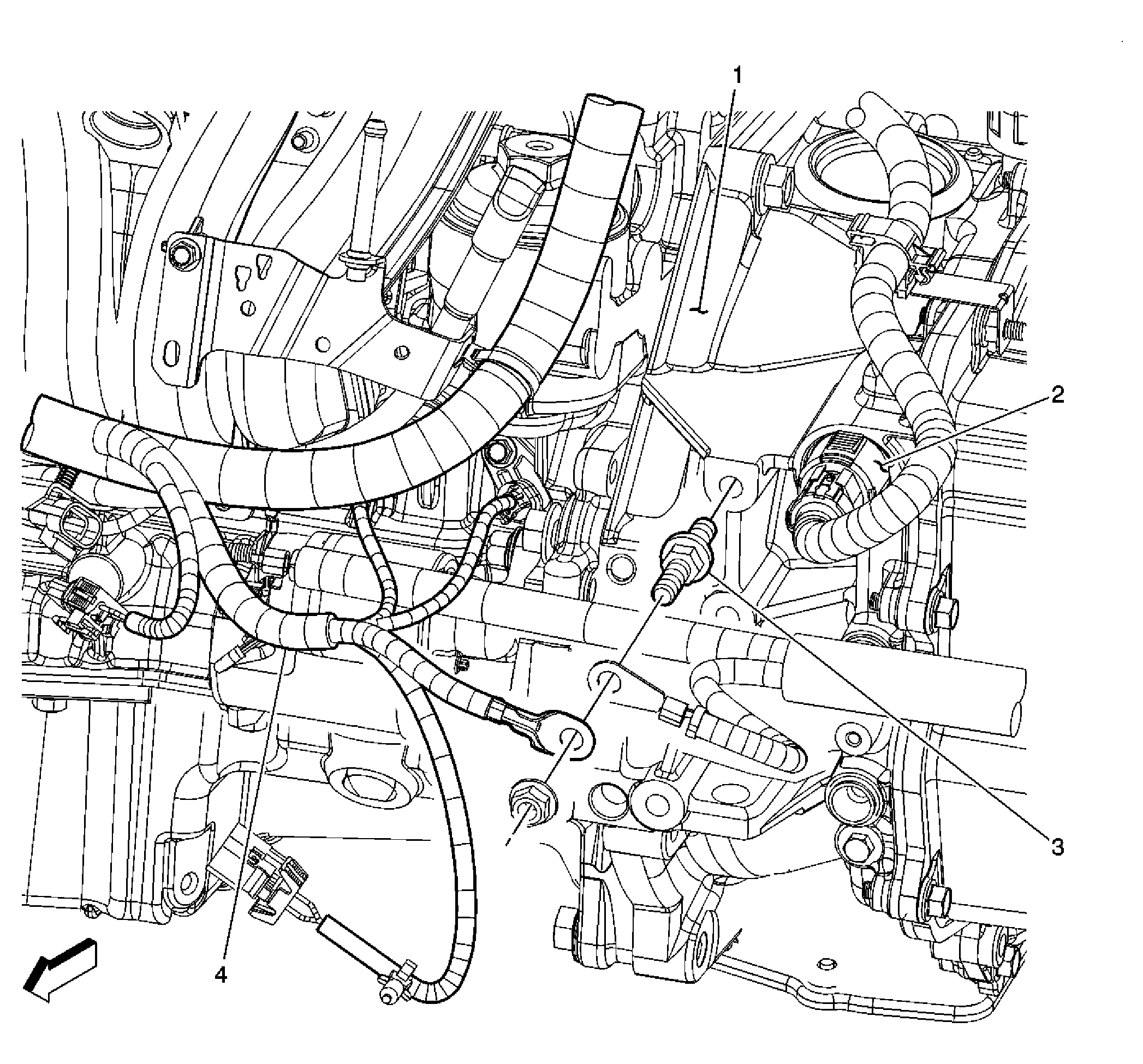

Fig 25: G107

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Case
2	X100
3	G107
4	Engine Harness

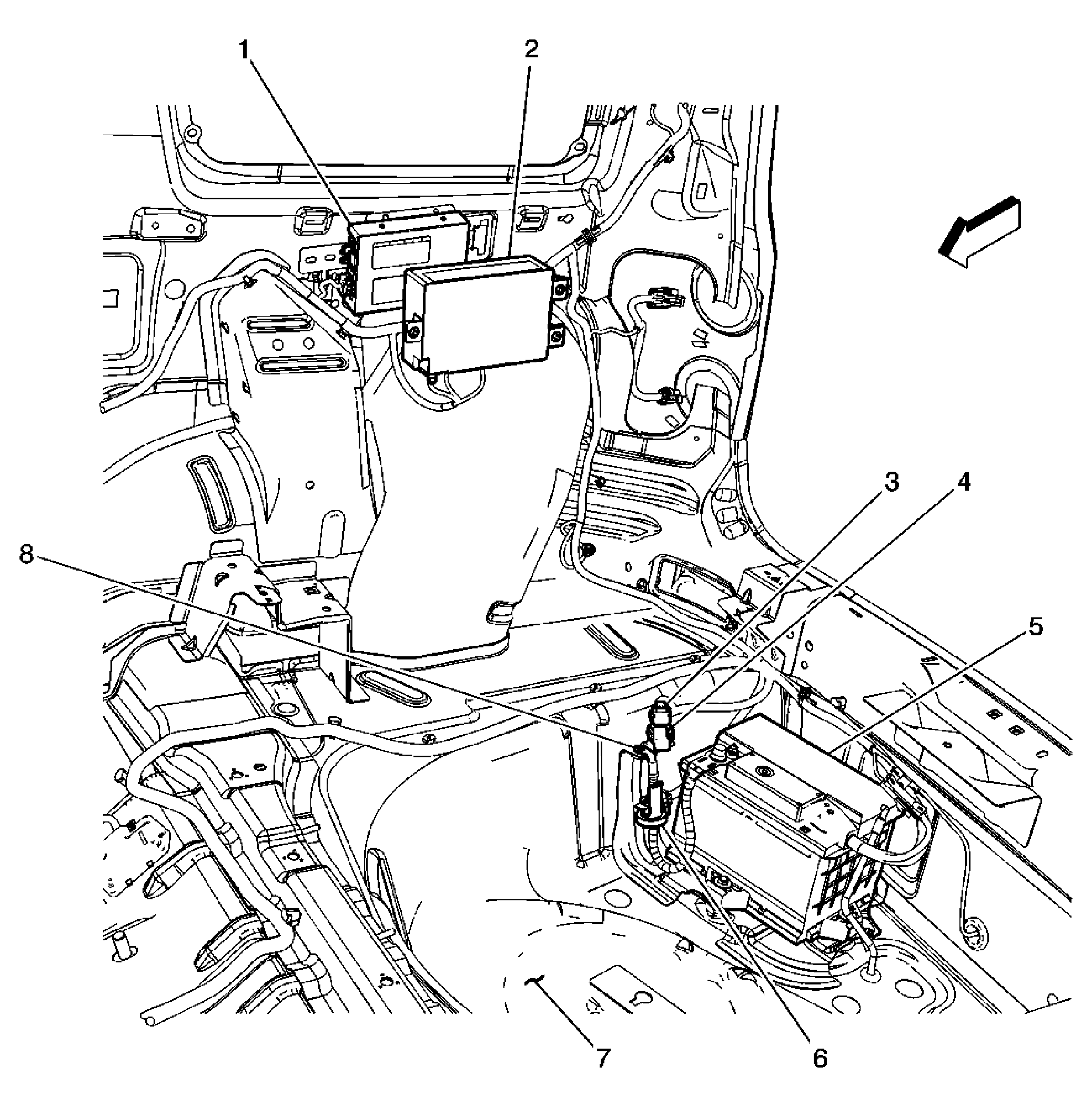

Fig 26: Right Rear Of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM) (UE1)
3	VCIM fuse Holder - 10AMP (UE1)
4	BCM Fuse holder - 50AMP
5	Battery
6	Battery Current Sensor
7	Floor Panel
8	G403

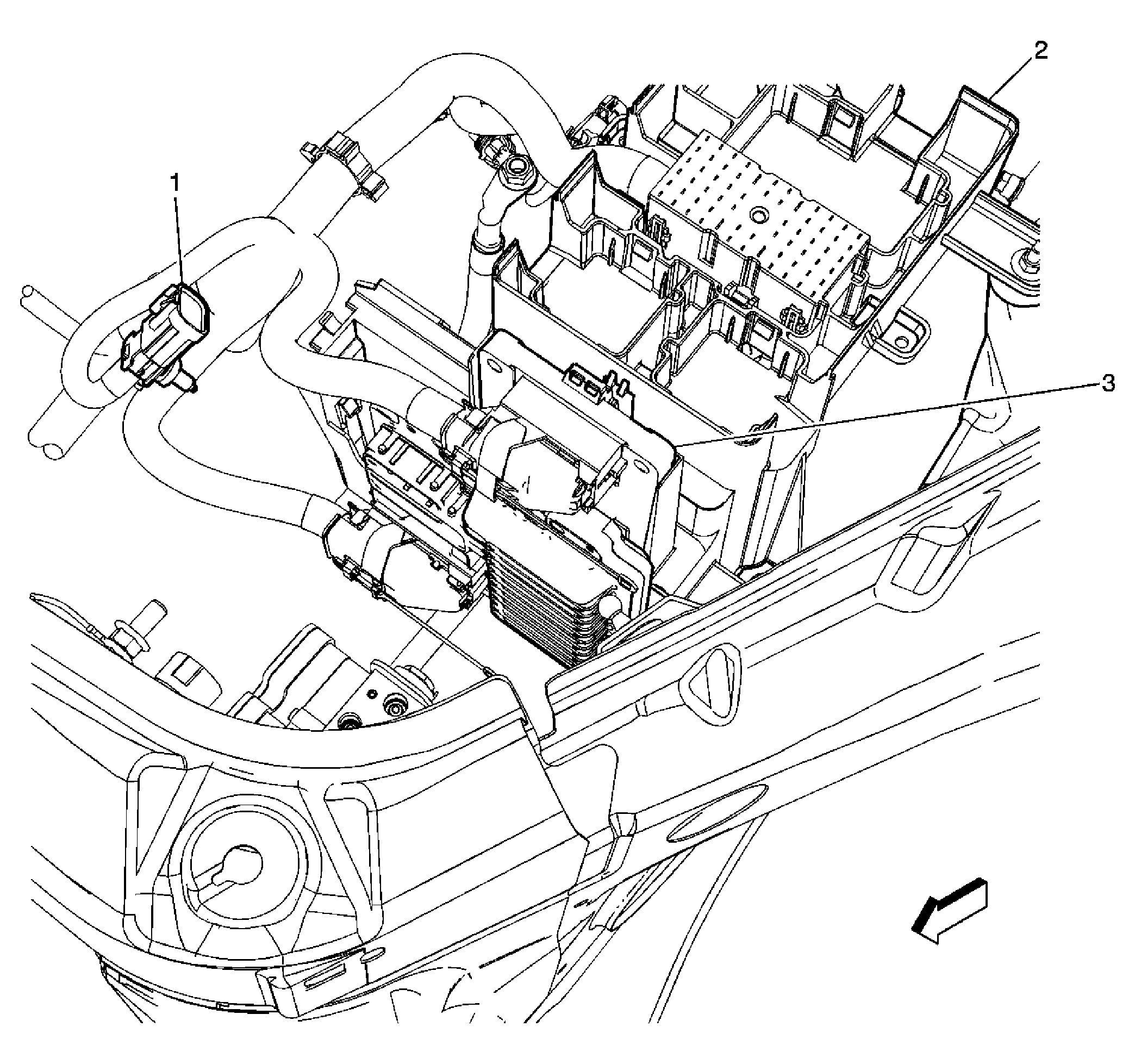

Fig 27: X105

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X105
2	Fuse Block - Underhood Bracket
3	Transmission Control Module (TCM)

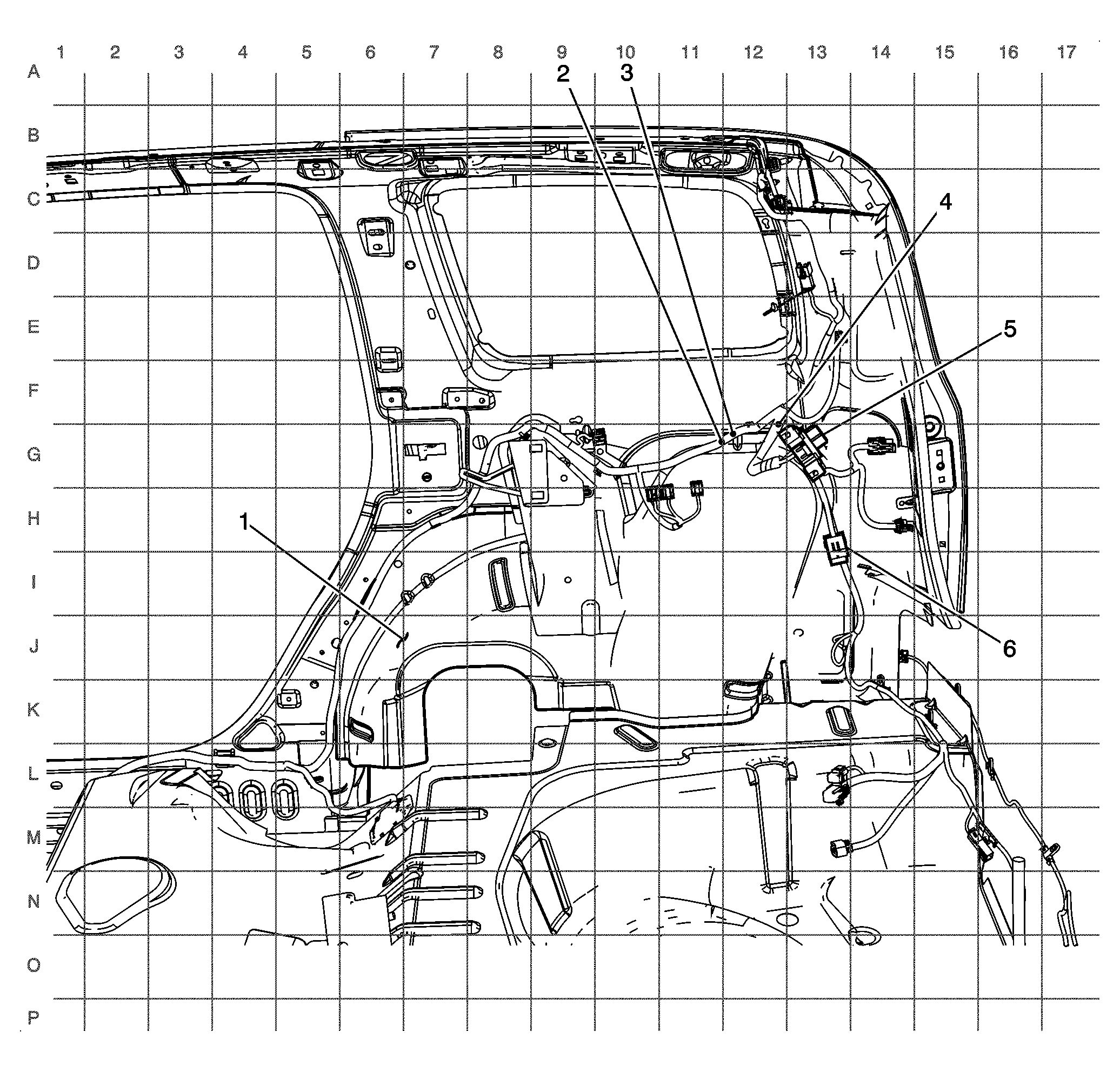

Fig 28: Right Rear Cargo Area (Panel Van)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Well - Right Rear
2	J319 (Panel Van)
3	J321 (Panel Van)
4	J320 (Panel Van)
5	Fuse Block - Rear Access Panel (Panel Van)
6	X406 (Commercial Accessory Power)

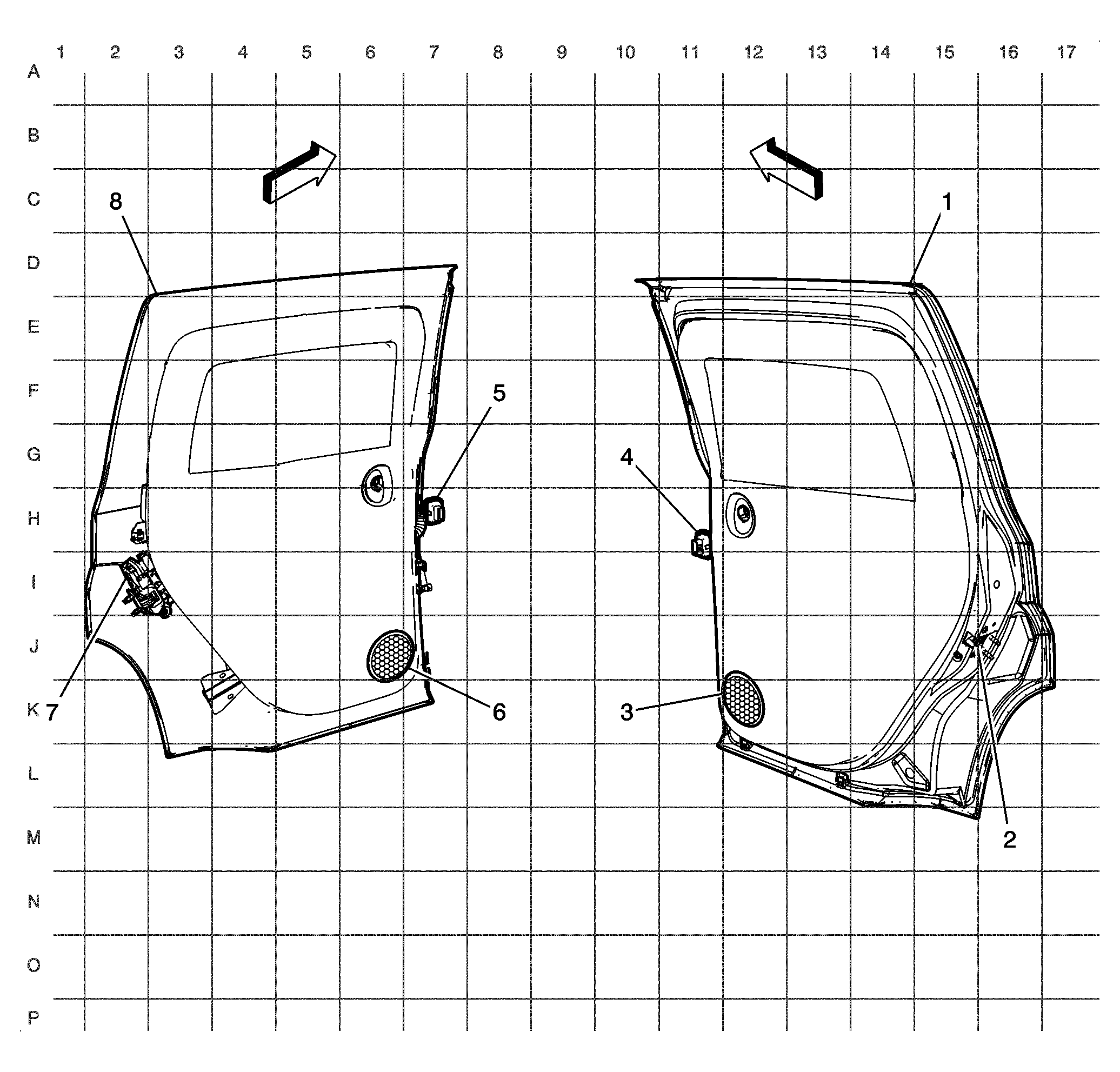

Fig 29: Rear Access Panel Components (Panel Van)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Access Panel - Right Rear
2	Rear Access Panel Latch - Right Rear
3	Speaker - Right Rear
4	X310
5	X311
6	Speaker - Left Rear
7	Rear Access Panel Latch - Left Rear
8	Rear Access Panel - Left Rear
