Ground Distribution Schematics

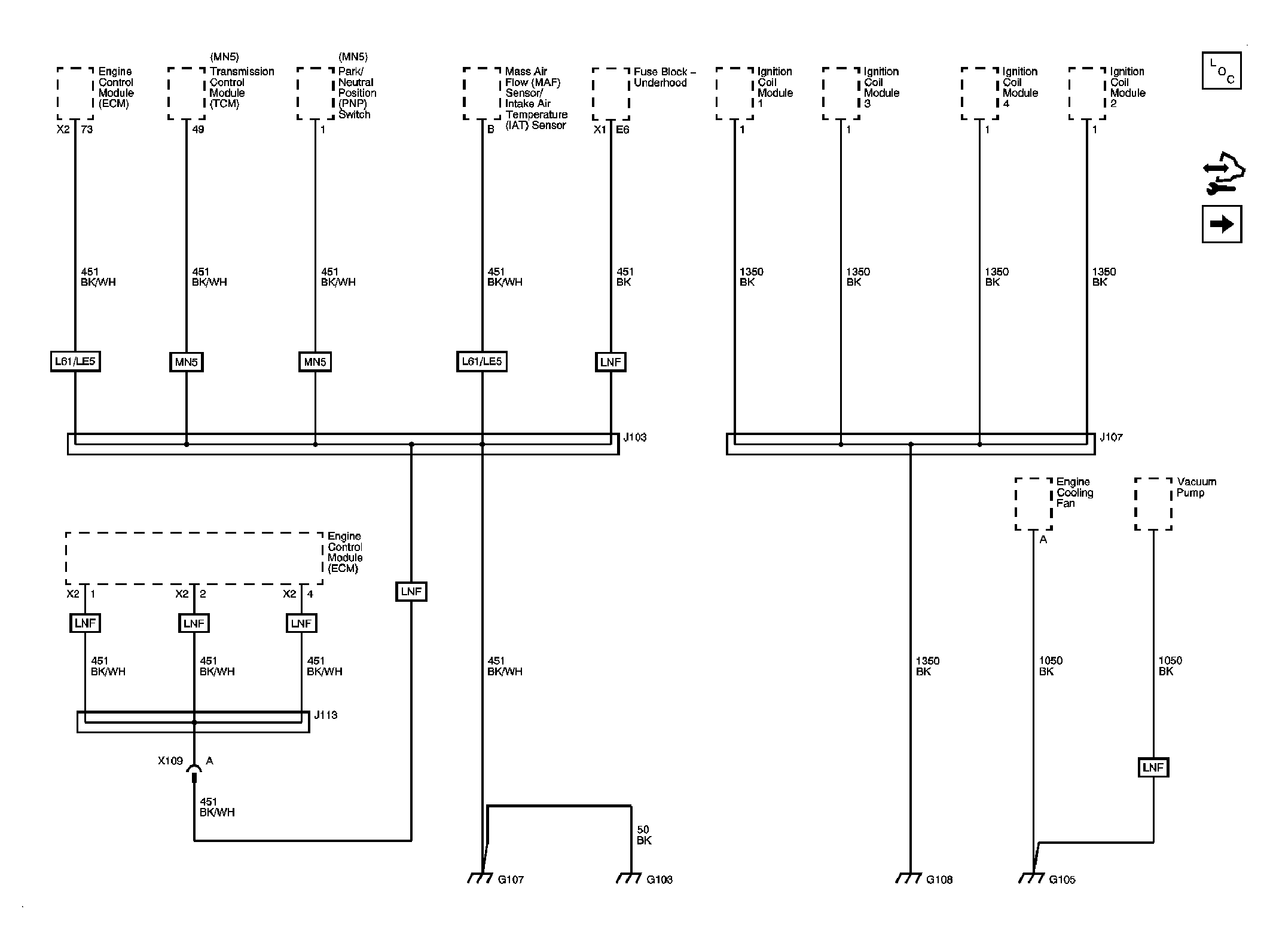

Fig 1: G103, G105, G107 And G108 - Schematic

GM1887778

Courtesy of GENERAL MOTORS CORP.

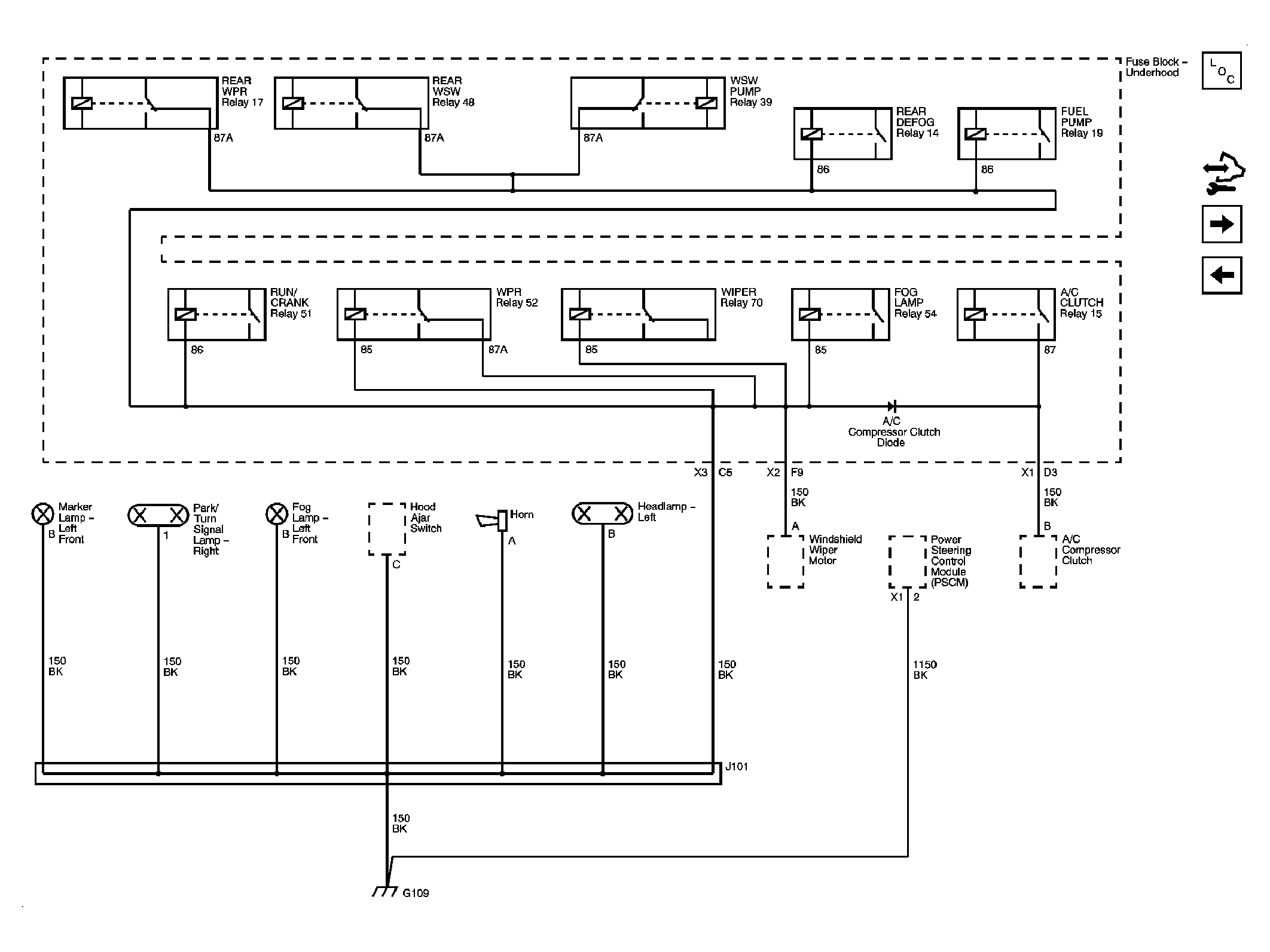

Fig 2: G109 - Schematic

GM1887780

Courtesy of GENERAL MOTORS CORP.

Fig 3: G111 - Schematic

GM1887782

Courtesy of GENERAL MOTORS CORP.

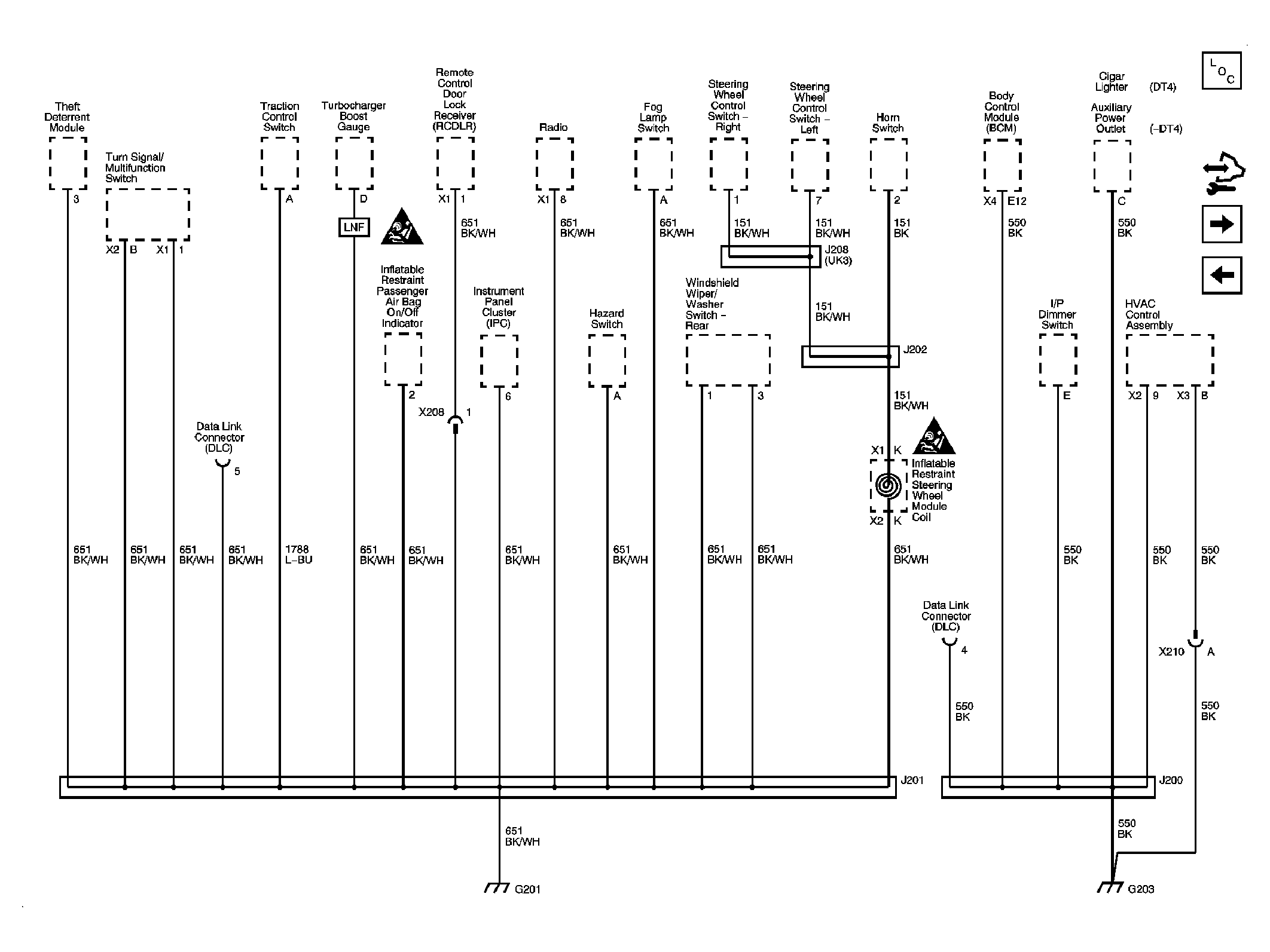

Fig 4: G201 And G203 - Schematic

GM1887784

Courtesy of GENERAL MOTORS CORP.

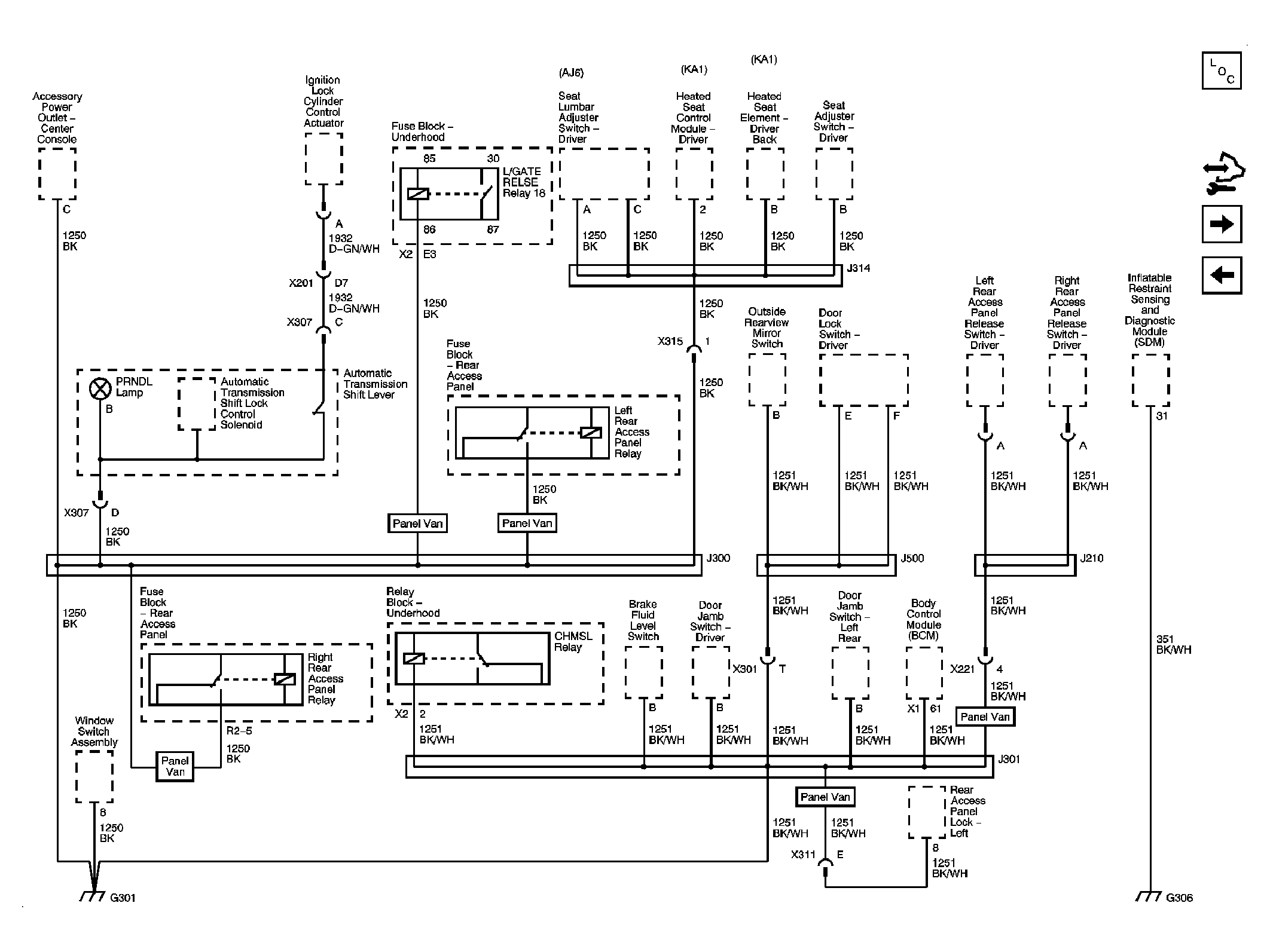

Fig 5: G301 And G306 - Schematic

GM1887787

Courtesy of GENERAL MOTORS CORP.

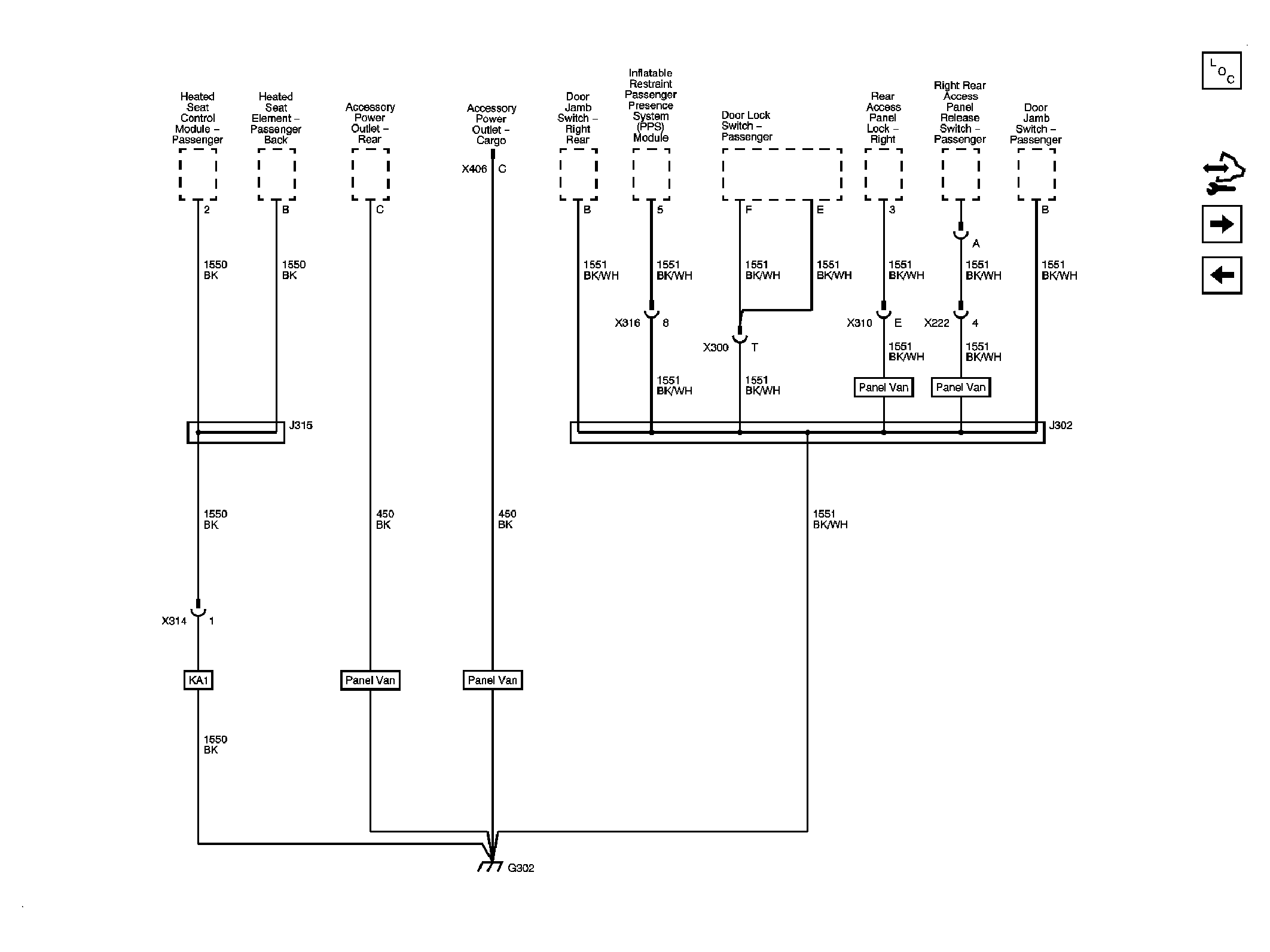

Fig 6: G302 - Schematic

GM1887789

Courtesy of GENERAL MOTORS CORP.

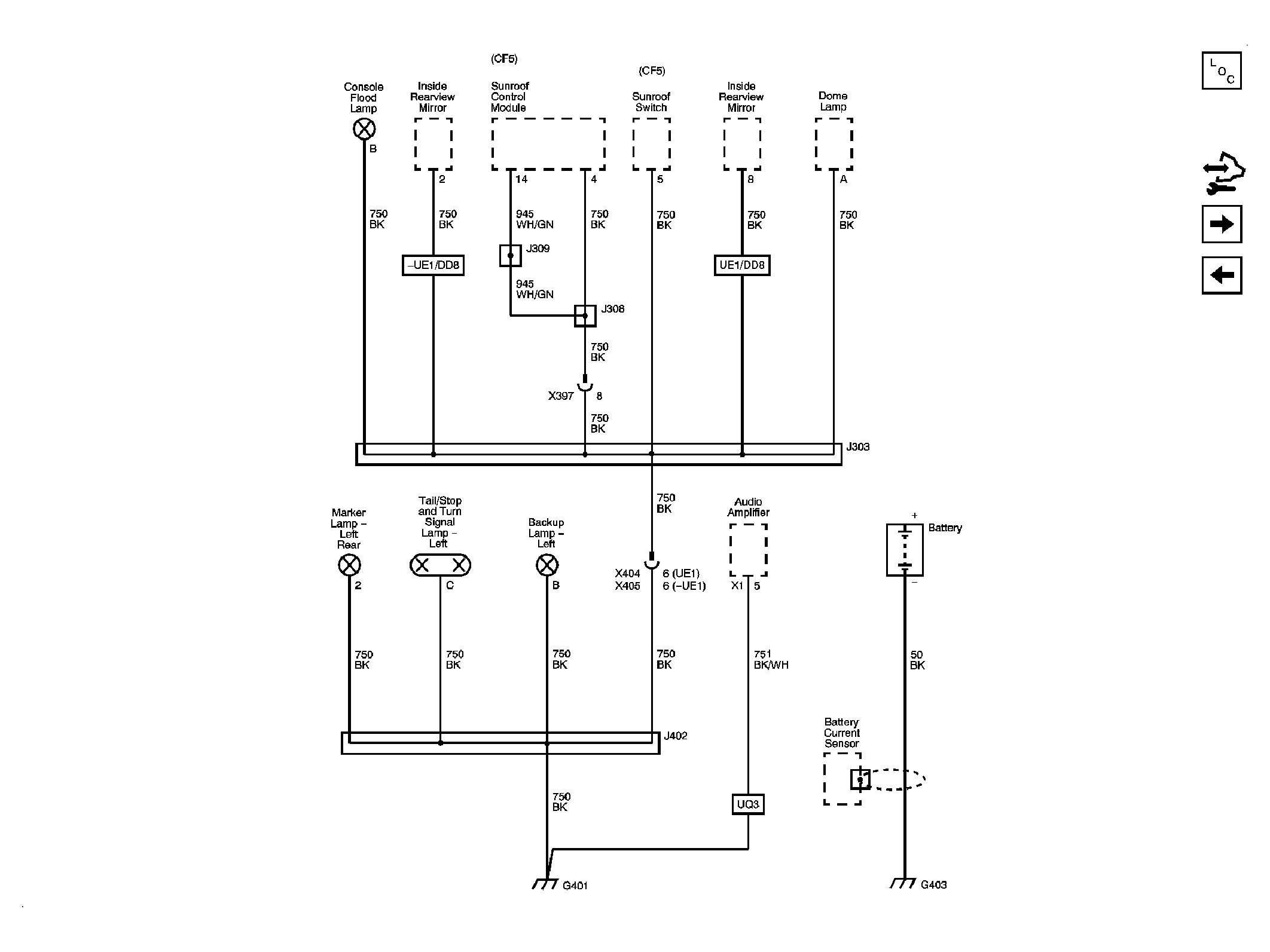

Fig 7: G401 And G403 - Schematic

GM1887792

Courtesy of GENERAL MOTORS CORP.

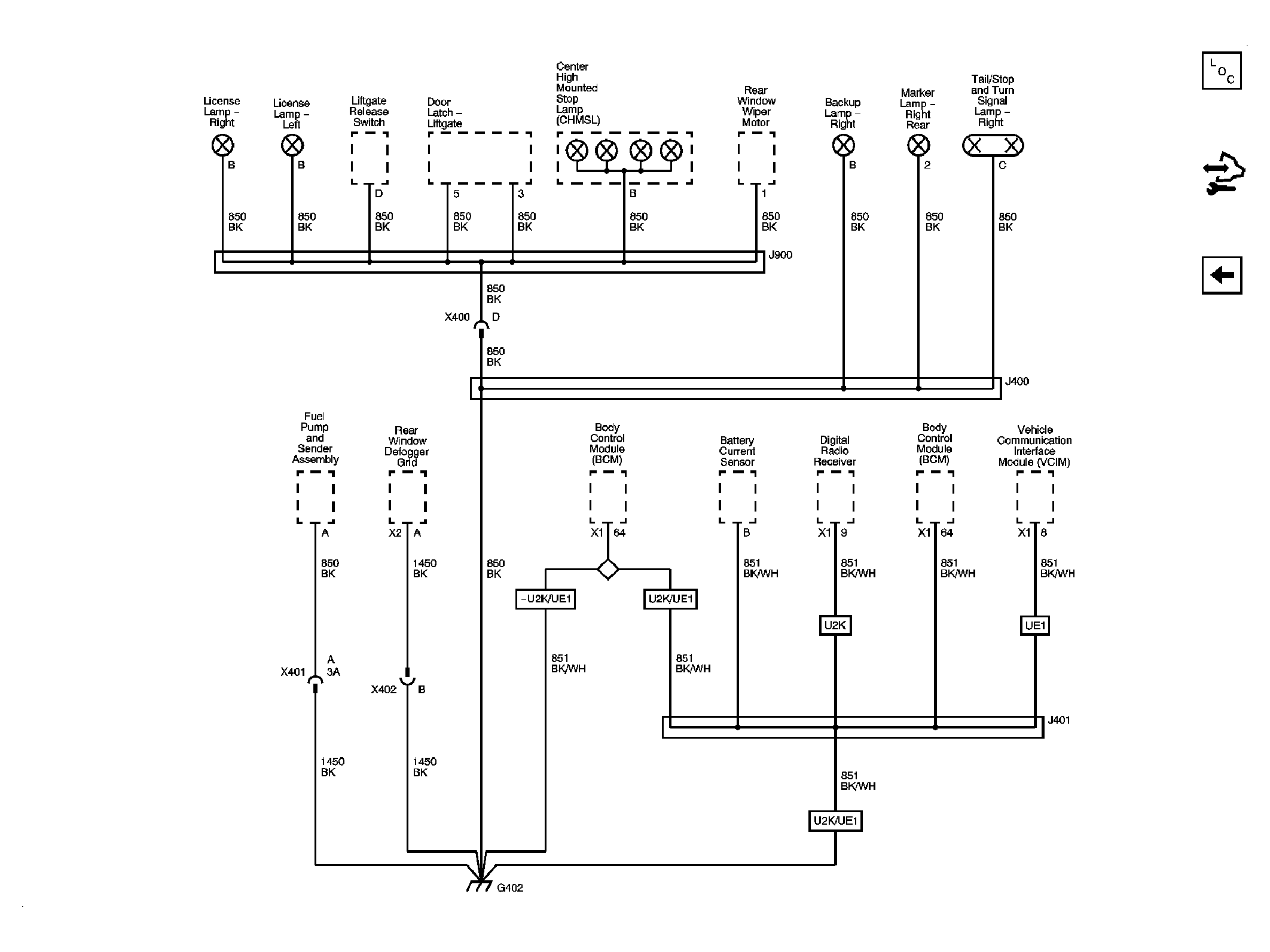

Fig 8: G402 - Schematic

GM1887794

Courtesy of GENERAL MOTORS CORP.
