Instrument Cluster Schematics

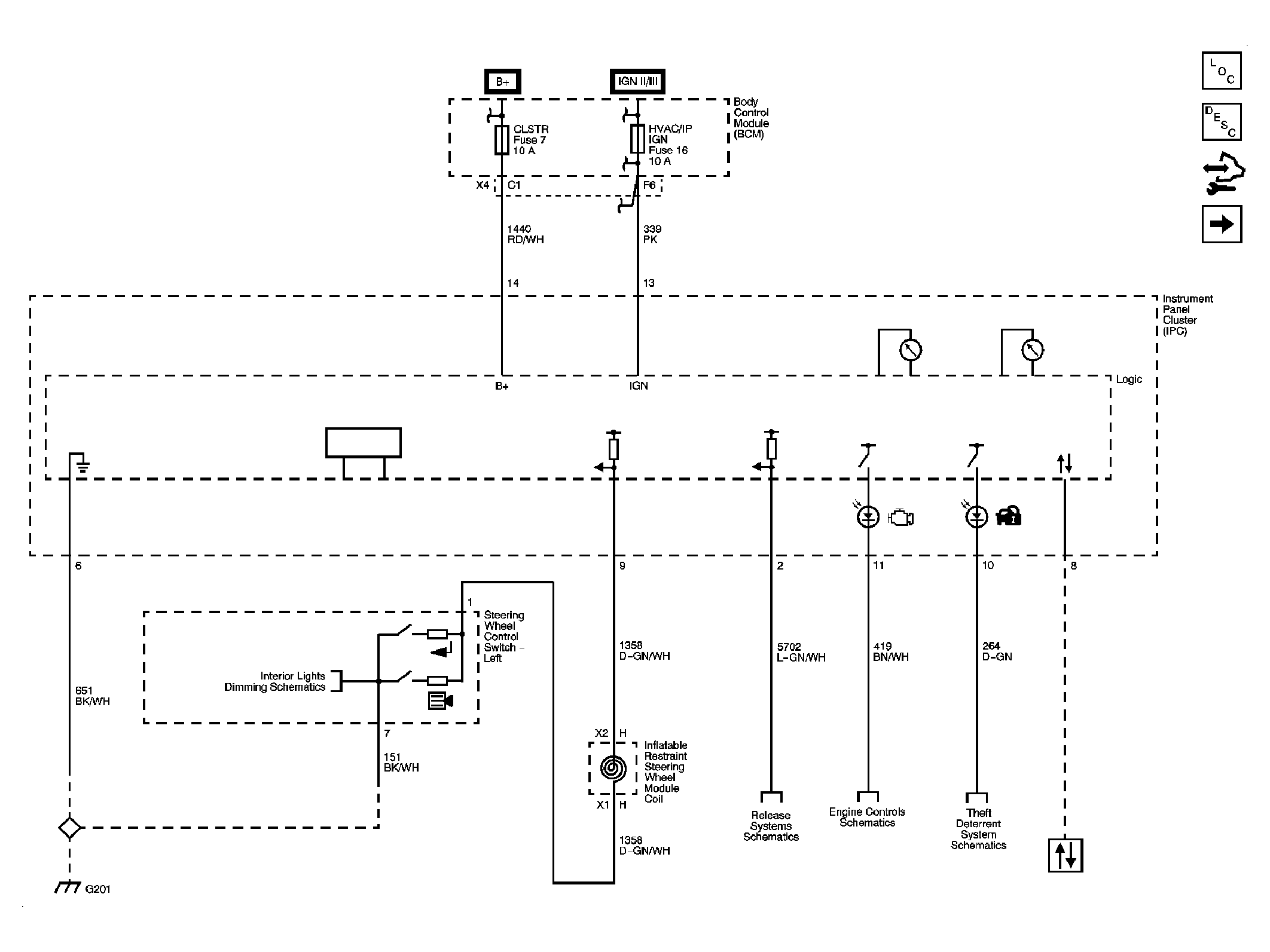

Fig 1: Power, Ground, DIC, Illumination, MIL and Security Indicator Schematic
GM1887730Courtesy of GENERAL MOTORS CORP.

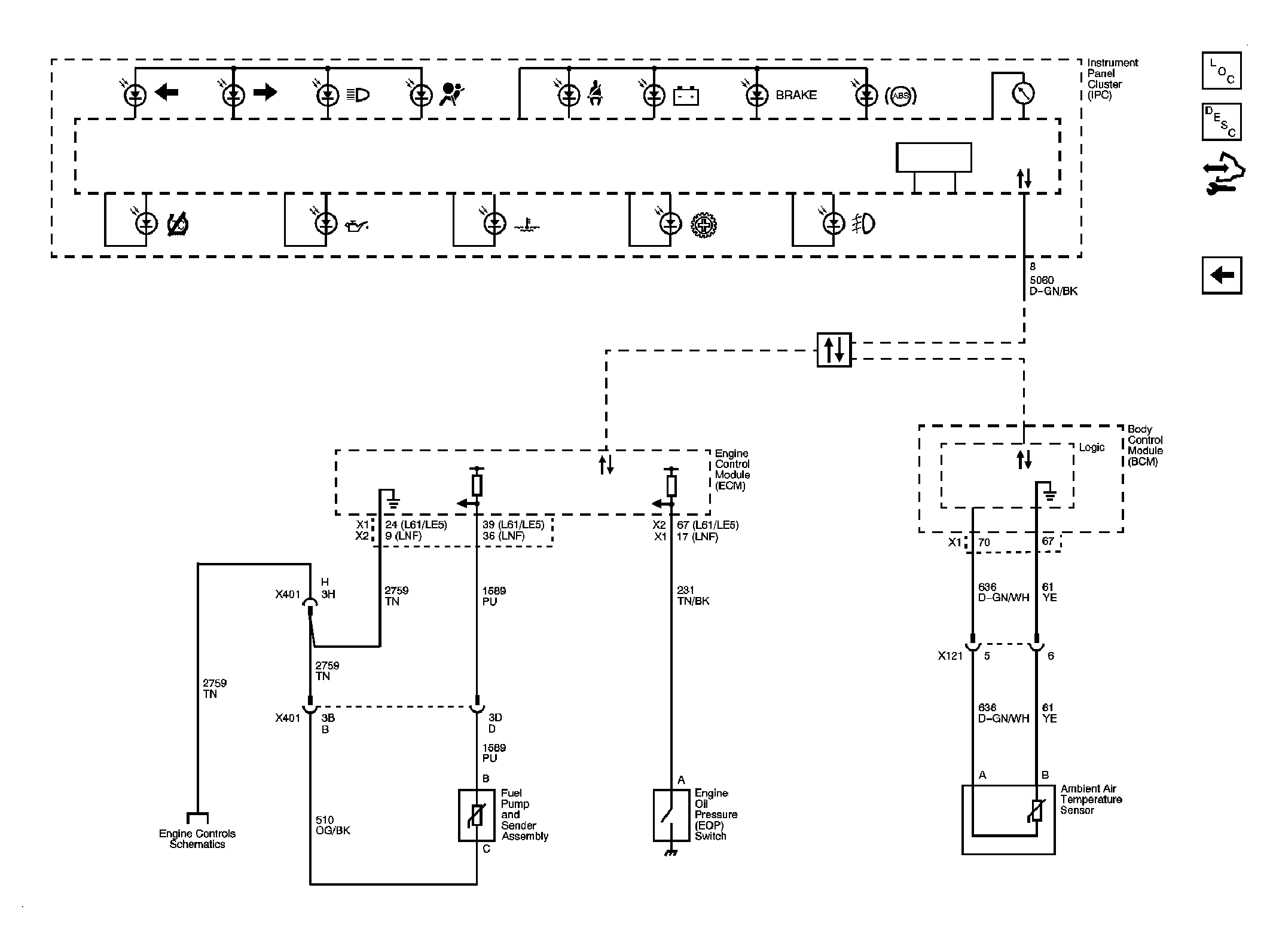

Fig 2: Ambient Air Temperature Sensor, EOP Sensor, Fuel Level Sensor and Indicators Schematic
GM1887732Courtesy of GENERAL MOTORS CORP.
