Sunroof Schematics
Sunroof Schematics

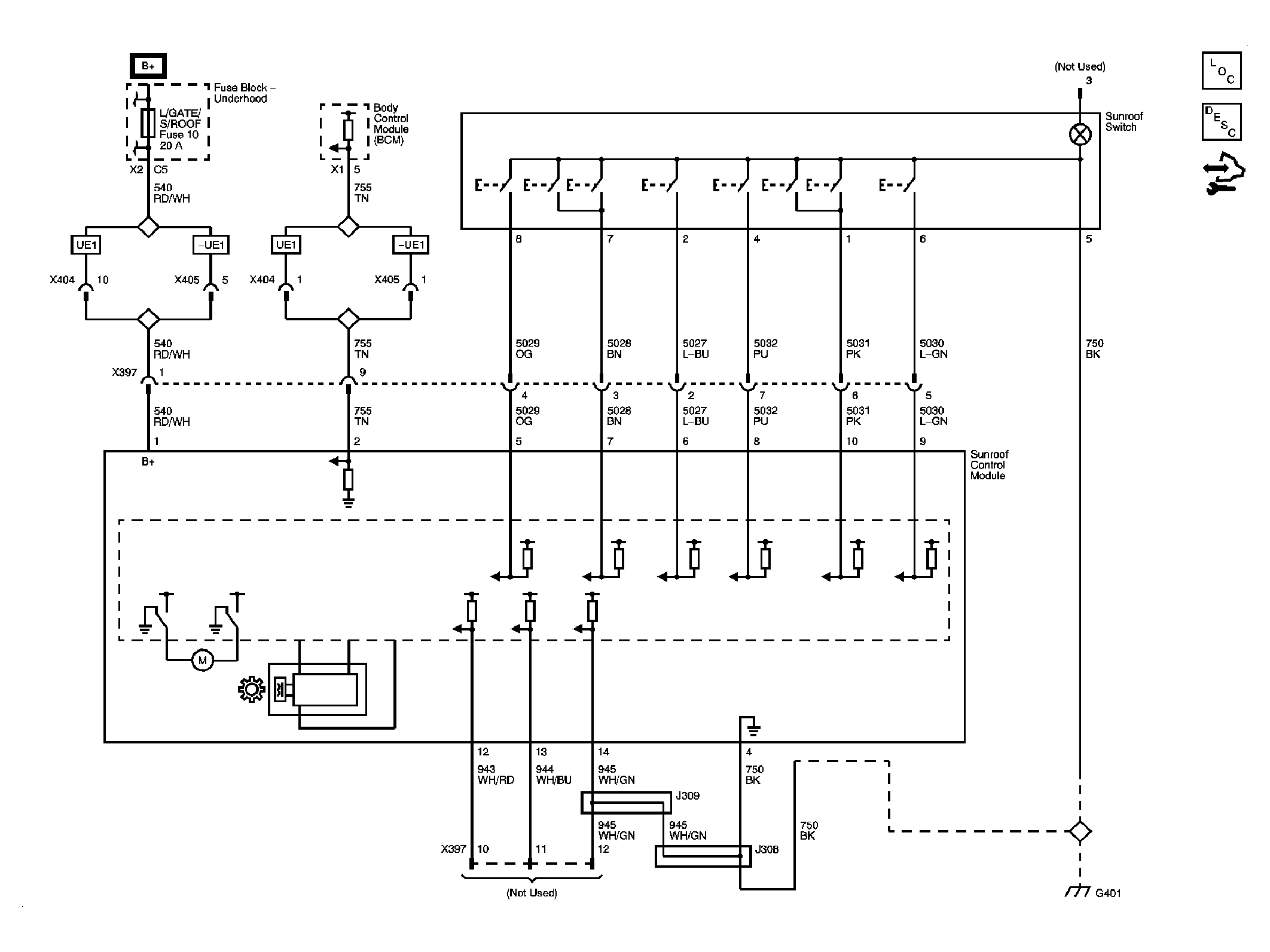

Fig 1: Power Sunroof Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
