Heated/Cooled Seat Schematics

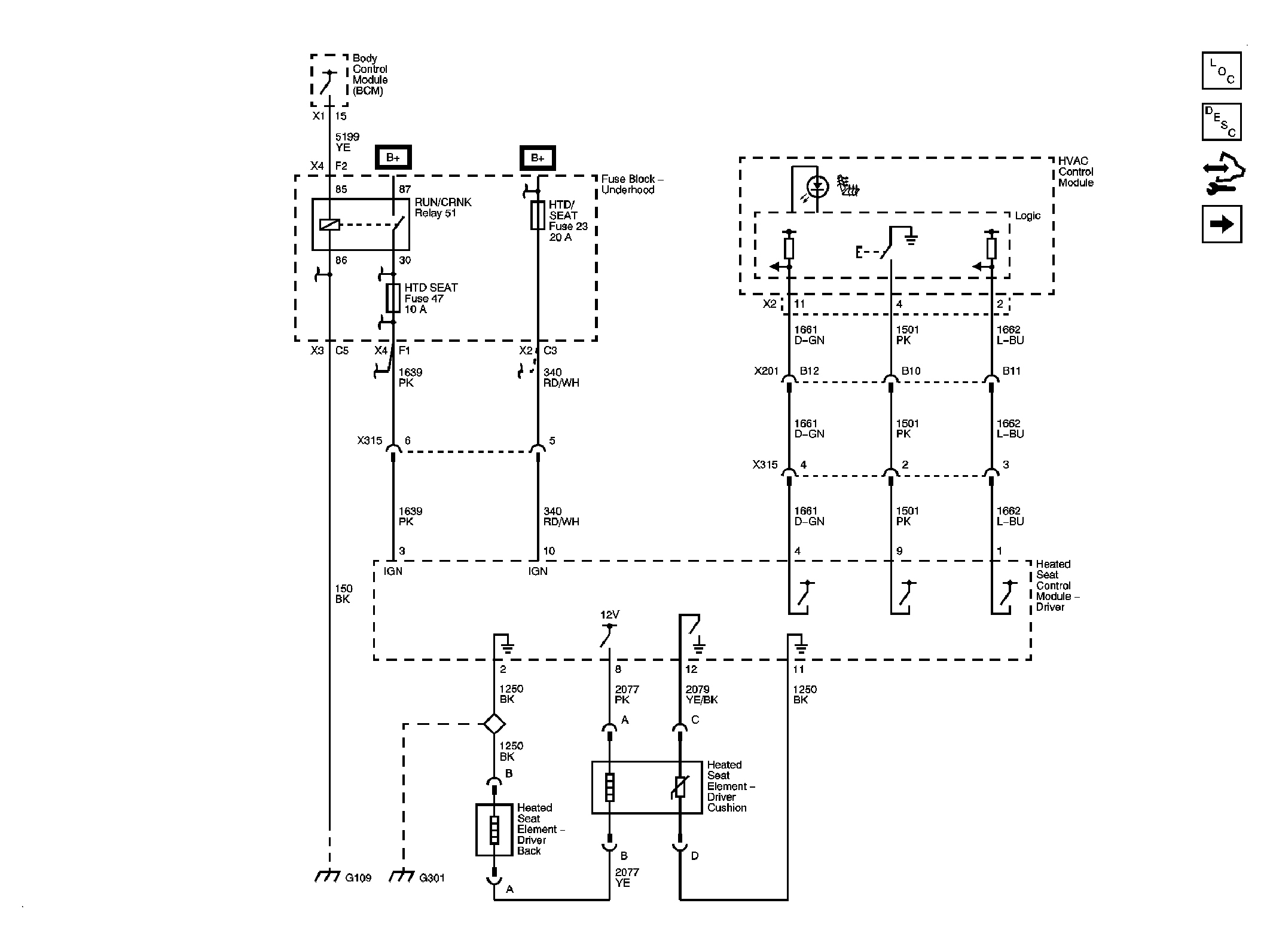

Fig 1: Heated Seat - Driver Schematic

GM1887801

Courtesy of GENERAL MOTORS CORP.

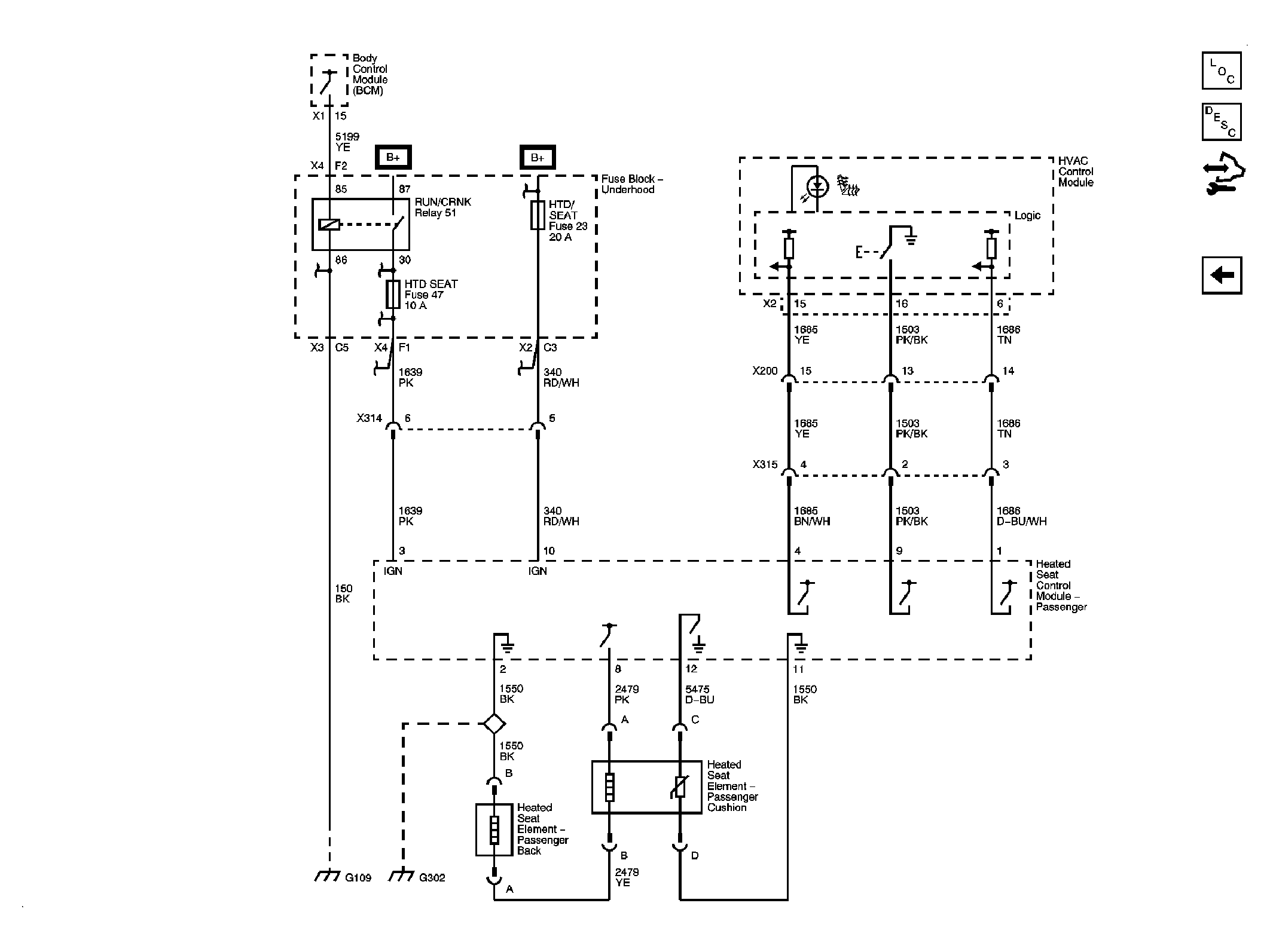

Fig 2: Heated Seat - Passenger Schematic

GM1887803

Courtesy of GENERAL MOTORS CORP.
