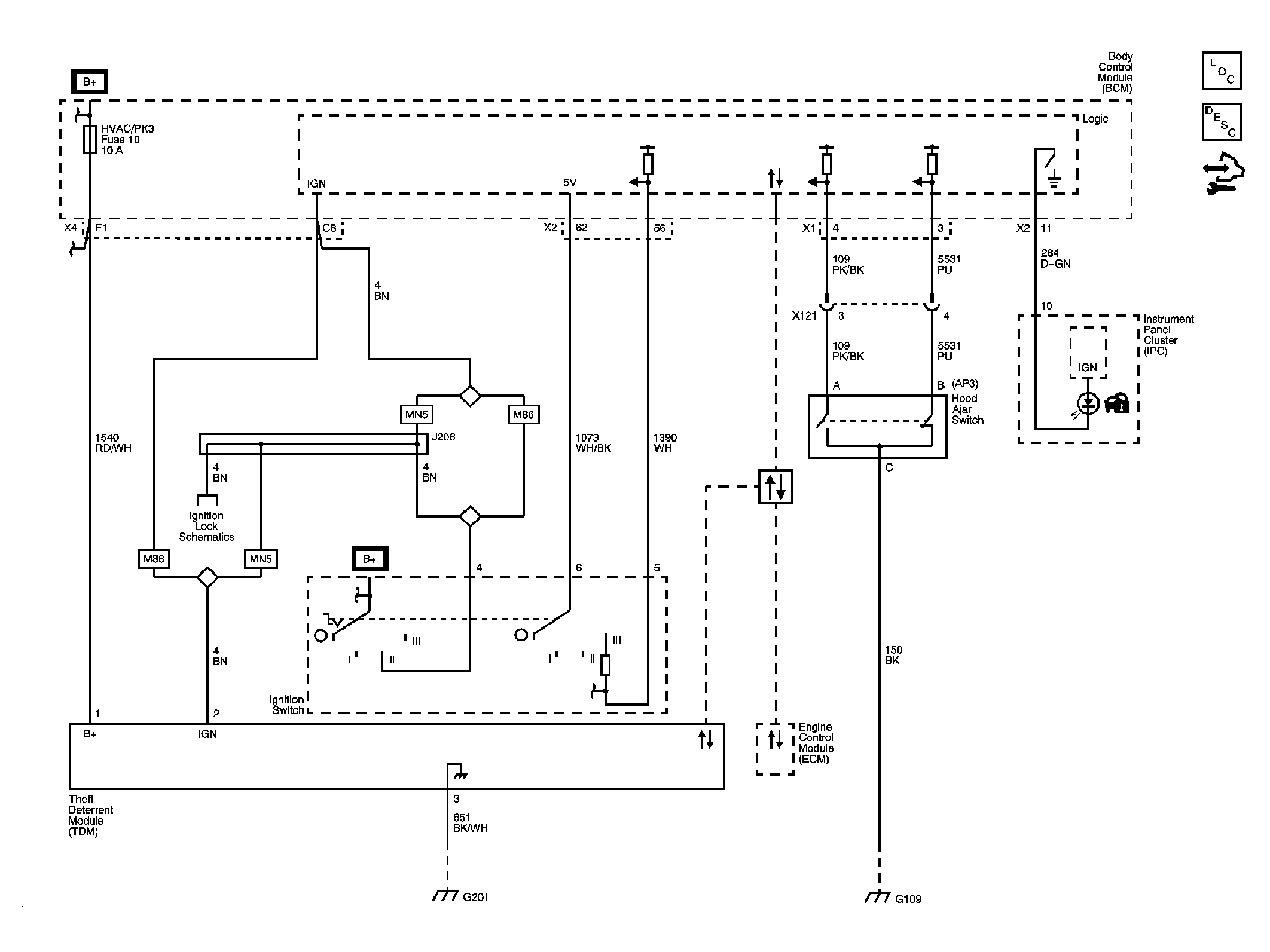

Home >> Chevrolet >> 2008 >> HHR LS, Automatic >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic and Routing Diagrams >> Immobilizer Schematics
