Windshield Garnish Molding Replacement

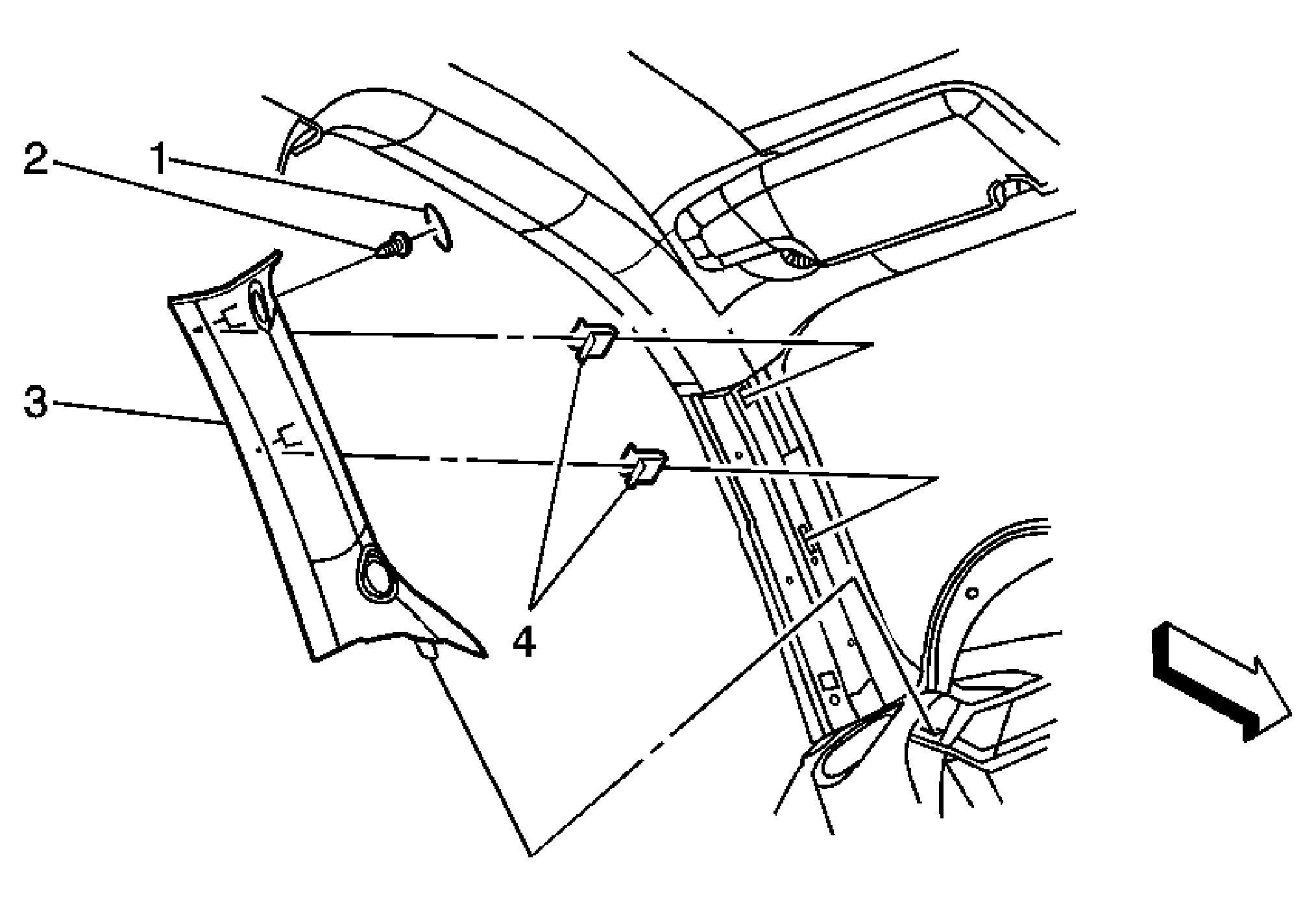

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Disable the roof rail SIR system. Refer to SIR Disabling and Enabling
. |
|
| 1 | Cover, Windshield Side Garnish Molding |
| 2 | Screw, Windshield Side Garnish Tighten: 9 N.m (80 lb in) |
| 3 | Molding Assembly, Windshield Garnish Tip: Disconnect the electrical connector. |
| 4 | Clip, Windshield Side Garnish Molding (Qty: 2) |
