Sunshade Replacement

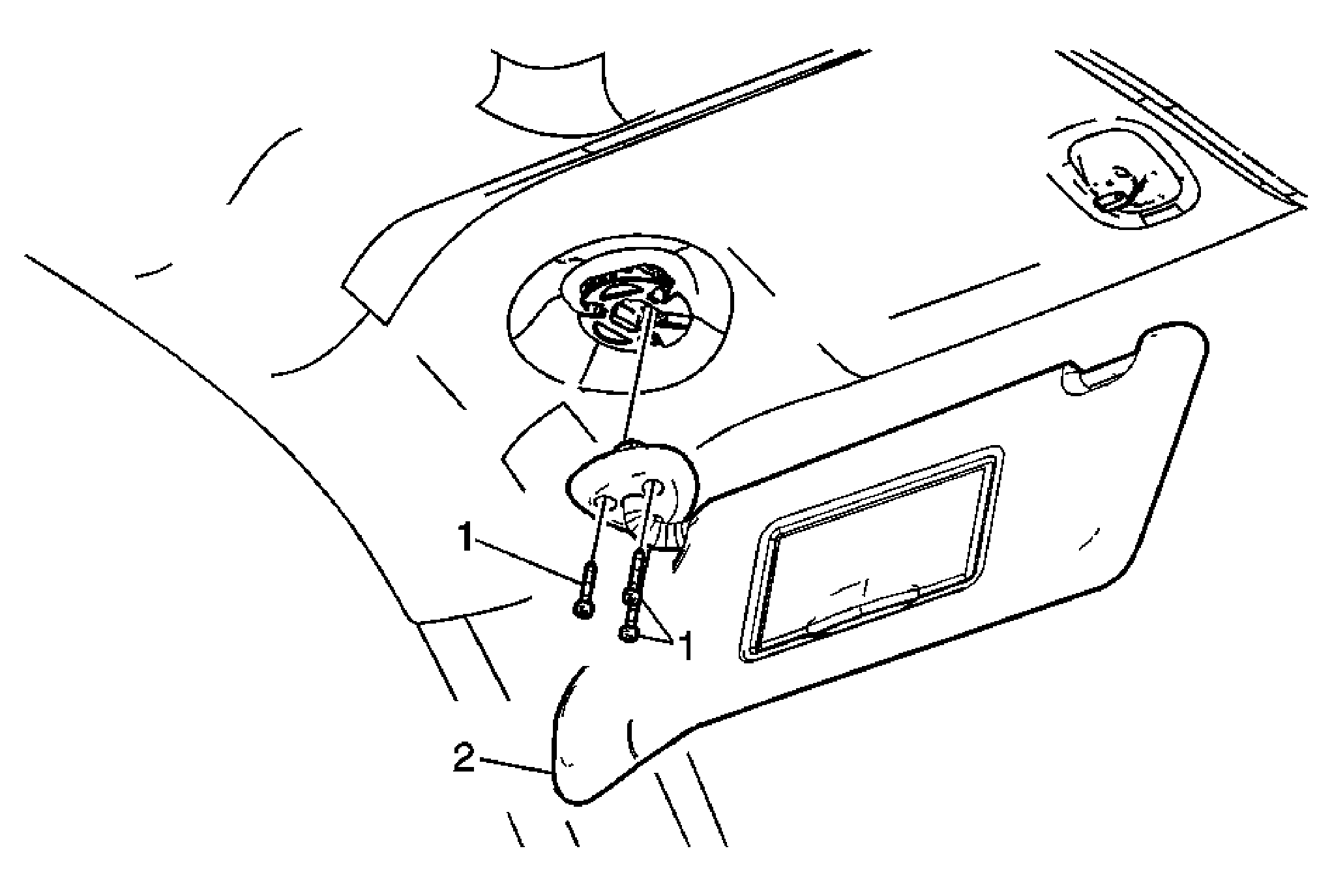

Fig 1: Sunshade Replacement
GM1607509Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Screw, Sunshade (Qty: 3)

Tighten:  3 N.m (25 lb in)
2 Sunshade Assembly
