Center Pillar Upper Trim Panel Replacement

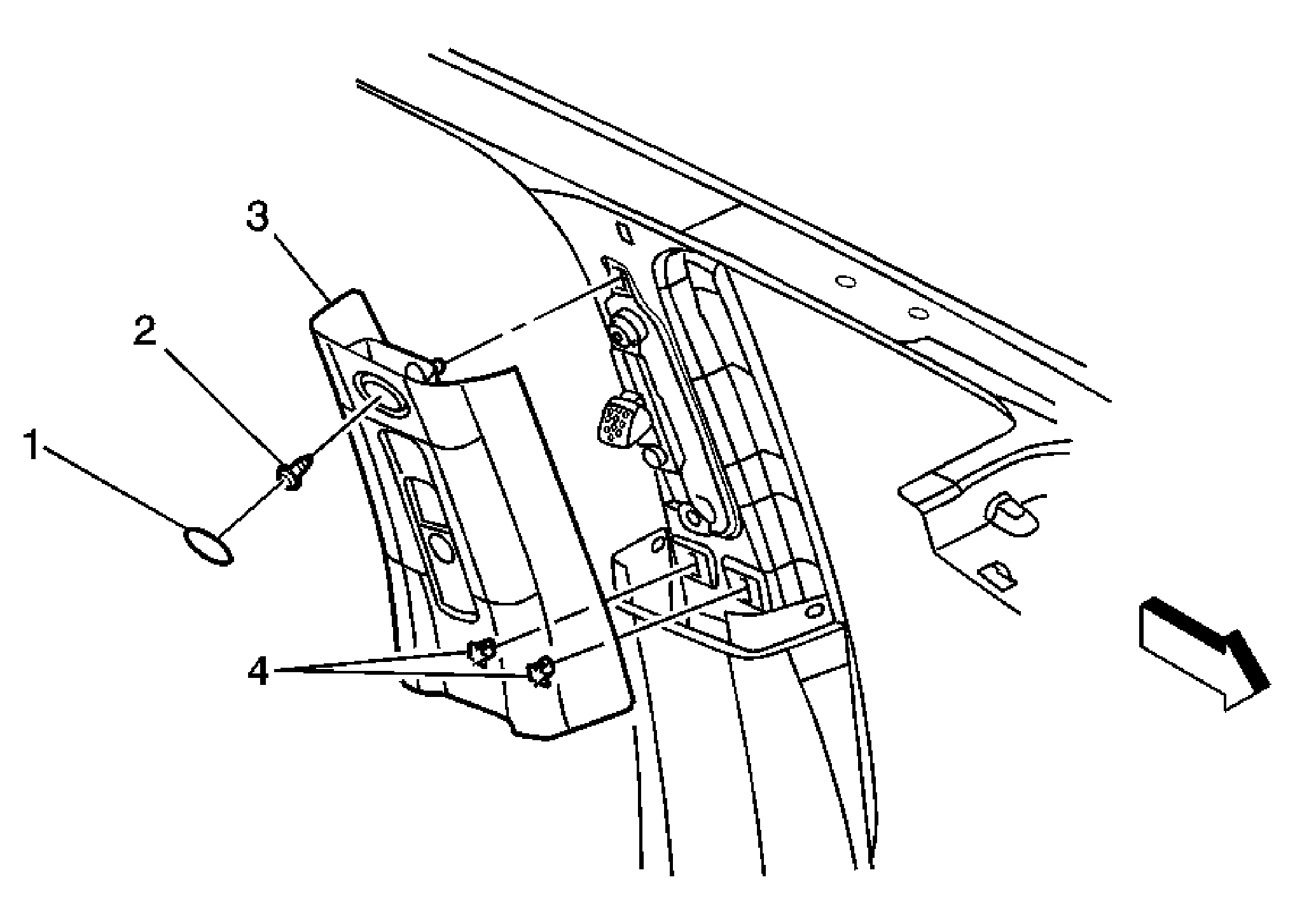

Fig 1: Center Pillar Upper Trim Panel Replacement
GM1606594Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedures: Disable the roof rail SIR system. Refer to SIR Disabling and Enabling .
1 Cover, Upper Garnish Molding
2 Screw, Upper Garnish Molding

Tighten:  2 N.m (18 lb in)
3 Panel Assembly, Center Pillar Upper Trim
  1. Remove the seat belt D-ring from the adjuster assembly.

    Tighten:  43 N.m (32 lb ft)

  2. Pull the trim panel toward the inside of the vehicle to disengage the retainers.
4 Clip, Center Pillar Upper Trim (Qty: 3)
