Data Communication Schematics

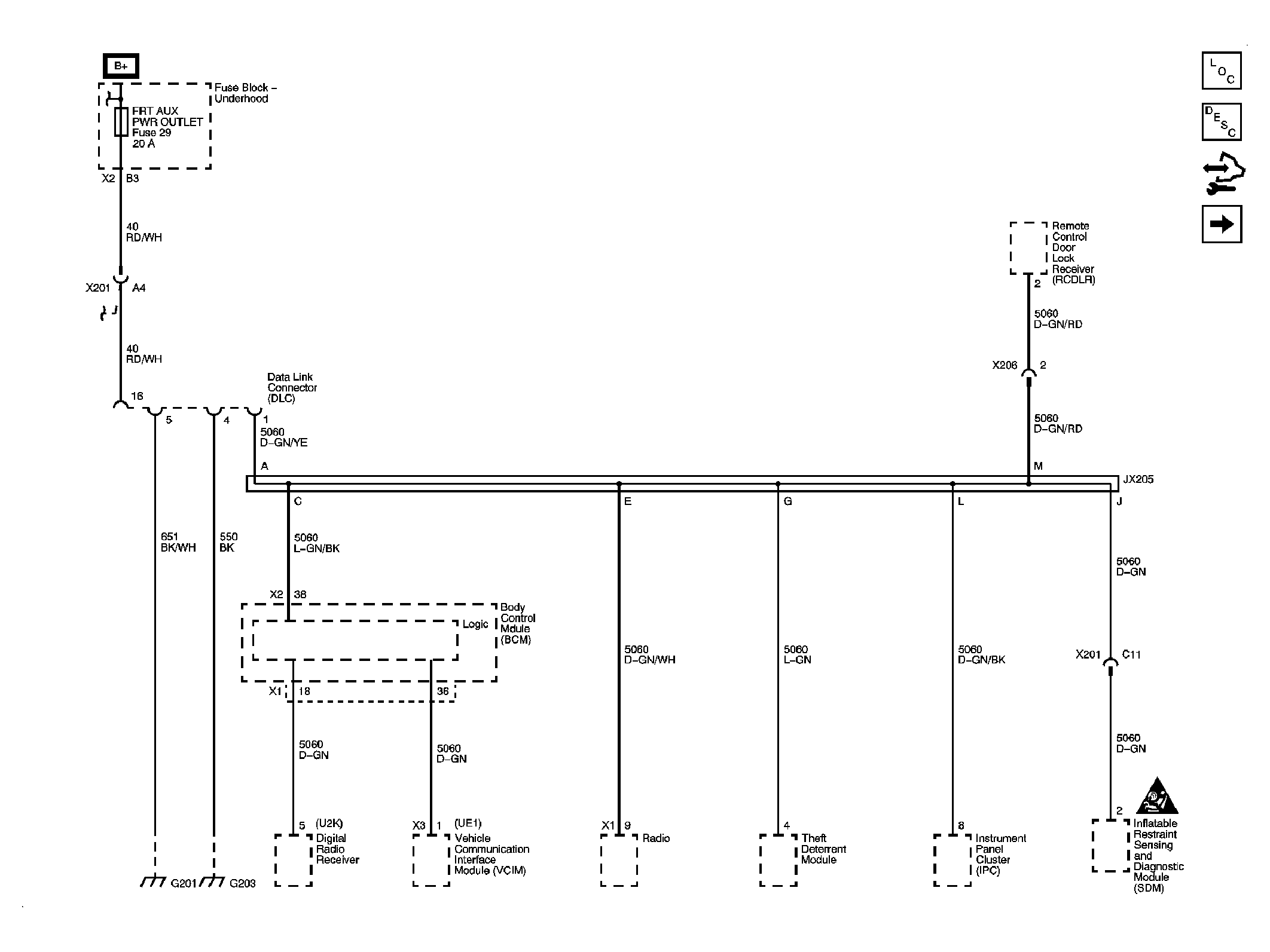

Fig 1: DLC Power, Ground And Low Speed GMLAN - Schematic

GM1887751

Courtesy of GENERAL MOTORS CORP.

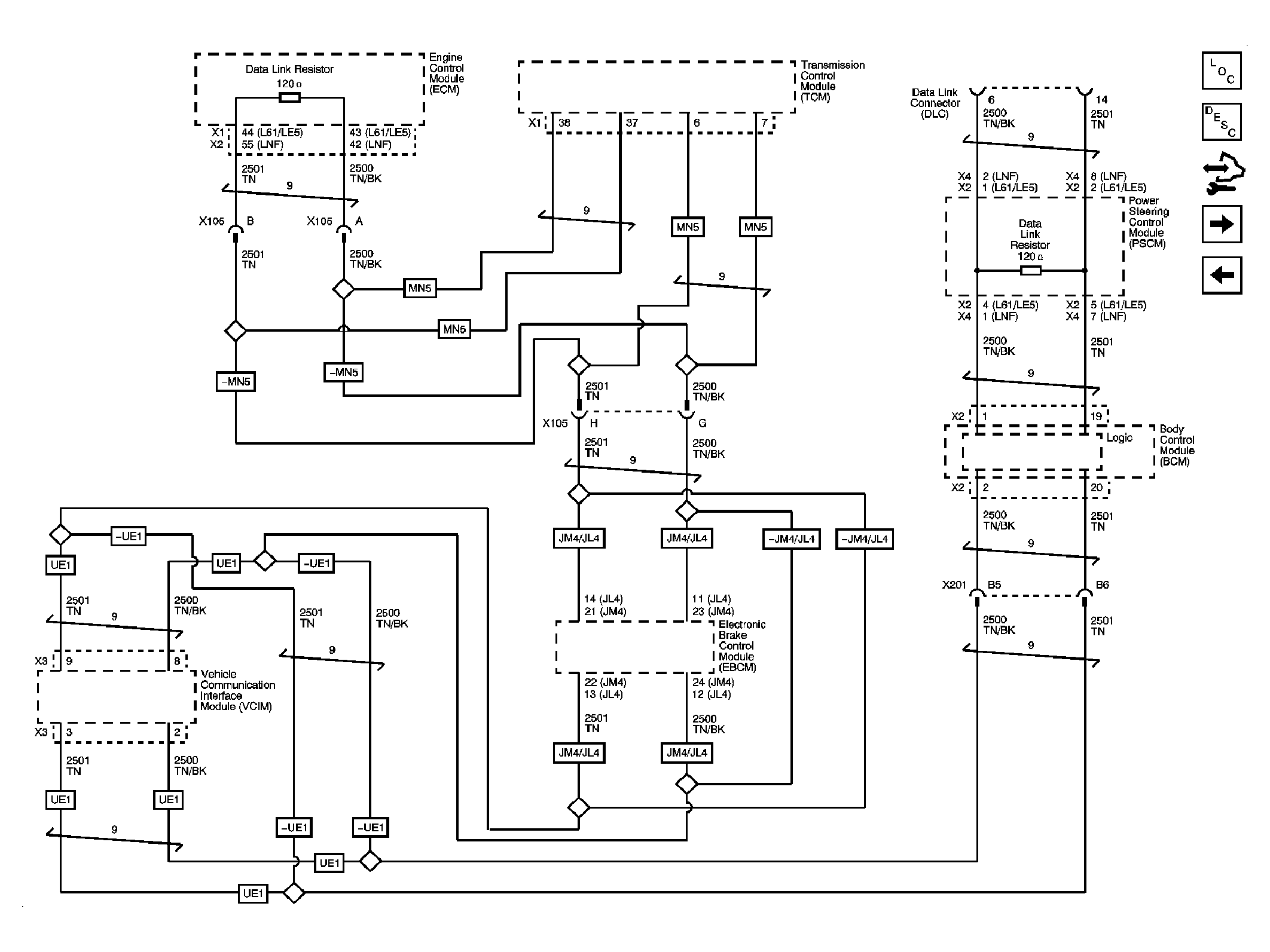

Fig 2: High Speed GMLAN - Schematic

GM1887753

Courtesy of GENERAL MOTORS CORP.
