Home
>>
Chevrolet
>>
2008
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Underhood Relay Block (Wire Entry) (Panel Van)
Underhood Relay Block (Wire Entry) (Panel Van)
Electrical Center Identification Views

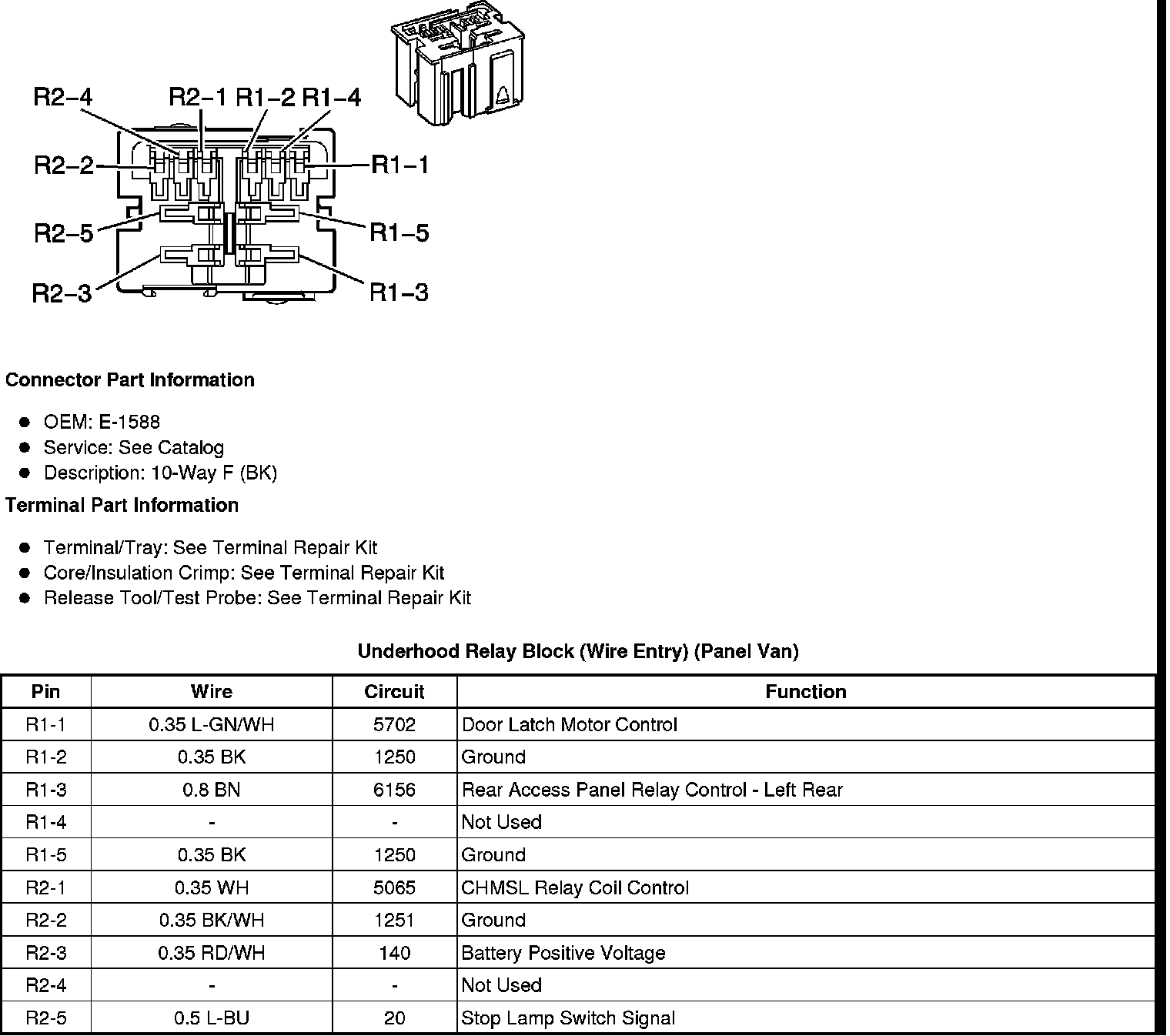

Underhood Relay Block (Wire Entry) (Panel Van)
